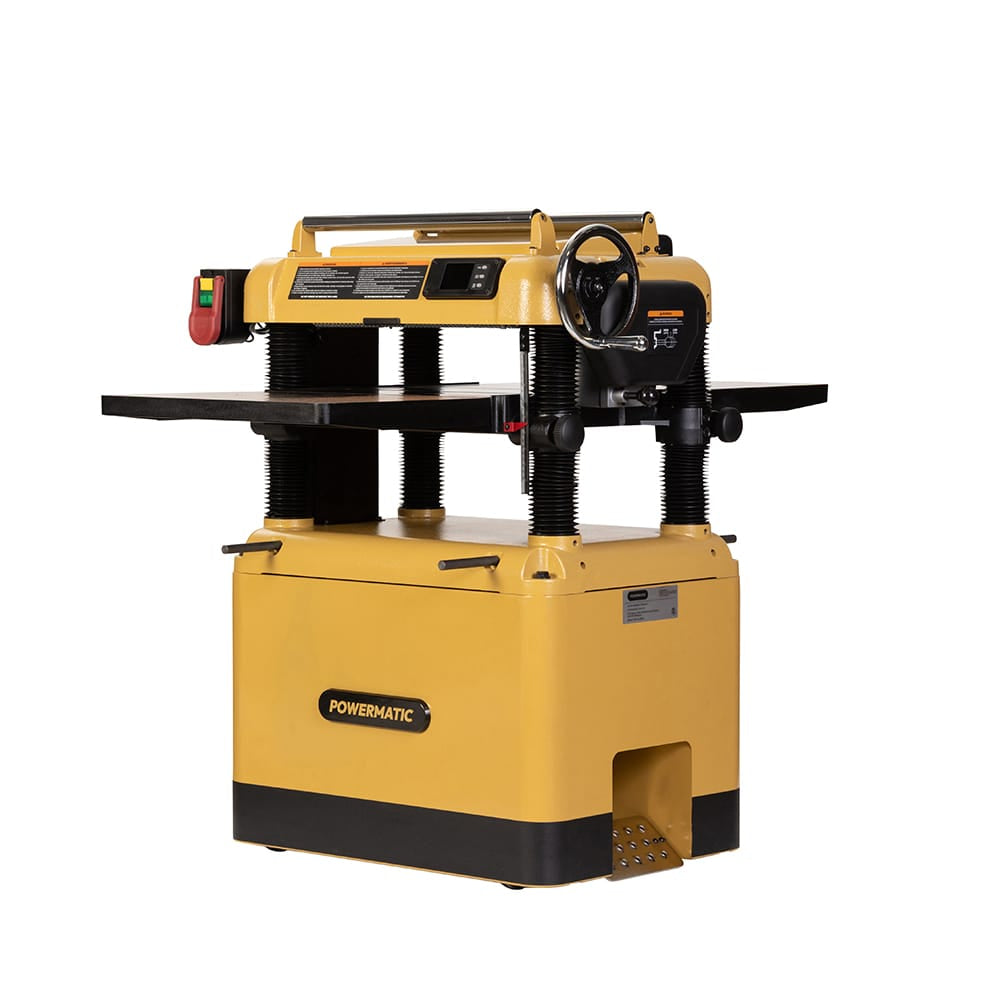

The Powermatic 209BHH-3 Planer PM1-479 is a 20" wood planer designed for shops running three-phase power that require consistent output across wide material. A 5 HP motor with dual voltage capability at 230/460V maintains feed rate through dense hardwoods and larger panels without hesitation, supporting steady production work.

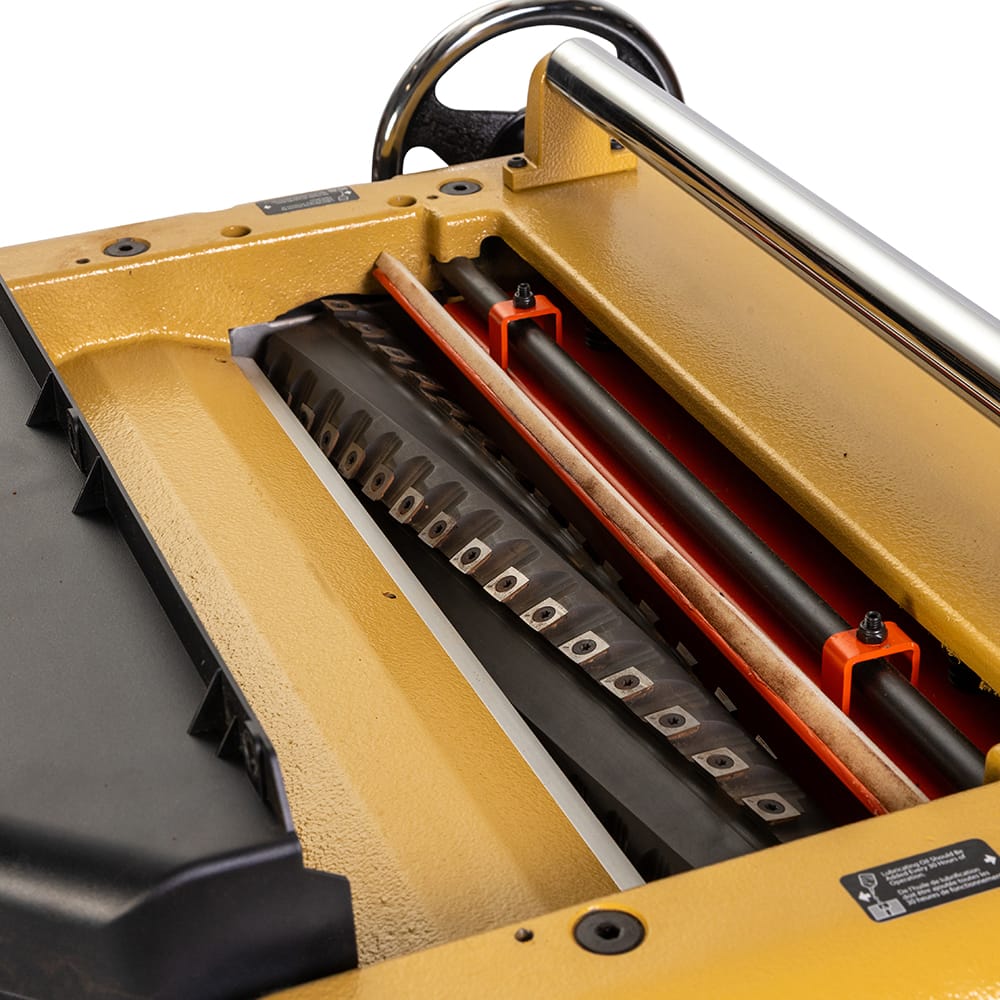

A four-row helical cutterhead with 68 carbide inserts rotates at 5,200 RPM to reduce tearout and limit noise during operation. Insert rotation extends usability and keeps surface quality consistent over longer runs. Two feed speeds give control over material removal without interrupting workflow, letting operators shift from rough stock reduction to finish passes with minimal adjustment.
Cast iron infeed and outfeed tables provide the weight needed to stabilize longer stock as it passes through the cutterhead. The extended 51-1/2" table length helps keep boards aligned across the full 20" cutting width. A digital readout supports accurate thickness adjustments, reducing the need for repeated test cuts. A dust collection port rated at a 900 CFM minimum keeps chips moving to prevent buildup and maintain cutterhead efficiency.
This woodworking planer supports high-output environments where wider capacity and consistent results are required across repeated passes.
Features:
- Four-row helical cutterhead with 68 four-sided inserts
- Two-speed feed rate for material removal and finishing control
- Digital readout for repeatable thickness settings
- Solid cast iron infeed and outfeed tables
- Cutterhead access for insert rotation and replacement
- 4" bi-directional dust port for chip management
- Oversized emergency stop for quick shutdown

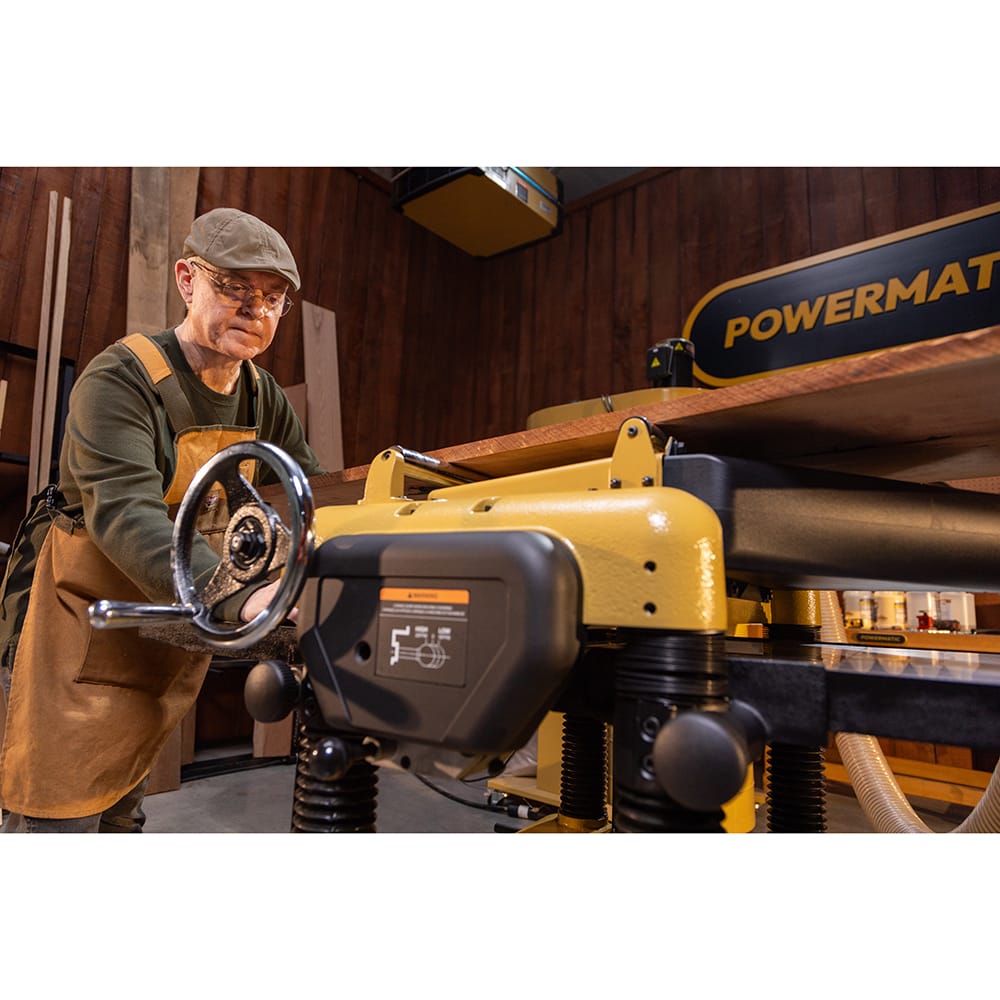

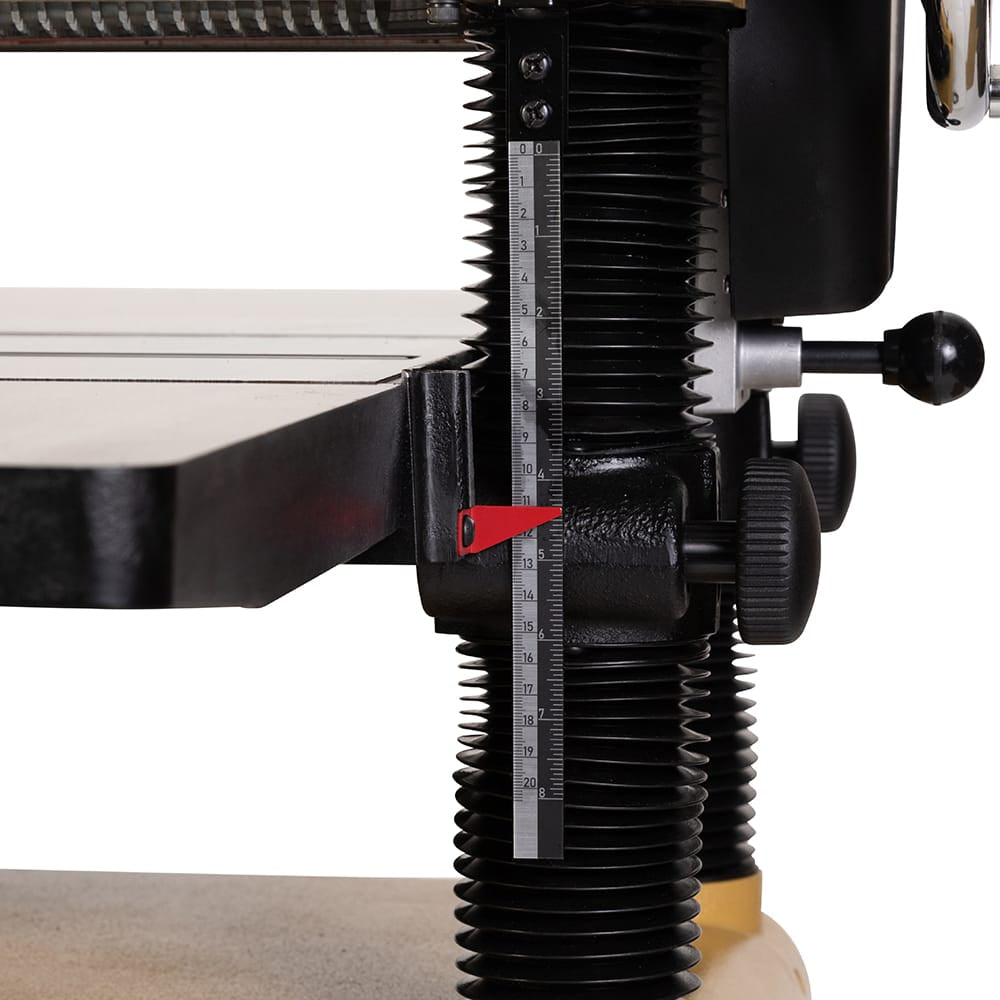

- Height adjustment handle for controlled table positioning

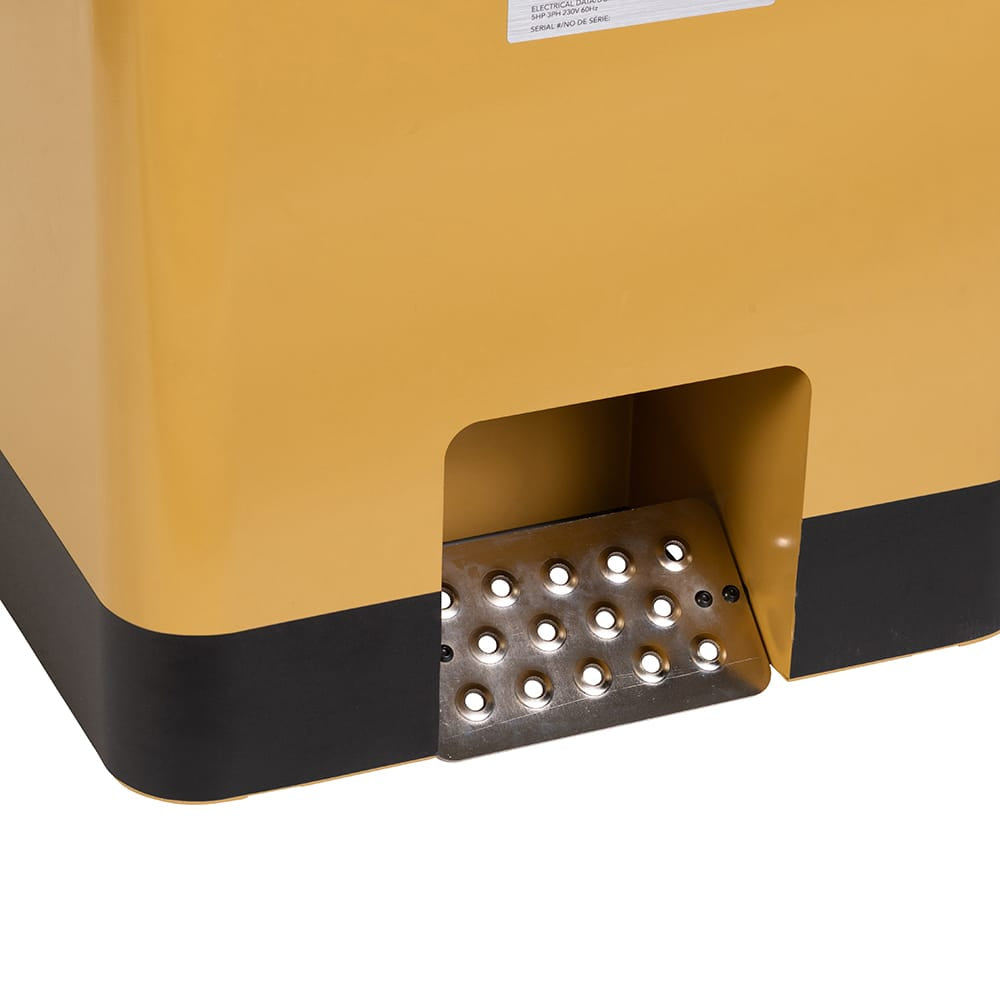

- Caster locking and braking system for mobility and stability
- Dual lifting handles for repositioning
Specifications:
- Model: 209BHH-3
- Stock Number: PM1-479
- Warranty: 5 Years
- Motor Power: 5 HP
- Phase: 3 PH
- Voltage: 230/460V
- Recommended Circuit Size: 40 A
- Max Cutting Width: 20"
- Max Cutting Thickness: 8"
- Min Cutting Thickness: 1/8"
- Full Width Cutting Depth: 3/32"
- Min Planing Length: 8"
- Cutterhead Type: 4 Rows, 68 Inserts
- Insert Size: 0.59" x 0.59" x 0.10"
- Cutterhead Speed: 5,200 RPM
- Cutterhead Diameter: 3-7/32"
- Minimum CFM Required: 900 CFM
- Feed Rate: 16/28 FPM
- Main Table Size: 21-1/2" x 20"
- Full Table Size: 51-1/2" x 20"
- Dust Port Diameter: 4"
- Overall Dimensions: 51-1/2" x 37-3/8" x 43-3/8"
- Packaging Dimensions: 37-5/8" x 29-23/32" x 50-3/16"
- Net Weight: 606 lb
- Shipping Weight: 704 lb
