Powermatic

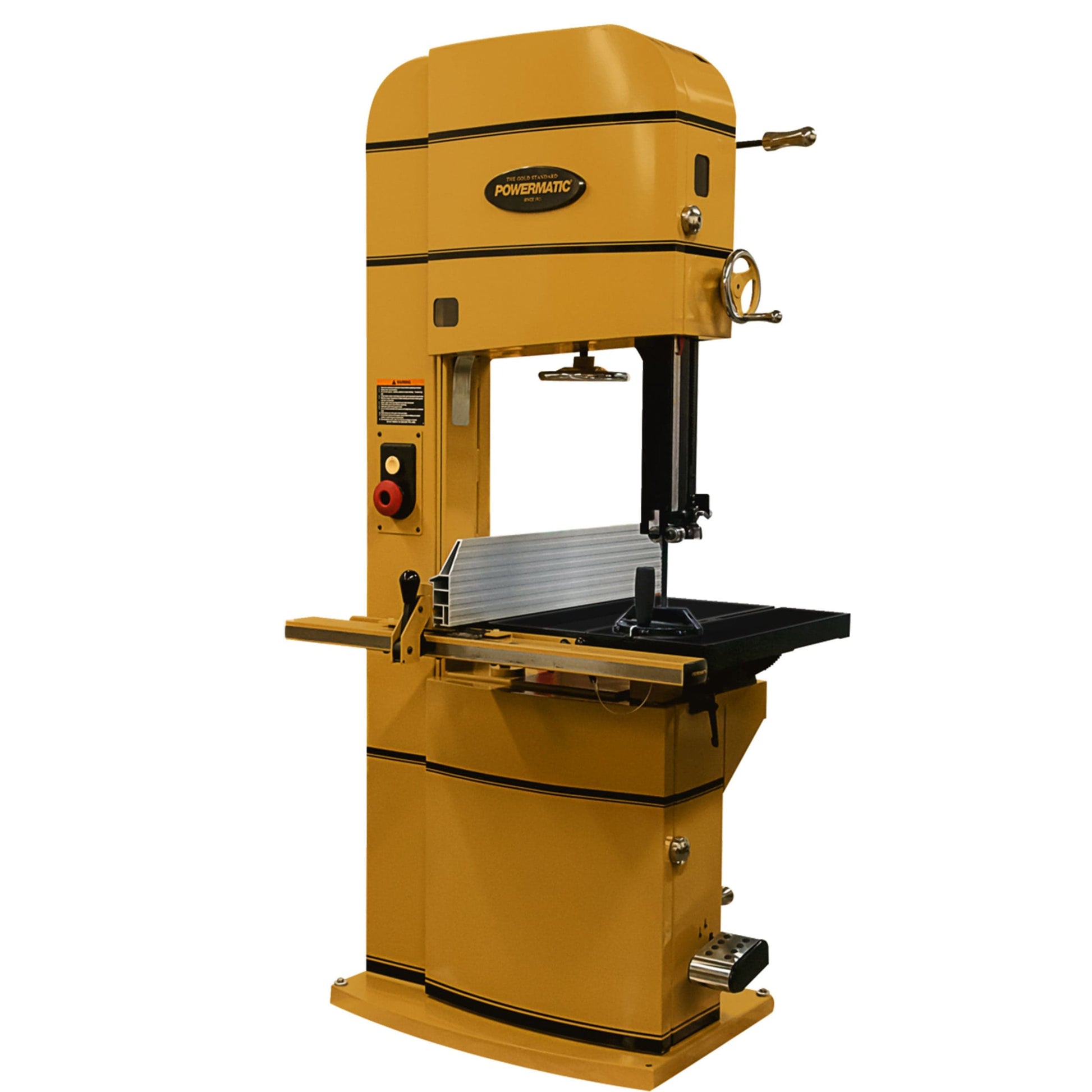

20" Woodworking Bandsaw with ArmorGlide - 5 HP, 3 PH 230V - PM2013B-3T

Item #189340 Model PM1-1791258BT
Regular price $7,799.99
Sale price $7,799.99 Regular price $7,799.99

This item has an additional shipping charge

Skip to product information
1 of 10

Powermatic

20" Woodworking Bandsaw with ArmorGlide - 5 HP, 3 PH 230V - PM2013B-3T

Item #189340 Model PM1-1791258BT
Regular price $7,799.99
Sale price $7,799.99 Regular price $7,799.99

This item has an additional shipping charge

20" Woodworking Bandsaw - 5 HP, 3 PH 230V, ArmorGlide - PM2013B-3T, at Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Details

20" Woodworking Bandsaw - 5 HP, 3 PH 230V, ArmorGlide - PM2013B-3T, at Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw, now featuring our ArmorGlide Technology that is low-friction and rust-resistant, includes the legendary quality, precision, and attention to detail that has been helping woodworkers expand their ambition for more than 100 years.


Features:



  • Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned

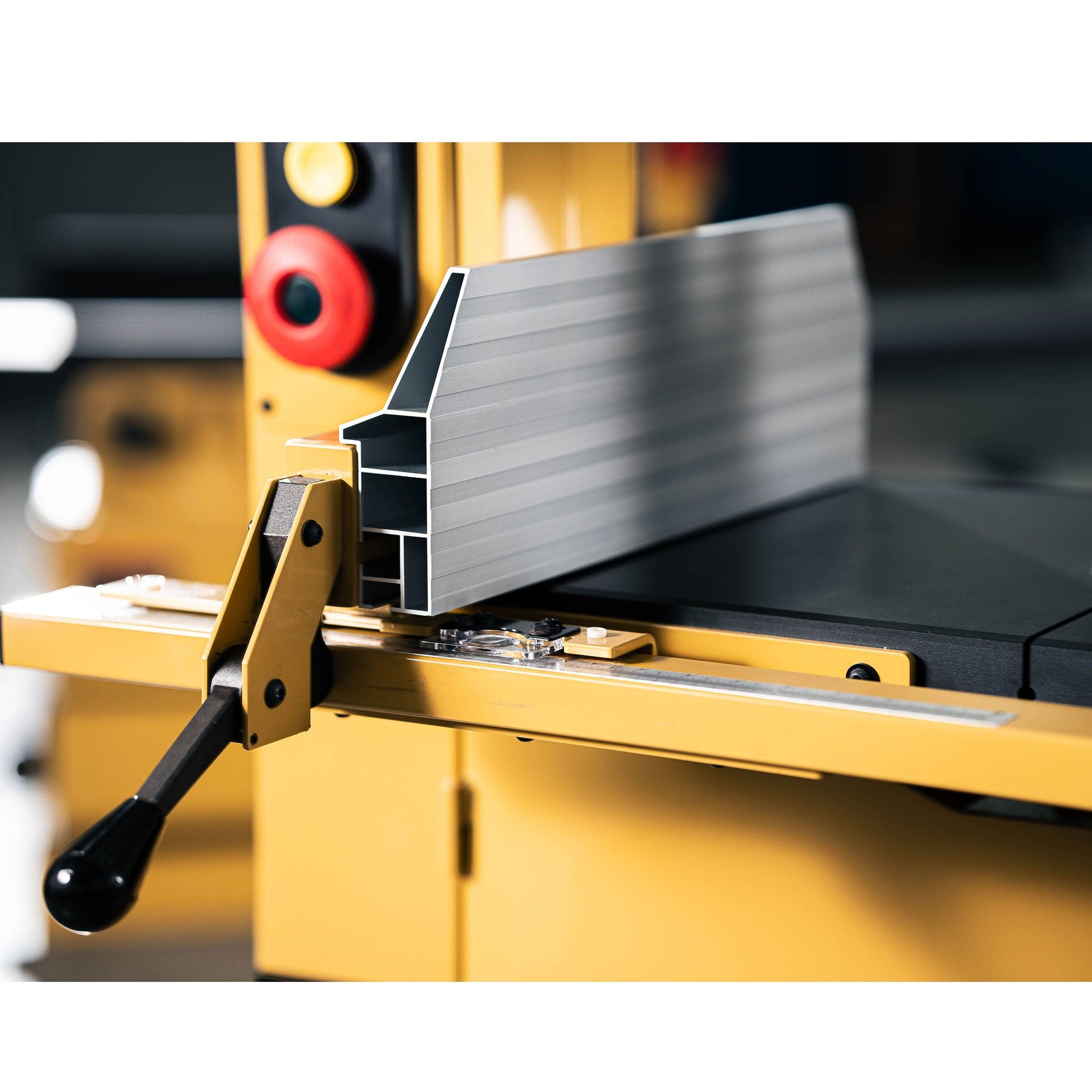

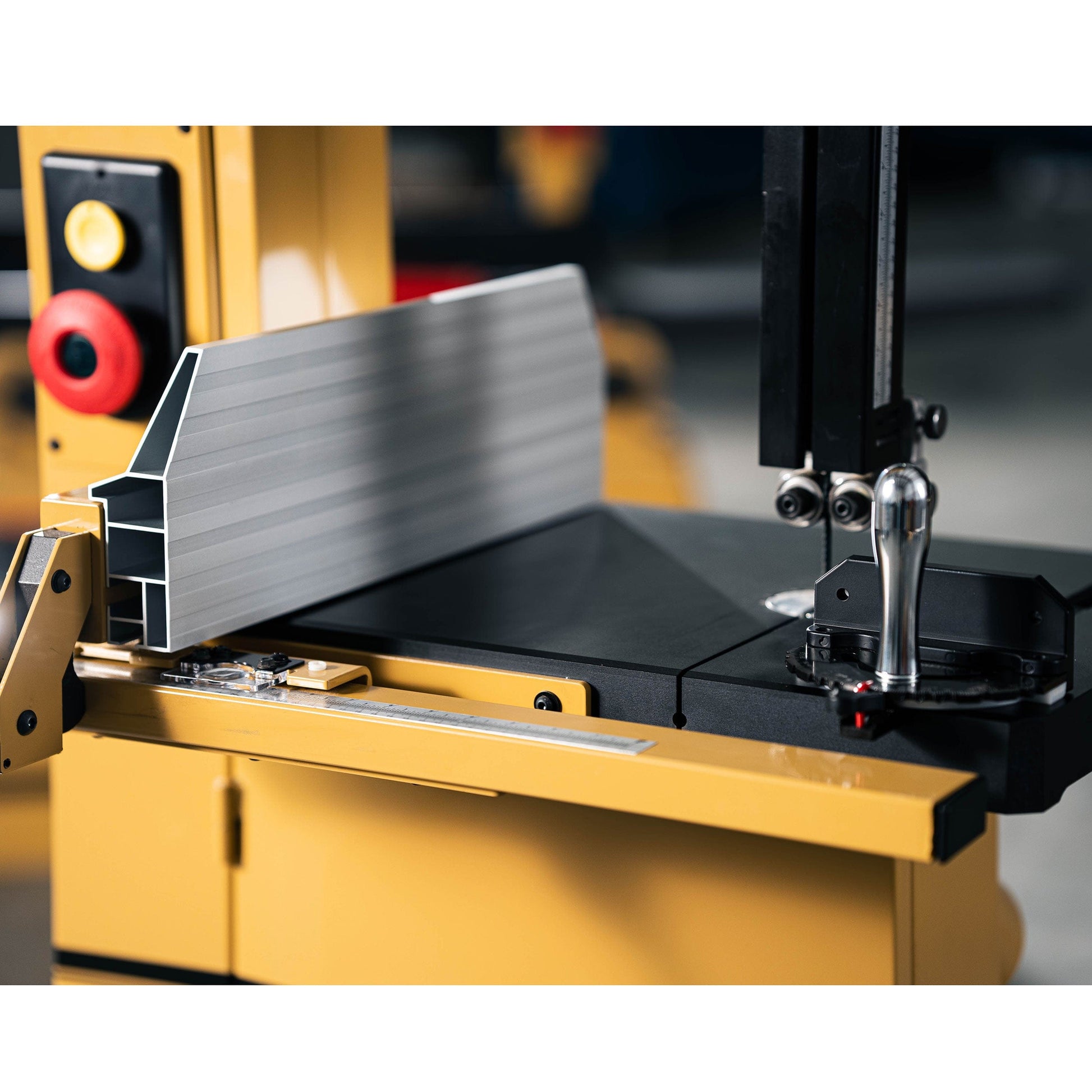

  • Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
  • Heavy duty upper wheel support and tracking mechanism for smooth operation

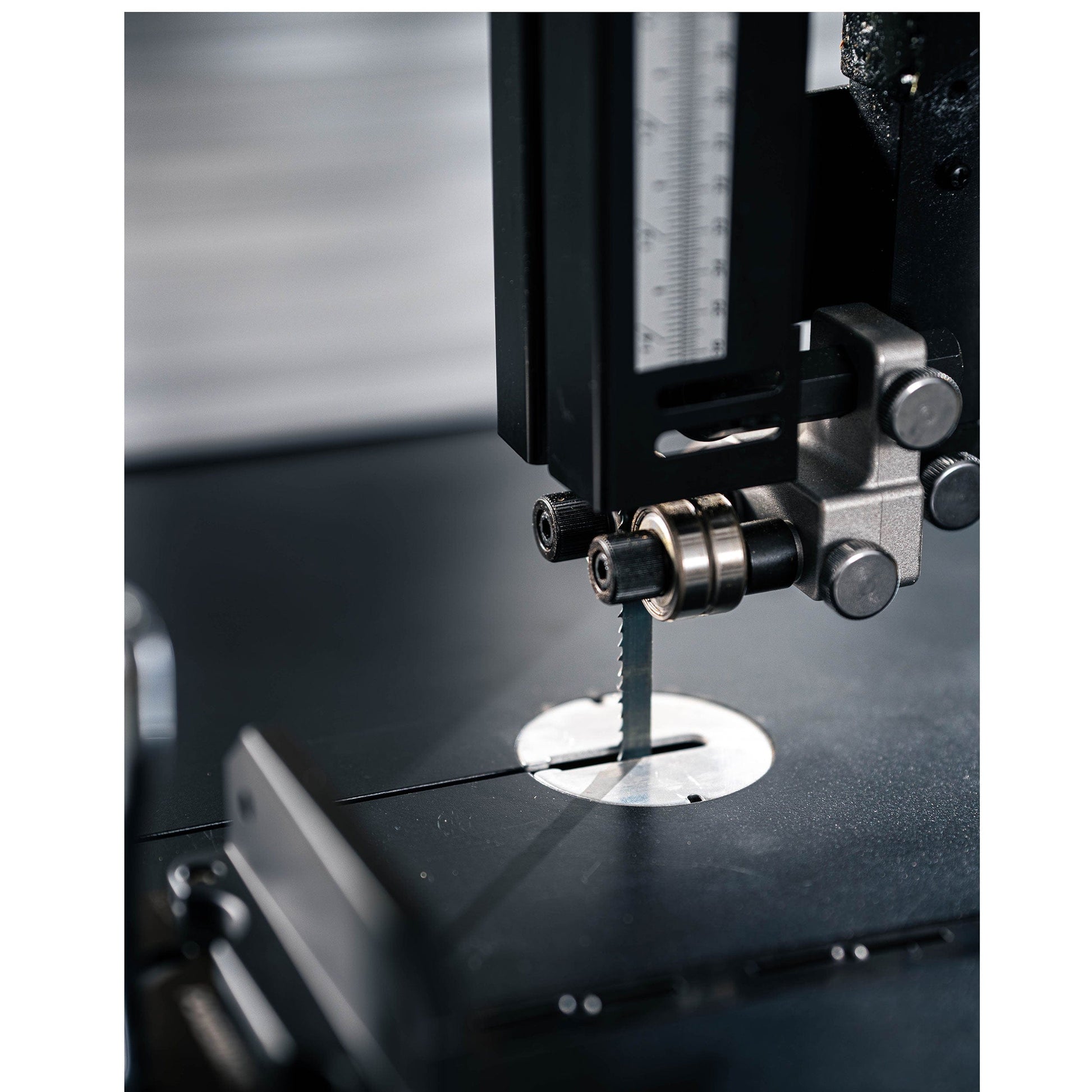

  • High end blade guides with tool less adjustment provide stability, increasing cut accuracy
  • Rack and pinion table tilt system allows for easy and accurate adjustments
  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw

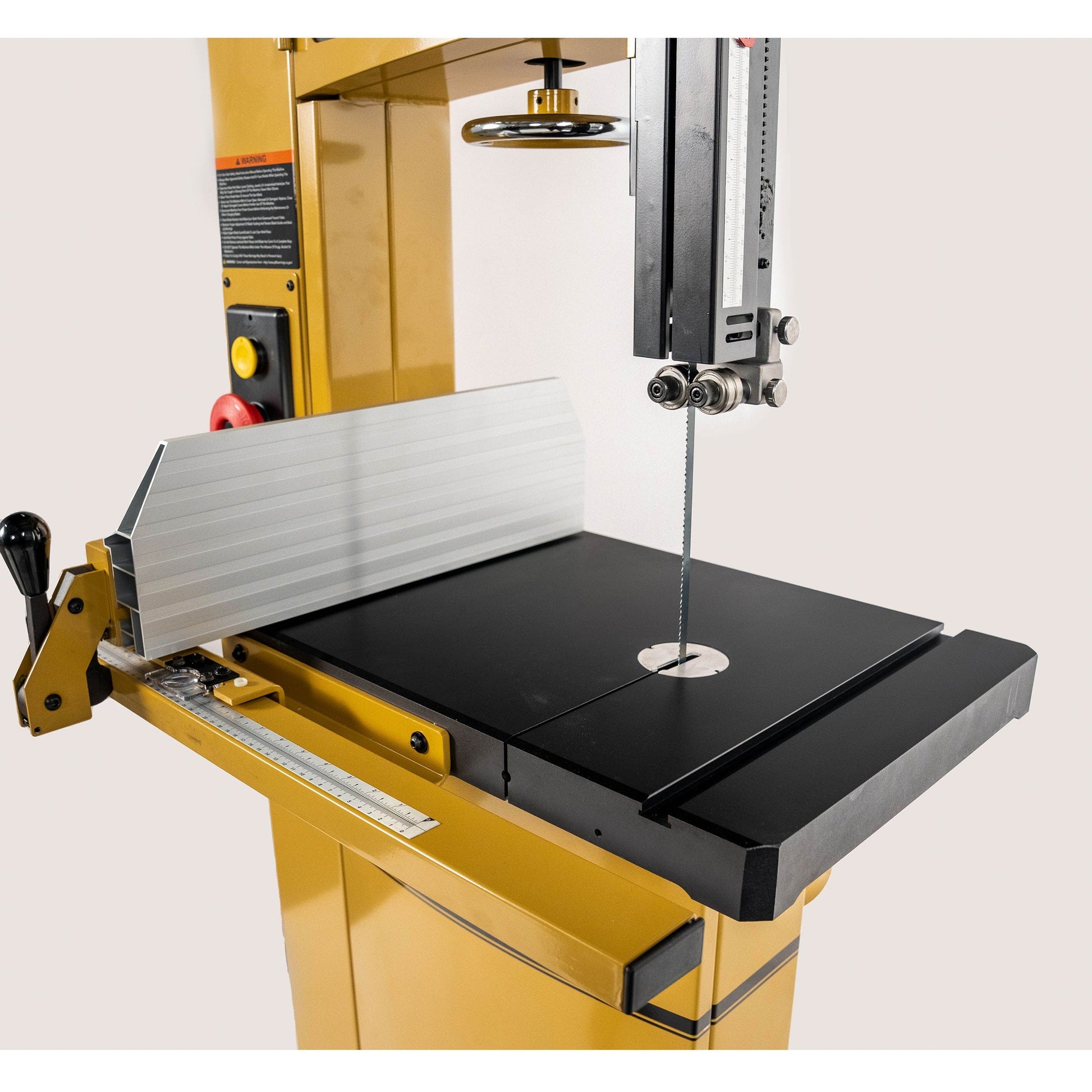

  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table


Specifications:



  • Blade Length: 170"
  • Minimum Blade width: 1/4"
  • Maximum Blade Width: 1-1/2"
  • Blade Speed: 2300 / 4400 SFPM
  • Wheel Diameter: 20"
  • Cutting Capacity Height: 18"
  • Cutting Capacity: 20"
  • Dust Collection Minimum: 600CFM
  • Dust Port Size: 4"
  • Motor: 5HP, 3PH, 230V
  • Recommended Circuit Size: 20 Amp
  • Table Dimensions: 24"L x 27"W x 2" thick
  • Table Tilt (Degrees): 45 Right / 10 Left
  • Table Height from Floor: 36"
  • Miter T-Slot: 7/8" W x 3/8"D, opening 3/4"W
  • Assembled Dimensions: 41-1/2" x 42" x 81-1/2, 854 lbs.
  • Shipping Dimensions: 40" x 33-1/4" x 87-1/2", 953 lbs.
  • Plug not included, unit should be direct wired

What's Included:

  • (1) Powermatic - 20" Woodworking Bandsaw with ArmorGlide - 5 HP, 3 PH 230V - PM2013B-3T


Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 4 -7 approximately business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
