Powermatic

20" Woodworking Bandsaw - 5 HP 3 Ph 230/460V - PM2013B-3

Item #863613 Model PM9-1791258B
Regular price $7,499.99
Sale price $7,499.99 Regular price $7,499.99

This item has an additional shipping charge

Skip to product information
1 of 8

Powermatic

20" Woodworking Bandsaw - 5 HP 3 Ph 230/460V - PM2013B-3

Item #863613 Model PM9-1791258B
Regular price $7,499.99
Sale price $7,499.99 Regular price $7,499.99

This item has an additional shipping charge

The Powermatic® PM2013B-3 Bandsaw is a professional-grade tool designed for accuracy, durability, and safety in woodworking applications. It featu. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Items you may need

  • Saw Blade Lubricant

    Regular price $11.99
    Sale price $11.99 Regular price $11.99
    Saw Blade Lubricant alt 0
  • Pro Force Bandsaw Blade - 170" x 1/2" x .025" x 14 TPI

    Regular price $49.49
    Sale price $49.49 Regular price $54.99
    Pro Force Bandsaw Blade - 170" x 1/2" x .025" x 14 TPI alt 0
  • Pro Force Bandsaw Blade - 170" x 1/4" x .025" x 14 TPI

    Regular price $49.49
    Sale price $49.49 Regular price $54.99
    Pro Force Bandsaw Blade - 170" x 1/4" x .025" x 14 TPI alt 0
  • Resaw King Bandsaw Blade - 170" x 1" x .024" x Variable TPI

    Regular price $179.99
    Sale price $179.99 Regular price $199.99
    Resaw King Bandsaw Blade - 170" x 1" x .024" x Variable TPI alt 0
  • Urethane Bandsaw Tires for 20" Bandsaws

    Regular price $78.99
    Sale price $78.99 Regular price $78.99
    Urethane Bandsaw Tires for 20" Bandsaws alt 0

Details

The Powermatic® PM2013B-3 Bandsaw is a professional-grade tool designed for accuracy, durability, and safety in woodworking applications. It features a sturdy cast iron table, trunnion assembly for maximum rigidity, and an exclusive Accu-Fence system that provides complete adjustability for precise cuts. This bandsaw includes a solid steel resaw post, a blade tension release with an electrical interlock and high-end blade guides for stability and accuracy. It also boasts a four-sided blade guard, an integrated foot brake, and a magnetic switch for enhanced safety. Your larger projects and workpieces call for more power, resaw capacity, and cast iron. The PM2013B-3 features legendary quality, precision, and attention to detail, helping woodworkers expand their ambition for over 100 years.

Features:


  • Heavy-duty 5 HP motor provides power needed for all projects

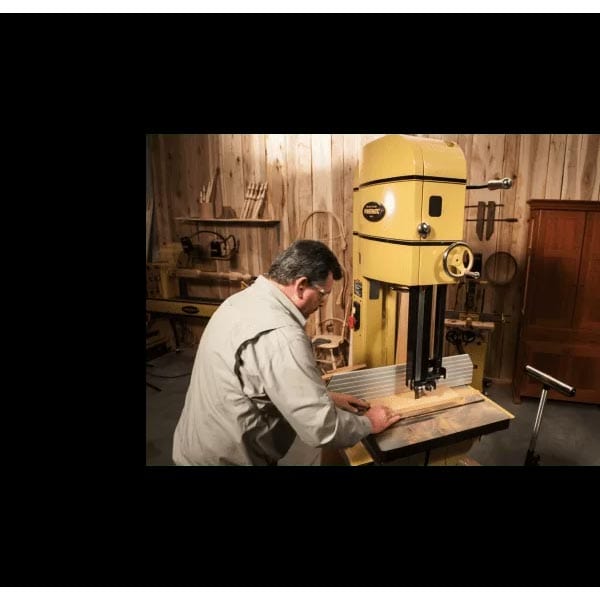

  • Fully adjustable, exclusive T-Square style Accu-Fence maximizes alignment to the blade and squaring to the table
  • Robust cast iron table and trunnion assembly provides maximum rigidity, offering stability and support for large workpieces
  • Positive locking cam with pressure adjustment allows for secure and stable fence positioning, preventing unwanted movement during operation
  • Oversized side plate provides versatility by allowing operation in both horizontal and vertical positions
  • Solid steel resaw post enhances rigidity, ensuring stability and accuracy during resawing operations
  • Blade tension release with an electrical interlock prevents the bandsaw from starting when the blade is de-tensioned

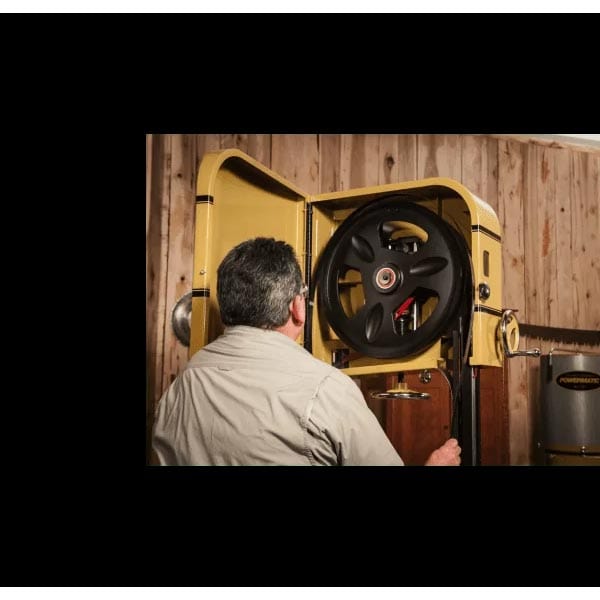

  • Heavy-duty upper wheel support and tracking mechanism contribute to smooth operation and precise blade tracking
  • Solid cast iron wheels reduce vibration and noise while providing the necessary momentum required for heavy resawing, ensuring efficient cutting performance

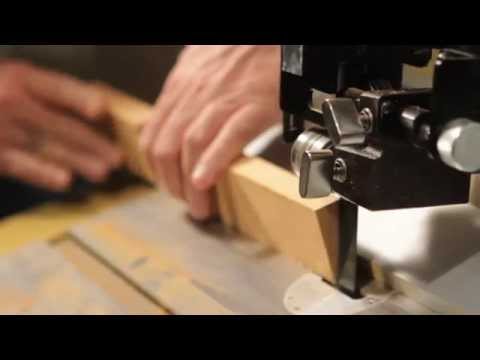

  • High-end blade guides with toolless adjustment offer stability, minimizing blade deflection and increasing cut accuracy
  • Four-sided blade guard provides optimum protection, ensuring safety during operation by preventing accidental contact with the blade
  • Integrated foot brake allows for quick stopping of the blade, enhancing operator safety and control
  • Magnetic switch protects the motor from potential harm caused by electrical supply issues, ensuring safe and reliable operation

Specifications:

  • Style: Floor Model
  • Motor Type: TEFC (totally-enclosed fan-cooled), induction, capacitor start
  • Motor Power: 5 HP
  • Motor Current: 22A
  • Motor Phase : 3 Ph
  • Motor Voltage: 230 / 460V
  • Prewired Voltage: 230V
  • Recommended Circuit Size: 20A
  • Wheel Diameter: 20"
  • Blade Length: 170"
  • Blade Speed: 2300/4400 SFPM
  • Cutting Capacity Height: 18"
  • Cutting Capacity Width: 20"
  • Dust Collection Minimum CFM Required: 600 CFM
  • Dust Port Outside Diameter: 4"
  • Maximum Saw Blade Width: 1-1/2"
  • Minimum Saw Blade Width: 1/4"
  • Miter Gauge Positive Stops : 45°, 90°
  • Overall Dimensions (L x W x H): 40" x 42" x 81-1/2"
  • Table Height from Floor: 36"
  • Table Size (L x W): 24" x 27"
  • Table Tilt: 10° Left, 45° Right
  • Table T-Slot: 3/4"

What's Included:

  • (1) Powermatic - PM2013B-3 20" Woodworking Bandsaw
  • (1) Hook Type Bandsaw Blade - 170" x 1" x 3 TPI x 0.035"
