• Heavy-duty 5 HP motor provides power needed for all projects
• Fully adjustable, exclusive T-Square style Accu-Fence maximizes alignment to the blade and squaring to the table
• Robust cast iron table and trunnion assembly provides maximum rigidity, offering stability and support for large workpieces
• Positive locking cam with pressure adjustment allows for secure and stable fence positioning, preventing unwanted movement during operation
• Oversized side plate provides versatility by allowing operation in both horizontal and vertical positions
• Solid steel resaw post enhances rigidity, ensuring stability and accuracy during resawing operations
• Blade tension release with an electrical interlock prevents the bandsaw from starting when the blade is de-tensioned
• Heavy-duty upper wheel support and tracking mechanism contribute to smooth operation and precise blade tracking
• Solid cast iron wheels reduce vibration and noise while providing the necessary momentum required for heavy resawing, ensuring efficient cutting performance
• High-end blade guides with toolless adjustment offer stability, minimizing blade deflection and increasing cut accuracy
• Four-sided blade guard provides optimum protection, ensuring safety during operation by preventing accidental contact with the blade
• Integrated foot brake allows for quick stopping of the blade, enhancing operator safety and control
• Magnetic switch protects the motor from potential harm caused by electrical supply issues, ensuring safe and reliable operation

• Style: Floor Model
• Motor Type: TEFC (totally-enclosed fan-cooled), induction, capacitor start
• Motor Power: 5 HP
• Motor Current: 22A
• Motor Phase : 1 Ph
• Motor Voltage: 230V
• Prewired Voltage: 230V
• Recommended Circuit Size: 30A
• Wheel Diameter: 20"
• Blade Length: 170"
• Blade Speed: 2300/4400 SFPM
• Cutting Capacity Height: 18"
• Cutting Capacity Width: 20"
• Dust Collection Minimum CFM Required: 600 CFM
• Dust Port Outside Diameter: 4"
• Maximum Saw Blade Width: 1-1/2"
• Minimum Saw Blade Width: 1/4"
• Miter Gauge Positive Stops : 45°, 90°
• Overall Dimensions (L x W x H): 40" x 42" x 81-1/2"
• Table Height from Floor: 36"
• Table Size (L x W): 24" x 27"
• Table Tilt: 10° Left, 45° Right
• Table T-Slot: 3/4"

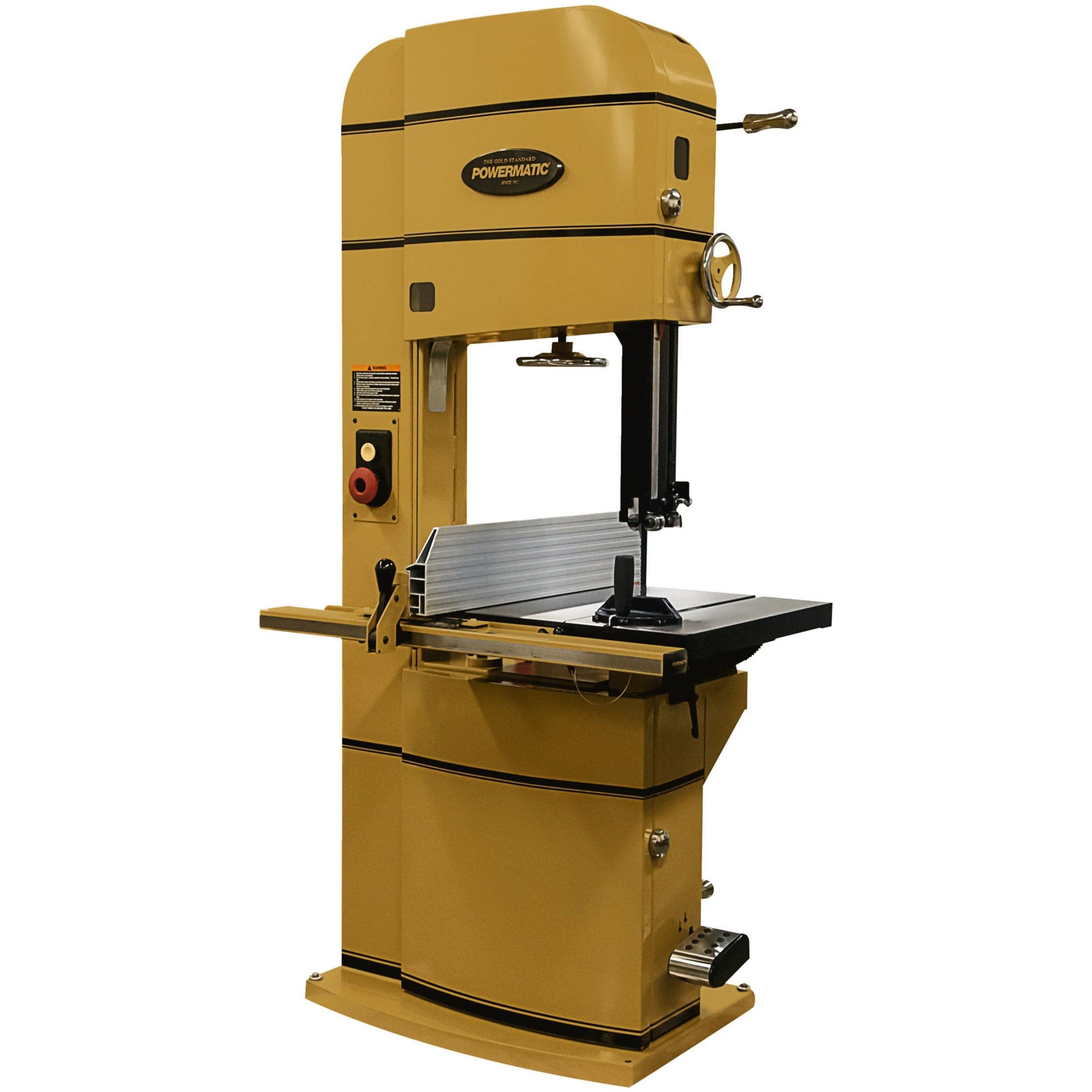

• (1) Powermatic - PM2013B 20" Woodworking Bandsaw
• (1) Hook Type Bandsaw Blade - 170" x 1" x 3 TPI x 0.035"
