Powermatic

18" Woodworking Bandsaw with ArmorGlide - 5 HP 3 PH 230V - PM1800B-3T

Item #189338 Model PM1-1791801BT
$7,099.99
$7,099.99 $7,099.99

This item has an additional shipping charge

1 10

Powermatic

18" Woodworking Bandsaw with ArmorGlide - 5 HP 3 PH 230V - PM1800B-3T

Item #189338 Model PM1-1791801BT
$7,099.99
$7,099.99 $7,099.99

This item has an additional shipping charge

18" Woodworking Bandsaw, Model PM1800B-3T, ArmorGlide, 5HP, 3PH, at Powermatic, we believe that ambition is the fuel that drives progress. Every . . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power.Ā  Most residential power is single or 1-phase.Ā  Verify your power requirements before ordering.

Details

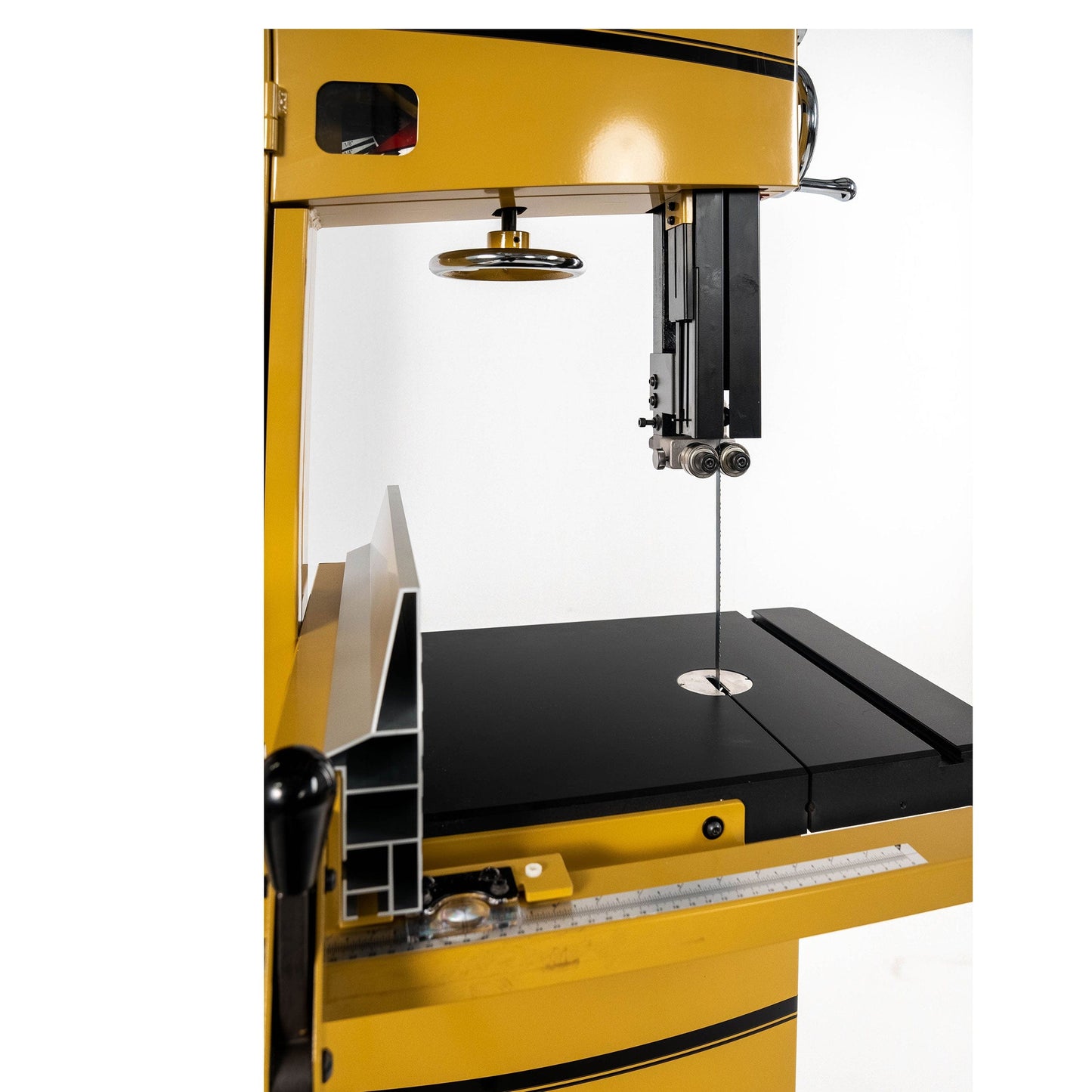

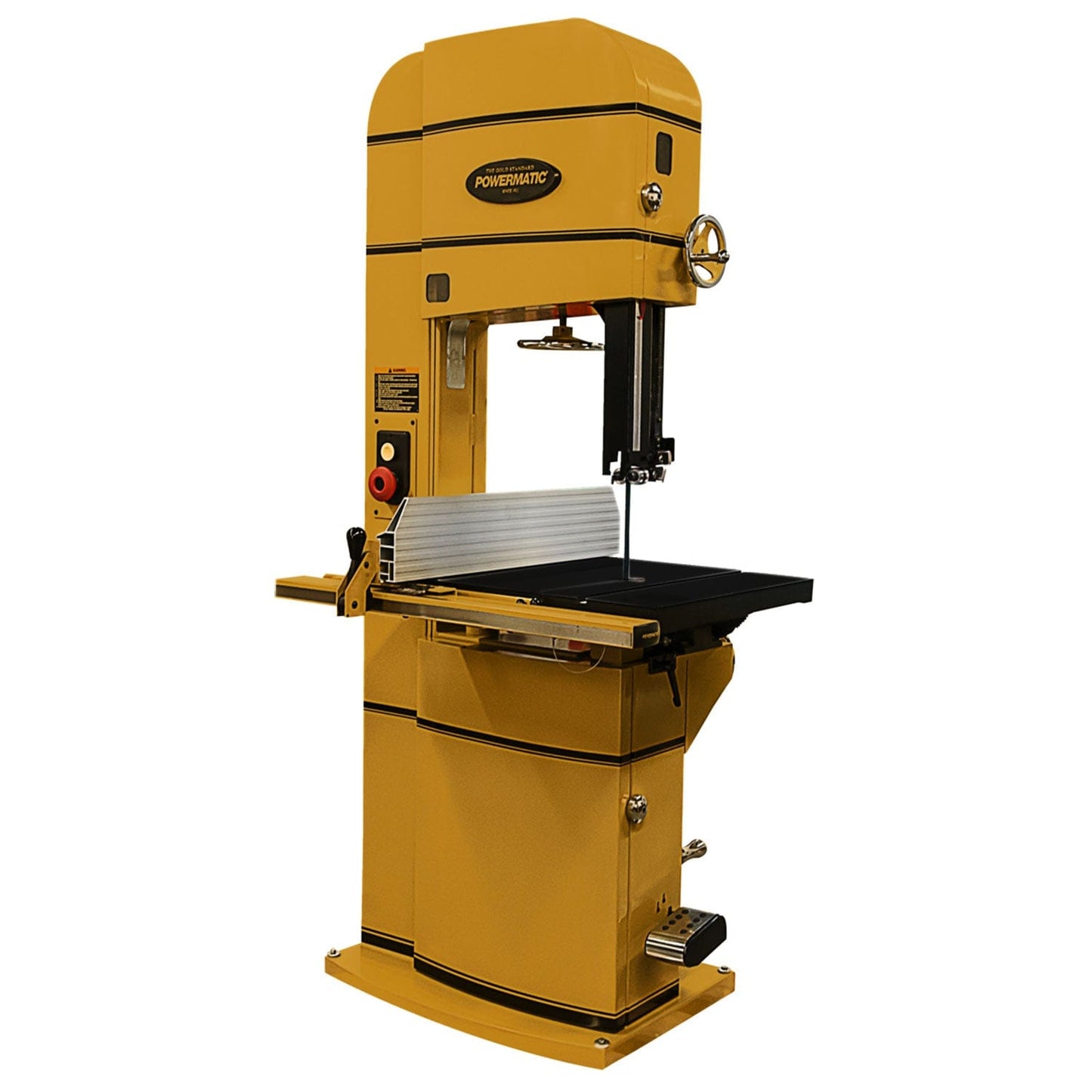

18" Woodworking Bandsaw, Model PM1800B-3T, ArmorGlide, 5HP, 3PH, at Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw, now featuring our ArmorGlide Technology that is low-friction and rust-resistant, includes the legendary quality, precision, and attention to detail that has been helping woodworkers expand their ambition for more than 100 years.


Features:



  • ArmorGlide Technology provides low-friction, industrial-grade coating on work surface
  • Rust resistant, less maintenance, more control while working
  • Computer balanced cast iron wheels to reduce vibration

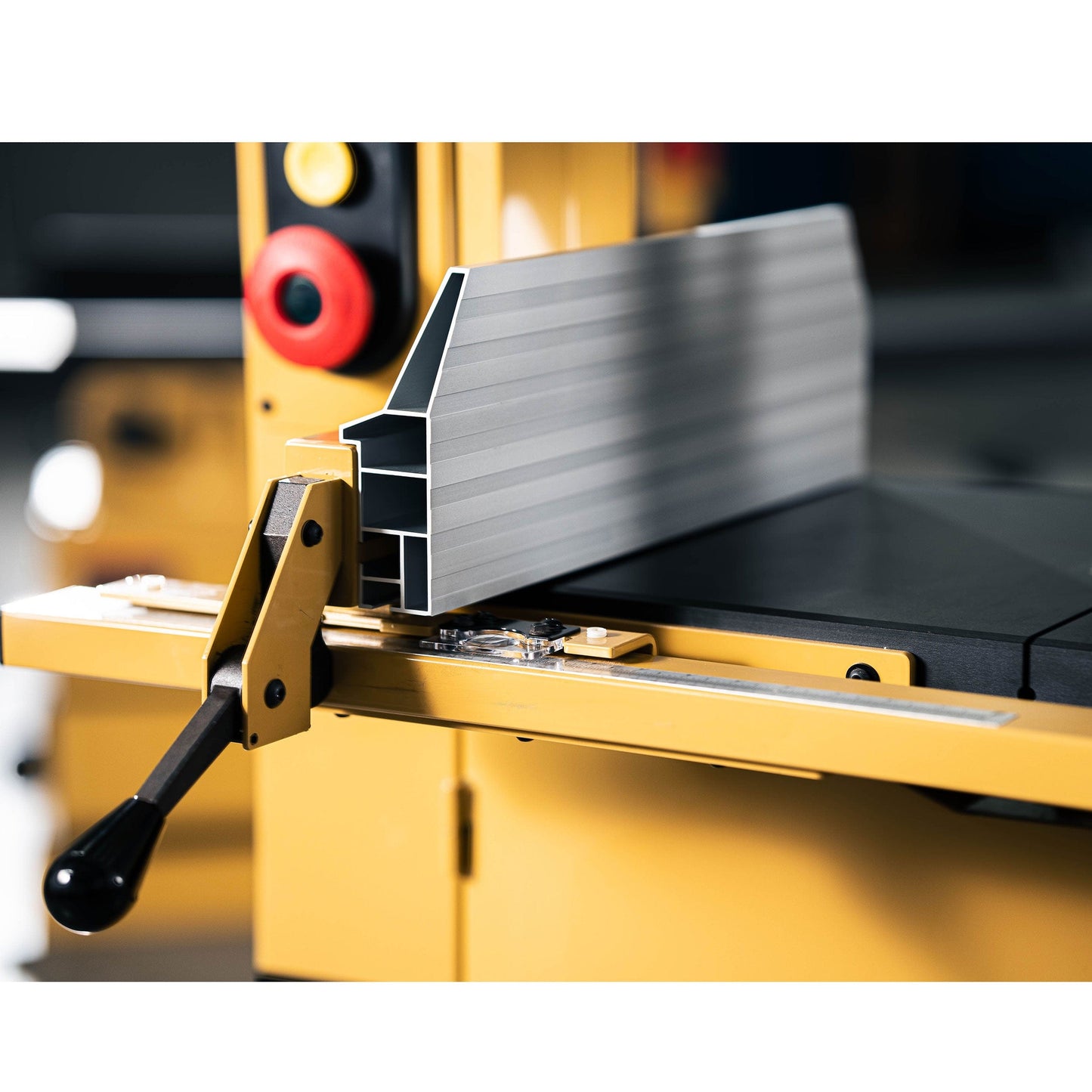

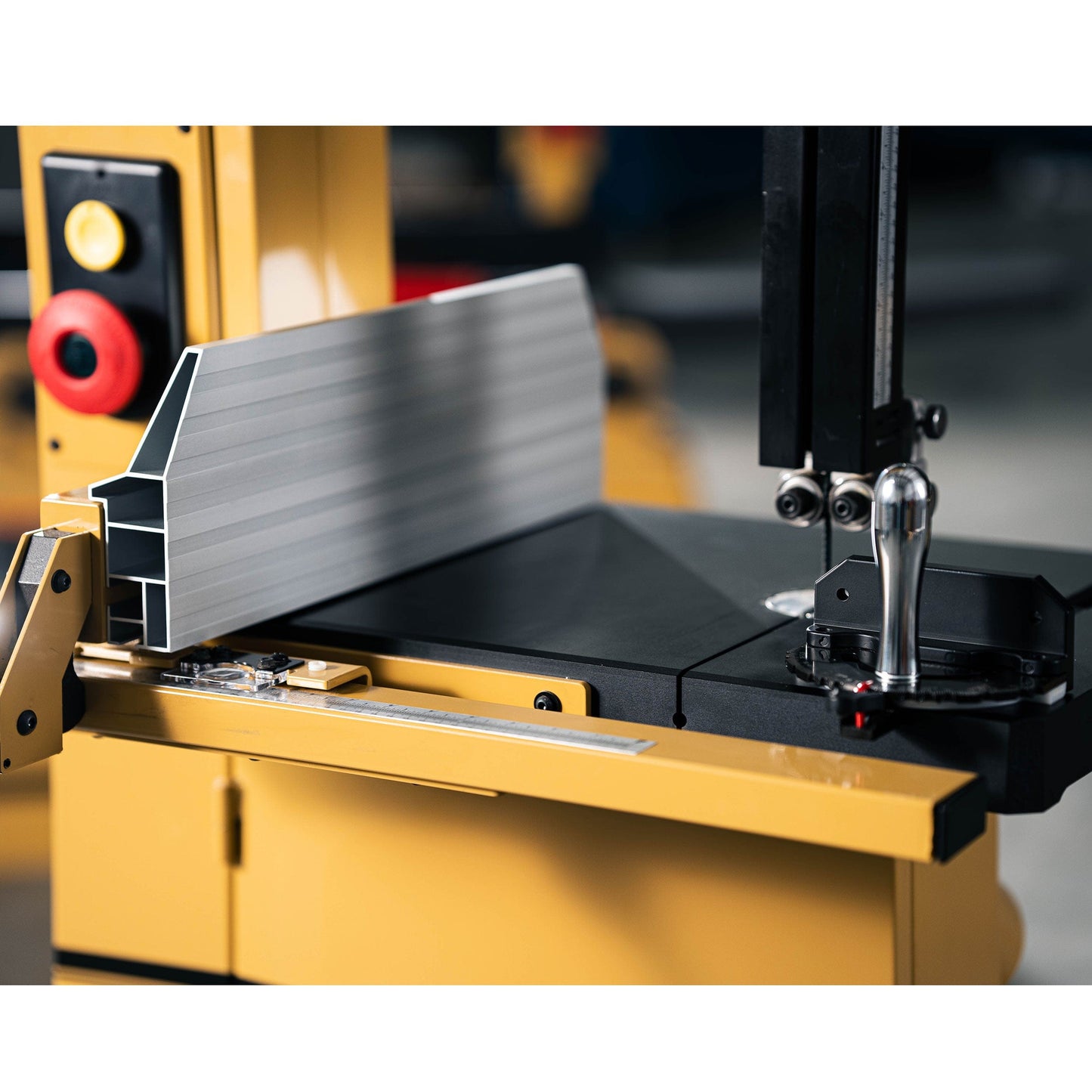

  • Exclusive Powermatic T-square style Accu-FenceĀ® maximizes accuracy and safety

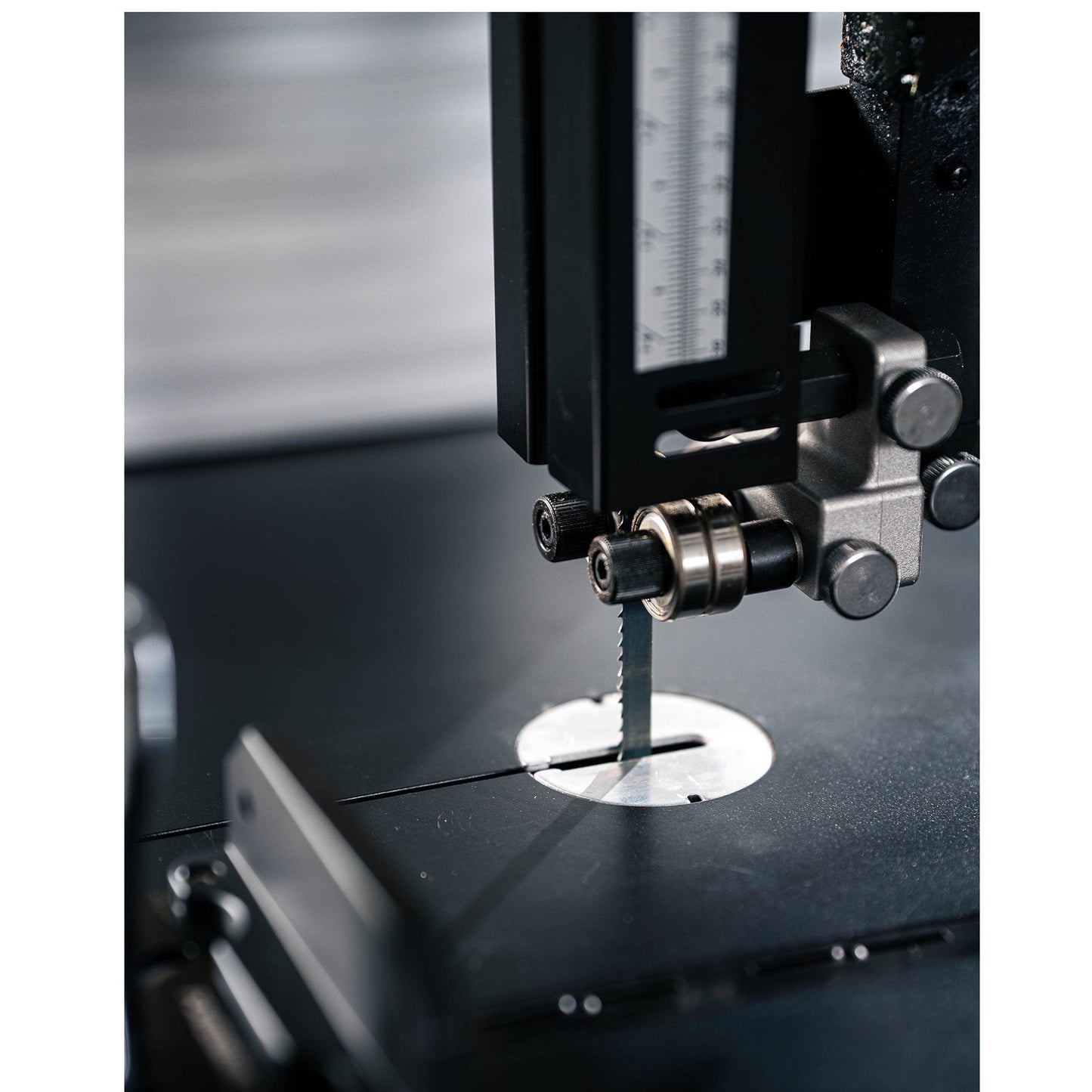

  • Micro-adjustable, virtually tool-less bearing guide system gives close blade control while reducing friction
  • Oversized side plate can be used in the horizontal or vertical position
  • Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
  • Special grooved thrust bearing stabilizes smaller blades

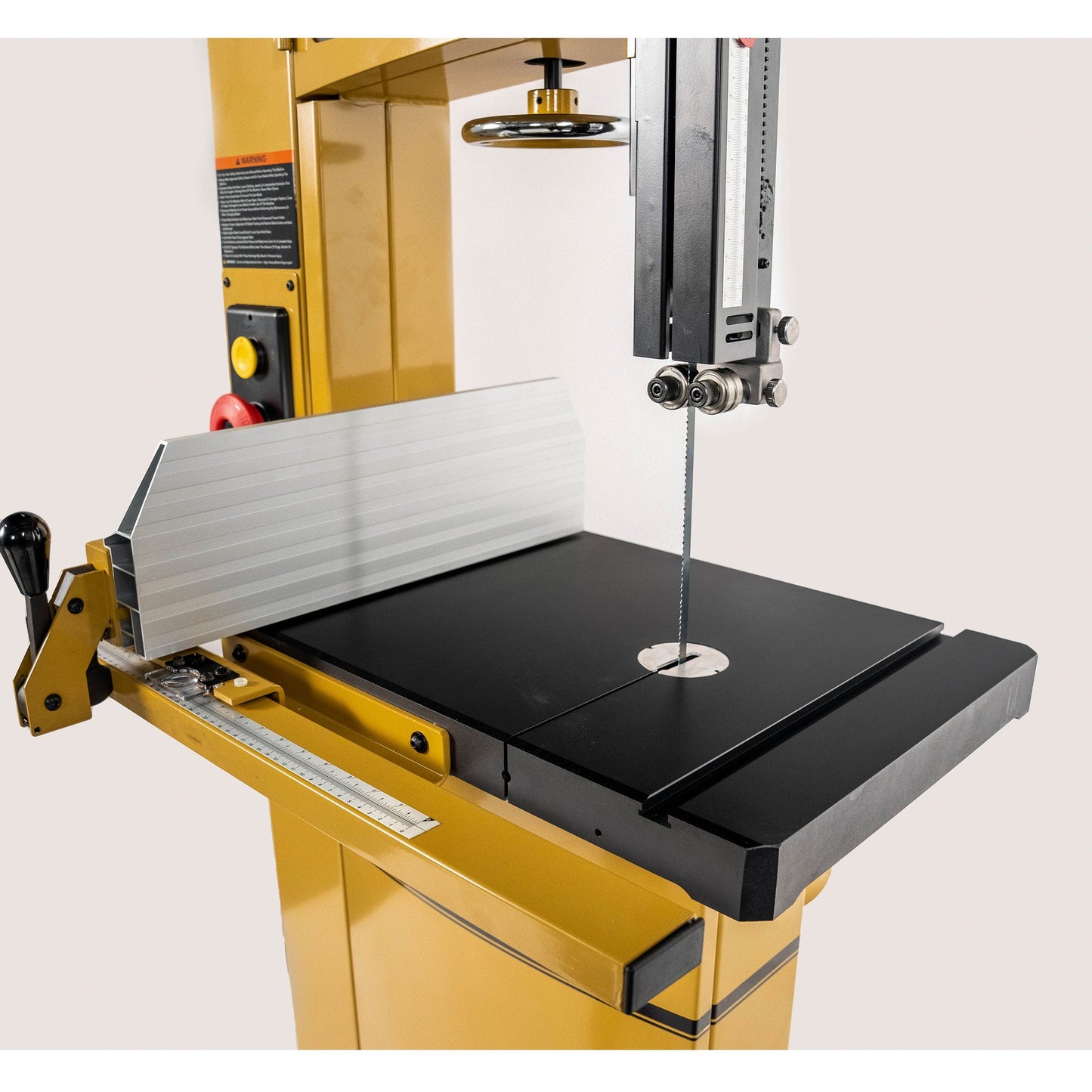

  • Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
  • Accu-Fence has complete adjustability for aligning to blade and squaring to table


Specifications:



  • Blade Length: 160"
  • Blade Speed: 2300/4400 SFPM
  • Minimum Blade width: 1/8"
  • Maximum Blade Width: 1-1/2"
  • Wheel Diameter: 18"
  • Cutting Capacity Height: 18"
  • Miter T-Slot: 7/8" W x 3/8"D, opening 3/4"W
  • Dust Collection Minimum: 600CFM
  • Dust Port Size: 4"
  • Motor: 5 HP, 3 PH, 230V
  • Electrical Circuit Size: 30 Amp minimum
  • Table Height From Floor: 38"
  • Table Size: 24"L x 27" W x 2" Thick
  • Assembled Dimensions: 39-1/2" x 42" x 81-1/2, 840 lbs.
  • Shipping Dimensions: 38" x 33-1/4" x 87-1/2", 936 lbs.
  • Plug not included, unit should be direct wired

What's Included:

  • (1) Powermatic - 18" Woodworking Bandsaw with ArmorGlide - 5 HP 3 PH 230V - PM1800B-3T
