Powermatic

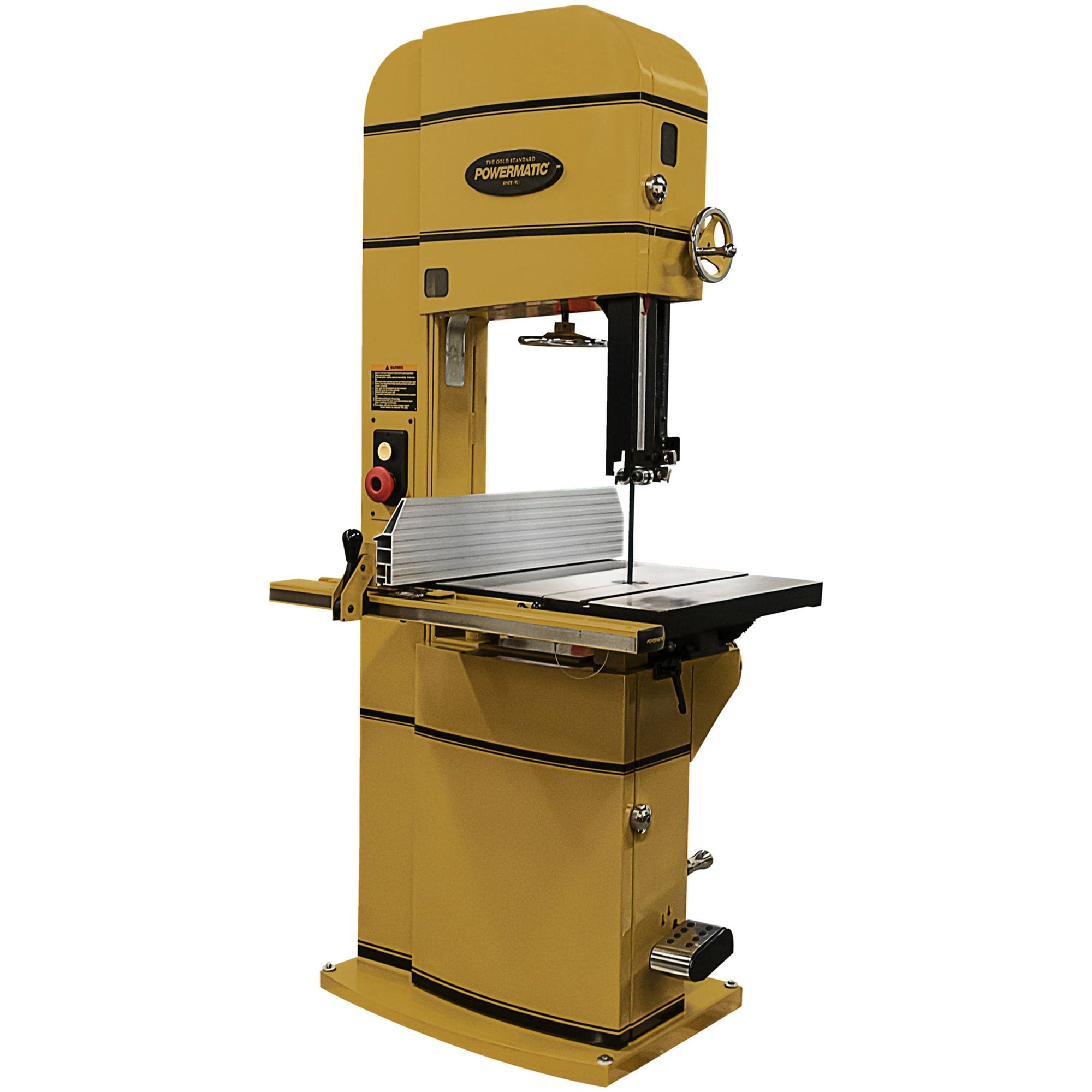

18" Woodworking Bandsaw - 5 HP 1 Ph 230V - PM1800B

Item #863610 Model PM9-1791800B
Regular price $6,699.99
Sale price $6,699.99 Regular price $6,699.99

This item has an additional shipping charge

Skip to product information
1 of 6

Powermatic

18" Woodworking Bandsaw - 5 HP 1 Ph 230V - PM1800B

Item #863610 Model PM9-1791800B
Regular price $6,699.99
Sale price $6,699.99 Regular price $6,699.99

This item has an additional shipping charge

The Powermatic® PM1800B Bandsaw is a professional-grade tool designed for accuracy, durability, and safety in woodworking applications. It feature. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Urethane Tire For 18" Band Saw - 1-1/2" Wide

    Regular price $43.99
    Sale price $43.99 Regular price $43.99
    Urethane Tire For 18" Band Saw - 1-1/2" Wide alt 0
  • Saw Blade Lubricant

    Regular price $11.99
    Sale price $11.99 Regular price $11.99
    Saw Blade Lubricant alt 0
  • Pro Force Bandsaw Blade - 160" x 1/4" x .025" x 14 TPI

    Regular price $49.49
    Sale price $49.49 Regular price $54.99
    Pro Force Bandsaw Blade - 160" x 1/4" x .025" x 14 TPI alt 0
  • Resaw King Bandsaw Blade - 160" x 1" x .024" x Variable TPI

    Regular price $179.99
    Sale price $179.99 Regular price $199.99
    Resaw King Bandsaw Blade - 160" x 1" x .024" x Variable TPI alt 0

Details

The Powermatic® PM1800B Bandsaw is a professional-grade tool designed for accuracy, durability, and safety in woodworking applications. It features a sturdy cast iron table, trunnion assembly for maximum rigidity, and an exclusive Accu-Fence system that provides complete adjustability for precise cuts. This bandsaw includes a solid steel resaw post, a blade tension release with an electrical interlock and high-end blade guides for stability and accuracy. It also boasts a four-sided blade guard, an integrated foot brake, and a magnetic switch for enhanced safety. Your larger projects and workpieces call for more power, resaw capacity, and cast iron. The PM1800B features legendary quality, precision, and attention to detail, helping woodworkers expand their ambition for over 100 years.

Features:


  • Heavy-duty 5 HP motor provides power needed for all projects
  • Fully adjustable, exclusive T-Square style Accu-Fence maximizes alignment to the blade and squaring to the table
  • Robust cast iron table and trunnion assembly provides maximum rigidity, offering stability and support for large workpieces
  • Positive locking cam with pressure adjustment allows for secure and stable fence positioning, preventing unwanted movement during operation
  • Oversized side plate provides versatility by allowing operation in both horizontal and vertical positions
  • Solid steel resaw post enhances rigidity, ensuring stability and accuracy during resawing operations
  • Blade tension release with an electrical interlock prevents the bandsaw from starting when the blade is de-tensioned
  • Heavy-duty upper wheel support and tracking mechanism contribute to smooth operation and precise blade tracking
  • Solid cast iron wheels reduce vibration and noise while providing the necessary momentum required for heavy resawing, ensuring efficient cutting performance
  • High-end blade guides with toolless adjustment offer stability, minimizing blade deflection and increasing cut accuracy
  • Four-sided blade guard provides optimum protection, ensuring safety during operation by preventing accidental contact with the blade
  • Integrated foot brake allows for quick stopping of the blade, enhancing operator safety and control
  • Magnetic switch protects the motor from potential harm caused by electrical supply issues, ensuring safe and reliable operation

Specifications:

  • Style: Floor Model
  • Motor Type: TEFC (totally-enclosed fan-cooled), induction, capacitor start
  • Motor Power: 5 HP
  • Motor Current: 22A
  • Motor Phase : 1
  • Motor Voltage: 230V
  • Prewired Voltage: 230V
  • Recommended Circuit Size: 30A
  • Wheel Diameter: 18"
  • Blade Length: 160"
  • Blade Speed: 2300/4400 SFPM
  • Cutting Capacity Height: 18"
  • Cutting Capacity Width: 18"
  • Dust Collection Minimum CFM Required: 600 CFM
  • Dust Port Outside Diameter: 4"
  • Maximum Saw Blade Width: 1-1/2"
  • Minimum Saw Blade Width: 1/8"
  • Miter Gauge Positive Stops : 45°, 90°
  • Overall Dimensions (L x W x H): 38" x 42" x 81-1/2"
  • Table Height from Floor: 38"
  • Table Size (L x W): 24" x 27"
  • Table Tilt: 10° Left, 45° Right

What's Included:

  • (1) Powermatic - PM1800B 18" Woodworking Bandsaw
  • (1) Hook Type Bandsaw Blade - 160" x 3/4" x 4 TPI x 0.03"
