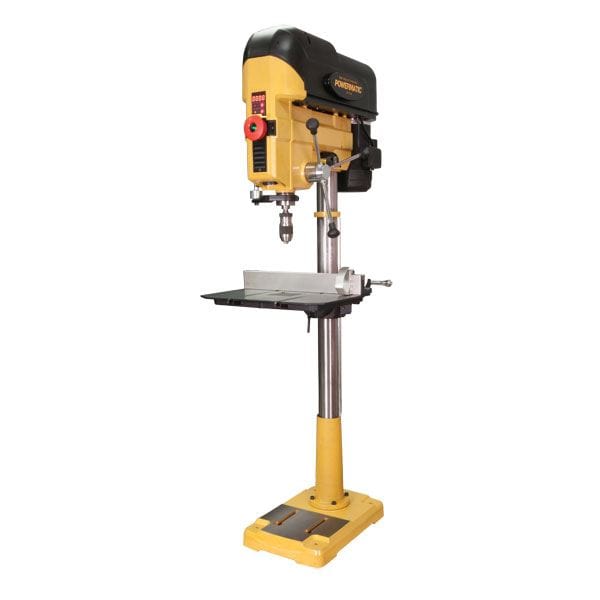

Details

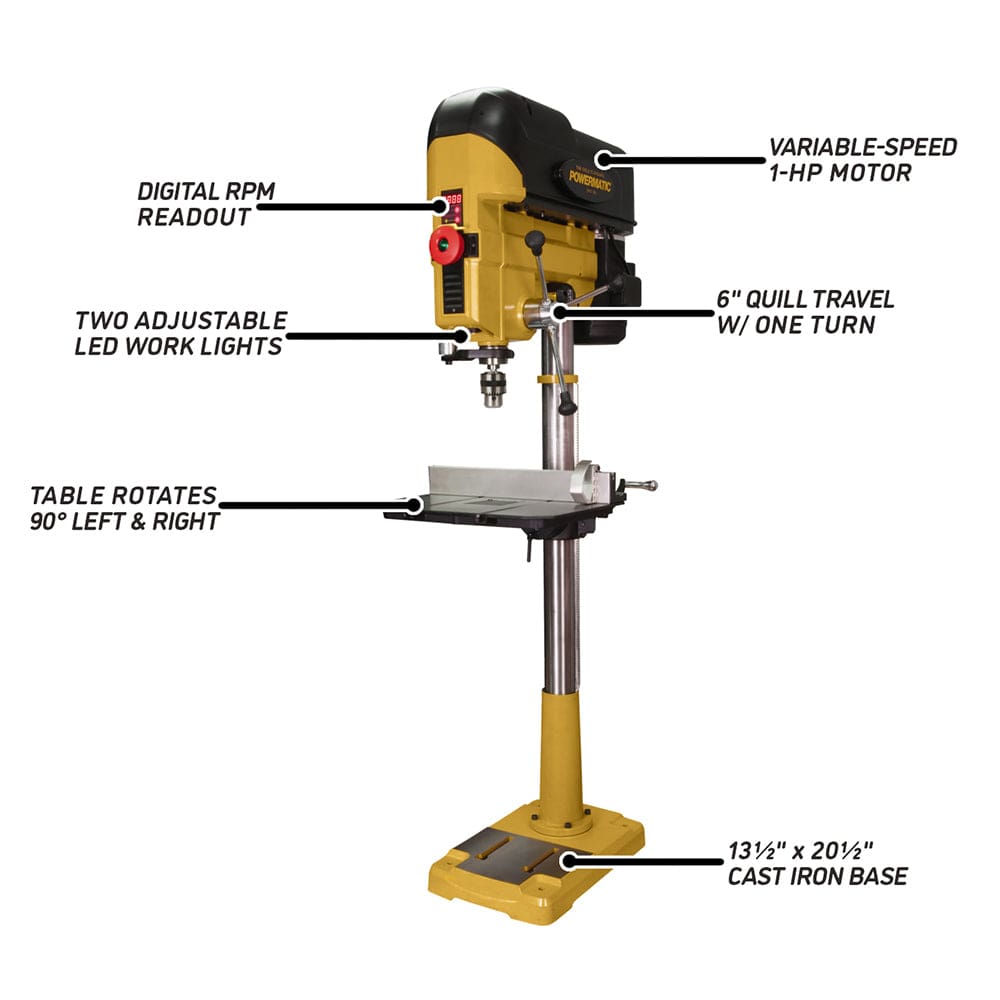

Features

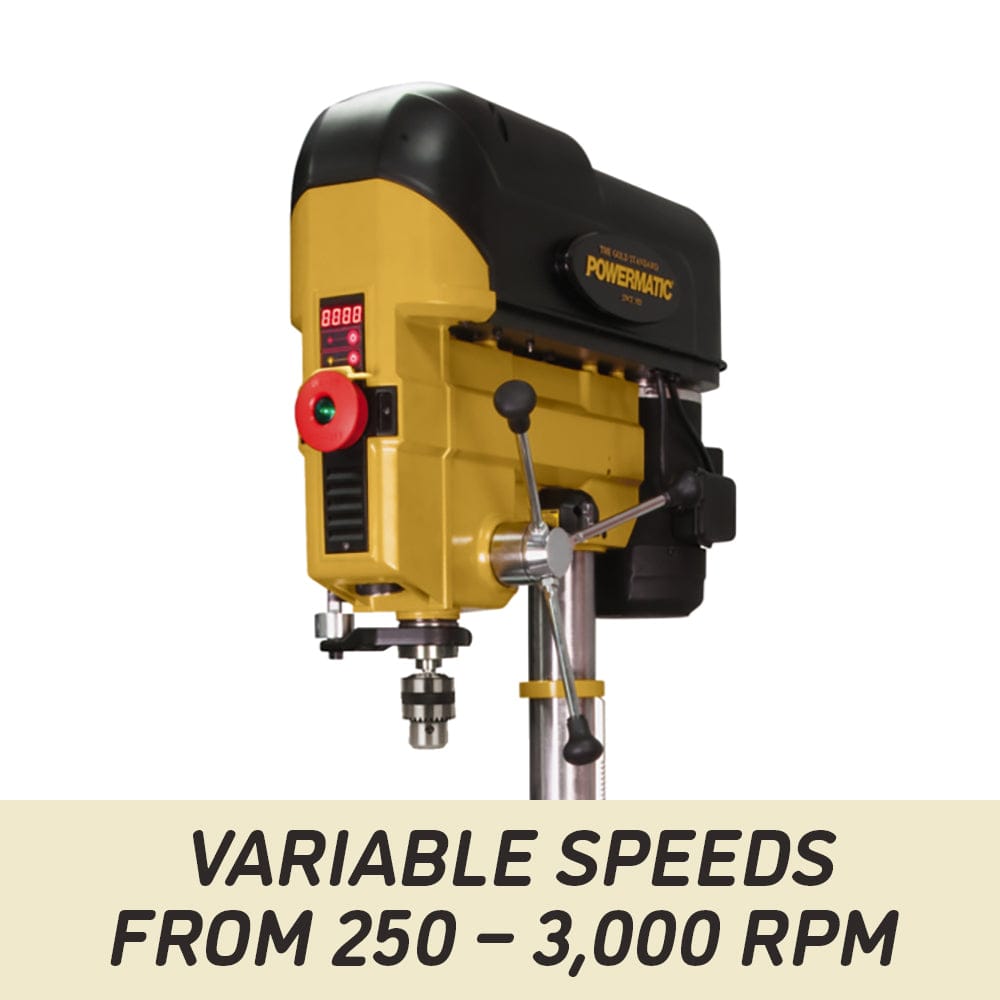

- Mechanical variable speed allows for full range of speed with no belt changes
- 6" of quill travel with one revolution of the handle

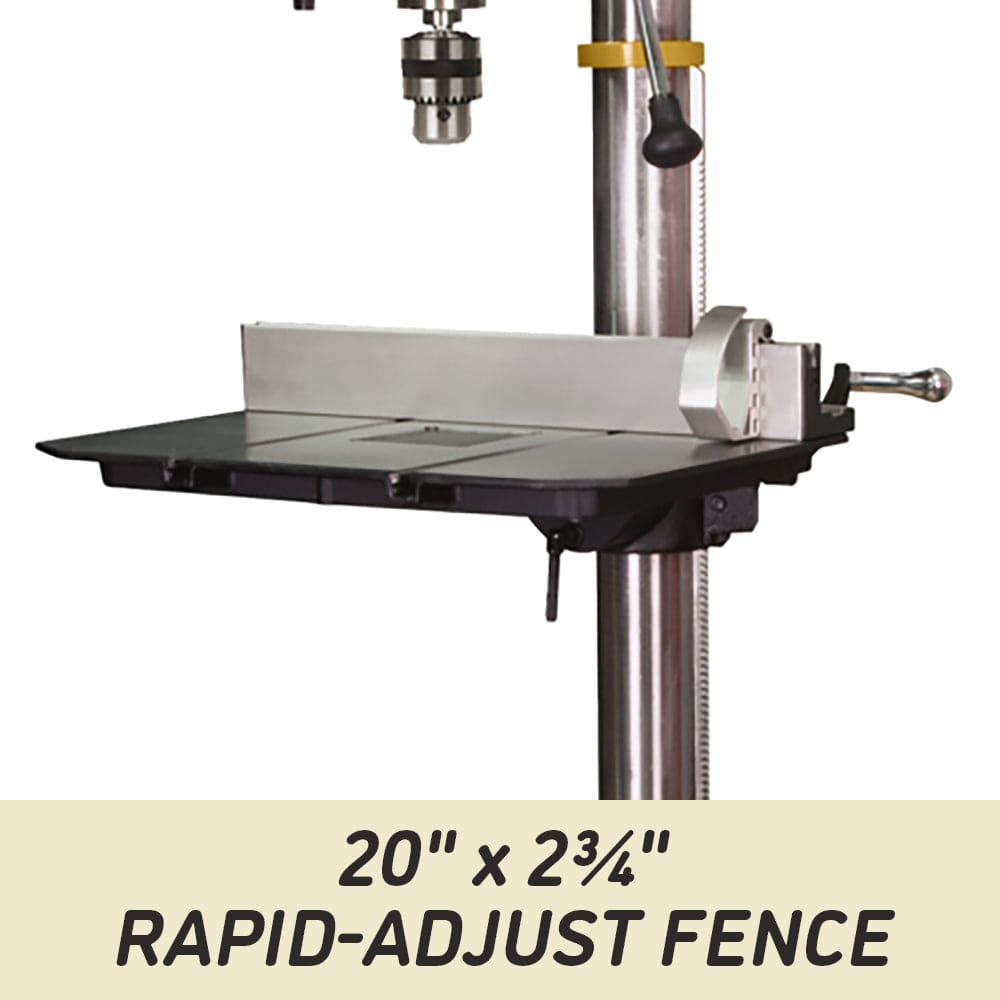

- Fence system adjustable for a perfect 90 degree relationship to the table, for rapid alignment of stock
- Adjustable material stop makes repetitive actions accurate and quick
- A digital RPM readout allows user to optimize the spindle speed to the application
- Laser guides provide an accurate indication for tool point
- 5/8" Keyed Chuck
- Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
- Two independent LED worklights eliminates shadows
- Work table can be rotated to a full 90 degree position
- Replaceable square table insert with leveling screws make it flush with the top of the table

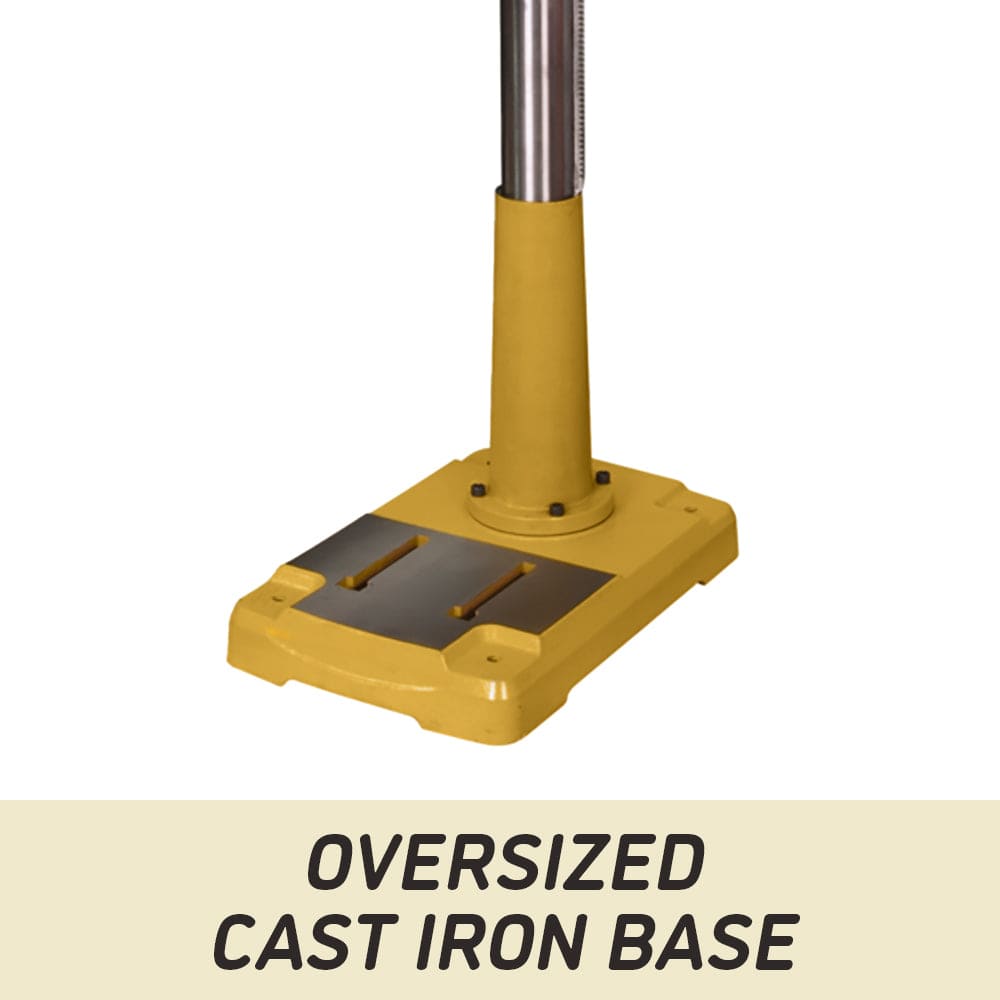

- Oversize cast iron base for added stability
- Safety key prevents accidental starting
Specifications
- Motor: 1HP, 1Ph, 115/230V, Prewired 115V, 15/7.5 Amps
- Base Size: 13-3/8” x 20”
- Chuck Distance to Base: 43-13/32”
- Chuck Distance to Table: 24-1/2”
- Chuck Size: 5/8”
- Column Diameter: 3-1/8”
- Drilling Capacity: 5/8”
- Fence Size: 19-13/16” L x 2-11/16” H
- Number of Spindle Speeds : Variable
- Spindle Distance to Base: 46-1/4”
- Spindle Distance to Table (Max.): 27-3/8”
- Spindle Speed Range (RPM) : 250-3000
- Spindle Taper : MT-2/JT-3
- Spindle Travel: 6”
- Swing: 18”
- Table Size (L x W): 20” x 14”
- Table Tilt (Deg.) : 0 to 90
- Net Weight: 266 lbs
