Powermatic

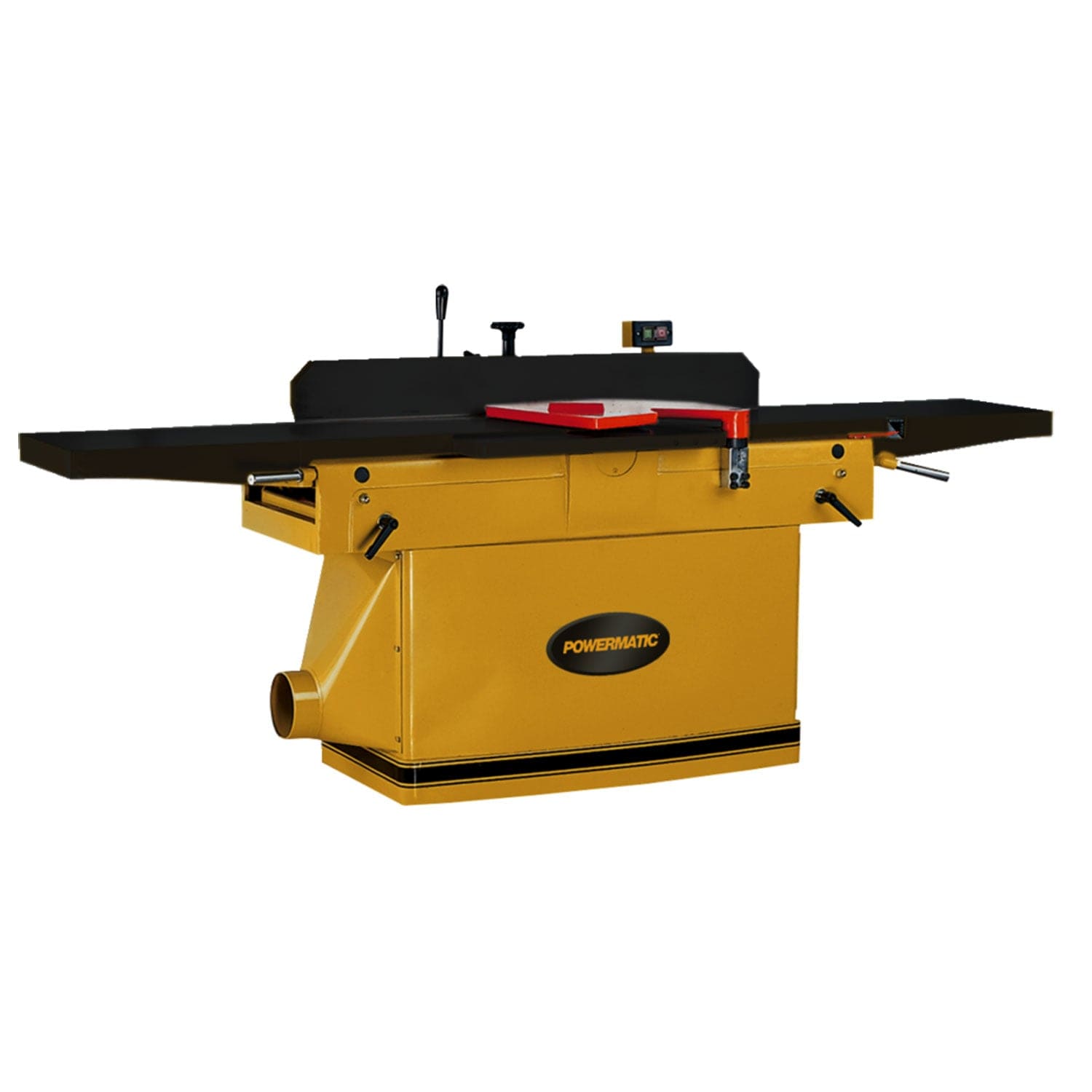

16" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 7-1/2 HP 3 PH 230V - PJ1696T
Powermatic
16" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 7-1/2 HP 3 PH 230V - PJ1696T
Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.
Details
This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs. Due to size of machine, Dock Delivery is required.
Features:
- ArmorGlide Technology gives you a low-friction, industrial-grade coating
- Rust resistant
- Less maintenance
- More control
- Full size rabbeting table supports large work pieces for rabbets up to 3/4" deep
- Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
- Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change
- Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
- Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
- Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
- Due to weight and measurements, Model PJ1696T 16" Jointer is Dock Delivery Required for delivery
- Product: 16" Jointer
- Type: Helical Head with 44 - 4 sided inserts
- Style: Floor Standing Model
- Motor Power: 7-1/2 HP
- Motor Phase: 3 PH
- Voltage: 230V
- Cycle: 60 Hz
- Cutterhead Speed: 5200
- Cutting Capacity (W x D): 16 -3/4" x 3/4"
- Cuts Per Minute: 20,800
- Cutterhead Diameter: 4"
- Number of Knives: 58 - 4 sided
- Infeed Table Length: 47-1/2"
- Dust Port: 4"
- Dust Collection Minimum CFM: 800
- Net Weight: 1280
- Ship Weight: 1400 lbs.
- (1) Powermatic - 16" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 7-1/2 HP 3 PH 230V - PJ1696T
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:
- Your order will ship in 4 -7 approximately business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
Warranty Information
Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
