Powermatic

16" Open-End Belt Sander - 5 HP 1 Ph 230V - 1632

Item #818246 Model PM9-1791250
Regular price $8,599.99
Sale price $8,599.99 Regular price $8,599.99

This item has an additional shipping charge

Skip to product information
1 of 1

Powermatic

16" Open-End Belt Sander - 5 HP 1 Ph 230V - 1632

Item #818246 Model PM9-1791250
Regular price $8,599.99
Sale price $8,599.99 Regular price $8,599.99

This item has an additional shipping charge

The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters i. . . View More Details

Ships from Manufacturer

Shipping Info

Details

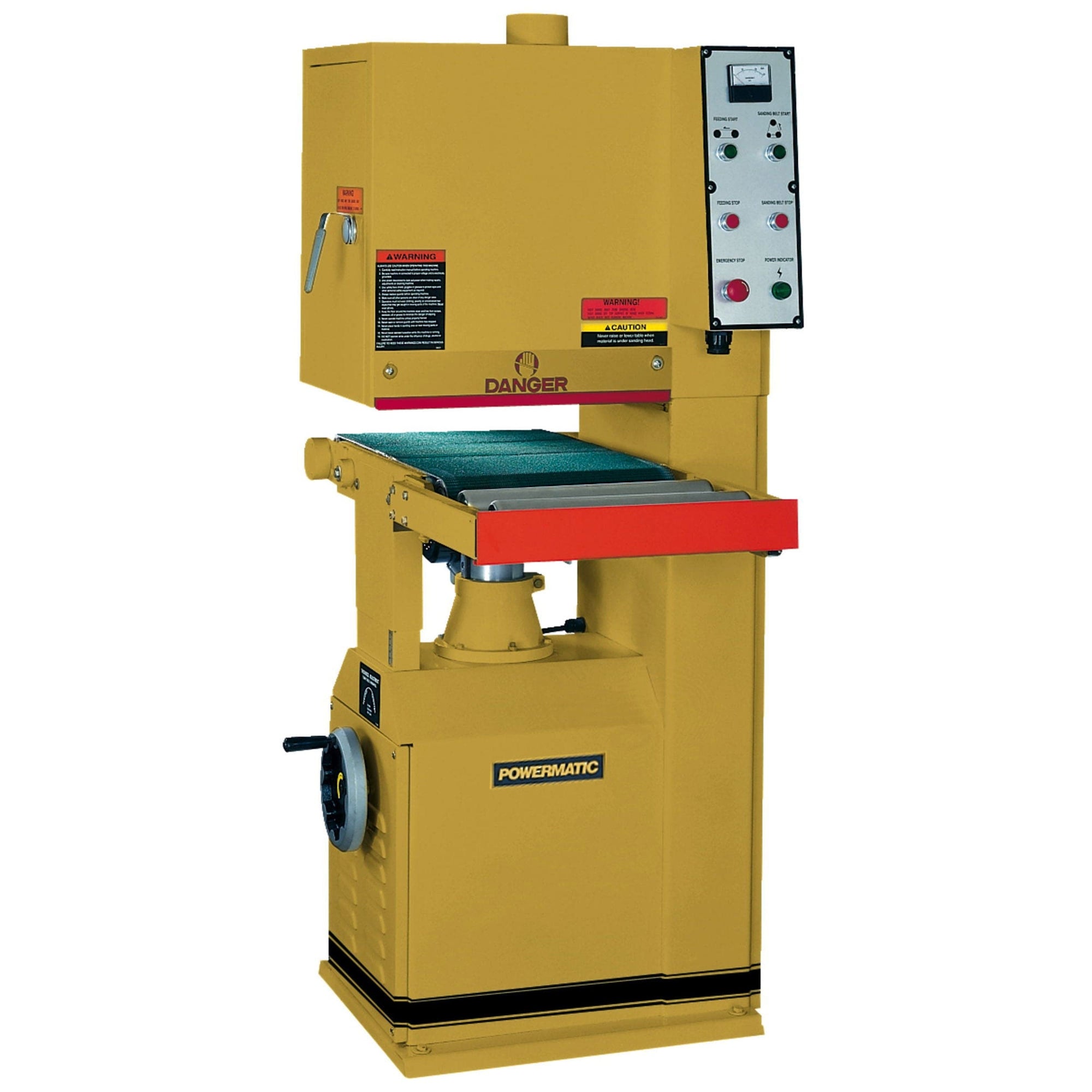

The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.

Features:
• The combination head promotes a more consistent finish
• Pneumatic conveyor belt tracking keeps belt centered
• Conveniently mounted load meter maintains constant check during operation
• Limiters will stop sander instantly if belt breakage occurs
• Side access door for easy belt changes
Specifications:
5HP motor
Emergency rail stop
Emergency stop button
Dust collection port
17" x 54" sanding belt
Belt Size (in) : 17 x 54
Belt Speed (SFPM) : 2200
Compressed Air Requirements @ 5 atm (PSI) : 4 CFM
Dust Collection Minimum CFM Required : 800
Dust Port Diameter (OD/in) : 4
Feed Motor HP : 1/4HP
Feed Motor Phase : 1PH
Head Configuration : combination
Height (in): 66
Length (in): 40
Minimum Board Length (in): 13-3/4
Motor HP : 5HP
Motor Phase : 1PH
Motor Voltage : 230V
Net Weight (lb): 996
Overall Dimensions : 40 x 29 x 66
Part Number : 1791250
Width (in): 29
Working Thickness (in) : 5
Working Width (reversing stock/in) : 16 (32)
Shipping weight 1,106 lb.
