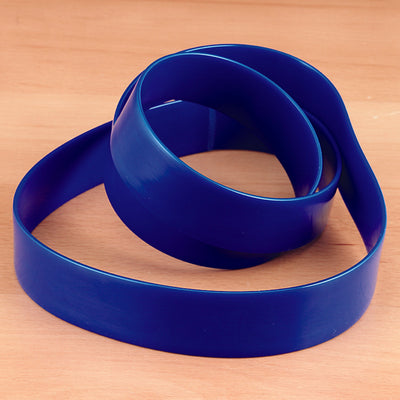

  • Urethane Tire For 14" Bandsaw - 7/8" Wide

    Regular price $26.99
    Sale price $26.99 Regular price $26.99
    Urethane Tire For 14" Bandsaw - 7/8" Wide alt 0
  • Saw Blade Lubricant

    Regular price $11.99
    Sale price $11.99 Regular price $11.99
    Saw Blade Lubricant alt 0
  • Clean Sweep Bandsaw Brush

    Regular price $10.99
    Sale price $10.99 Regular price $10.99
    Clean Sweep Bandsaw Brush alt 0

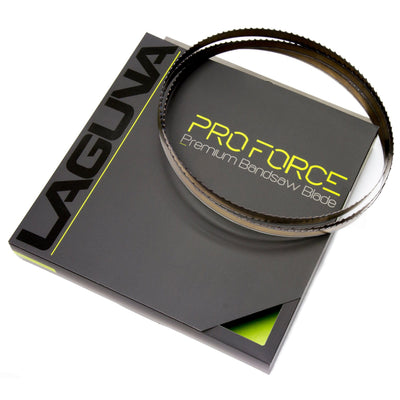

  • Pro Force Bandsaw Blade - 93.5" x 1/4" x .025" x 14 TPI

    Regular price $34.99
    Sale price $34.99 Regular price $34.99
    Pro Force Bandsaw Blade - 93.5" x 1/4" x .025" x 14 TPI alt 5

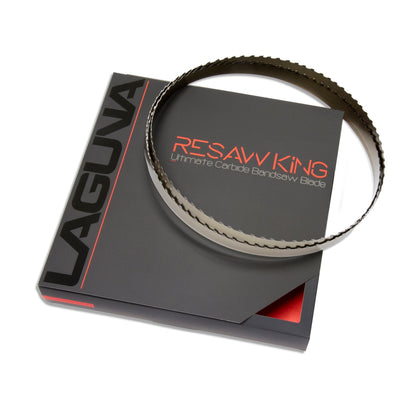

  • Resaw King Bandsaw Blade - 93.5" x 3/4" x .024" x Variable TPII

    Regular price $149.99
    Sale price $149.99 Regular price $149.99
    Resaw King Bandsaw Blade - 93.5" x 3/4" x .024" x Variable TPII alt 0

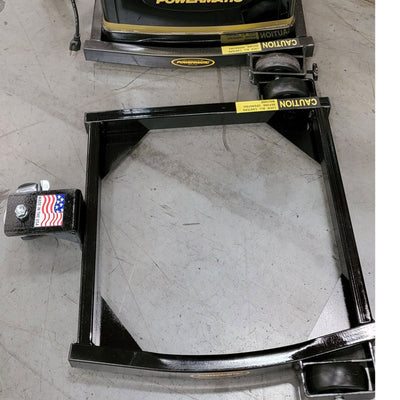

  • Mobile Base for PWBS-14 Bandsaw

    Regular price $299.99
    Sale price $299.99 Regular price $299.99
    Mobile Base for PWBS-14 Bandsaw alt 0
  • F-A-S-T Fence Alignment System Tool for Bandsaws- 5 Piece

    Regular price $59.99
    Sale price $59.99 Regular price $59.99
    F-A-S-T Fence Alignment System Tool for Bandsaws- 5 Piece alt 0

Details

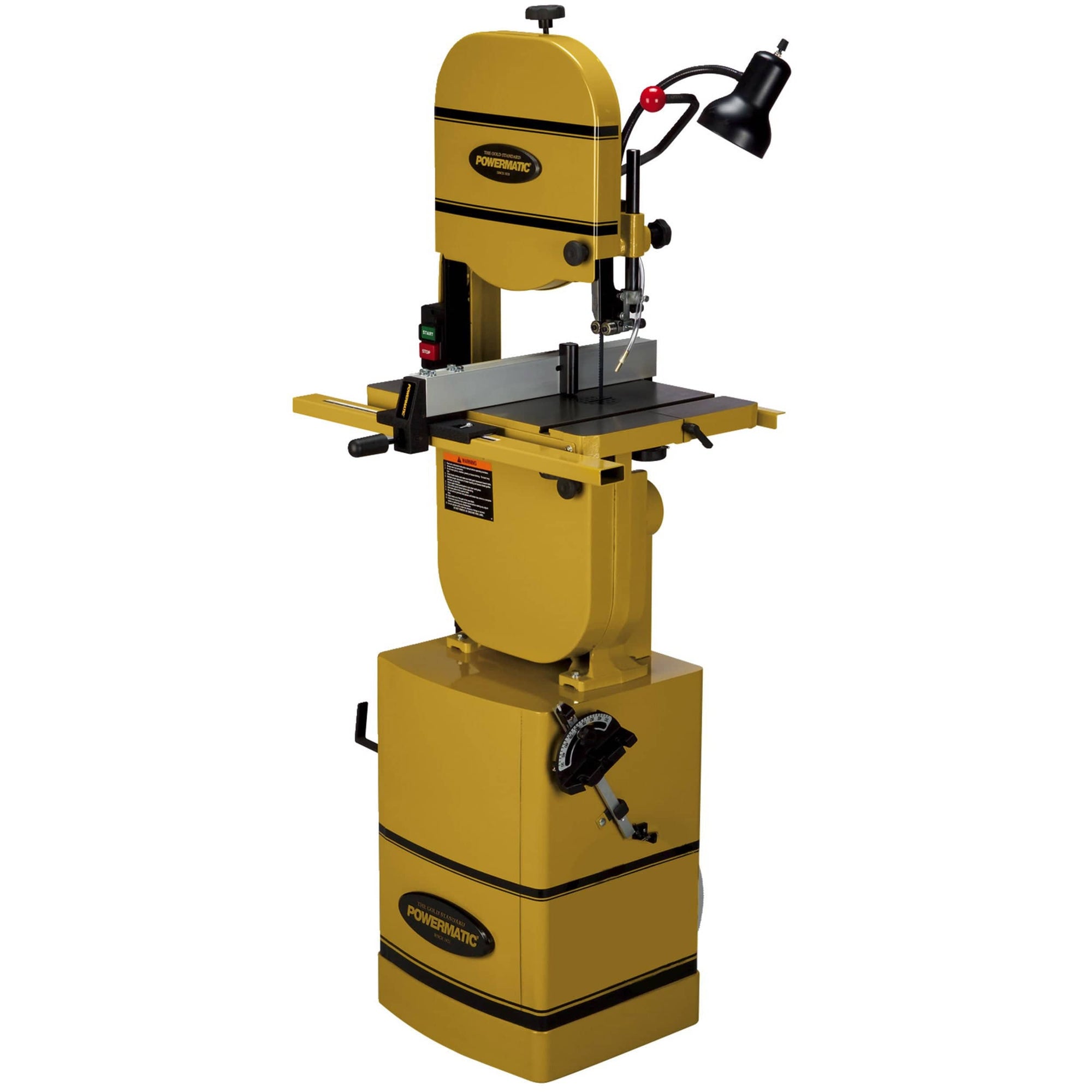

The Powermatic® PWBS-14CS can handle the most demanding tasks with ease. Equipped with a powerful 1-1/2 HP motor, this 14" woodworking bandsaw delivers reliable performance for various cutting applications. Offering a full 6" under guide capacity with 13-1/2" frame to blade clearance, making it ideal for slicing thick boards or creating veneers.

The PWBS-14CS has an extra-large, two-piece cast iron table. It consists of a 15 x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". The balanced, 9-spoke cast iron wheels ensure smooth operation. At the same time, the micro-adjustable dual-bearing blade guide system guarantees precise blade control above and below the table. Carter's quick tension release lever expedites blade changes, making your workflow more efficient. The rigid, one-piece welded stand requires no assembly, providing long-term stability and durability. Illuminate your work area with the built-in 60-watt halogen lamp, providing direct light on the blade and workpiece for enhanced cutting visibility. The chip blower ensures a clean and precise cut line, allowing you to maintain accuracy throughout your projects.

Features:


  • Extra-large, 2-piece cast iron table for a total working surface area of 15" x 20"
  • 1-1/2 HP 115/230V motor
  • Full 6" under-guide capacity with 13-1/2" frame-to-blade clearance

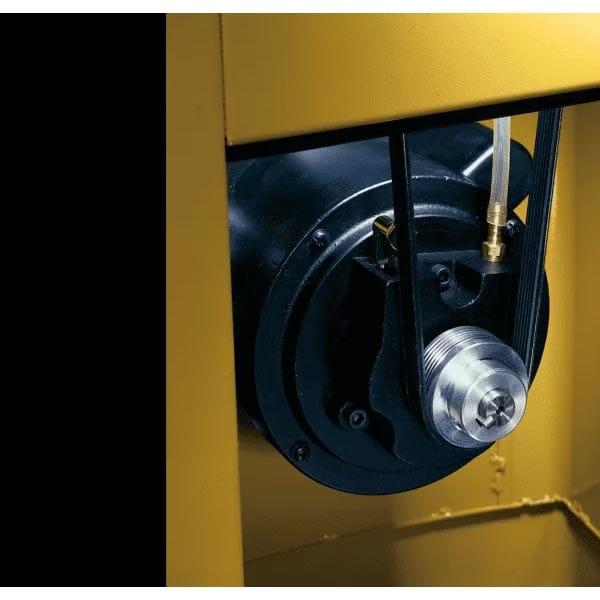

  • Poly V-belt maximizes power transmission while minimizing noise and vibration

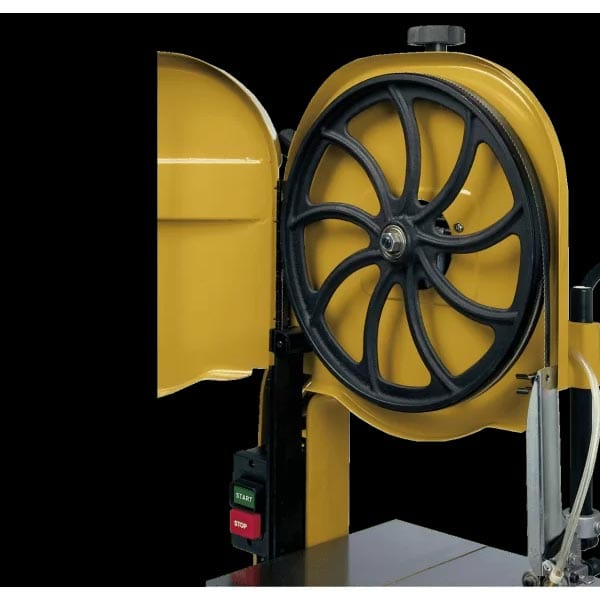

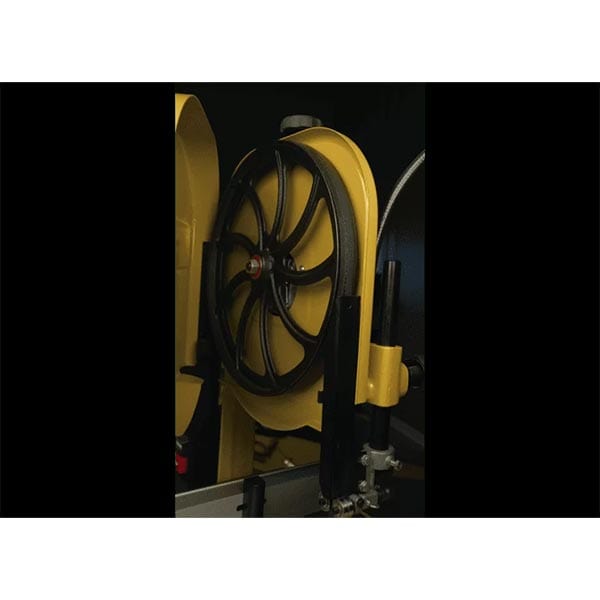

  • Balanced, 9-spoke cast iron wheels run smoothly
  • Easy-to-read tensioning gauge settings indicated in blade width increments
  • Carter quick tension release lever speeds up blade changes

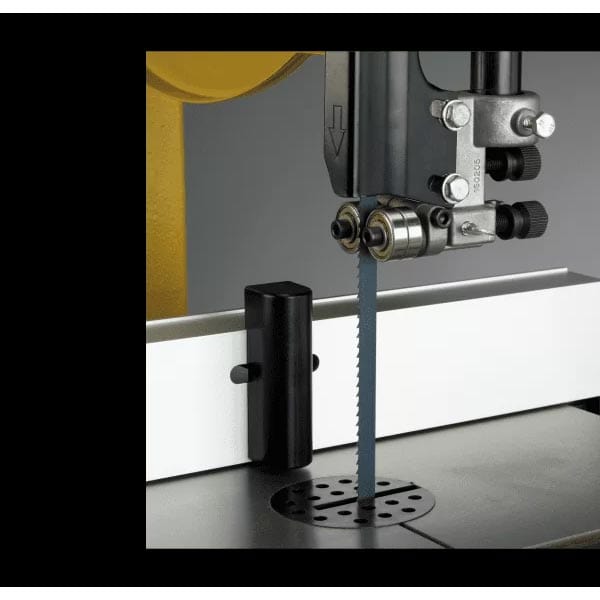

  • Durable micro-adjustable dual-bearing blade guide system above and below the table

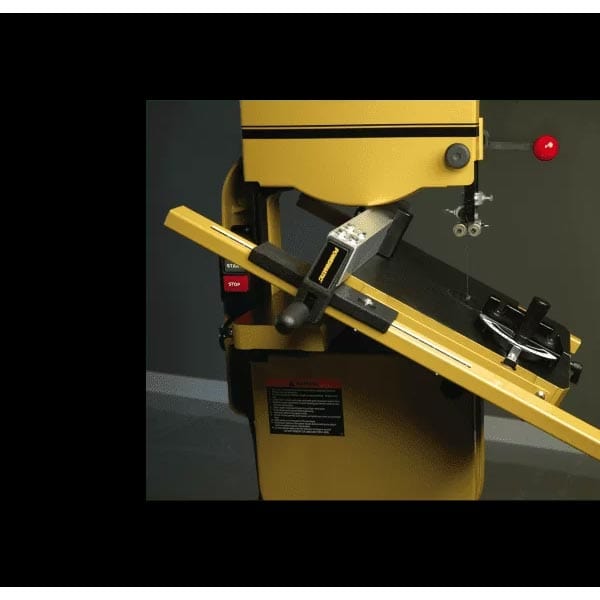

  • Quick-release T-square style fence system with resaw assembly
  • 93-1/2" long blade with a blade width ranging from 1/8" to 3/4" wide
  • Option for a 6" Riser Block, making the total blade length 105"
  • 60-watt halogen lamp built into the body, providing direct light on the blade and workpiece while cutting
  • Chip blower ensures a clean, visible cut line
  • Built-in 4" dust port
  • Frame-mounted push-button switch
  • Rigid 1-piece welded stand requires no assembly

Specifications:

  • Style: Floor Model
  • Motor Type: TEFC (totally-enclosed fan-cooled)
  • Motor Power: 1-1/2 HP
  • Motor Current: 11 / 5.5A
  • Motor Phase : 1
  • Motor Voltage: 115 / 230V
  • Prewired Voltage: 115V
  • Recommended Circuit Size: 30A (115V), 20A (230V)
  • Wheel Diameter: 14"
  • Blade Length: 93-1/2" (With 6" Riser Block installed, blade length required will be 105")
  • Blade Speed: 3000 SFPM
  • Cutting Capacity Height: 6"
  • Cutting Capacity Width: 13-1/2"
  • Dust Collection Minimum CFM Required: 350 CFM
  • Dust Port Outside Diameter: 4"
  • Maximum Saw Blade Width: 3/4"
  • Minimum Saw Blade Width: 1/8"
  • Overall Dimensions (L x W x H): 20" x 34" x 68"
  • Stand Footprint (L x W): 16" x 17-1/2"
  • Table Height from Floor: 44"
  • Main Table Size (L x W): 15" x 15"
  • Extension Table Size (L x W): 15" x 5-1/2"
  • Table Tilt: 10° Left, 45° Right

What's Included:

  • (1) Powermatic - PWBS-14CS 14" Woodworking Bandsaw
  • (1) 6” Riser block kit
  • (1) Adjustable miter gauge
  • (1) Rip fence
  • (1) Gooseneck work light and chip blower
  • (1) Bandsaw blade - 93-1/2" x 3/8" x 0.020" x 6 TPI

Note:

  • With 6" Riser Block installed, blade length required will be 105"
