Powermatic

14" Table Saw with ArmorGlide - 50" Rip Extension Table - 7-1/2 HP 3 PH 230/460V - PM3000T

Item #189363 Model PM1-PM375350KT
$7,399.99
$7,399.99 $7,399.99

This item has an additional shipping charge

1 5

Powermatic

14" Table Saw with ArmorGlide - 50" Rip Extension Table - 7-1/2 HP 3 PH 230/460V - PM3000T

Item #189363 Model PM1-PM375350KT
$7,399.99
$7,399.99 $7,399.99

This item has an additional shipping charge

14" Table Saw - 7. 5HP 3PH 230/460V 50"RIP ArmorGlide Model PM3000T, now featuring ArmorGlide Technology that is low-friction and rust-resist. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Items you may need

  • Thin Rip Guide

    $169.99
    $169.99 $169.99
    Thin Rip Guide

  • Spline Jig

    $159.99
    $159.99 $159.99
    Spline Jig

  • Align-A-Saw Plate

    $159.99
    $159.99 $159.99
    Align-A-Saw Plate

  • Align-A-Saw Gauge & Base

    $89.99
    $89.99 $89.99
    Align-A-Saw Gauge & Base

  • Saw Gauge with Dial Indicator

    $99.99
    $99.99 $99.99
    Saw Gauge with Dial Indicator

Details

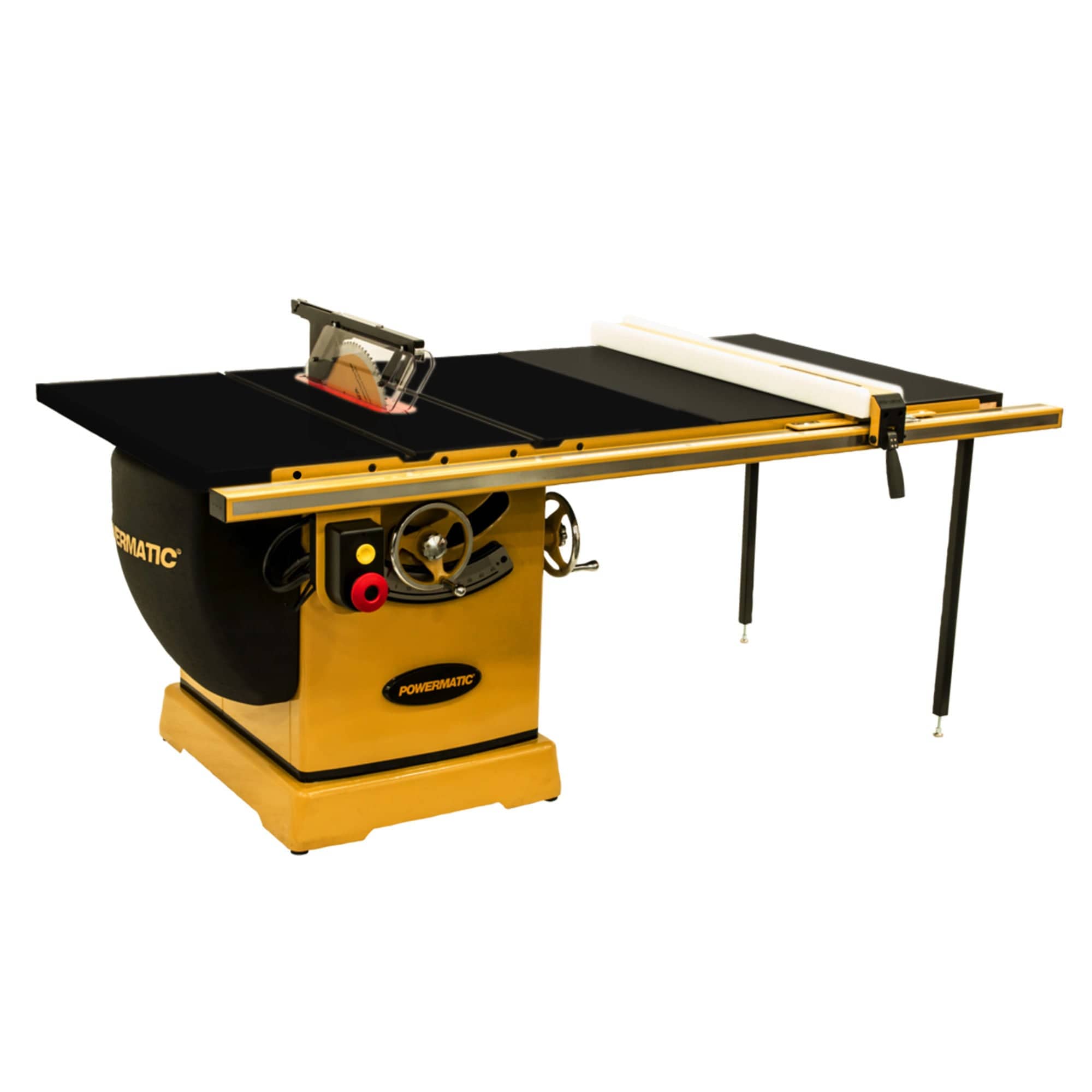

14" Table Saw - 7.5HP 3PH 230/460V 50"RIP ArmorGlide Model PM3000T, now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000B table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.


The newly designed integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.


Features:




  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant
  • Requires less maintenance
  • Gives you more control.
  • Miter gauge is built with robust materials with many positive stops for the most commonly used angles.
  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Arbor lock for rapid blade change
  • Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
  • Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
  • Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
  • Poly-V drive belt system delivers efficient, quiet operation
  • Push-button arbor lock for rapid blade change
  • Quick release riving knife lever for hassle free riving knife changes


Specifications:



  • Motor: 7.5HP
  • Motor Power: 460 Volt
  • Motor Phase: 3PH
  • Amps: 6.7
  • Arbor Diameter: 1"
  • Arbor Speed: 4500 RPM
  • Blade Diameter: 14"
  • Dust Collection Minimum: 600 CFM
  • Dust Port O.D.: 4"
  • Maximum Depth of Cut at 45 Degree: 2-1/8"
  • Maximum Depth of Cut: 3-12" or 5-1/8"
  • Maximum Diameter of Dado: 8"
  • Maximum Rip Left of Blade:14"
  • Maximum Rip Right of Blade: 50"
  • Maximum Width of Dado: 13/16
  • T-Slot with Stops
  • Table Type: Cast Iron
  • 50" Rip Fence
  • Net Weight: 737 lbs.
  • Ship Weight: 830 lbs.
  • Overall Dimensions: Shipping 84-3/4"L x 39-1/8"W x 40-3/8" H
  • Table Height from Floor: 35-1/4"
  • Table in Front of Saw Blade at Maximum Depth of Cut: 10"
  • Table Size: 26" L x 38" W
  • Recommended Circuit Size: 30 Amp

What's Included:

  • (1) Powermatic® 14" Table Saw - 7.5 HP 3 PH 230/460V 50"RIP ArmorGlide - PM3000T
