Powermatic

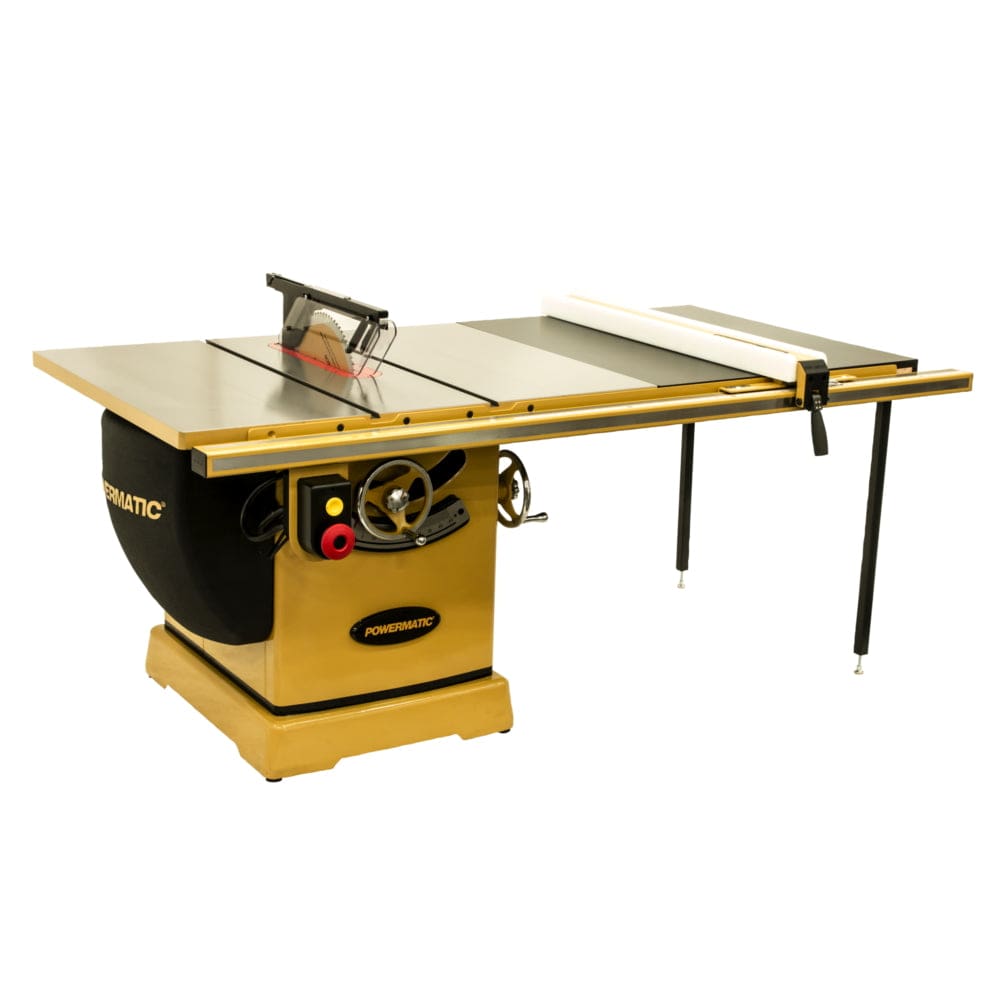

14" Table Saw with 50" Rip Capacity - 7-1/2 HP 3 Ph 230/460V - PM3000B
Powermatic
14" Table Saw with 50" Rip Capacity - 7-1/2 HP 3 Ph 230/460V - PM3000B
Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.
Items you may need
-
Align-A-Saw Gauge & Base
Regular price $89.99Sale price $89.99 Regular priceUnit price per$89.99
-
Thin Rip Guide
Regular price $169.99Sale price $169.99 Regular priceUnit price per$169.99
-
Align-A-Saw Plate
Regular price $159.99Sale price $159.99 Regular priceUnit price per$159.99
-
Spline Jig
Regular price $159.99Sale price $159.99 Regular priceUnit price per$159.99
-
Sliding Table Attachment Kit for PM2000B and PM3000B Table Saws - PMST-48
Regular price $1,799.99Sale price $1,799.99 Regular priceUnit price per$1,799.99
-
Saw Gauge with Dial Indicator
Regular price $99.99Sale price $99.99 Regular priceUnit price per$99.99
Details
A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A re-designed push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.
Features:
• Quick release riving knife lever for hassle free riving knife changes
• Matching beveled edge between table and extension wings
• Re-designed AccuFence system for precision cuts
• Dust collection greatly improved from previous models
• Poly-V drive belt system delivers efficient, quiet operation
• Wide stance heavy-duty trunnion for stability and smooth blade positioning
• Adjustable angle indicators (patent pending) on the blade bevel scale for repeatable bevel cuts
• Heavy-duty micro adjustable miter gauge with aluminum extruded fence for good workpiece guidance and fine angle adjustments
Specifications:
CSA Certified
Motor: 7.5HP, 3PH, 230/460V, 18.4/9.2A
L x W x H (In.): 48 x 38 x 43
Net Weight (lbs): 738 lbs.
Gross Weight (lbs): 831 lbs.
Style: Cabinet Saw
Prewired Voltage (V.): 230
Table Height from Floor (In.): 35-1/4
Maximum Diameter of Dado (In.): 8
Arbor Speed (RPM): 4500
Maximum Rip Left of Blade (In.) 14
Table Size (In.): 26 x 38
Maximum Width of Dado (In.): 13/16
Blade Diameter (In.): 14
Table Type: Cast Iron
Maximum Rip Right of Blade (In.): 50
Dust Port Outside Diameter (In.): 4
Table T-Slot (In.): 3/4 x 3/8
Arbor Diameter (In.): 1
Recommended Circuit Size (Amps.): 30
Dust Collection Minimum CFM Required (CFM): 600
Table Size with Extensions (In.): 48 x 38
Maximum Depth of Cut at 90 Degrees (In.): 5-1/8
Maximum Depth of Cut at 45 Degrees (In.): 3-1/2
Table in Front of Saw Blade at Maximum Depth of Cut (In.): 15-1/2
