Powermatic

12" Parallelogram Jointer with ArmorGlide - Straight Knife - 3 HP 1 PH 230V - 1285T

Item #189345 Model PM1-1791241T
$7,999.99
$7,999.99 $7,999.99

This item has an additional shipping charge

1 5

Powermatic

12" Parallelogram Jointer with ArmorGlide - Straight Knife - 3 HP 1 PH 230V - 1285T

Item #189345 Model PM1-1791241T
$7,999.99
$7,999.99 $7,999.99

This item has an additional shipping charge

12" Jointer - 3 HP 1 PH 230V ArmorGlide, Model 1285T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic . . . View More Details

Ships from Manufacturer

Shipping Info

Details

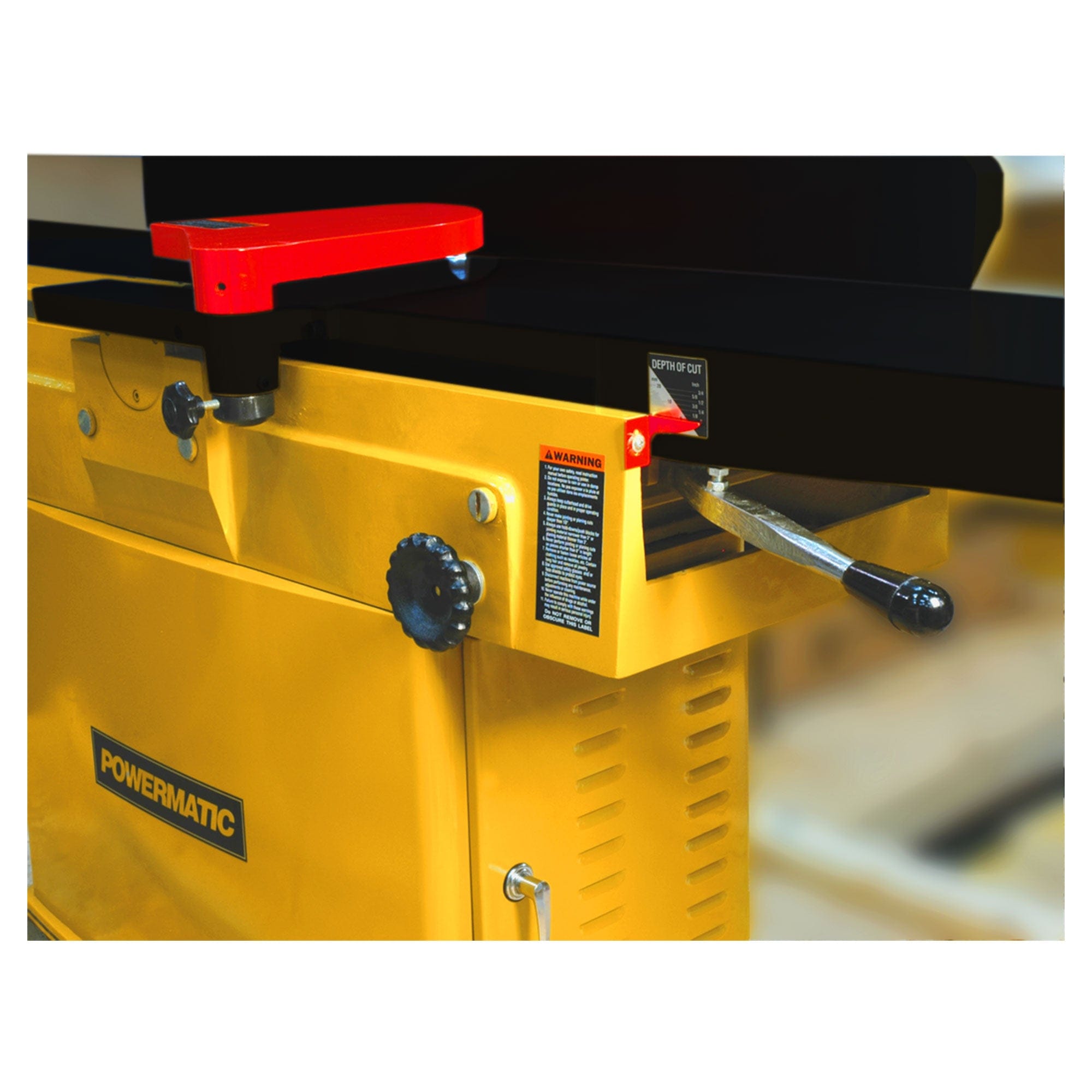

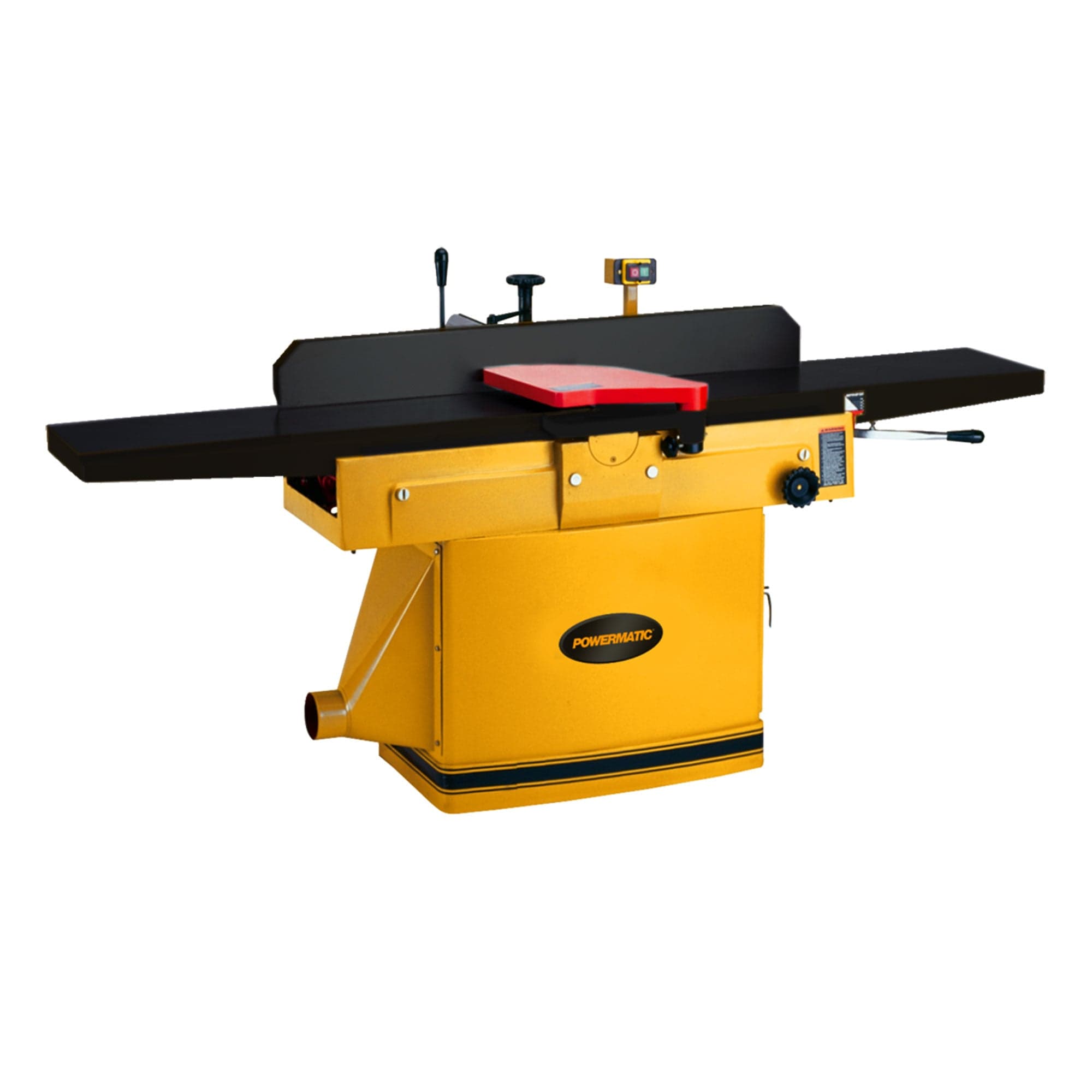

12" Jointer - 3 HP 1 PH 230V ArmorGlide, Model 1285T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a straight knife cutterhead.


Features:



  • ArmorGlide Technology gives you a low-friction, industrial-grade coating
  • Rust resistant
  • Less maintenance
  • More control
  • Large 12" x 84" precision ground cast iron table surface for heavy-duty work
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
  • Straight knife cutterhead with 3 high speed steel knives create a clean cut
  • Table "lips" on both sides of cutterhead aid in noise reduction


Specifications:



  • Product: 12" Jointer
  • Type: Straight Knife (3)
  • Style: Floor Standing Model
  • Motor Power: 3 HP
  • Motor Phase: Single 1 PH
  • Voltage: 230V
  • Cycle: 60 Hz
  • Cutterhead Speed: 5000
  • cuts Per Minute: 15.000
  • Cutting Capacity (W x D): 11-3/4" x 3/4"
  • Number of Knives: 3
  • Dust Collection Minimum CFM: 800
  • Dust Port: 4"
  • Infeed Table Length: 47-1/2"
  • Net Weight: 762
  • Ship Weight: 880 lbs.
  • Recommended Circuit Size: 30A

What's Included:

  • (1) Powermatic - 12" Parallelogram Jointer with ArmorGlide - Straight Knife - 3 HP 1 PH 230V - 1285T


Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 4 -7 approximately business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
