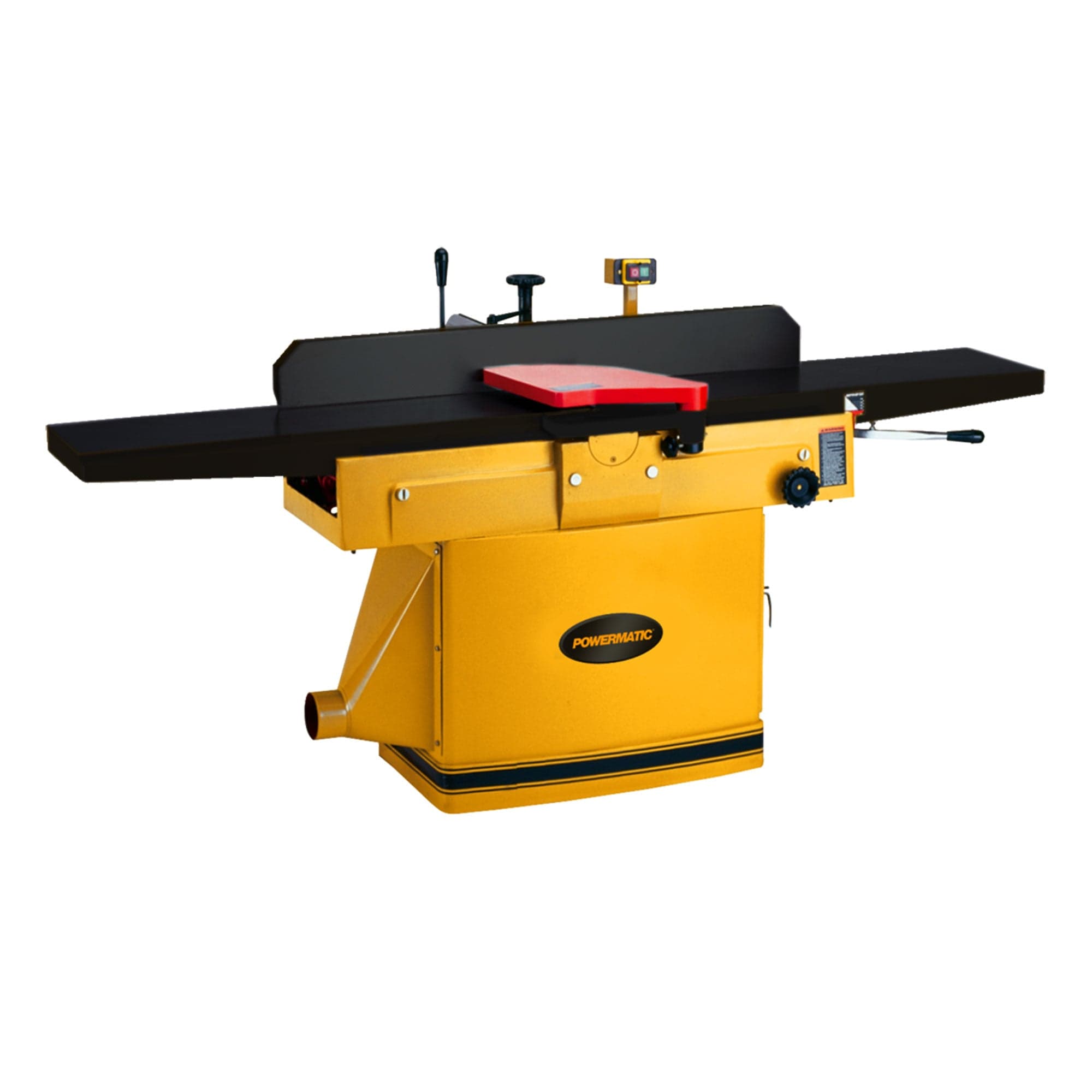

Powermatic

12" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 3 HP 3 PH 230V - 1285T

Item #189347 Model PM1-1791308T
$9,499.99
$9,499.99 $9,499.99

This item has an additional shipping charge

1 5

Powermatic

12" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 3 HP 3 PH 230V - 1285T

Item #189347 Model PM1-1791308T
$9,499.99
$9,499.99 $9,499.99

This item has an additional shipping charge

12" Jointer - 3 HP 3 PH 230V HH, ArmorGlide - Model 1285T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powerm. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Details

12" Jointer - 3 HP 3 PH 230V HH, ArmorGlide - Model 1285T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ-882HHT 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four sided knife inserts – these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82” bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of heavy use. The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.


Features:



  • ArmorGlide Technology gives you a low-friction, industrial-grade coating
  • Rust resistant
  • Less maintenance
  • More control
  • Helical cutterhead with 42 two sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut
  • Large 12" x 84" precision ground cast iron table surface for heavy-duty work

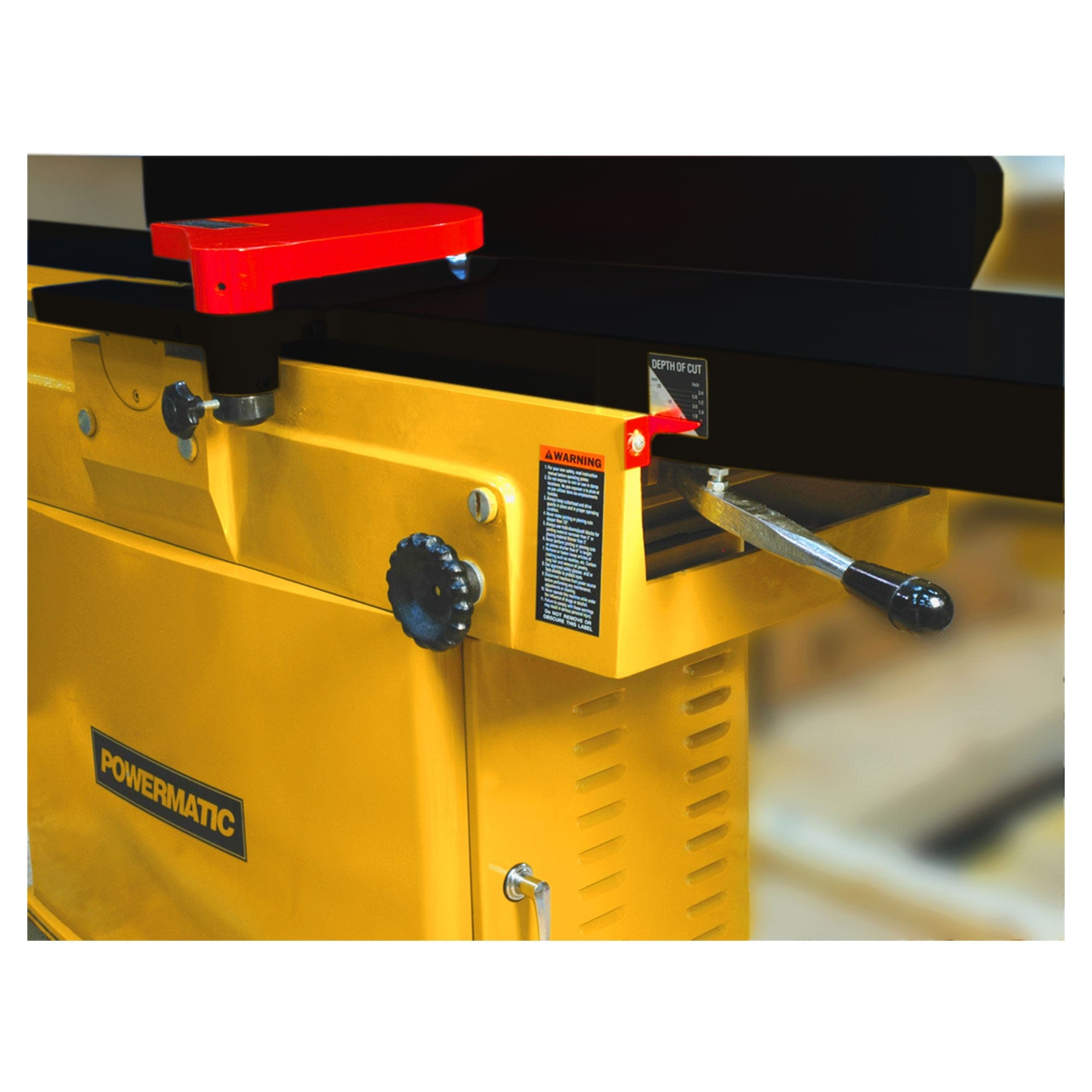

  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
  • Table "lips" on both sides of cutterhead aid in noise reduction


Specifications:



  • Product: 12" Jointer
  • Type: Helical Head with 44 - 4 sided inserts
  • Style: Floor Standing Model
  • Motor Power: 3 HP
  • Motor Phase: 3 PH
  • Voltage: 230V
  • Amps: 6.5A
  • Cycle: 60 Hz
  • Cutterhead Speed: 5000
  • Cutting Capacity (W x D): 11-3/4" x 3/4"
  • Number of knives: 3
  • Dust Collection Minimum CFM: 800
  • Dust Port: 4"
  • Net Weight: 812
  • Ship Weight: 880 lbs.

What's Included:

  • (1) Powermatic - 12" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 3 HP 3 PH 230V - 1285T
