Powermatic

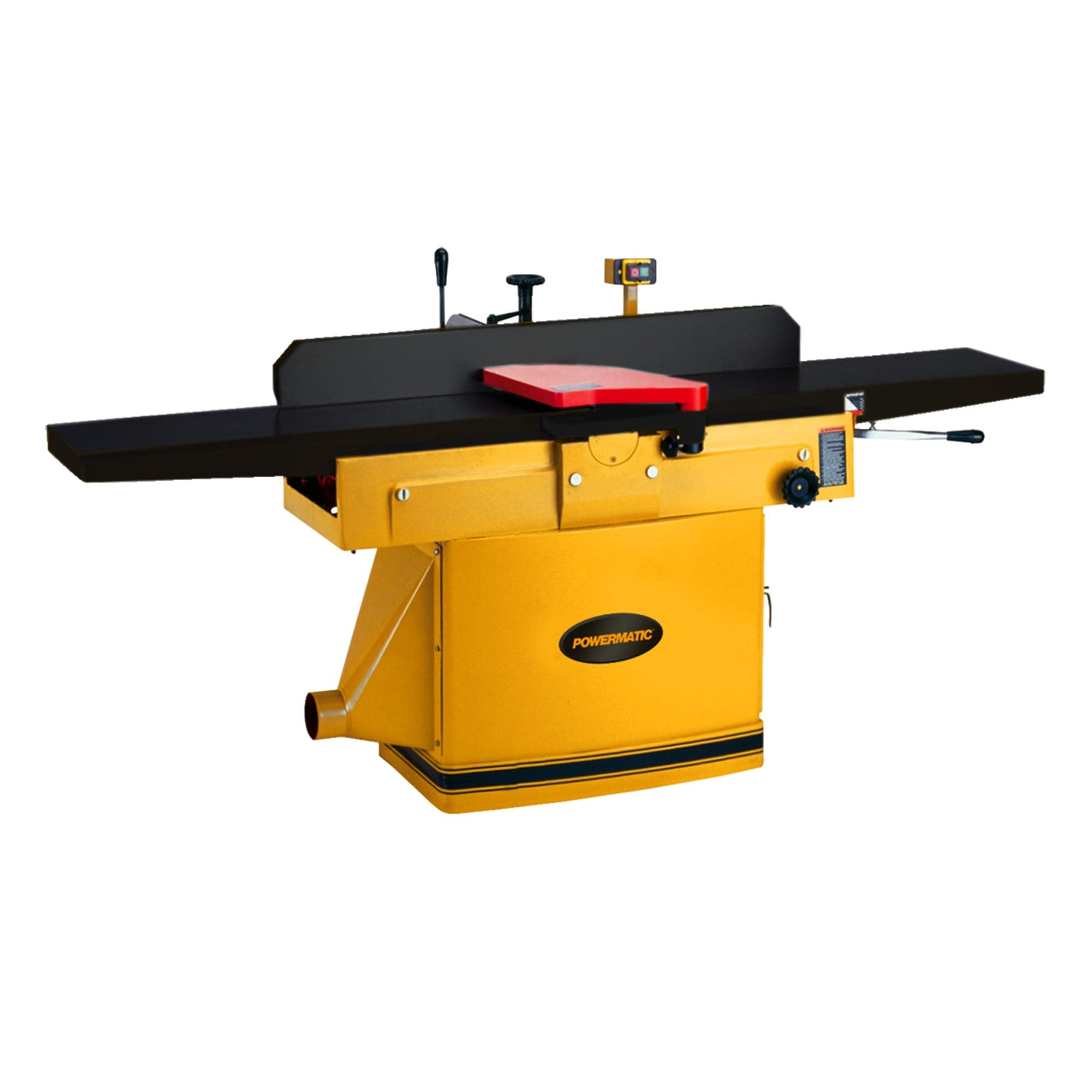

12" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 3 HP 1 PH 230V - 1285T
Item #189346
Model PM1-1791307T
Regular price
$9,499.99
Sale price
$9,499.99
Regular price
$9,499.99
Unit price
per
Powermatic
12" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 3 HP 1 PH 230V - 1285T
Item #189346
Model PM1-1791307T
Regular price
$9,499.99
Sale price
$9,499.99
Regular price
$9,499.99
Unit price
per
12" Jointer - 3 HP 1 PH 230V, HH, ArmorGlide - Model 1285T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Power. . .
View More Details
Details
12" Jointer - 3 HP 1 PH 230V, HH, ArmorGlide - Model 1285T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ-882HHT 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four sided knife inserts – these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82” bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of heavy use. The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.
Features:
- ArmorGlide Technology gives you a low-friction, industrial-grade coating
- Rust resistant
- Less maintenance
- More control
- Helical cutterhead with 42 two sided carbide inserts for fast knife changes with no adjustments and a quiet clean cut
- Large 12" x 84" precision ground cast iron table surface for heavy-duty work
- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
- Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
- Table "lips" on both sides of cutterhead aid in noise reduction
Specifications:
- Product: 12" Jointer
- Type: Helical Head with 44 - 4 sided inserts
- Style: Floor Standing Model
- Motor Power: 3 HP
- Motor Phase: Single 1 PH
- Voltage: 230V
- Cycle: 60 Hz
- Cutterhead Speed: 5000
- Cutting Capacity (W x D): 11-3/4" x 3/4"
- Number of Inserts: 44
- Dust Collection Minimum CFM: 800
- Dust Port: 4"
- Net Weight: 762
- Ship Weight: 880 lbs.
What's Included:
- (1) Powermatic - 12" Parallelogram Jointer with ArmorGlide - Helical Cutterhead - 3 HP 1 PH 230V - 1285T
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:
- Your order will ship in 4 -7 approximately business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
Warranty Information
Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
