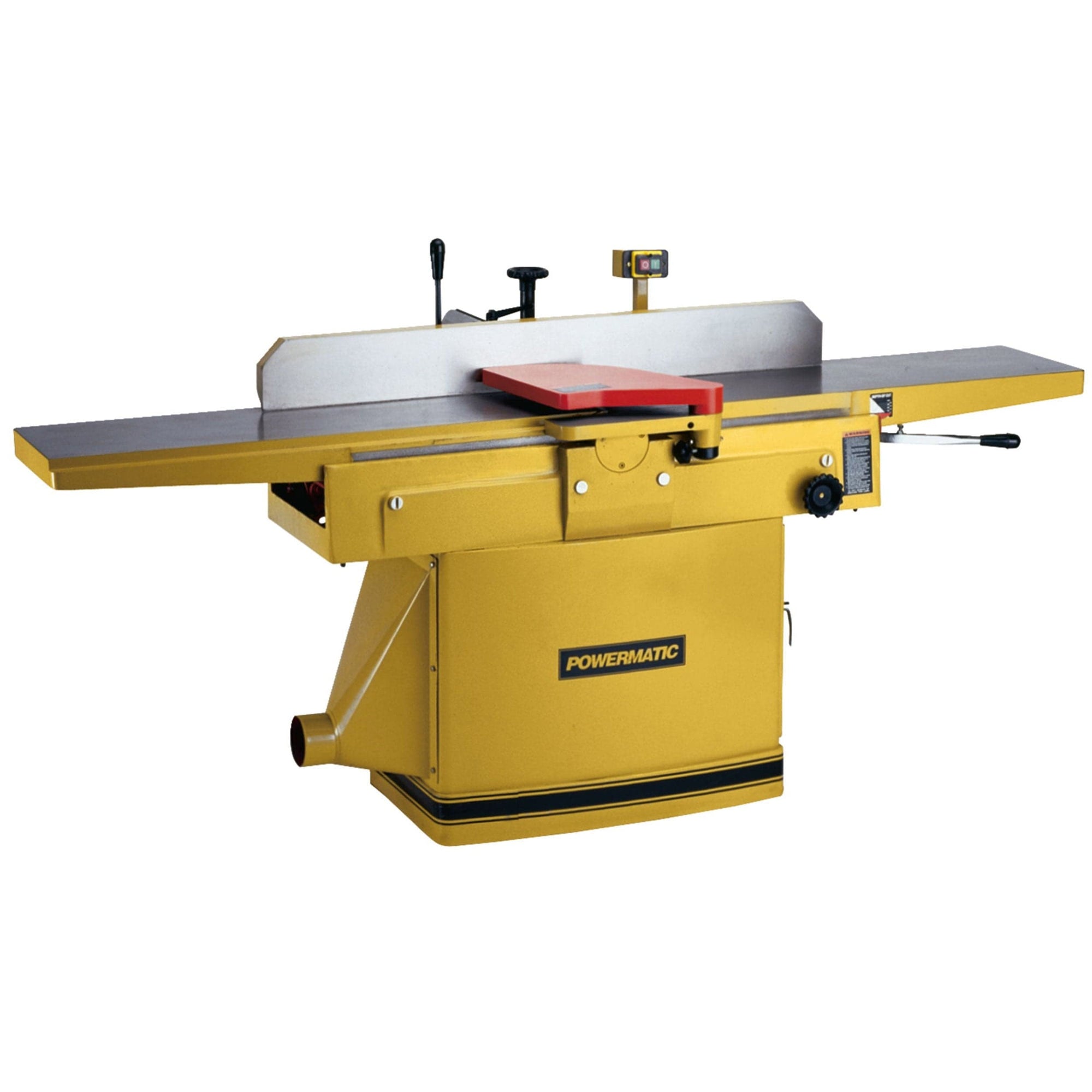

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.
Specifications:
Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
Large 84" x 12" table surface for heavy-duty work
Table "lips" on both sides of cutterhead aid in noise reduction
Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
3HP motor provides plenty of power
Cutterhead guard
Heavy duty fence
Dust port
Push blocks
Tool kit
Cuts Per Minute : 15000
Cutterhead Speed (RPM) : 5000
Cutting Capacity (W x D/in) : 11-3/4 x 3/4
Dust Collection Minimum CFM Required : 800
Dust Port Diameter (OD/in) : 6
Fence Positive Stops (deg.) : 45, 90 and -45
Fence Size (L x H/in) : 47 x 5-1/2
Fence Tilts (deg.) : 45 right, 45 left
Height (in): 39
Length (in): 89.5
Model Number : 1285
Motor HP : 3HP
Motor Phase : 1Ph
Motor Voltage : 230V
Net Weight : 835 pound
Number of Knives (Helical/Standard) : 3 standard
Overall Dimensions : 89.5 x 28.5 x 39
Part Number : 1791241
Rabbeting Capacity (in) : 3/4
Standard Knife Size (L x W x T/in) : 12 x 1-3/16 x 1/8
Table Height (in) : 31-1/2
Table Size (L x W/in) : 84 x 12
Width (in): 28.5
Shipping weight 880 lb.
