Powermatic

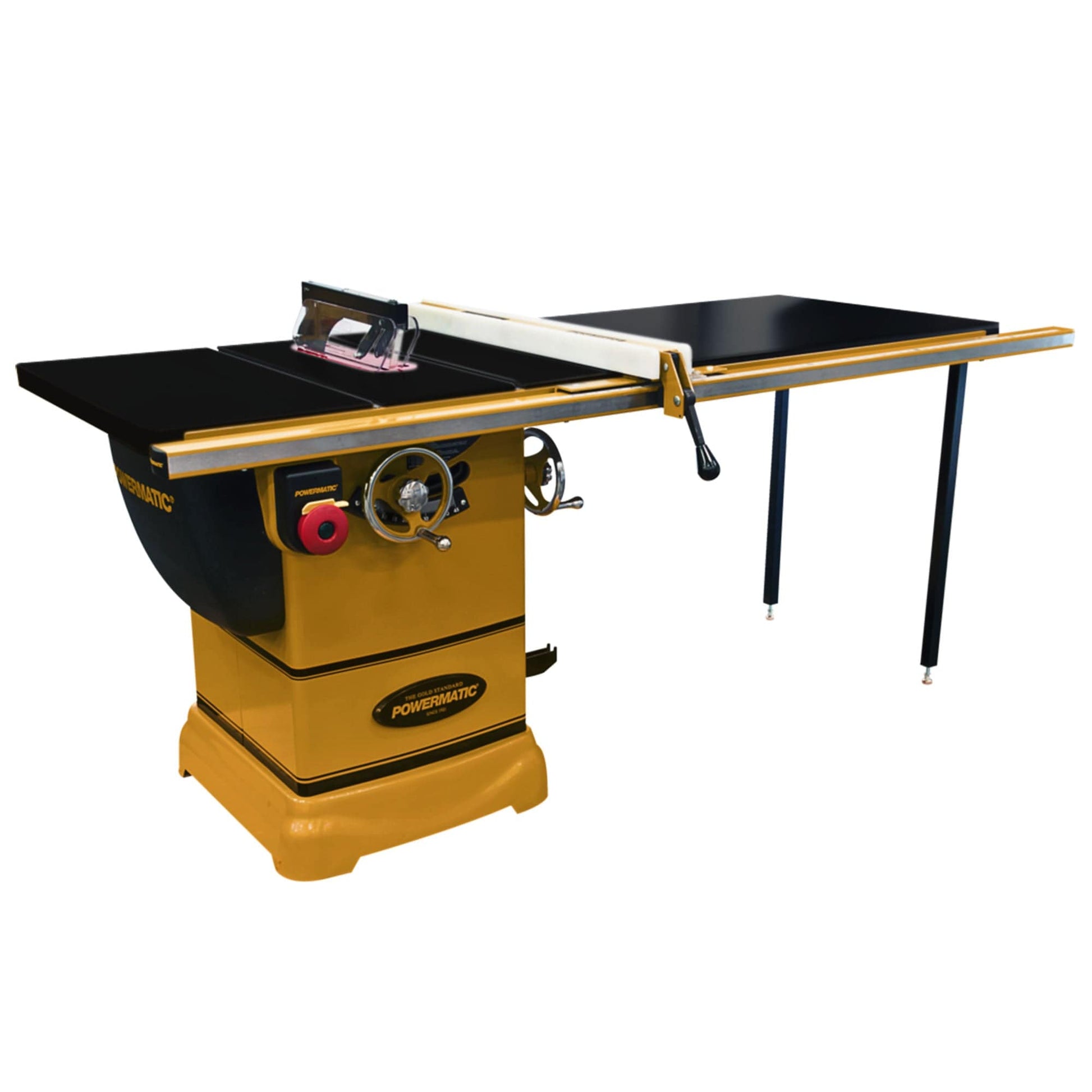

10" Table Saw with ArmorGlide - 52" Rip Extension Table - 1-3/4 HP 1PH 115V - PM1000T

Item #189350 Model PM1-1791001KT
$3,599.99
$3,599.99 $3,599.99

This item has an additional shipping charge

1 7

Powermatic

10" Table Saw with ArmorGlide - 52" Rip Extension Table - 1-3/4 HP 1PH 115V - PM1000T

Item #189350 Model PM1-1791001KT
$3,599.99
$3,599.99 $3,599.99

This item has an additional shipping charge

10" Table Saw - 1-3/4HP 1PH 115V 52" AF, ArmorGlide Model PM1000T, evolution represents a process that is never fully complete. For a woodworker, inspirations evolve. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Spline Jig

    $159.99
    $159.99 $159.99
    Spline Jig

  • Thin Rip Guide

    $169.99
    $169.99 $169.99
    Thin Rip Guide

  • Align-A-Saw Gauge & Base

    $89.99
    $89.99 $89.99
    Align-A-Saw Gauge & Base

  • Align-A-Saw Plate

    $159.99
    $159.99 $159.99
    Align-A-Saw Plate

  • Saw Gauge with Dial Indicator

    $99.99
    $99.99 $99.99
    Saw Gauge with Dial Indicator

Details

10" Table Saw - 1-3/4HP 1PH 115V 52" AF, ArmorGlide Model PM1000T, evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. The PM1000 cabinet table saw is an example of this. Now featuring our ArmorGlide Technology that is low-friction and rust-resistant, the PM1000 redefines the limits of design, innovation, and durability.


Features:



  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant
  • Requires less maintenance
  • Gives you more control.
  • Miter gauge is built with robust materials with many positive stops for the most commonly used angles.
  • Blade surround and collection hose provide an unobstructed path, maximizing dust collection
  • Arbor lock allows for one handed blade changes with minimal tools
  • Conveniently located hands free power switch
  • Ergonomically designed 7” hand wheels provide momentum, making blade height and bevel adjustments easy
  • Exclusive Accu-Fence provides rigidity and precision
  • Precision ground cast iron work surface features a beveled edge for smoother operation
  • Requires only 115V connection for easy installation
  • Poly-V belt drive system reduces vibration and maximizes efficiency
  • Sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
  • Toolless guard assembly with independent side leaves is easy to use, maximizing safety


Specifications:



  • Motor: 1-3/4 HP
  • Motor Power: Wired 115 115/230 Wired
  • Motor Phase: 1 PH single phase
  • Arbor Diameter: 5/8"
  • Arbor Speed: 4200 RPM
  • Blade Diameter: 10"
  • Dust Collection Minimum: 350 CFM
  • Dust Port O.D.: 4"
  • Maximum Depth of Cut at 45 Degree: 2-1/8"
  • Maximum Depth of Cut: 2-1/8 or 3-1/8"
  • Maximum Diameter of Dado: 8"
  • Maximum Rip Left of Blade:12"
  • Maximum Rip Right of Blade: 30"
  • Maximum Width of Dado: 13/16
  • T-Slot with Stops
  • Table Type: Cast Iron
  • 52" Accu-Fence System
  • Net Weight: 394 lbs.
  • Ship Weight: 465 lbs.
  • Overall Dimensions: Shipping 43"L x 83"W x 44" H
  • Table Height from Floor: 34-1/4"
  • Table in Front of Saw Blade at Maximum Depth of Cut: 10"
  • Table Size: 20" L x 27" W

What's Included:

  • (1) Powermatic - 10" Table Saw with ArmorGlide - 52" Rip Extension Table - 1-3/4 HP 1PH 115V - PM1000T
