Powermatic

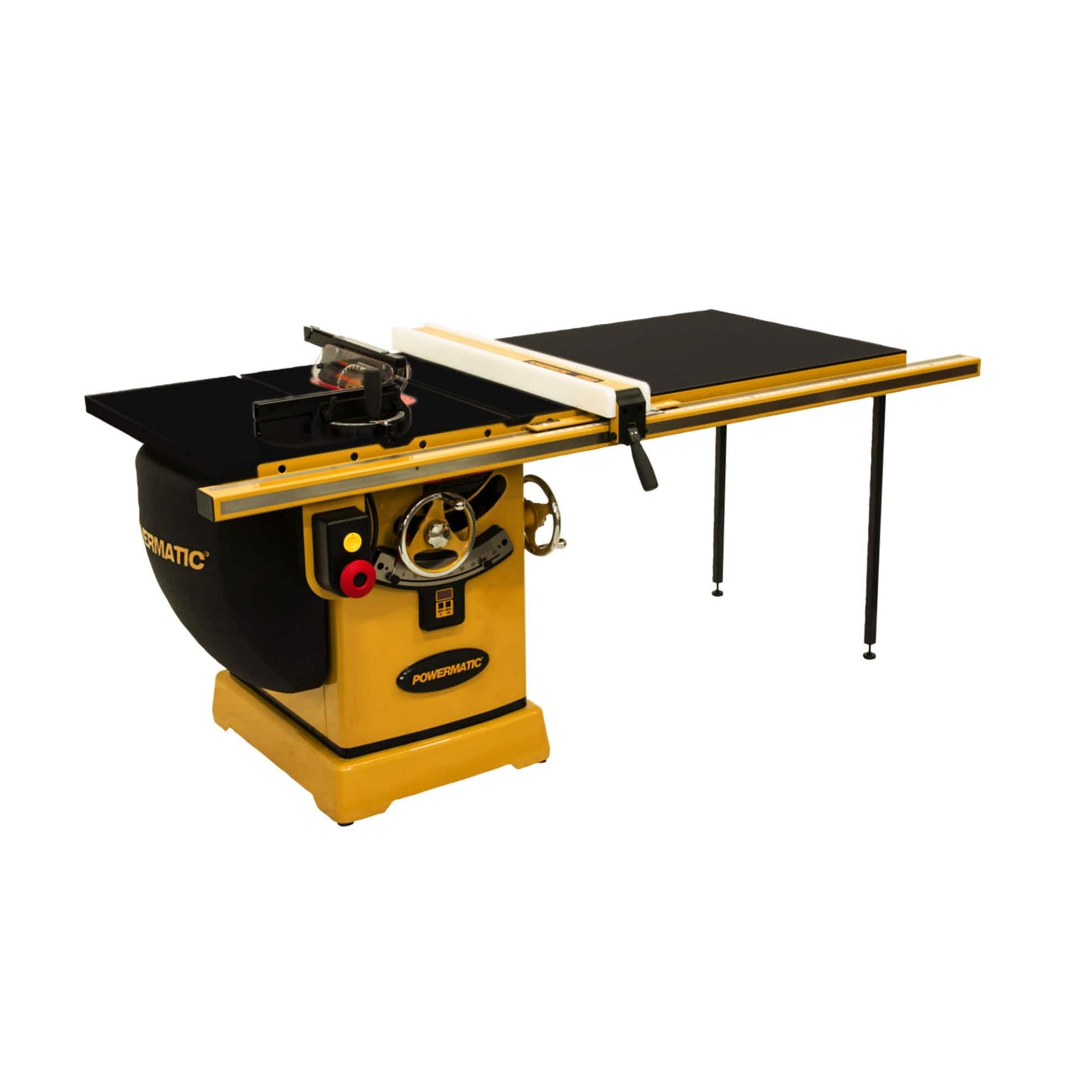

10" Table Saw with ArmorGlide - 50" Rip Extension Table - 5 HP 3 PH 230/460V - PM2000T

Item #189360 Model PM1-PM25350KT
$5,849.99
$5,849.99 $5,849.99

This item has an additional shipping charge

1 7

Powermatic

10" Table Saw with ArmorGlide - 50" Rip Extension Table - 5 HP 3 PH 230/460V - PM2000T

Item #189360 Model PM1-PM25350KT
$5,849.99
$5,849.99 $5,849.99

This item has an additional shipping charge

10" Table Saw - 5 HP 3 PH 230/460V 50" RIP, ArmorGlide Model PM2000T, now featuring ArmorGlide Technology that is low-friction and rust-resi. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Items you may need

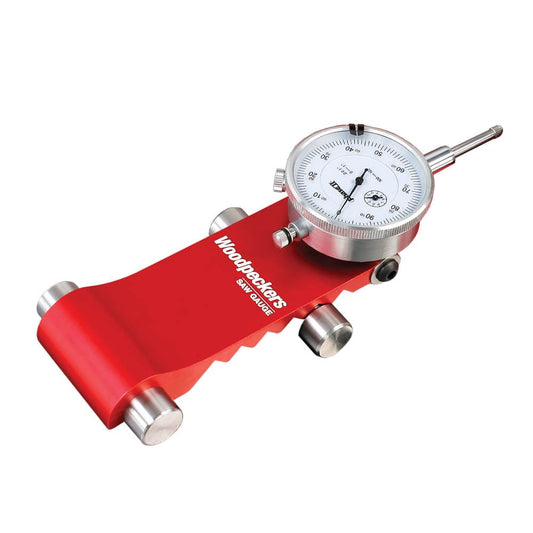

  • Saw Gauge with Dial Indicator

    $99.99
    $99.99 $99.99
    Saw Gauge with Dial Indicator

  • Align-A-Saw Plate

    $159.99
    $159.99 $159.99
    Align-A-Saw Plate

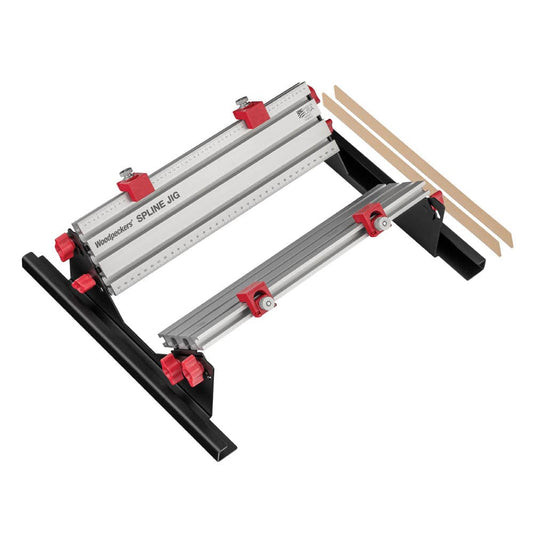

  • Spline Jig

    $159.99
    $159.99 $159.99
    Spline Jig

  • Thin Rip Guide

    $169.99
    $169.99 $169.99
    Thin Rip Guide

  • Align-A-Saw Gauge & Base

    $89.99
    $89.99 $89.99
    Align-A-Saw Gauge & Base

Details

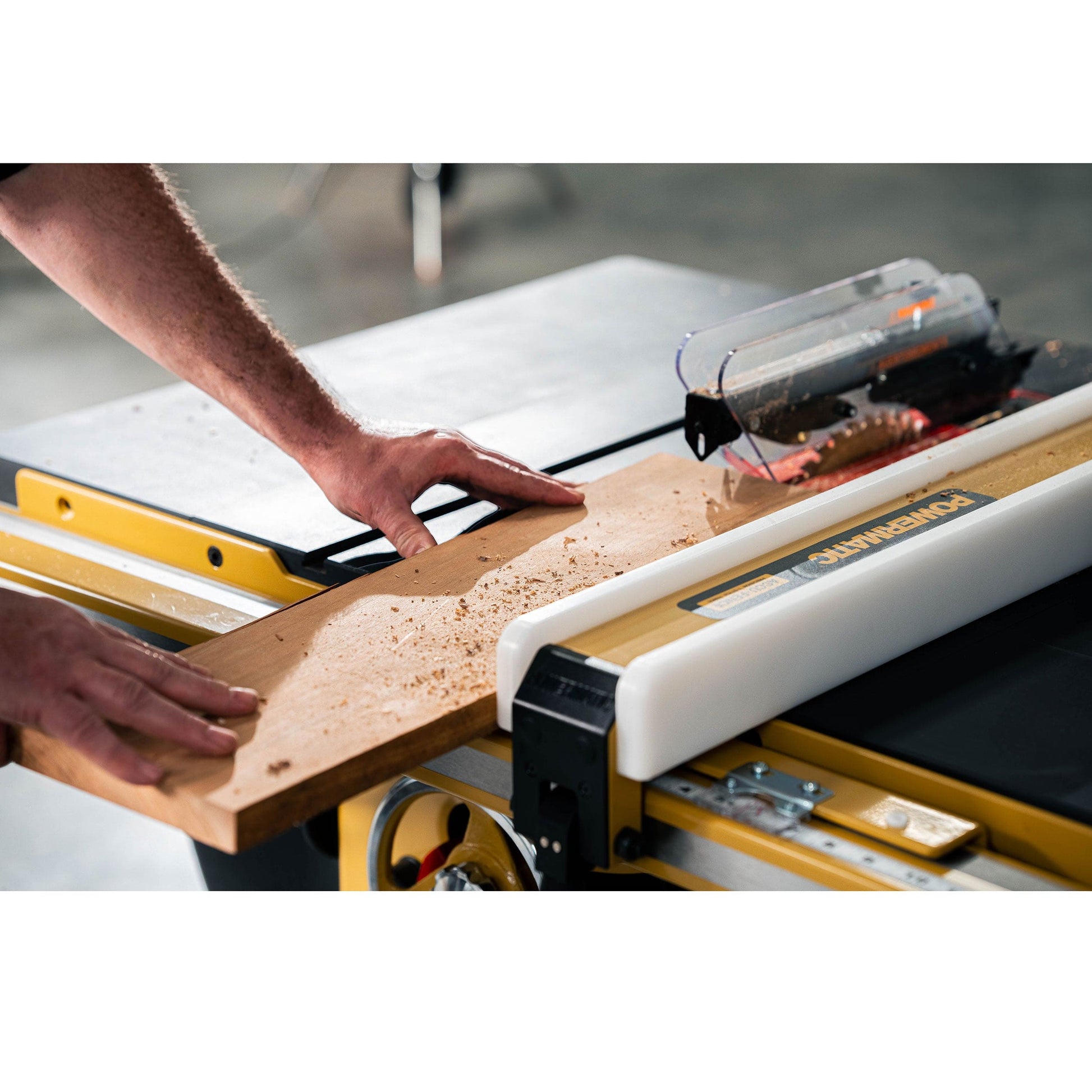

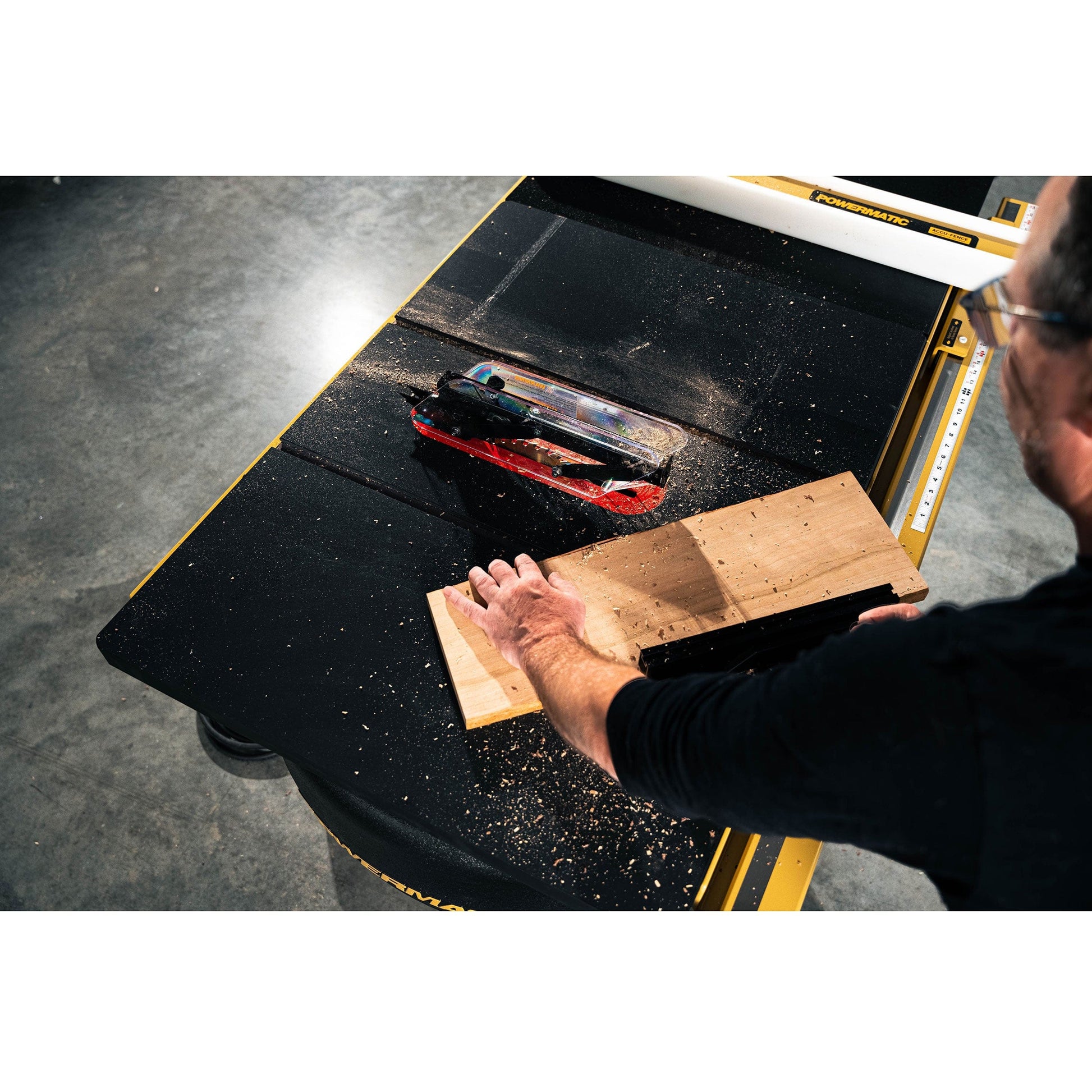

10" Table Saw - 5 HP 3 PH 230/460V 50" RIP, ArmorGlide Model PM2000T, now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000B table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.


The newly designed integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.


Features:




  • ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant
  • Requires less maintenance
  • Gives you more control.
  • Miter gauge is built with robust materials with many positive stops for the most commonly used angles.
  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Arbor lock for quick and easy blade changes
  • Integrated digital read out for precise bevel cuts
  • Integrated dust collection
  • Integrated hydraulic castor system for ease of movement around the shop
  • Matching beveled edge between table and extension wings
  • One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
  • Precision-ground, high luster cast iron tabletops with front and rear edge bevel
  • Quick release riving knife lever for hassle free riving knife changes


Specifications:



  • Motor: 5 HP
  • Motor Power: Pre-Wired 230V
  • Motor Phase: 3 PH
  • Amps: 6.5
  • Arbor Diameter: 5/8"
  • Arbor Speed: 4500 RPM
  • Blade Diameter: 10"
  • Dust Collection Minimum: 400 CFM
  • Dust Port O.D.: 4"
  • Maximum Depth of Cut at 45 Degree: 2-1/8"
  • Maximum Depth of Cut: 2-1/8 or 3-1/8"
  • Maximum Diameter of Dado: 8"
  • Maximum Rip Left of Blade:13-1/2"
  • Maximum Rip Right of Blade: 30"
  • Maximum Width of Dado: 13/16
  • T-Slot with Stops
  • Table Type: Cast Iron
  • 30" Rip Fence
  • Net Weight: 737 lbs.
  • Ship Weight: 830 lbs.
  • Overall Dimensions: Shipping 84-3/4"L x 39-1/8"W x 40-3/8" H
  • Table Height from Floor: 35"
  • Table in Front of Saw Blade at Maximum Depth of Cut: 10"
  • Table Size: 30-1/2" L x 22" W
  • Recommended Circuit Size: 20 Amp

What's Included:

  • (1) Powermatic - 10" Table Saw with ArmorGlide - 50" Rip Extension Table - 5 HP 3 PH 230/460V - PM2000T


Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 4 -7 approximately business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
