• Integrated Digital Read Out for precise bevel cuts


• Newly designed integrated hydraulic castor system with greater travel than previous model


• Matching beveled edge between table and extension wings


• Newly designed Arbor lock for quick and easy blade changes


• Improved dust collection inside and outside of the cabinet
• Quick release riving knife lever for hassle free riving knife changes


• Wider stance, box trunnion design
• Newly designed Accu-Fence system for precision cuts
• CSA Certified


• Router Lift Included


• Motor: 5HP, 3PH, 230/460V, 13/6.5A
• L x W x H (In.): 84.75 x 39.5 x 40.5
• Net Weight (lbs): 662 lbs.
• Gross Weight (lbs): 739 lbs.

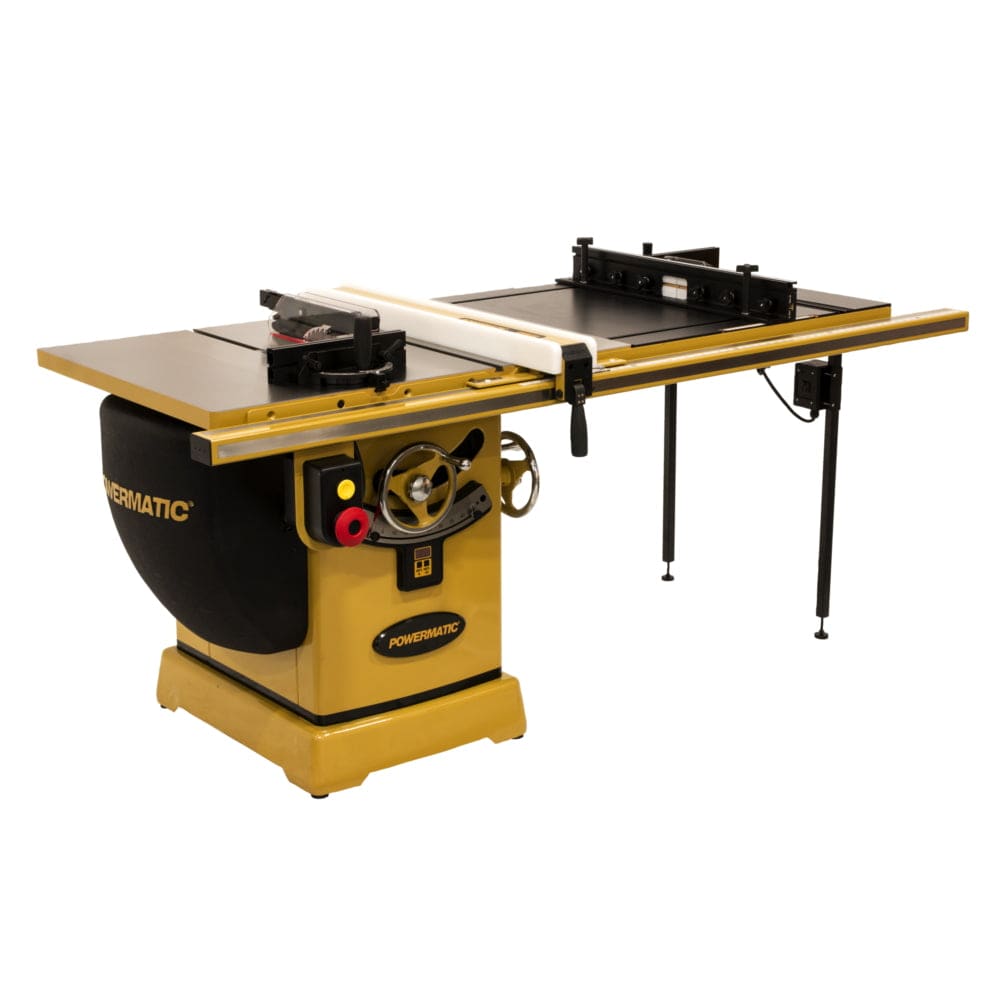

• Style: Cabinet Saw
• Prewired Voltage (V.): 230
• Table Height from Floor (In.): 35
• Maximum Diameter of Dado (In.): 8
• Arbor Speed (RPM): 4500
• Maximum Rip Left of Blade (In.): 13-1/2
• Table Size (In.): 22 x 30-1/2
• Maximum Width of Dado (In.): 13/16
• Blade Diameter (In.): 10
• Table Type: Cast Iron
• Maximum Rip Right of Blade (In.): 50
• Dust Port Outside Diameter (In.): 4
• Table T-Slot (In.): 3/4 x 3/8
• Arbor Diameter (In.): 5/8
• Recommended Circuit Size (Amps.): 20
• Dust Collection Minimum CFM Required (CFM): 400
• Table Size with Extensions (In.): 42 x 30-1/2
• Maximum Depth of Cut at 90 Degrees (In.): 3-1/8
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
• Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4
