• Integrated Digital Read Out for precise bevel cuts


• Newly designed integrated hydraulic castor system with greater travel than previous model
• Matching beveled edge between table and extension wings
• Newly designed Arbor lock for quick and easy blade changes
• Improved dust collection inside and outside of the cabinet
• Quick release riving knife lever for hassle free riving knife changes
• Wider stance, box trunnion design
• Newly designed Accu-Fence system for precision cuts
• CSA Certified


• Router Lift Included
• Motor: 5HP, 1PH, 230V, 21A
• L x W x H (In.): 84.75 x 39.5 x 40.5
• Net Weight (lbs): 662 lbs.
• Gross Weight (lbs): 739 lbs.

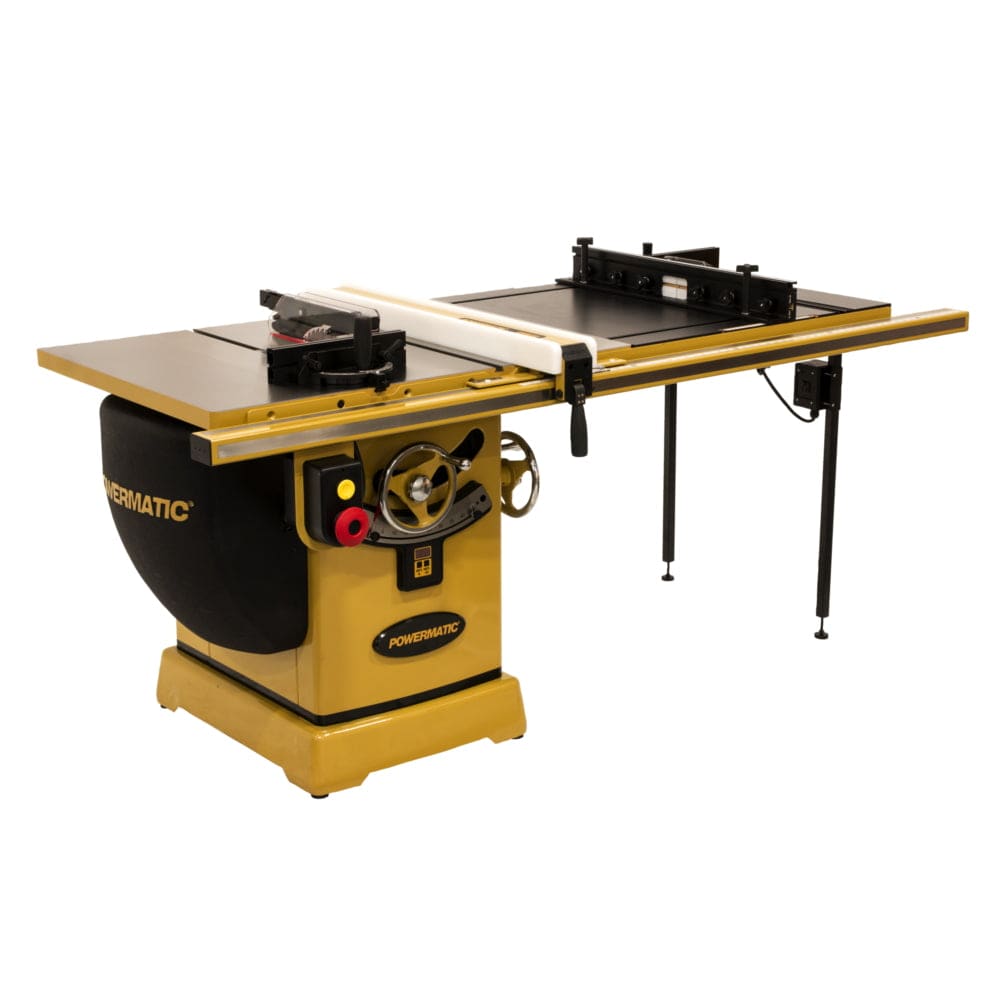

• Style: Cabinet Saw
• Table Height from Floor (In.): 35
• Maximum Diameter of Dado (In.): 8
• Arbor Speed (RPM): 4500
• Maximum Rip Left of Blade (In.): 13-1/2
• Table Size (In.): 22 x 30-1/2
• Maximum Width of Dado (In.): 13/16
• Blade Diameter (In.): 10
• Table Type: Cast Iron
• Maximum Rip Right of Blade (In.): 50
• Dust Port Outside Diameter (In.): 4
• Table T-Slot (In.): 3/4 x 3/8
• Arbor Diameter (In.): 5/8
• Recommended Circuit Size (Amps.): 30
• Dust Collection Minimum CFM Required (CFM): 400
• Table Size with Extensions (In.): 42 x 30-1/2
• Maximum Depth of Cut at 90 Degrees (In.): 3-1/8
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
• Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
