Powermatic

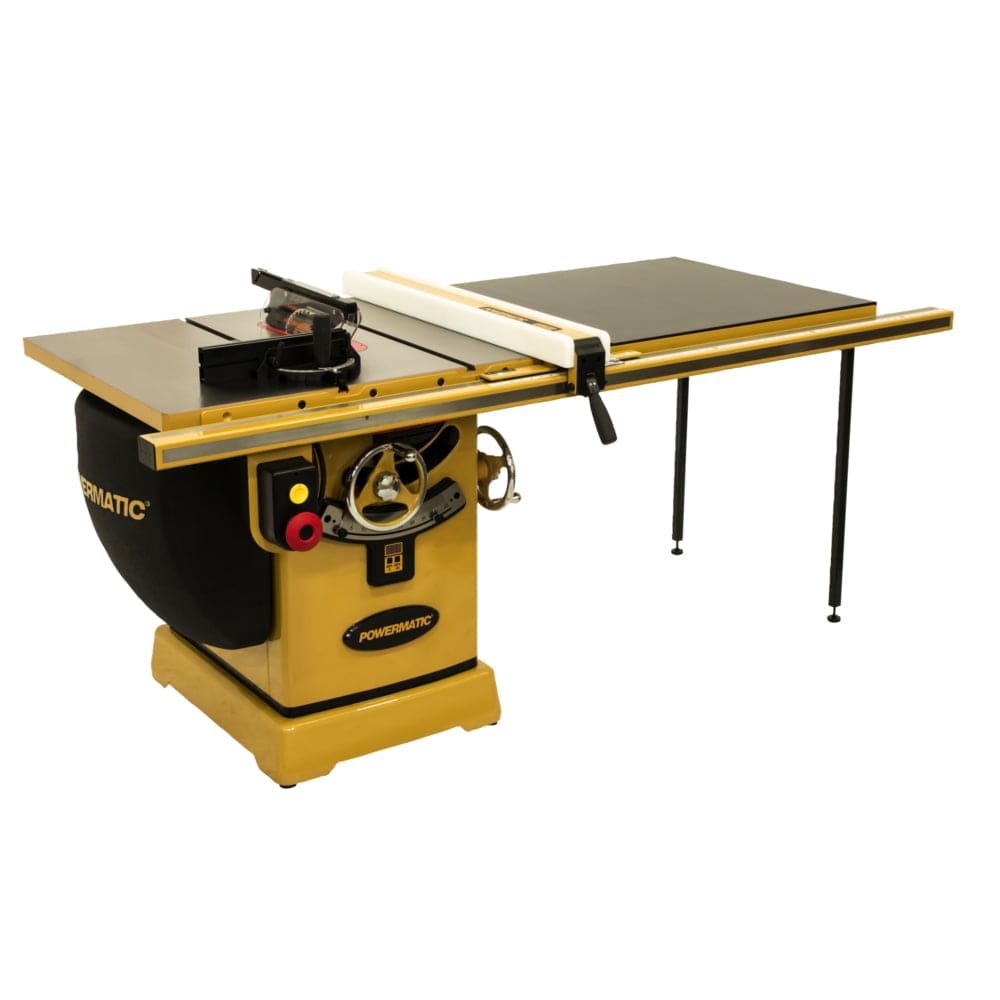

10" Table saw with 50" Rip Capacity - 3 HP 1 Ph 230V - PM2000B
This item has an additional shipping charge
Powermatic
10" Table saw with 50" Rip Capacity - 3 HP 1 Ph 230V - PM2000B
This item has an additional shipping charge
Items you may need
-
Saw Gauge with Dial Indicator
Regular price $99.99Sale price $99.99 Regular priceUnit price / per$99.99 -
Sliding Table Attachment Kit for PM2000B and PM3000B Table Saws - PMST-48
Regular price $1,799.99Sale price $1,799.99 Regular priceUnit price / per$1,799.99 -
Spline Jig
Regular price $159.99Sale price $159.99 Regular priceUnit price / per$159.99 -
Thin Rip Guide
Regular price $169.99Sale price $169.99 Regular priceUnit price / per$169.99 -
Align-A-Saw Gauge & Base
Regular price $89.99Sale price $89.99 Regular priceUnit price / per$89.99 -
Align-A-Saw Plate
Regular price $159.99Sale price $159.99 Regular priceUnit price / per$159.99
Details
The newly designed integrated retractable hydraulic caster system mobilizes your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.
Features:
• Integrated digital read out for precise bevel cuts
• Newly designed integrated hydraulic castor system with greater travel than previous model
• Matching beveled edge between table and extension wings
• Newly designed Arbor lock for quick and easy blade changes
• Improved dust collection inside and outside of the cabinet
• Quick release riving knife lever for hassle free riving knife changes
• Wider stance, box trunnion design
• Newly designed Accu-Fence system for precision cuts
• CSA Certified
Specifications:
Motor: 3HP, 1PH, 230V, 14.5A
L x W x H (In.): 84.75 x 39.5 x 40.5
Net Weight (lbs): 629 lbs.
Gross Weight (lbs): 704 lbs.
Style: Cabinet Saw
Table Height from Floor (In.): 35
Maximum Diameter of Dado (In.): 8
Arbor Speed (RPM): 4500
Maximum Rip Left of Blade (In.): 13-1/2
Table Size (In.): 22 x 30-1/2
Maximum Width of Dado (In.): 13/16
Blade Diameter (In.): 10
Table Type: Cast Iron
Maximum Rip Right of Blade (In.): 50
Dust Port Outside Diameter (In.): 4
Table T-Slot (In.): 3/4 x 3/8
Arbor Diameter (In.): 5/8
Recommended Circuit Size (Amps.): 20
Dust Collection Minimum CFM Required (CFM): 400
Table Size with Extensions (In.): 42 x 30-1/2
Maximum Depth of Cut at 90 Degrees (In.): 3-1/8
Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:
- Your order will ship in 4 -7 approximately business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
Warranty Information
Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
