Features:
Integrated Digital Read Out for precise bevel cuts
Newly designed integrated hydraulic castor system with greater travel than previous model
Matching beveled edge between table and extension wings
Newly designed Arbor lock for quick and easy blade changes
Improved dust collection inside and outside of the cabinet
Quick release riving knife lever for hassle free riving knife changes
Wider stance, box trunnion design
Newly designed Accu-Fence system for precision cuts
CSA Certified
Specifications:
Motor: 5HP, 3PH, 230/460V, 13/6.5A
L x W x H (In.): 67 x 39.5 x 40.5
Net Weight (lbs): 621 lbs.
Gross Weight (lbs): 696 lbs.

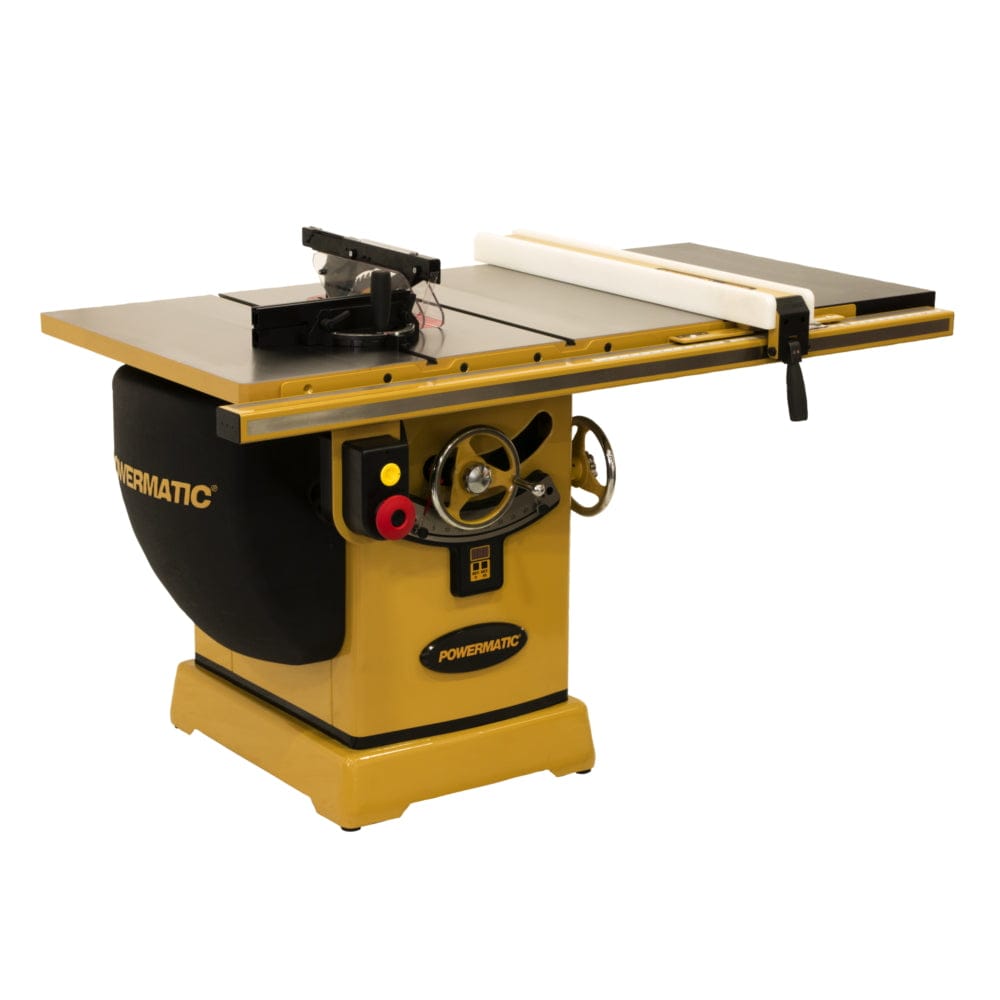

Style: Cabinet Saw
Prewired Voltage (V.): 230
Table Height from Floor (In.): 35
Maximum Diameter of Dado (In.): 8
Arbor Speed (RPM): 4500
Maximum Rip Left of Blade (In.): 13-1/2
Table Size (In.): 22 x 30-1/2
Maximum Width of Dado (In.): 13/16
Blade Diameter (In.): 10
Table Type: Cast Iron
Maximum Rip Right of Blade (In.): 30
Dust Port Outside Diameter (In.): 4
Table T-Slot (In.): 3/4 x 3/8
Arbor Diameter (In.): 5/8
Recommended Circuit Size (Amps.): 20
Dust Collection Minimum CFM Required(CFM): 400
Table Size with Extensions (In.): 42 x 30-1/2
Maximum Depth of Cut at 90 Degrees (In.): 3-1/8
Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4
