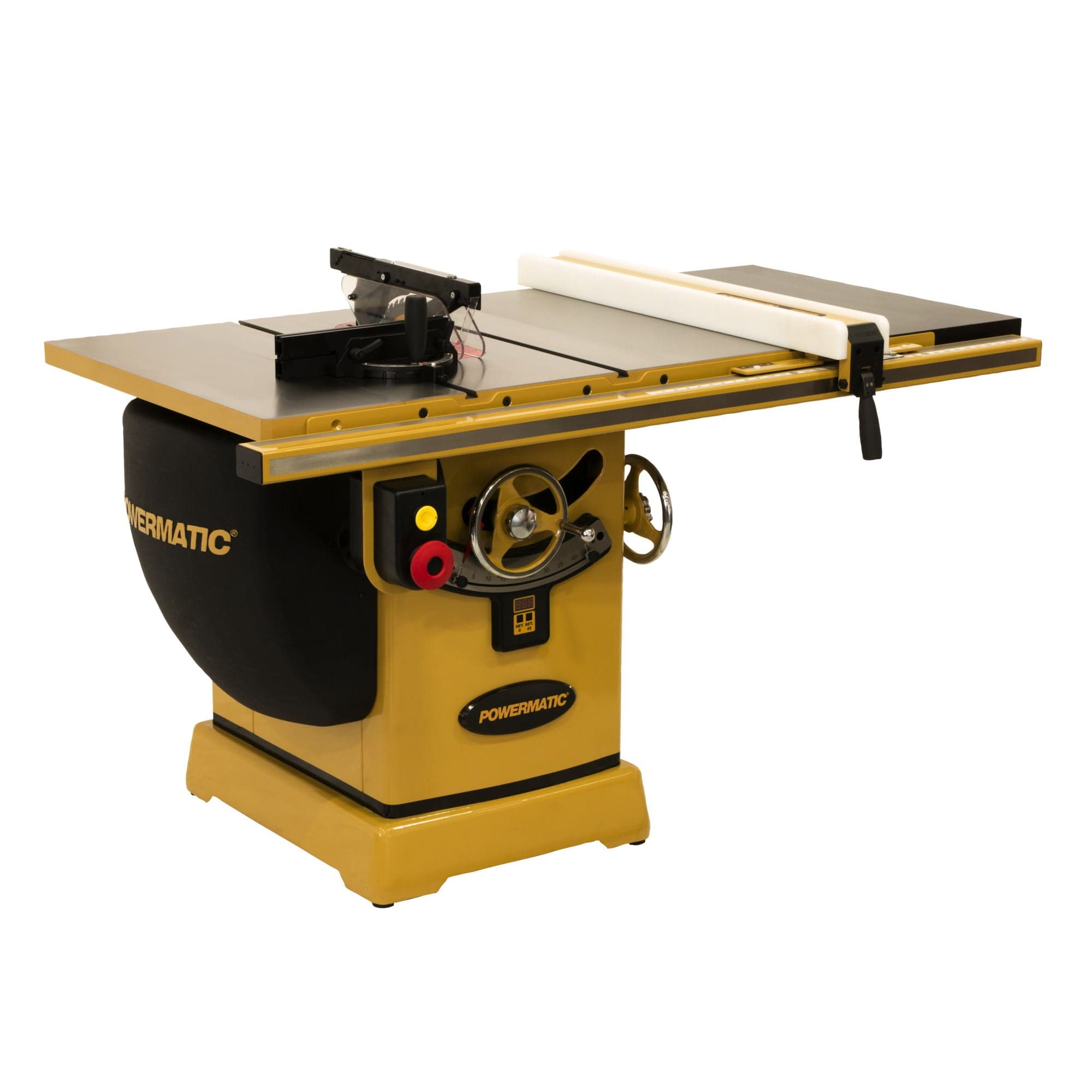

Features:
• Integrated digital read out for precise bevel cuts
• Newly designed integrated hydraulic castor system with greater travel than previous model
• Matching beveled edge between table and extension wings
• Newly designed Arbor lock for quick and easy blade changes
• Improved dust collection inside and outside of the cabinet
• Quick release riving knife lever for hassle free riving knife changes
• Wider stance, box trunnion design
• Newly designed Accu-Fence system for precision cuts
• CSA Certified
Specifications:
Motor: 3HP, 1PH, 230V, 14.5A
L x W x H (In.): 67 x 39.5 x 40.5
Net Weight (lbs): 606 lbs.
Gross Weight (lbs): 680 lbs.
Style: Cabinet Saw
Table Height from Floor (In.): 35
Maximum Diameter of Dado (In.): 8
Arbor Speed (RPM): 4500
Maximum Rip Left of Blade (In.): 13-1/2
Table Size (In.): 22 x 30-1/2
Maximum Width of Dado (In.): 13/16
Blade Diameter (In.): 10
Table Type: Cast Iron
Maximum Rip Right of Blade (In.): 30
Table T-Slot (In.): 3/4 x 3/8
Arbor Diameter (In.): 5/8
Recommended Circuit Size (Amps.): 20
Dust Collection Minimum CFM Required (CFM): 400
Table Size with Extensions (In.): 42 x 30-1/2
Maximum Depth of Cut at 90 Degrees (In.): 3-1/8
Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4
