Powermatic

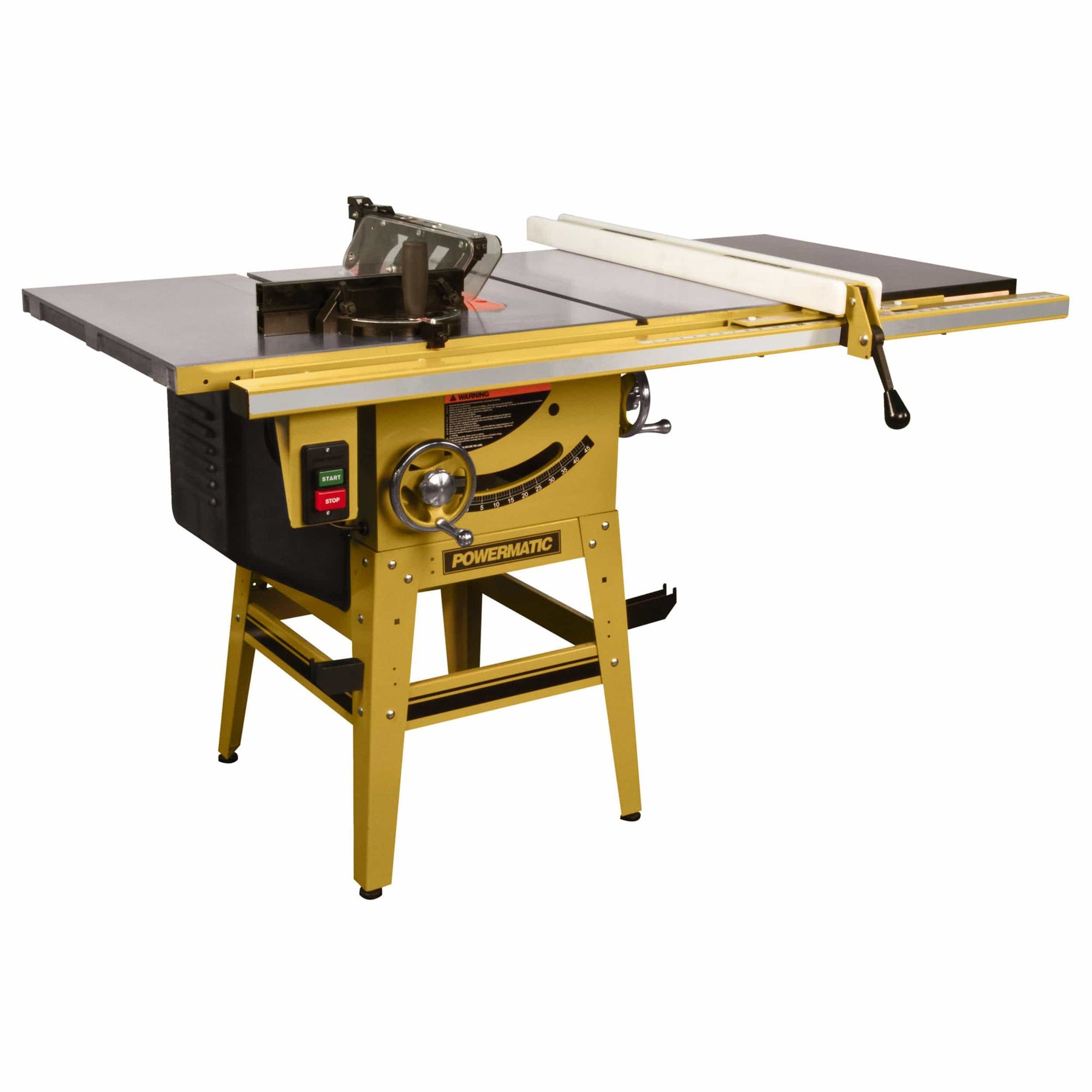

10" Table Saw with 30" Accu-Fence System and Riving Knife - 1-3/4 HP 1 Ph 115/230V - 64B-30

Item #853325 Model PM9-1791229K
Regular price $2,199.99
Sale price $2,199.99 Regular price $2,199.99

This item has an additional shipping charge

Skip to product information
1 of 1

Powermatic

10" Table Saw with 30" Accu-Fence System and Riving Knife - 1-3/4 HP 1 Ph 115/230V - 64B-30

Item #853325 Model PM9-1791229K
Regular price $2,199.99
Sale price $2,199.99 Regular price $2,199.99

This item has an additional shipping charge

The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent b. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Saw Gauge with Dial Indicator

    Regular price $99.99
    Sale price $99.99 Regular price $99.99
    Saw Gauge with Dial Indicator
  • Spline Jig

    Regular price $159.99
    Sale price $159.99 Regular price $159.99
    Spline Jig
  • Thin Rip Guide

    Regular price $169.99
    Sale price $169.99 Regular price $169.99
    Thin Rip Guide
  • Align-A-Saw Plate

    Regular price $159.99
    Sale price $159.99 Regular price $159.99
    Align-A-Saw Plate
  • Align-A-Saw Gauge & Base

    Regular price $89.99
    Sale price $89.99 Regular price $89.99
    Align-A-Saw Gauge & Base

Details

The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops, and extension plate for expanded workpiece support.
The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.
Features:
  • Riving knife maintains close blade proximity to reduce chance of kickback
  • Blade not included
  • Micro-adjust miter gauge with extension plate offers wider crosscut support
  • Blade guard and riving knife have quick release for tool-less mounting and removal
  • Precision ground cast iron table and wings have beveled edge for smooth miter gauge entry
  • Built-in extraction port increases dust collection efficiency
  • Heavy cast iron trunnion ensures smooth blade positioning
  • Chrome trimmed handwheels are ergonomically designed
  • Accu-Fence® locks to rail without play
Specifications:
  • Arbor Diameter (in) : 5/8
  • Arbor Speed (RPM) : 4000
  • Blade Diameter (in) : 10
  • Dust Collection Minimum CFM Required : 350
  • Dust Port Diameter (OD/in) : 4
  • Height (in) : 34
  • Length (in) : 50
  • Width (in) : 32
  • Maximum Depth of Cut (in) : 3-1/8
  • Maximum Depth of Cut at 45 Degrees (in) : 2-1/8
  • Maximum Diameter of Dado (in) : 8
  • Maximum Rip Right of Blade (in) : 30
  • Maximum Rip Left of Blade (in) : 12
  • Maximum Width of Dado (in) : 13/16

  • Miter Gauge Type : T-slot with stops
  • Motor Amps : 15/7.5
  • Motor HP : 1-3/4HP
  • Motor Phase : 1Ph
  • Motor Voltage : 115/230V
  • Net Weight : 366.85 pound
  • Part Number : 1791229K
  • Prewired : 115 V
  • RIVING KNIFE
  • Table Height (in) : 36
  • Table in Front of Saw Blade at Maximum Depth of Cut (in) : 11-1/2
  • Table Size with Standard Extension (L x W/in) : 71-1/4 x 27
  • Table Size without Extension (L x W/in) : 44-1/4 x 27
  • Table Size without Wings (L x W/in) : 20 x 27
  • Table Type : Cast Iron

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 4 -7 approximately business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

Warranty Information

Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
