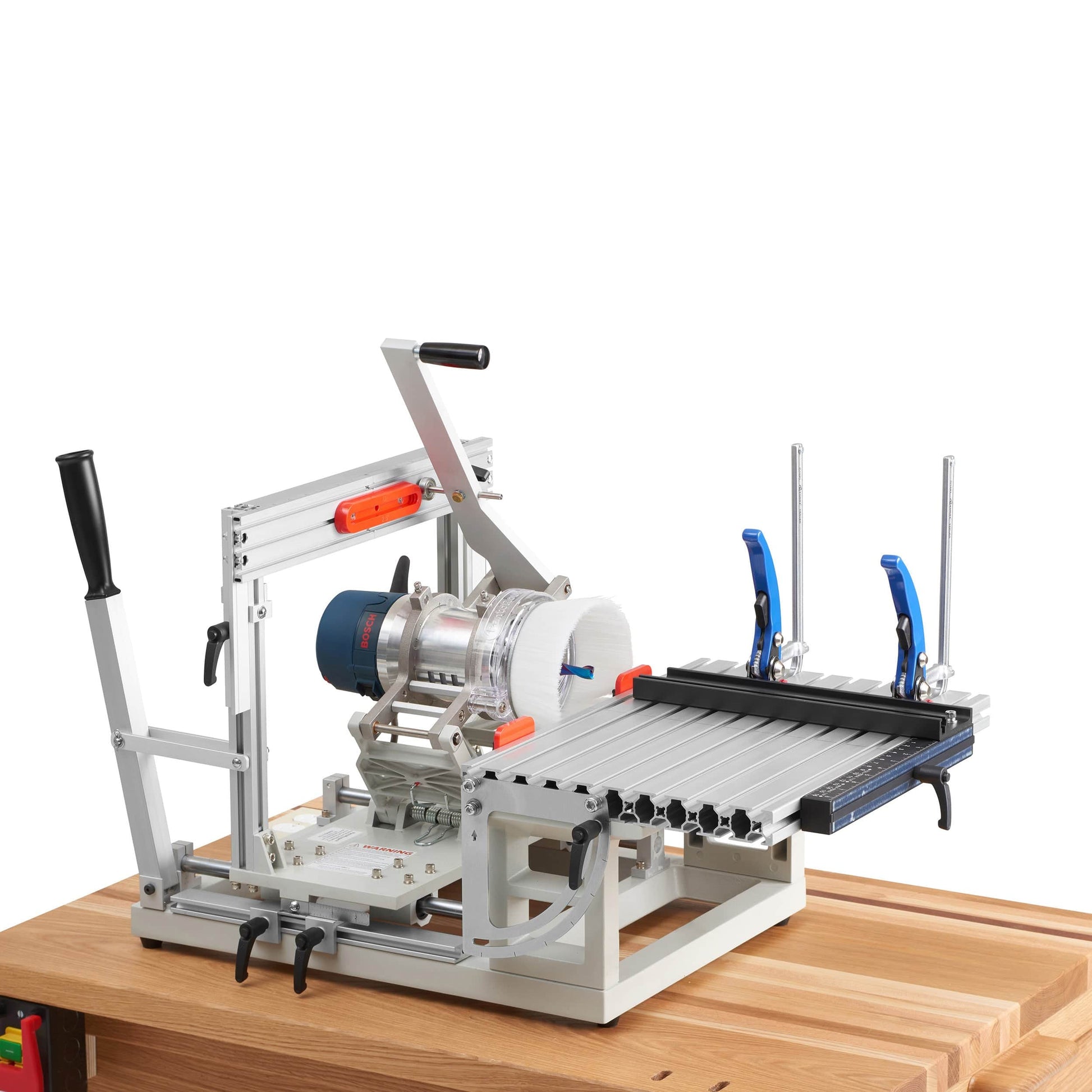

The "Pro-Pack" package includes the Tilting Table PantoRouter® woodworking machine and the essential templates, guide bearings and router bits needed to make Mortise and Tenon, Box Joints, and Dovetails, plus a 110 Volt Bosch 1617 EVS router. We include the Dust Collection Hood, the Centering-Scale Fence and two Lever Clamps.
Features:

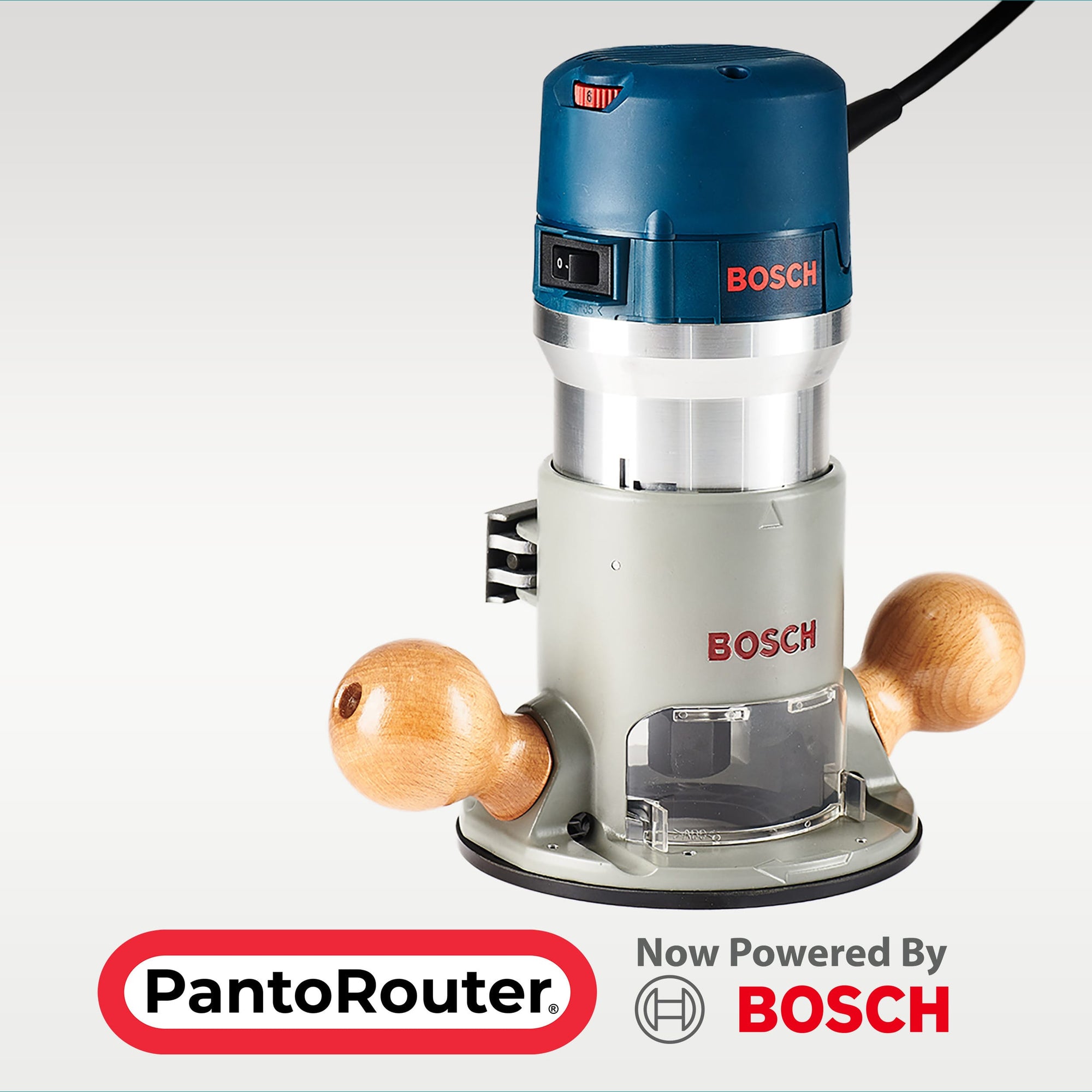

- Bosch 1617EVS router included

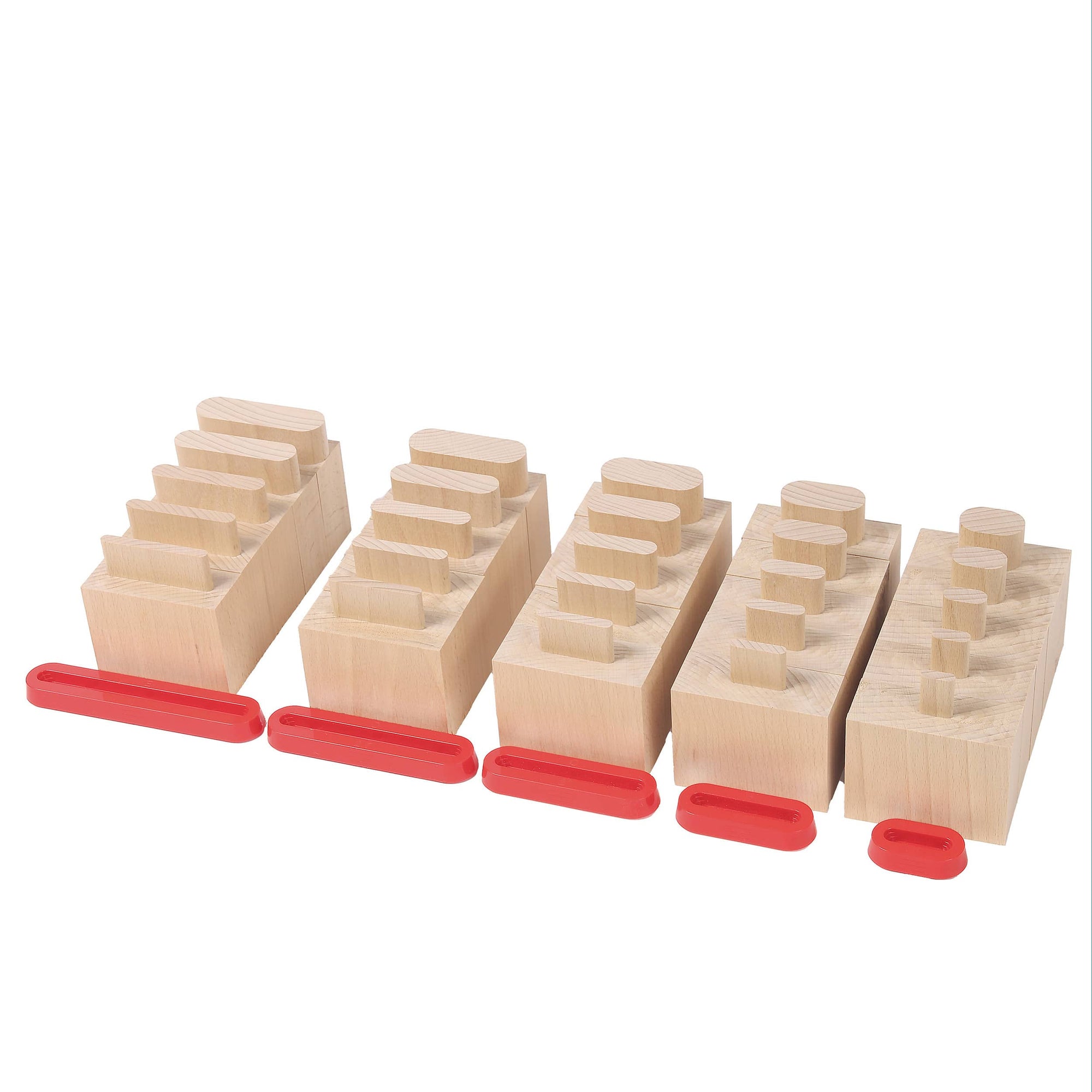

- 21 mortise and tenon sizes plus box joint and variably spaced dovetails
- Four carbide bits, clamps, fence, and limited accessories
- Superior dust collection allows bit changes without removing the router
- Center the workpiece without measuring
- Patented tapered templates for a perfect fit in minutes
- Set-up to glue-up in under 5-minutes.
Specifications:
- Bosch model 1617EVS Included
- Two boxes per PantoRouter shipment
- Box 1- 32”x22”x9”, 47lbs
- Box 2- 13”x13”x12”, 12lbs
- Assembled footprint – 27”x20”x17”
- Dust port/hose diameter – 1½”
- Cut capacity - 8”x4”
- Cut depth is determined by length of router bit
- No limit to length or width of workpiece as long as it’s supported and can be clamped to the PantoRouter table.

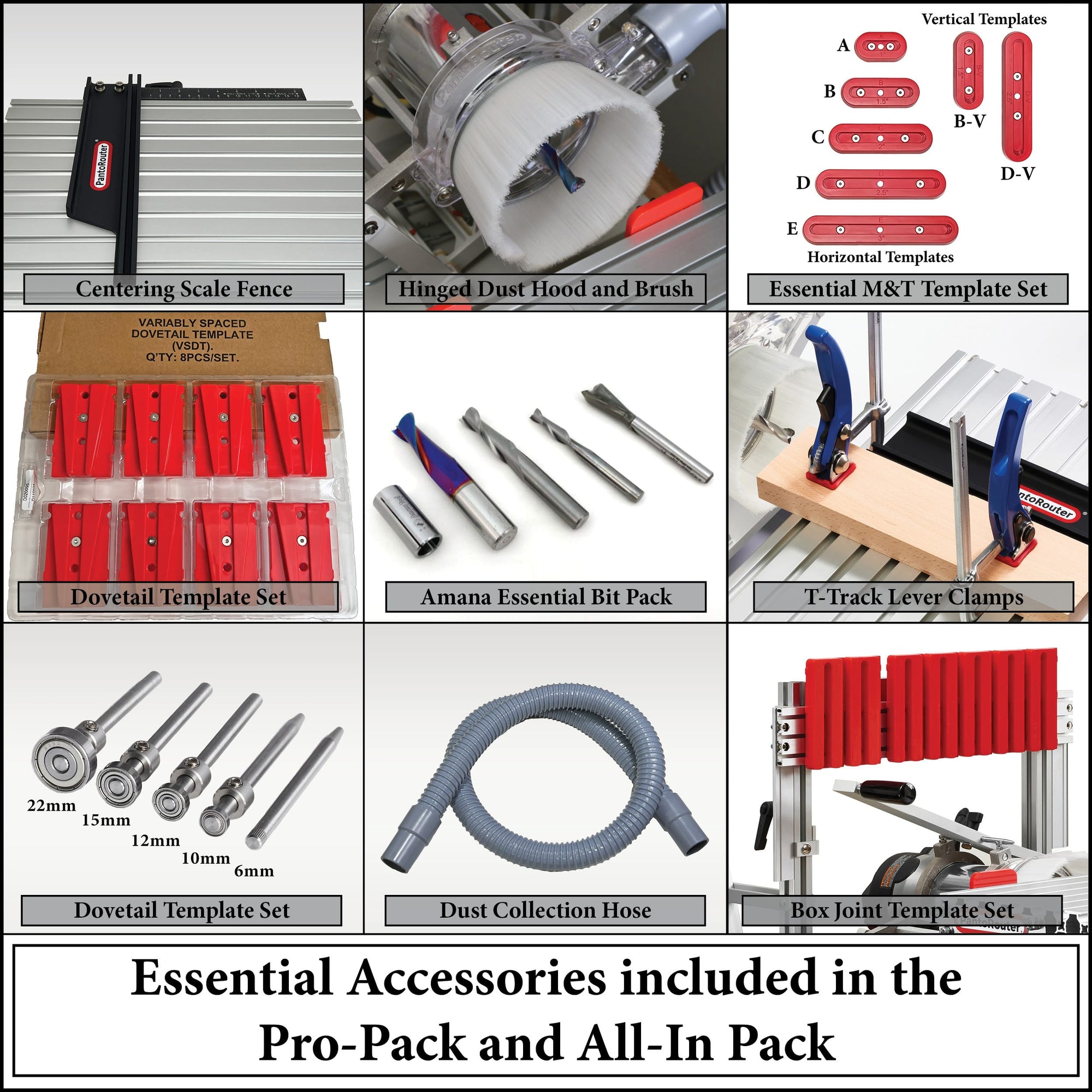

What's Included:
- Bosch model 1617EVS included
- Dust Collection Hood
- Dust Collection Hose - 5ft
- Centering Scale Fence
- Set of five horizontal mortise and tenon templates 1", 1-1/2", 2", 2-1/2" & 3"
- Set of two vertical mortise and tenon templates 1-1/2" and 2-1/2"
- Aluminum Template Holder
- 10mm Guide Bearing with 6mm shaft (GB-10)
- 12mm Guide Bearing with 6mm shaft (GB-12)
- 15mm Guide Bearing with 6mm shaft (GB-15)
- 22mm Guide Bearing with 6mm shaft (GB-22)
- Table Front Fences
- Split Shaft Centering jig
- Amana 1/2" solid carbide spiral up-cut router bit
- Amana 3/8" solid carbide spiral up-cut router bit
- Amana 1/4" solid carbide spiral up-cut router bit
- Amana 8° X 1/2” Carbide Tipped Dovetail Bit
- Segmented Box Joint Templates
- Variable Space Dovetail Templates
- Thickness Gauge
- Depth Stop
- Two T-Track Lever Clamps
FAQs
What exactly is included in the Pro Pack package?
The Pro Pack typically includes the Pantorouter machine along with a selection of templates, guides, and accessories to expand its joinery capabilities. It’s designed as a more complete setup for a wide range of projects.
What are the size limitations of the machine?
Size limitations depend on the workholding capacity and travel of the machine, making it best suited for small to medium-sized parts. It excels at precision joinery rather than large panel work.
