PantoRouter

Pro Woodworking Package - Precision Router Joinery Jig - Router Not Included

Item #191778 Model PR-PPNR
$1,845.00
$1,845.00 $1,845.00
1 2

PantoRouter

Pro Woodworking Package - Precision Router Joinery Jig - Router Not Included

Item #191778 Model PR-PPNR
$1,845.00
$1,845.00 $1,845.00
The "Pro-Pack" package includes the Tilting Table PantoRouter® woodworking machine and the essential templates, guide bearings and route. . . View More Details

Ships from Manufacturer

Shipping Info

Details

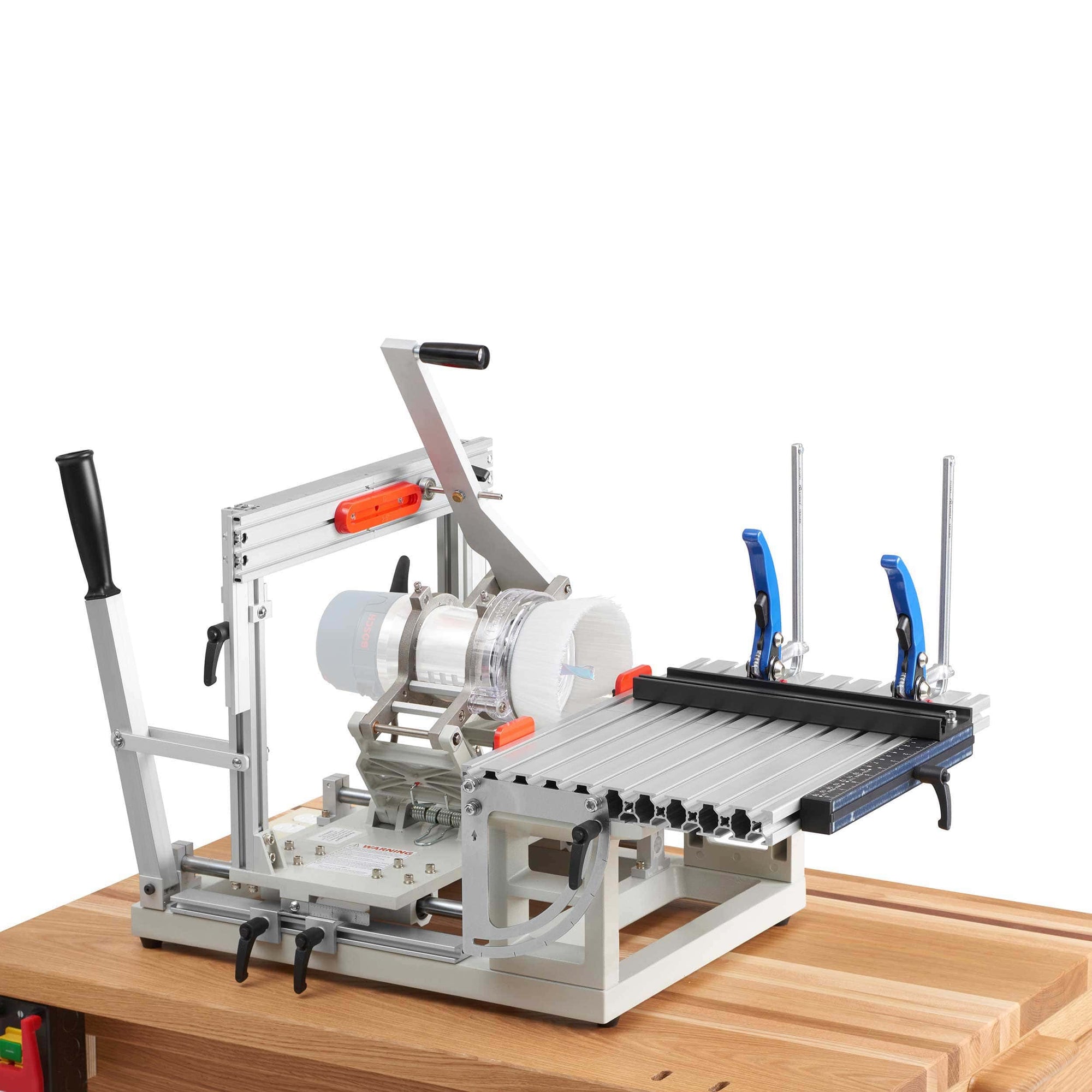

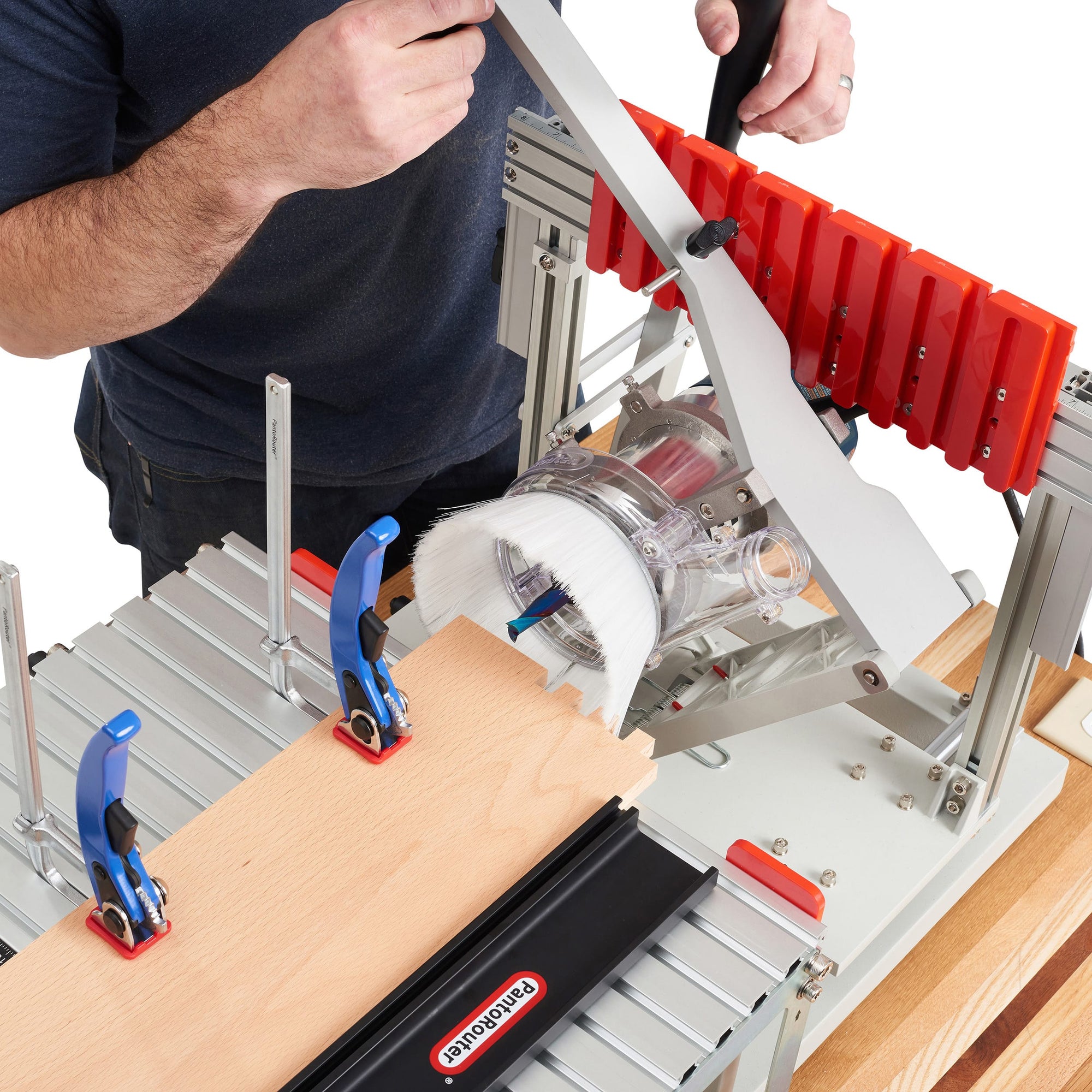

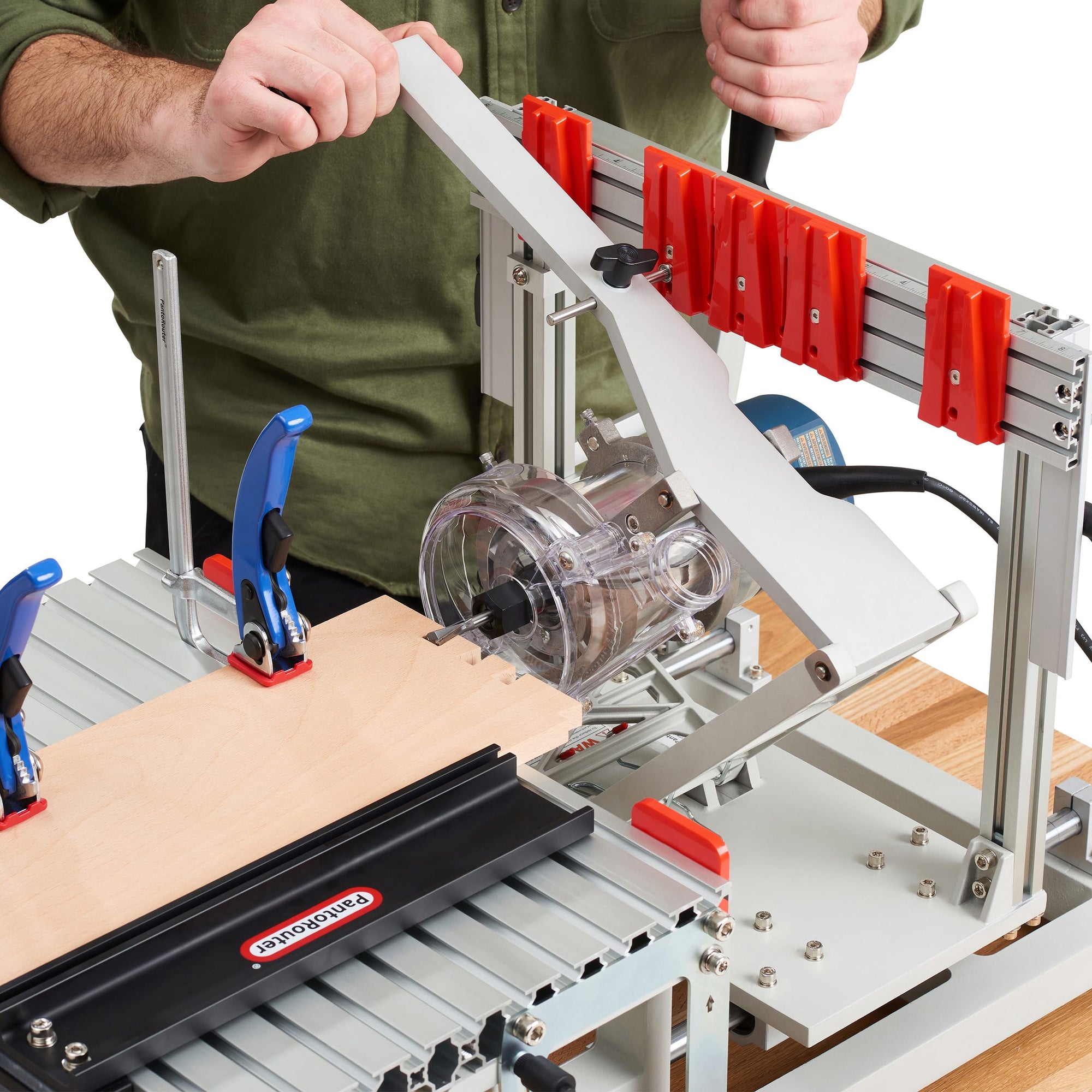

The "Pro-Pack" package includes the Tilting Table PantoRouter® woodworking machine and the essential templates, guide bearings and router bits needed to make Mortise and Tenon, Box Joints, and Dovetails. We include the Dust Collection Hood, the Centering-Scale Fence and two Lever Clamps. This package does not include a router. We recommend the customer provides a Bosch 1617 EVS router for the PantoRouter to operate at full potential.


Features:

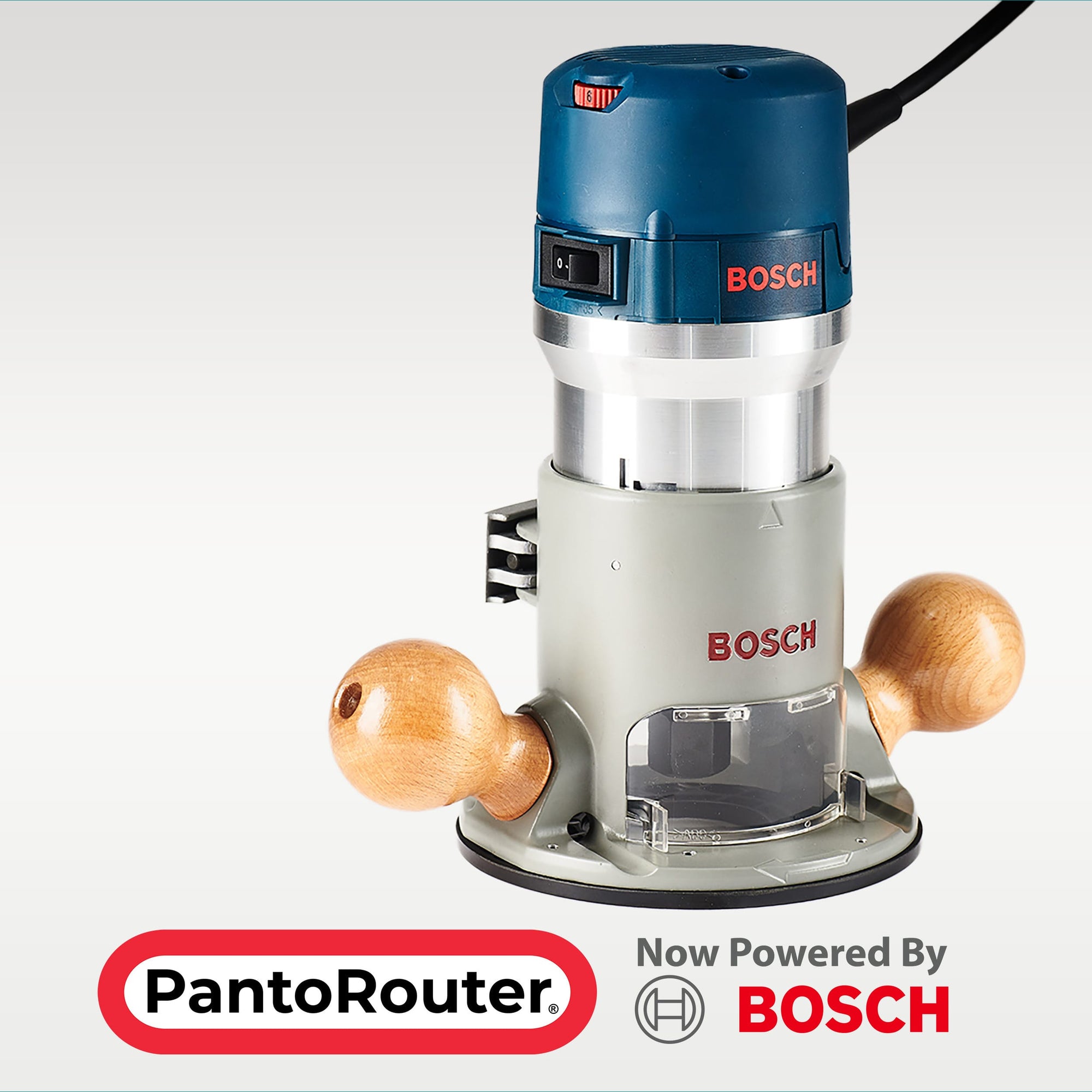

  • This package DOES NOT include the recommended Bosch 1617EVS router
  • 21 mortise and tenon sizes plus box joint and variably spaced dovetails
  • Four carbide bits
  • Clamps, fence, and limited accessories
  • Superior dust collection allows bit changes without removing the router
  • Center the workpiece without measuring
  • Patented tapered templates for a perfect fit in minutes
  • Set-up to glue-up in under 5-minutes


Specifications:



  • A router with 3.5" diameter body must be supplied by the customer
  • Two boxes per PantoRouter shipment
  • Box 1 - 32”x22”x9”, 47lbs
  • Box 2 - 13”x13”x12”, 12lbs
  • Assembled footprint – 27”x20”x17”
  • Dust port/hose diameter – 1½”
  • Cut capacity - 8”x4”
  • Cut depth is determined by length of router bit
  • No limit to length or width of workpiece as long as it’s supported and can be clamped to the PantoRouter table.

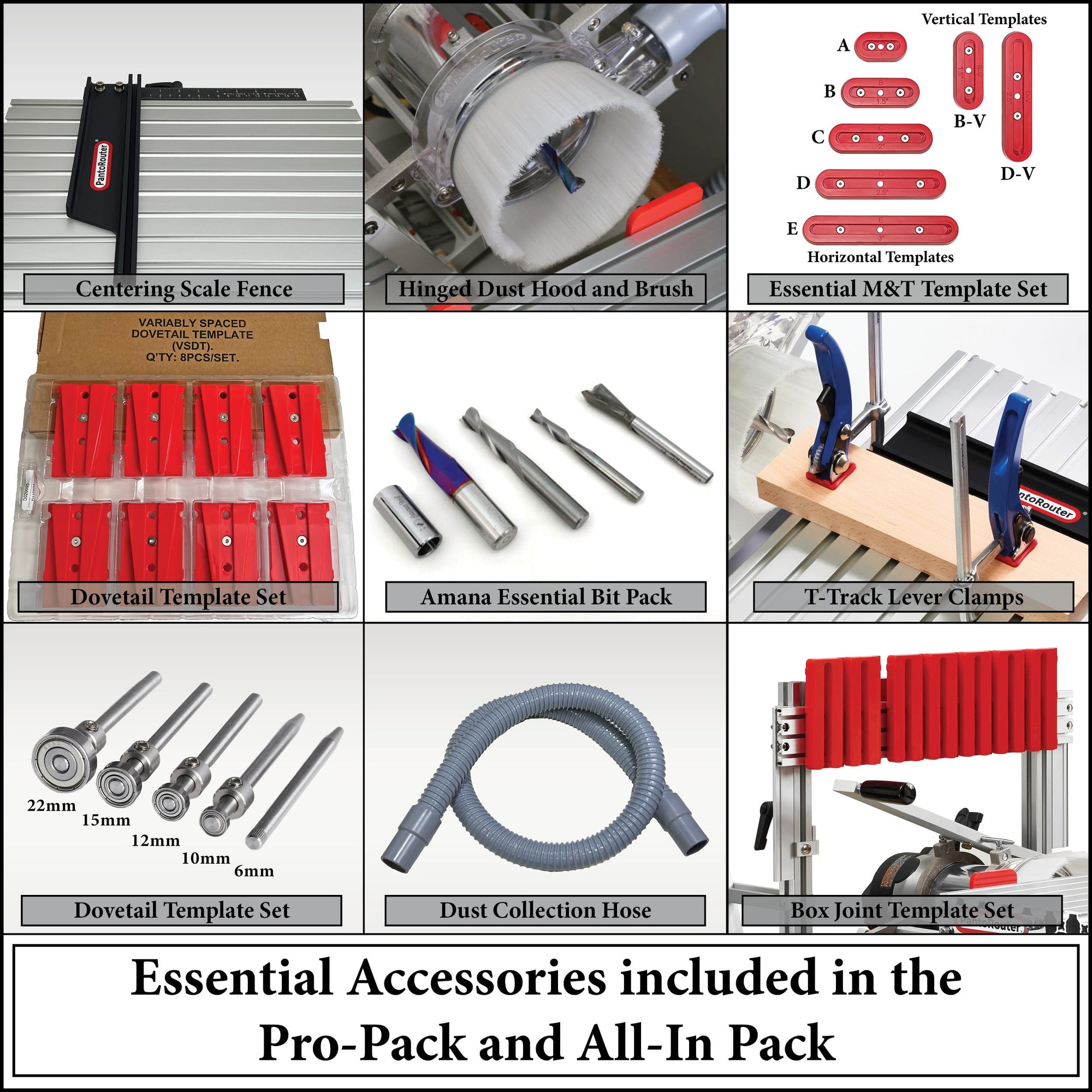

What's Included:



  • The recommended Bosch model 1617EVS is NOT included
  • Dust Collection Hood
  • Dust Collection Hose - 5ft
  • Centering Scale Fence

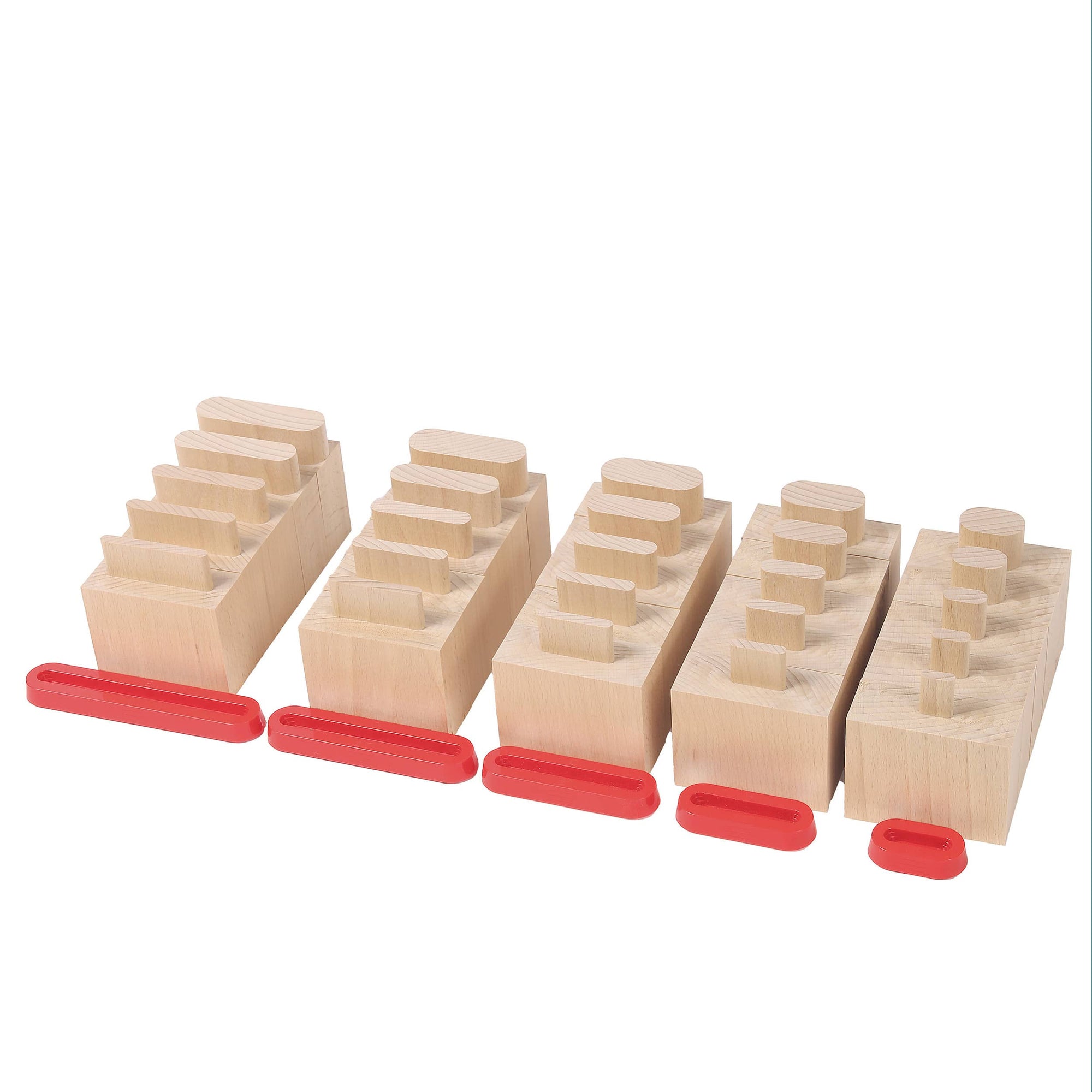

  • Set of five horizontal mortise and tenon templates 1", 1-1/2", 2", 2-1/2" & 3"
  • Set of two vertical mortise and tenon templates 1-1/2" and 2-1/2"
  • Aluminum Template Holder
  • 10mm Guide Bearing with 6mm shaft (GB-10)
  • 12mm Guide Bearing with 6mm shaft (GB-12)
  • 15mm Guide Bearing with 6mm shaft (GB-15)
  • 22mm Guide Bearing with 6mm shaft (GB-22)
  • Table Front Fences
  • Split Shaft Centering jig
  • Amana 1/2" solid carbide spiral up-cut router bit
  • Amana 3/8" solid carbide spiral up-cut router bit
  • Amana 1/4" solid carbide spiral up-cut router bit
  • Amana 8° X 1/2” Carbide Tipped Dovetail Bit
  • Segmented Box Joint Templates
  • Variable Space Dovetail Templates
  • Thickness Gauge
  • Depth Stop
  • Two T-Track Lever Clamps
