PantoRouter

All-In One Woodworking Package - Precision Router Joinery Jig - Router Included

Item #191776 Model PR-AIWR
Regular price $2,349.00
Sale price $2,349.00 Regular price $2,349.00
Skip to product information
New
1 of 2

PantoRouter

All-In One Woodworking Package - Precision Router Joinery Jig - Router Included

Item #191776 Model PR-AIWR
Regular price $2,349.00
Sale price $2,349.00 Regular price $2,349.00
This package includes all of the items needed for basic and advanced woodworking joinery and while it doesn’t contain every single accessory mad. . . View More Details

Ships from Manufacturer

Shipping Info

Details

This package includes all of the items needed for basic and advanced woodworking joinery and while it doesn’t contain every single accessory made for the PantoRouter®, it does contain all of the most popular items. This Package comes with the Bosch 1617EVS router and is the most complete package we’ve ever offered. We do not include the rotating clamps in this package as many are happy to start with the standard T-track lever clamps then add the style of rotating clamps they prefer later.


Features:



  • Bosch 1617EVS Router Included
  • Over 150 Mortise and Tenon Sizes plus Box Joint and Variably Spaced Dovetails
  • Six Carbide Bits
  • Clamp, Fences, and Accessories
  • Superior dust collection allows bit changes without removing the router
  • Center the workpiece without measuring
  • Patented tapered templates for a perfect fit in minutes
  • Set-up to glue-up in under 5-minutes


Specifications



  • Bosch router 110V, 60hz.
  • Two boxes per PantoRouter shipment
  • Box 1 - 32”x22”x9” 47lbs
  • Box 2 - 20”x14”x12” 34lbs
  • Assembled footprint– 27”x20”x17”
  • Dust port/hose diameter – 1½”, Cut capacity - 8”x4”
  • Cut depth is determined by length of router bit
  • No limit to length or width of workpiece as long as it’s supported and can be clamped to the PantoRouter table


What's Included:

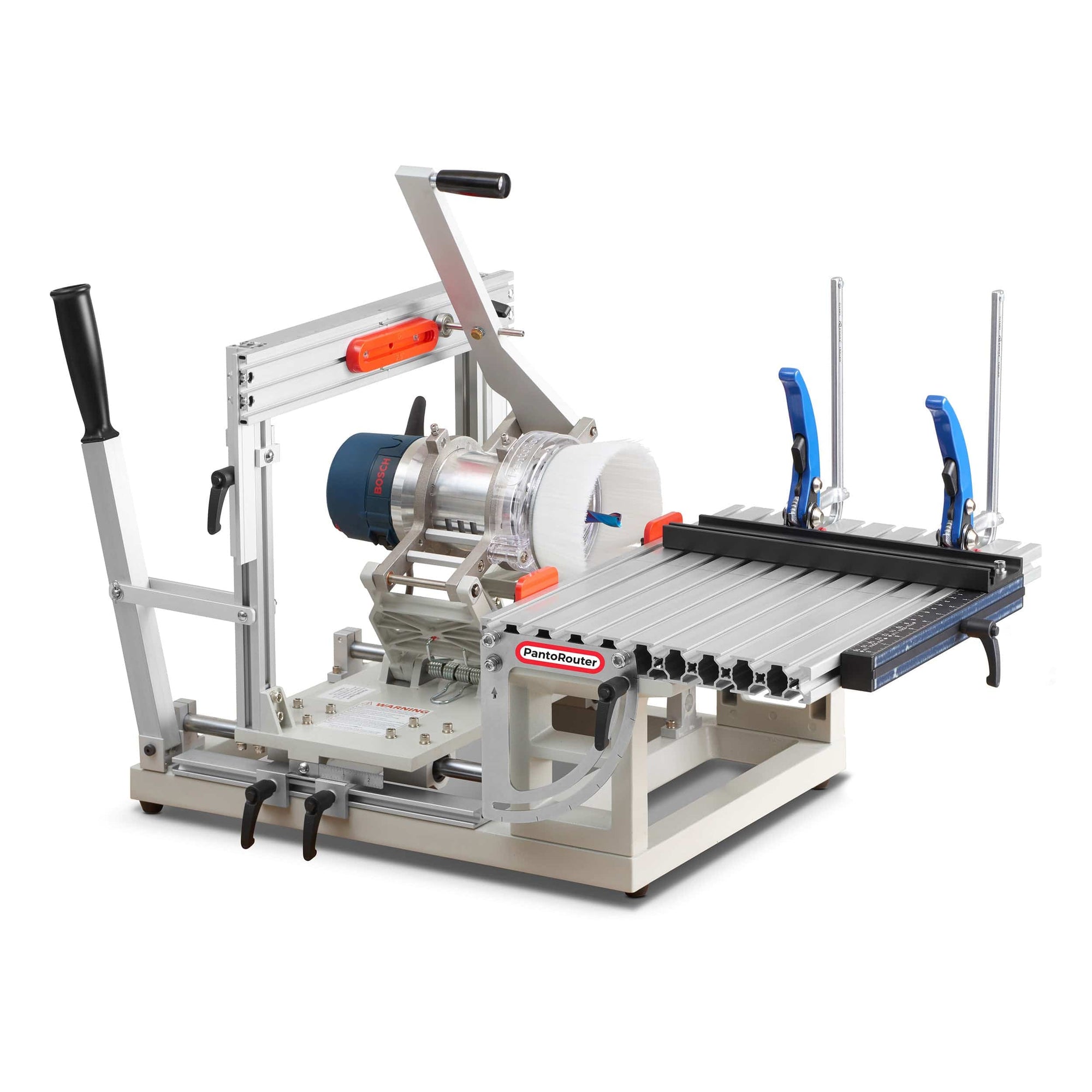

  • PantoRouter with tilting-table

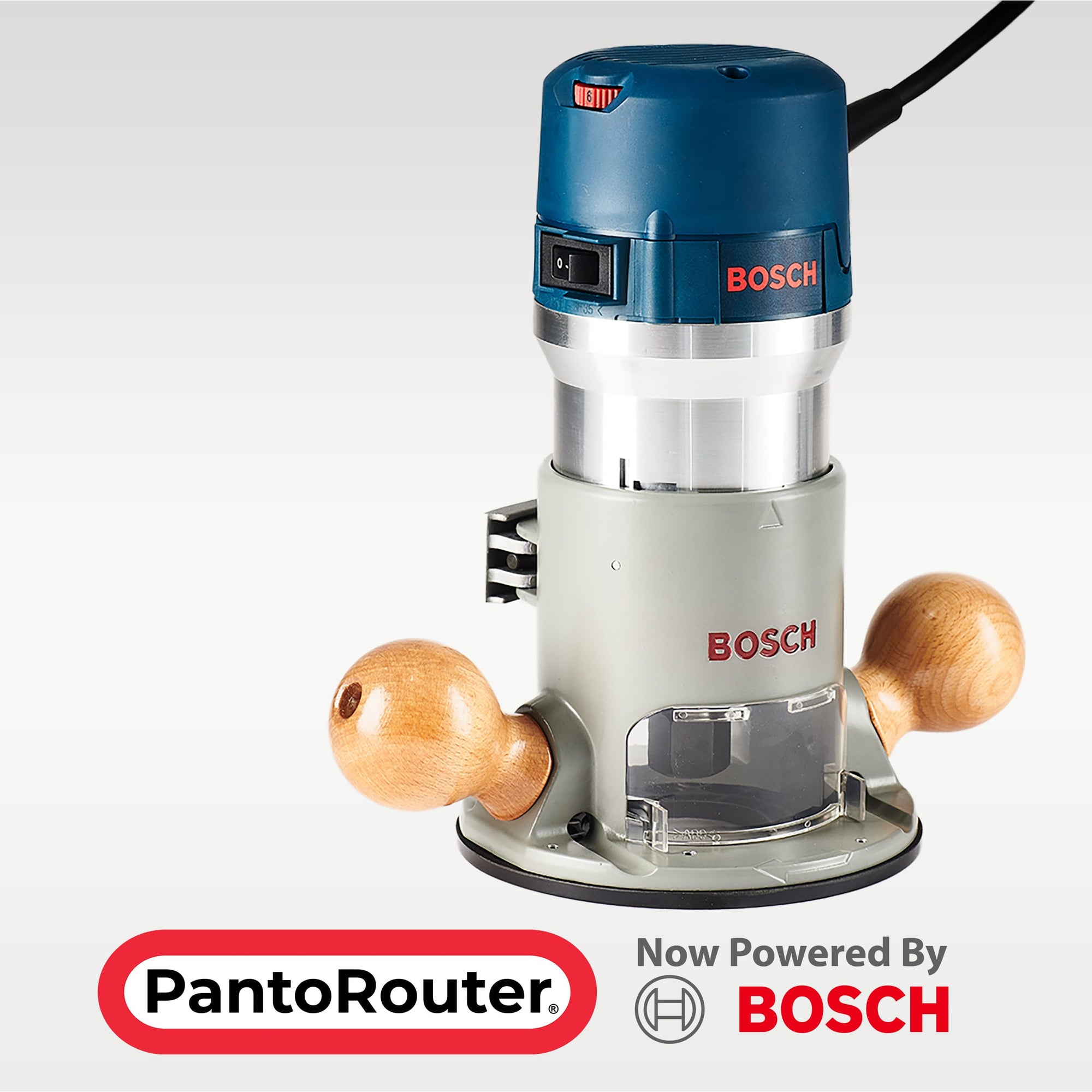

  • Bosch 1617 EVS Variable Speed
  • 2.25 HP Router, 110 Volt
  • Dust Collection Hood
  • Dust Collection Hose - 5ft

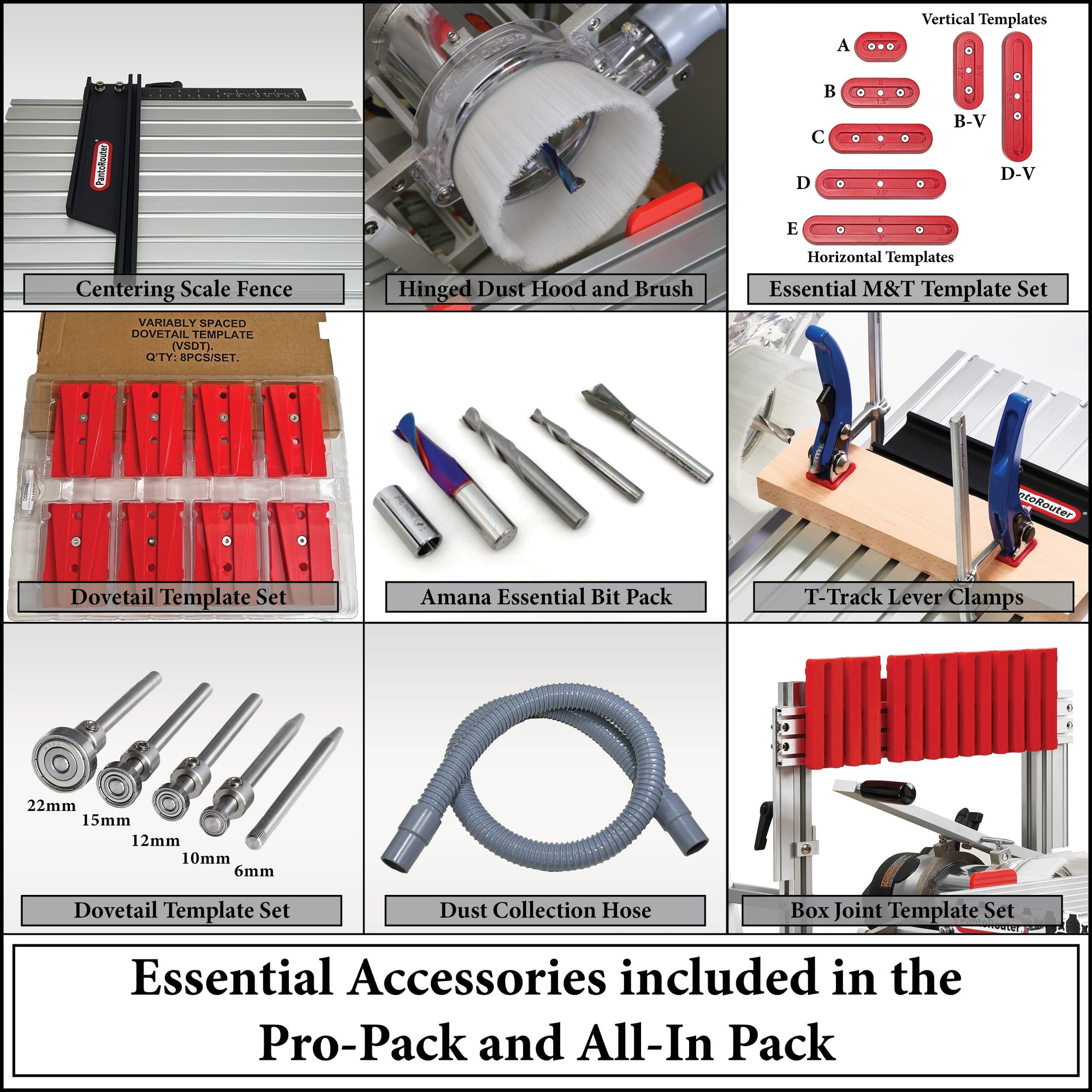

  • Centering Scale Fence
  • Swing-Stop for positioning tenon workpieces
  • Vertical template holder adapter
  • Set of five horizontal mortise and tenon templates 1", 1-½ ", 2", 2-½ " & 3"
  • Set of two vertical mortise and tenon templates 1-½ " and 2-½ "
  • Aluminum Template Holder
  • 10mm Guide Bearing with 6mm shaft (GB-10)
  • 12mm Guide Bearing with 6mm shaft (GB-12)
  • 15mm Guide Bearing with 6mm shaft (GB-15)
  • 22mm Guide Bearing with 6mm shaft (GB-22)
  • Table Front Fence/Stops
  • Split Shaft Centering Jig

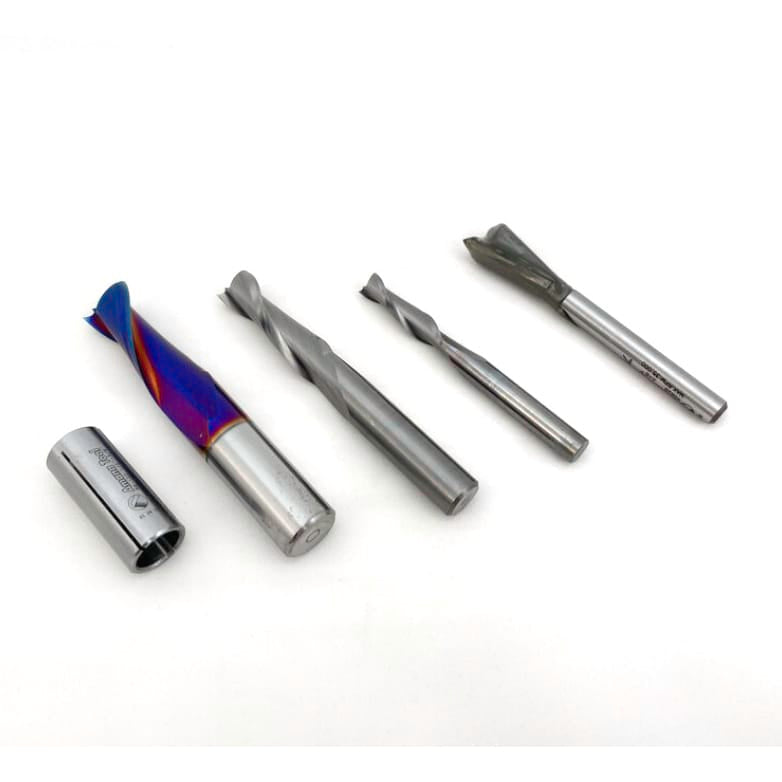

  • Amana ½" solid carbide spiral up-cut router bit with Spektra® coating
  • Amana ⅜" solid carbide spiral up-cut router bit
  • Amana 8° X ½” carbide-tipped dovetail bit
  • Segmented Box Joint Templates
  • Variable or Fixed-Space Dovetail Templates
  • Thickness Gauge
  • Depth Stop
  • Two T-Track Lever Clamps

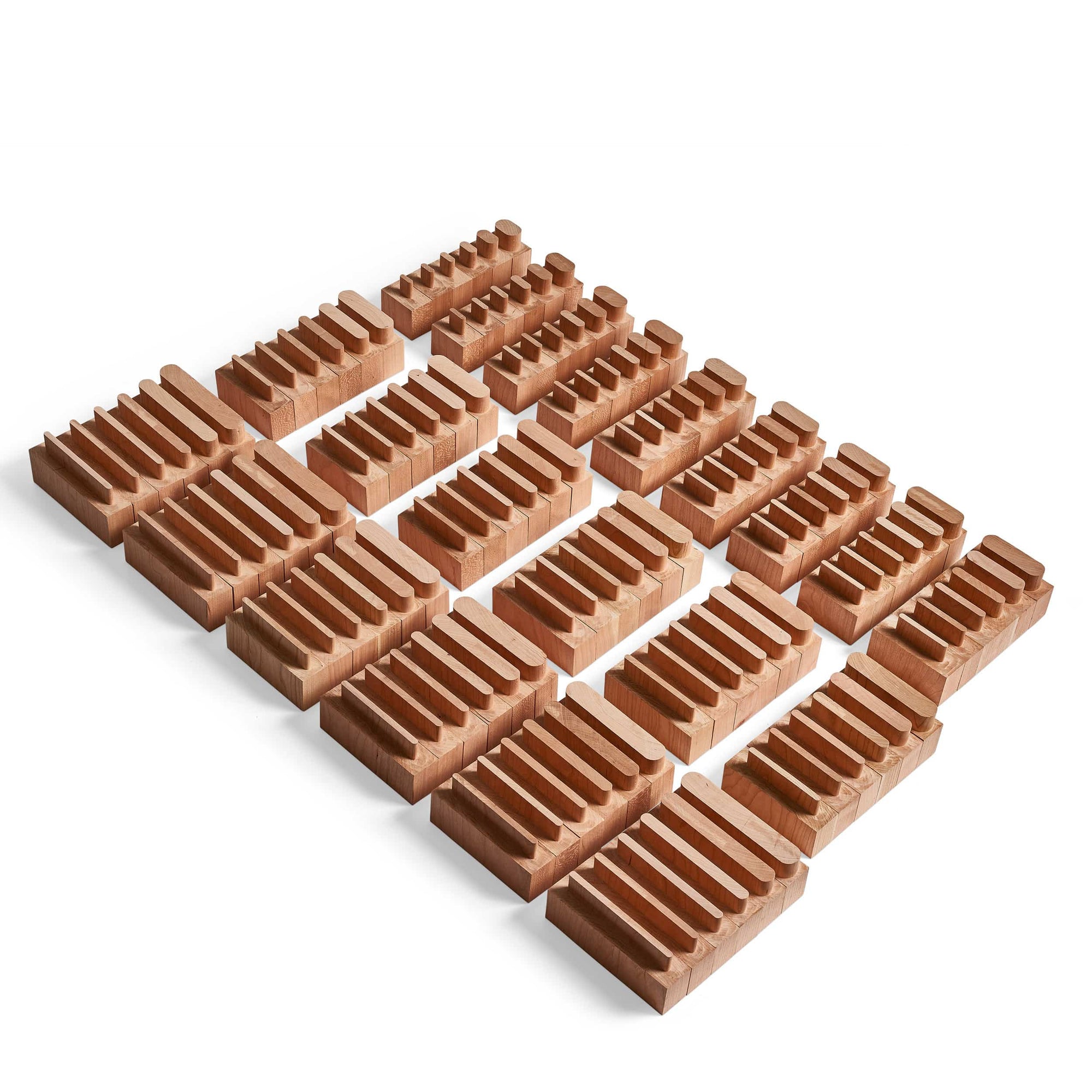

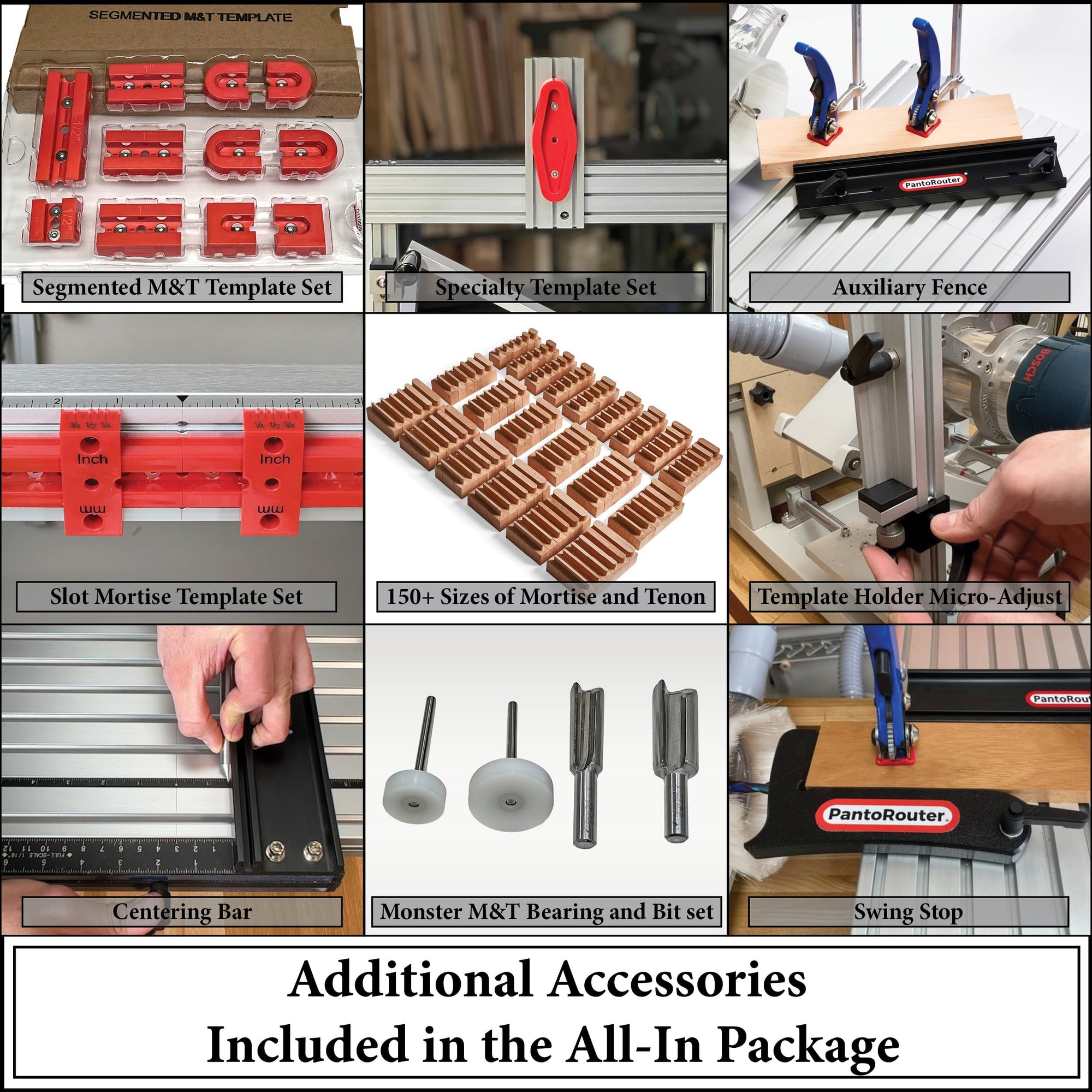

  • Segmented mortise and tenon template set (makes 154 different sizes of M&T)
  • Slot mortise template set (all Domino® sizes and any inch or metric size
  • Monster mortise and tenon set (¾” and 1” mortise and tenon)
  • Auxiliary fence (for setting-up angle and compound angle cuts)
  • Dowel templates (4)
  • Diamond template
  • Bow-Tie template
  • Triple M&T
  • Assembly guide
  • How-To Guide
  • Centering Bar for table
  • Template holder micro-adjuster
  • PantoRouter® center finding ruler
