This package includes all of the items needed for basic and advanced woodworking joinery. It does contain all of the most popular items except the rou. . .
View More Details
Details
This package includes all of the items needed for basic and advanced woodworking joinery. It does contain all of the most popular items except the router. The customer must supply a router that fits the router mounts such as the Bosch model 1617EVS. We do not include the rotating clamps in this package as many are happy to start with the standard T-track lever clamps then add the style of rotating clamps they prefer later.
Features:

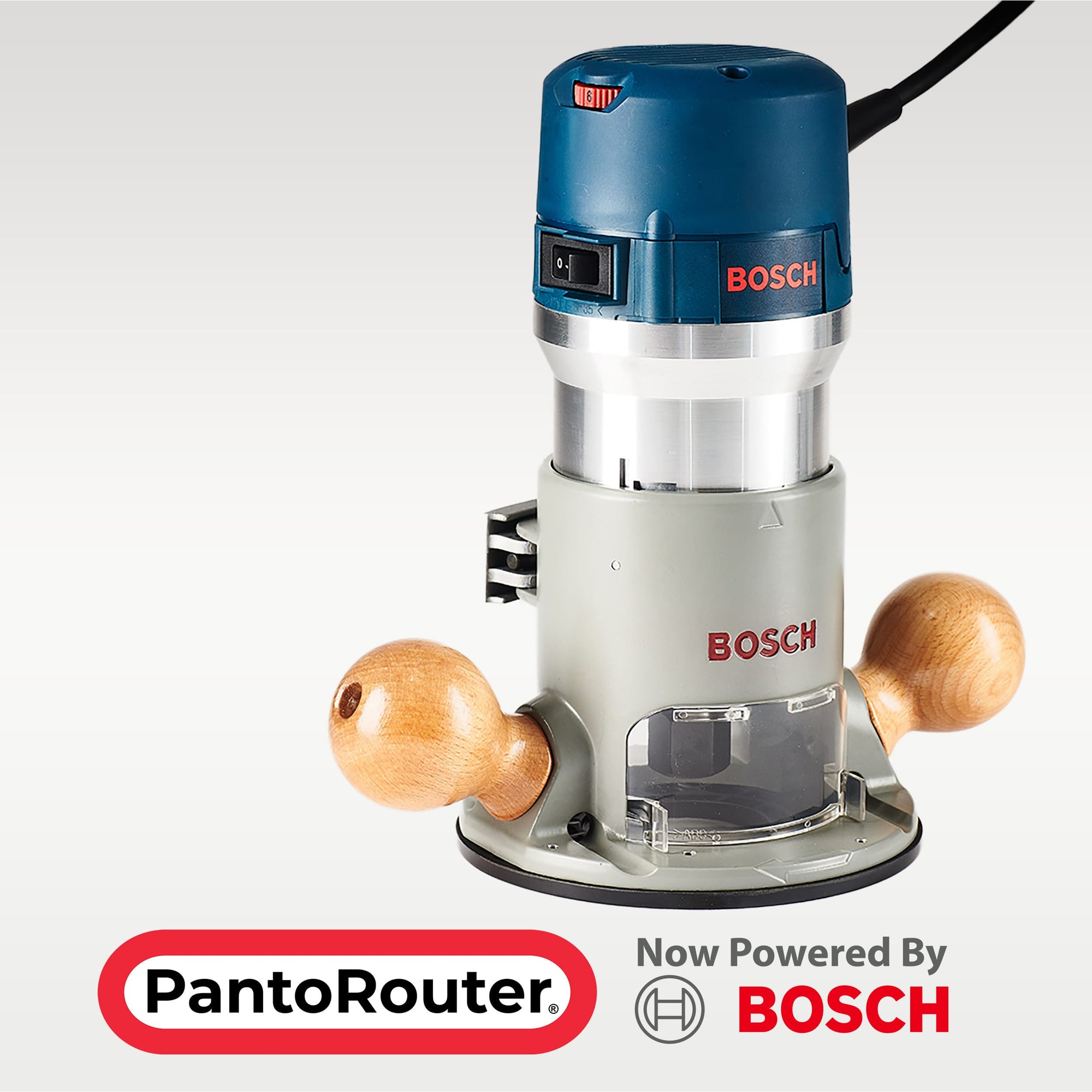

- This package DOES NOT include the recommended Bosch 1617EVS router
- Over 150 mortise and tenon sizes plus box joint and variably spaced dovetails
- Six carbide bits
- Clamps, fences, and accessories
- Superior dust collection allows bit changes without removing the router
- Center the workpiece without measuring
- Patented tapered templates for a perfect fit in minutes
- Set-up to glue-up in under 5-minutes
Specifications:
- A router with 3.5" diameter body must be supplied by the customer
- Two boxes per PantoRouter shipment
- Box 1 - 32”x22”x9”, 47lbs
- Box 2 - 20”x14”x12”, 28lbs
- Assembled footprint – 27”x20”x17”
- Dust port/hose diameter – 1½”, Cut capacity, 8”x4”
- Cut depth is determined by length of router bit
- No limit to length or width of workpiece as long as it’s supported and can be clamped to the PantoRouter table

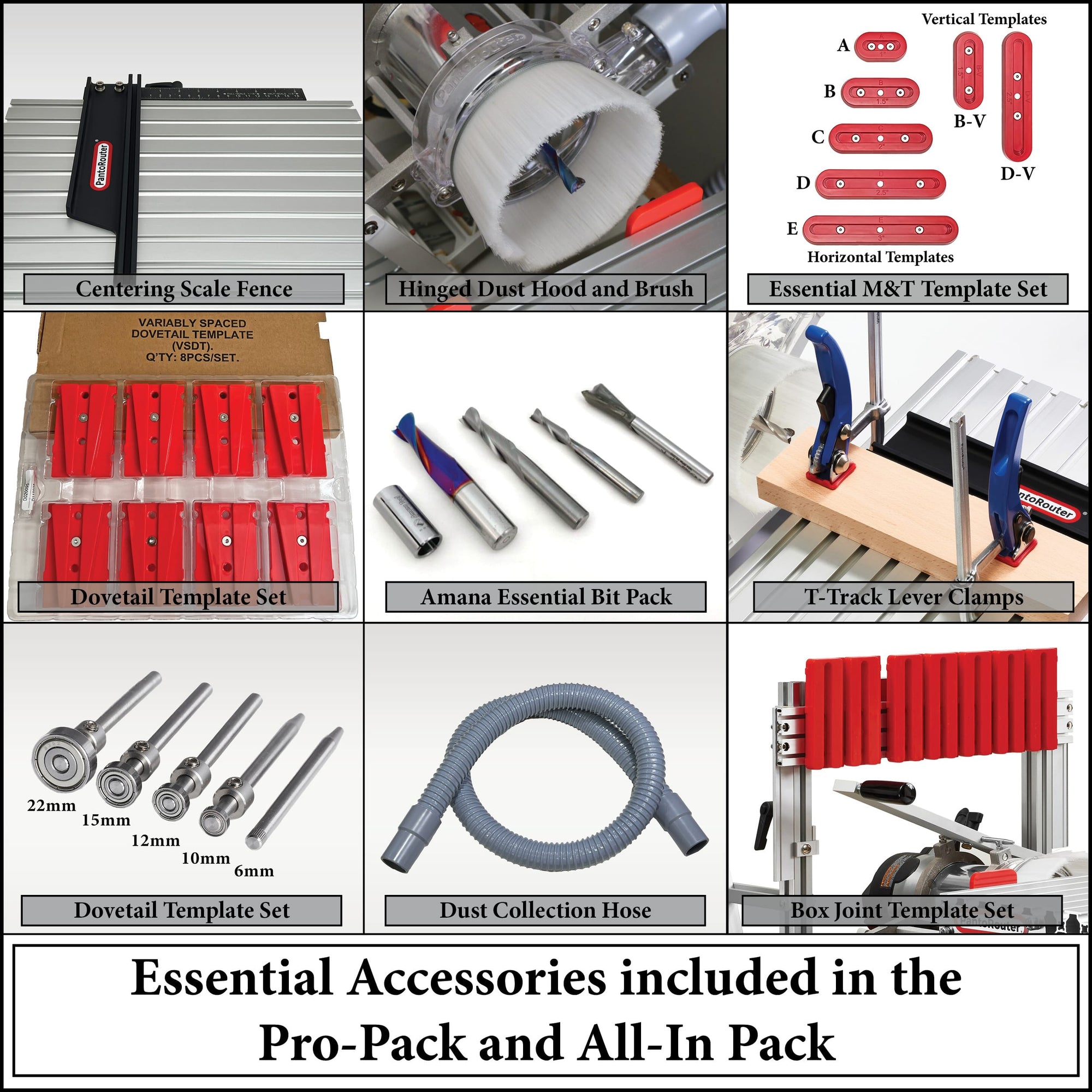

What's Included:

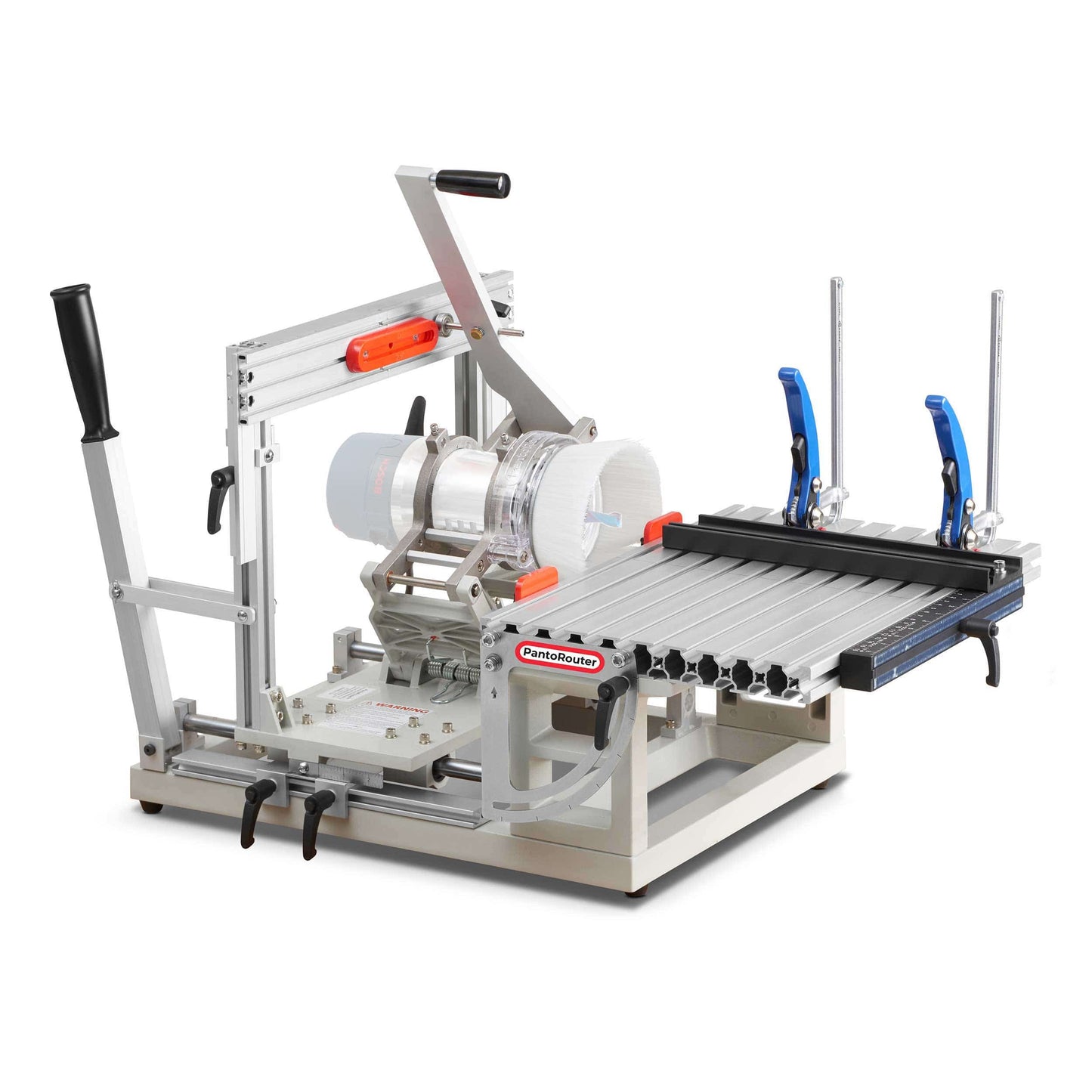

- PantoRouter with tilting-table
- Dust Collection Hood
- Dust Collection Hose - 5ft
- Centering Scale Fence
- Swing-Stop for positioning tenon workpieces
- Vertical template holder adapter
- Set of five horizontal mortise and tenon templates 1", 1-½ ", 2", 2-½ " & 3"
- Set of two vertical mortise and tenon templates 1-½ " and 2-½ "
- Aluminum Template Holder
- 10mm Guide Bearing with 6mm shaft (GB-10)
- 12mm Guide Bearing with 6mm shaft (GB-12)
- 15mm Guide Bearing with 6mm shaft (GB-15)
- 22mm Guide Bearing with 6mm shaft (GB-22)
- Table Front Fence/Stops
- Split Shaft Centering Jig

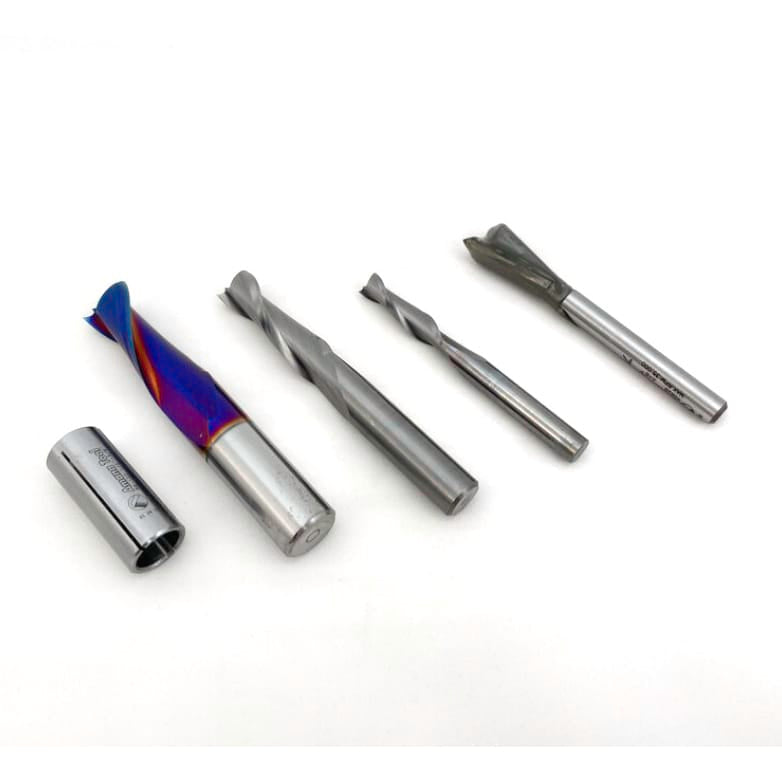

- Amana ½" solid carbide spiral up-cut router bit with Spektra® coating
- Amana ⅜" solid carbide spiral up-cut router bit
- Amana 8° X ½” carbide-tipped dovetail bit
- Segmented Box Joint Templates
- Variable or Fixed-Space Dovetail Templates
- Thickness Gauge
- Depth Stop
- Two T-Track Lever Clamps

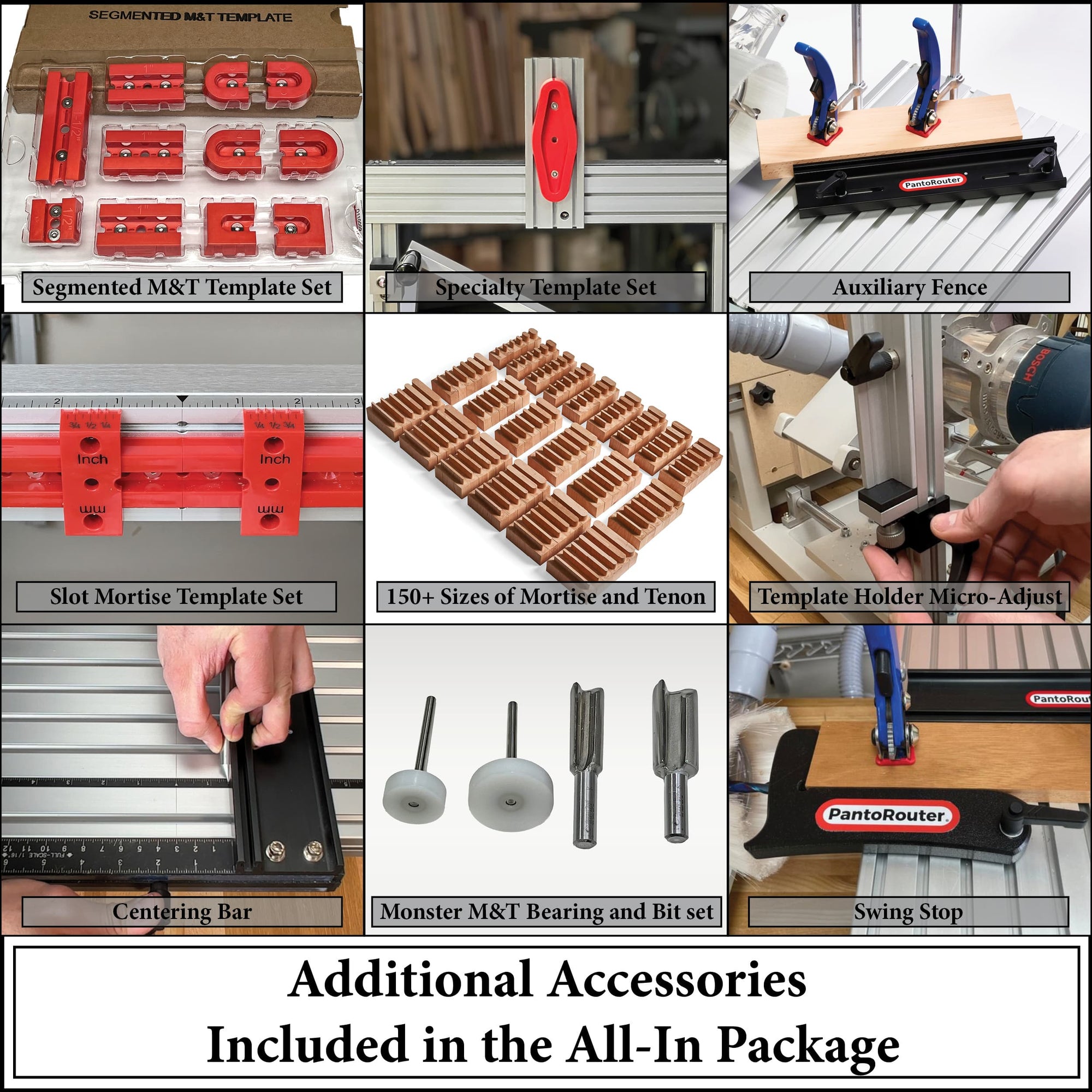

- Segmented mortise and tenon template set (makes 154 different sizes of M&T)
- Slot mortise template set (all Domino® sizes and any inch or metric size)
- Monster mortise and tenon set (¾” and 1” mortise and tenon)
- Auxiliary fence (for setting-up angle and compound angle cuts)
- Dowel templates (4)
- Diamond template
- Bow-Tie template
- Triple M&T
- Assembly guide
- How-To Guide
- Centering Bar for table
- Template holder micro-adjuster
- PantoRouter® center finding ruler
