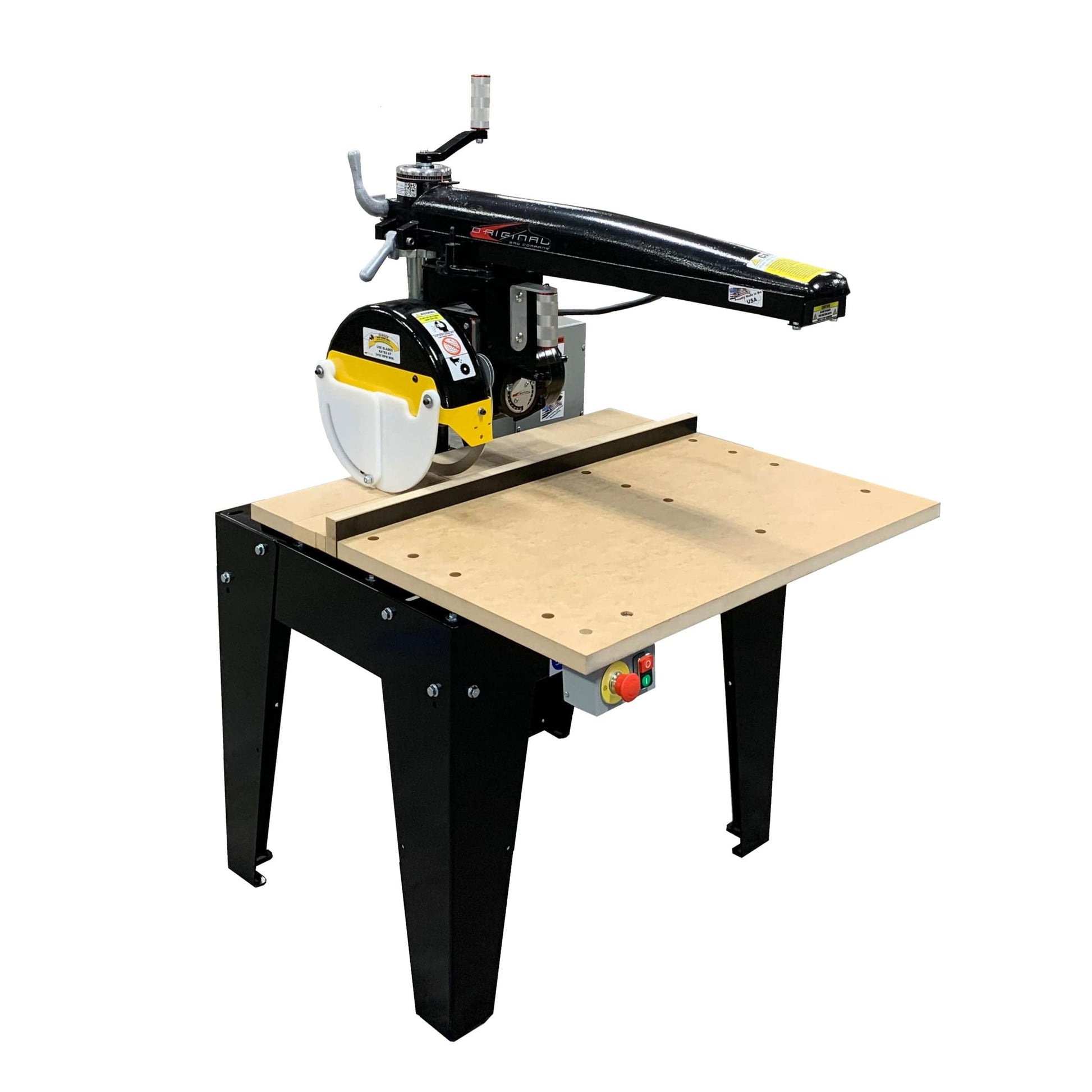

Crosscut, bevel cut, miter cut, and swivel to a rip position to precisely cut down panels all with this one radial arm saw. This versatile saw by The Original Saw Company is well suited for wood cutting up to 3” as well as cutting off 24” wide panels for squaring shelving and doors, and other similar applications.

The Contractor Series radial arm saw, 3512-03-460 is a workhorse with a 3HP, 3 Phase, 460V TEFC motor and internal automatic brake. It has the best cut quality in its class and is a very precise cutting machine with repeatable accuracy that can be depended on day-after-day for years to come. These machines are fully assembled and tested in The Original Saw Company’s facility and then packaged. This makes setting up your saw a snap. Order any Original Saw 22": Extension Table to extend the versatility of your Radial Arm Saw.

Features:

• 3HP, 3Ph, 460V motor
• Automatic blade braking system
• 24” cross cut
• Precision carriage riding on four tight-tolerance convex bearings mounted horizontally
• Oversized MDF table top included
• Powder coated heavy gauge steel frame and legs
• Standard worktable height: 32”
• E-Stop
• Arbor nut and precision ground arbor collars
• Wrench kit (includes allen arbor wrench and flat arbor wrench)
• Adjustable tension carriage return reel
• Proudly Manufactured in the USA
• Plug not include, must be hard wired direct to electrical source

Connecting Electrical Current

The motor is properly connected to the magnetic switch at the factory for operation on the

electrical voltage specified on the tag attached to the guard stud. Make sure incoming

voltage from your power supply conforms to the voltage specified on the tag.

Remove the magnetic switch cover and insert power supply cable through the dust proof

fitting. Connect wires to L1, L2 and L3 for 3 phase; L1 and L2 for single phase (See page

14 left photo). Do not attach power to the transformer. Attach the ground wire to the

ground lug inside the enclosure. Wiring must conform to the National Electrical Code and

any applicable local codes.
