Original Saw

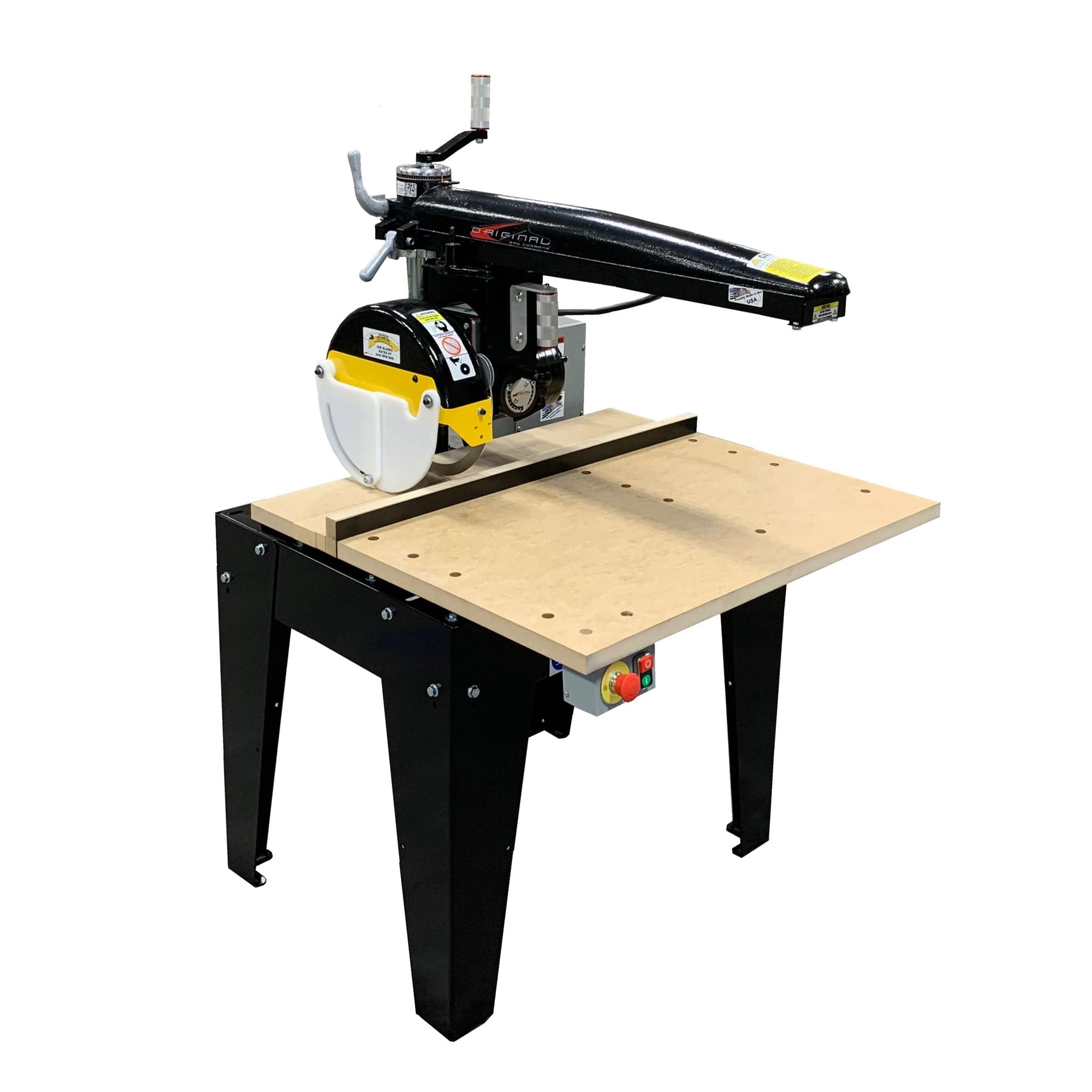

Radial Arm Saw with 12" Blade and 24" Crosscut, 3HP 3PH 208/230V

Item #420624 Model 3512-03-208
Regular price $5,899.99
Sale price $5,899.99 Regular price $5,899.99
Skip to product information
1 of 2

Original Saw

Radial Arm Saw with 12" Blade and 24" Crosscut, 3HP 3PH 208/230V

Item #420624 Model 3512-03-208
Regular price $5,899.99
Sale price $5,899.99 Regular price $5,899.99
Crosscut, bevel cut, miter cut, and swivel to a rip position to precisely cut down panels all with this one machine. This versatile saw is well suite. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power.  Most residential power is single or 1-phase.  Verify your power requirements before ordering.

Details

Crosscut, bevel cut, miter cut, and swivel to a rip position to precisely cut down panels all with this one machine. This versatile saw is well suited for wood cutting up to 3” as well as cutting off 24” wide panels for squaring shelving and doors, and other similar applications.


This Contractor Series radial arm saw is a workhorse with a 3HP, 3 Phase, 208/230V TEFC motor and internal automatic brake. It has the best cut quality in its class and is a very precise cutting machine with repeatable accuracy that can be depended on day-after-day for years to come. These machines are fully assembled and tested in The Original Saw Company’s facility and then packaged. This makes setting up your saw a snap. Order any Original Saw 22": Extension Table to extend the versatility of your Radial Arm Saw.


Features:




  • 3HP, 3PH, 208/230V Motor



  • Automatic blade braking system



  • 24” crosscut



  • Precision carriage riding on four tight-tolerance convex bearings mounted horizontally



  • Oversized MDF table top included



  • Powder coated heavy gauge steel frame and legs



  • Standard worktable height: 32”



  • E-Stop



  • Arbor nut and precision ground arbor collars



  • Wrench kit (includes allen arbor wrench and flat arbor wrench)



  • Adjustable tension carriage return reel



  • Proudly Manufactured in the USA


  • Plug not include, must be hard wired direct to electrical source


Connecting Electrical Current


The motor is properly connected to the magnetic switch at the factory for operation on the electrical voltage specified on the tag attached to the guard stud. Make sure incoming voltage from your power supply conforms to the voltage specified on the tag.


Remove the magnetic switch cover and insert power supply cable through the dust proof fitting. Connect wires to L1, L2 and L3 for 3PH; L1 and L2 for 1PH. (See manual, page 14, left photo). Do not attach power to the transformer. Attach the ground wire to the ground lug inside the enclosure. Wiring must conform to the National Electrical Code and any applicable local codes.



Shipping / Billing Information

This product ships direct from the manufacturer:

  • All Radial Arm Saws are custom built upon order and will ship in approximately 8 weeks and Stations, Stands, Accessories 2-4 weeks for all other Original Saw products.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns back to The Original Saw Company incur a 10% restocking fee to cover inspection and repackaging. Customer is responsible for return ship costs. If you have a return issue, please contact Woodcraft Customer Service for assistance @ 1-800-535-4482.

Warranty Information

The Original Saw Company warrants that their products are free from defects in materials and workmanship for a period of 1 year from the date of purchase. If you have any warranty questions, you can contact The Original Saw Company @ 1-800-733-4063 or customerservice@originalsaw.com.
