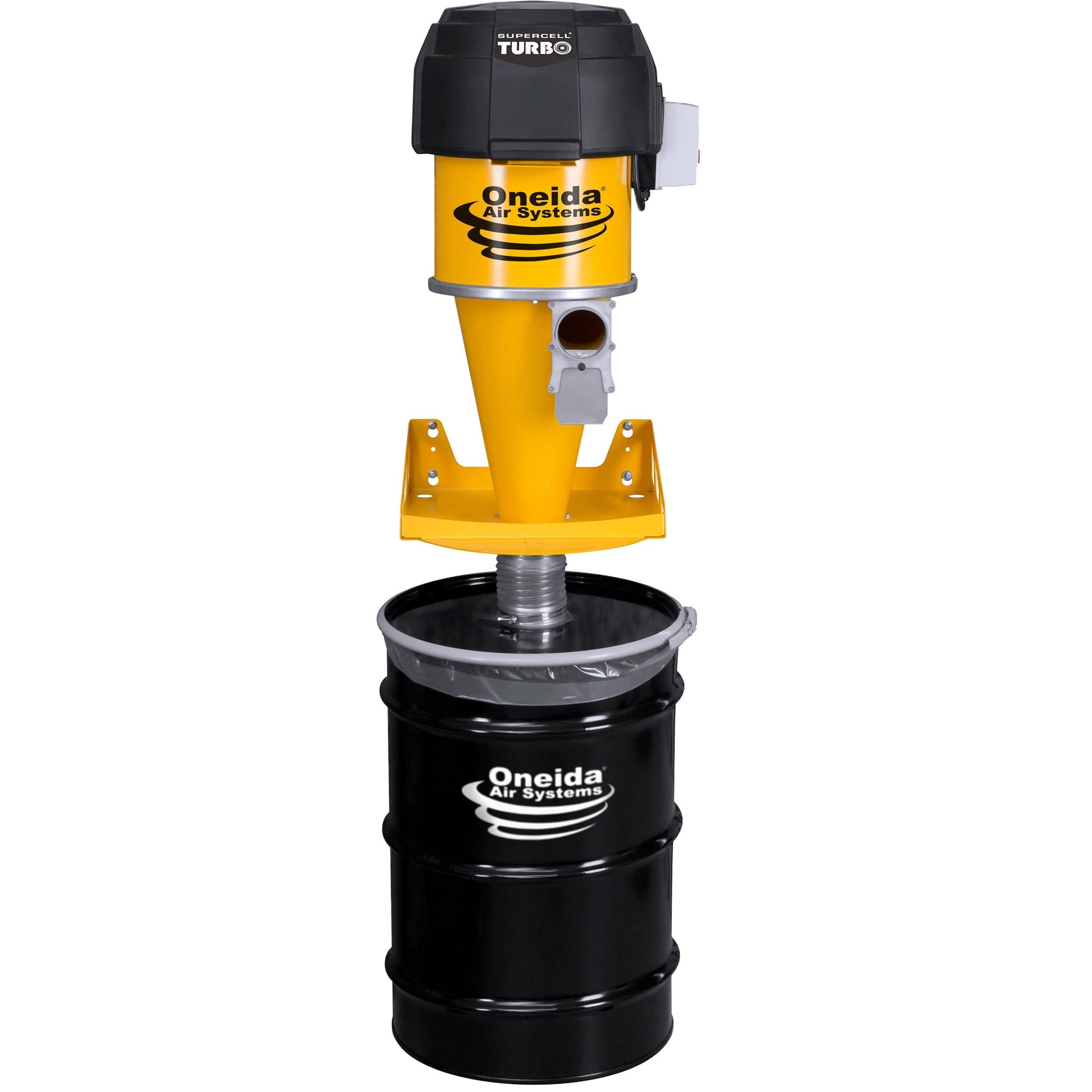

New from Oneida, the Supercell Turbo Charged, model XSK455000, features everything you know and love regarding the original line of Supercell but features 30% more airflow. The Supercell Turbo is ideal for handheld and portable tools, especially small CNC routers. The adaptable design in the shop, connecting to tools by up to an astounding 100' of 4" house or ductwork.

• 10x higher suction pressure than standard dust collectors and 30% more airflow over the classic Supercell
• Universal design collects from an 1" to 5" diameter port through up to 100' of hose and ductwork
• 55-gallon dust bin with automatic bag holder and fill level indicator
• HEPA-grade media filter with internal pulse filter cleaner
• Mounting bracket for wall studs 16" on center
• Combined 6.7HP, 230V High Pressure Fan Motors
• Supports up to three 1" to 2.5" Dust Ports
• Wireless radio frequency remote control Key Fob
• Heavy-gauge steel cyclone pre-separator
• Internal pulse filter cleaner system
• Reinforced dust bin with viewing window
• Automatic bag holder system
• Dust Sentry bin fill level indicator
• NFPA compliance ready
• cETLus: certified to both U.S. and Canadian product safety standards by an NRTL
• Conforms to UL-1017 and Can/CSA-C22.2 # 243 standards

Specifications

• Horsepower: 6.7HP
• Motor Type: 4x 1300W Modular Motors
• Voltage: 208-230V
• Recommended Breaker Size: 30A
• Amperage: 22A, 60Hz
• Phase: 1PH (single phase)
• Power Cord: 10', bare wiring - includes 2 hot and 1 ground for direct wiring plug not included
• CFM Rating: 536 CFM @ 2.3" WC, Free Fan CFM: 634 CFM
• Maximum Suction: 97.8WC
• E12 Minimum Efficiency rating, Merv Rating MERV 16+
• Total Filtration Area: 40sq ft.
• Waste Capacity: 55 Gallon
• Built with cold rolled steel and seam welded
• Static Resistance Rating: Conductive (metal)
• Inlet: 4" O.D.
• Discharge Port: 5" O.D.
• Overall Dimensions: 23.5" w x 23"d x 83" h allow additional 24" of clearance height for maintenance

• Wall mount bracket for 16" standard stud spacing
• 5 replacement bags
• 4"x25' Vacuum-rated SD urethane flex-hose
• Key Fob
• Blast gate
• Turn Key Clamp: 2 each
• Fan Motor Assembly
• Magnetic Starter
• Remote Control
• Cartridge filter
• Pulse Filter Cleaner
• Cyclone Separator
• Dust Bin
• Dust Sentry bin fill level indicator
• Automatic bag holder system

Only use vacuum pressure rated flex-hose and duct with the Supercell Dust Collector

Due to systems high suction, standard hoses/pipe may collapse and cause damage to equipment or injury

Remote Control is packed in the starter

Weight 130 lbs.
