Oneida Air Systems

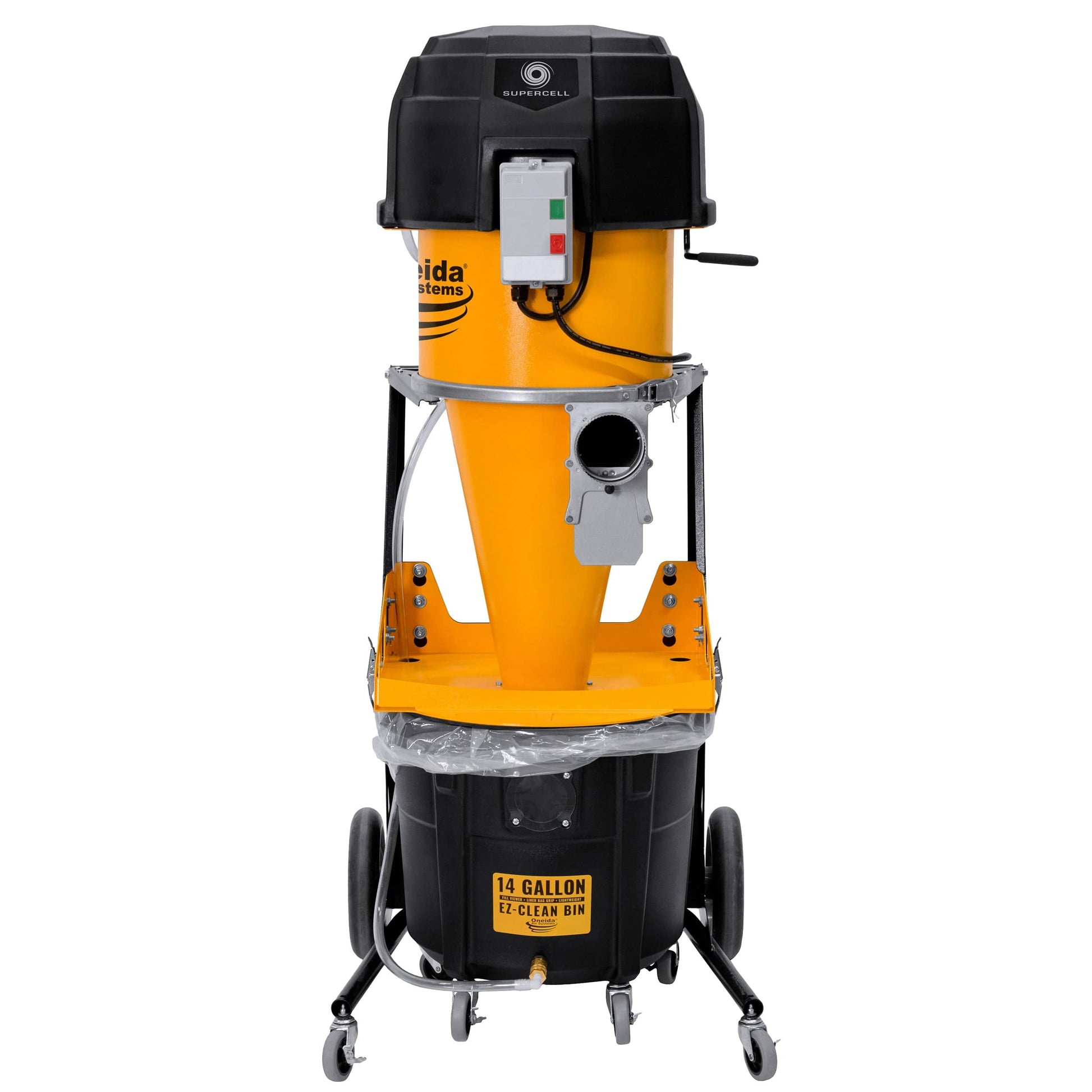

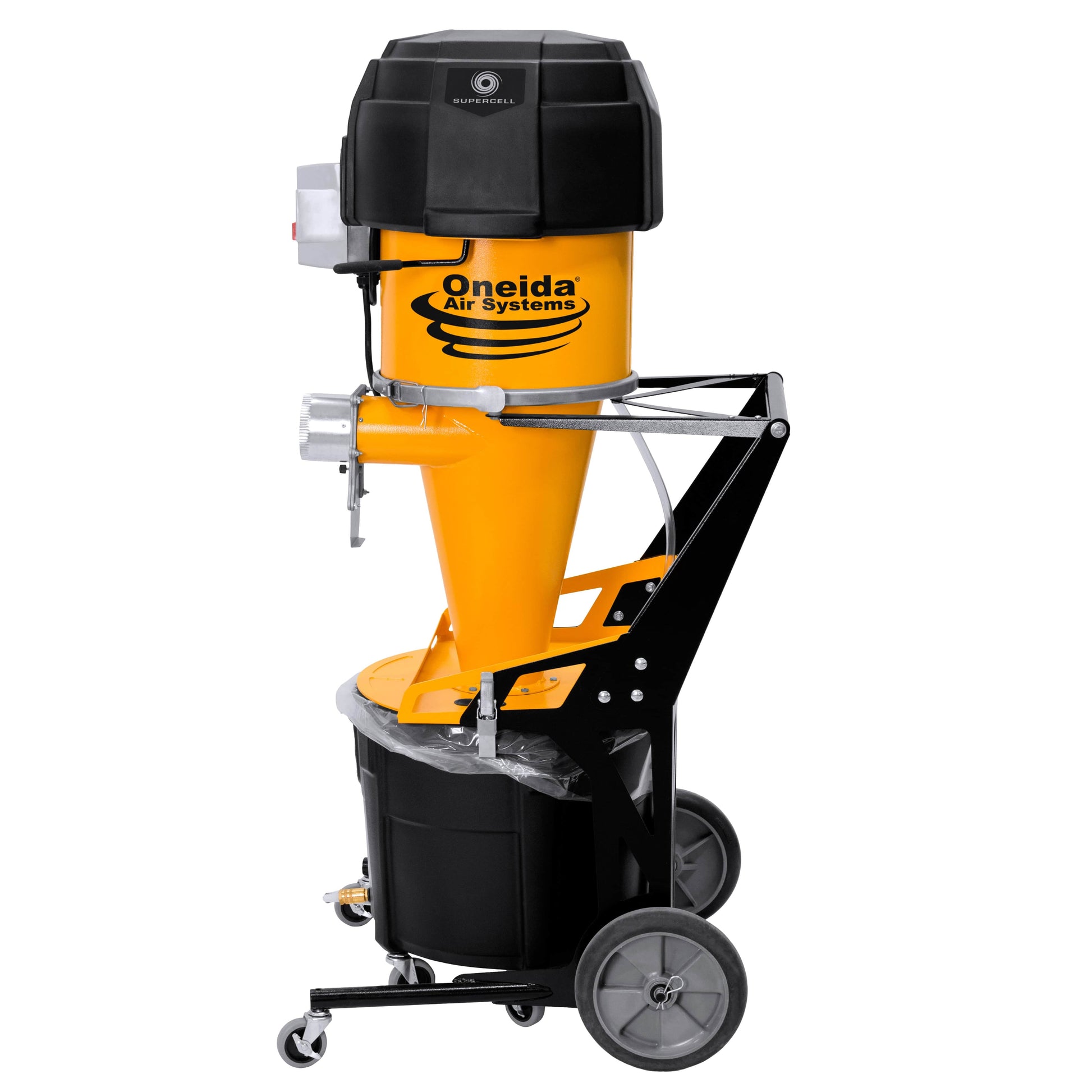

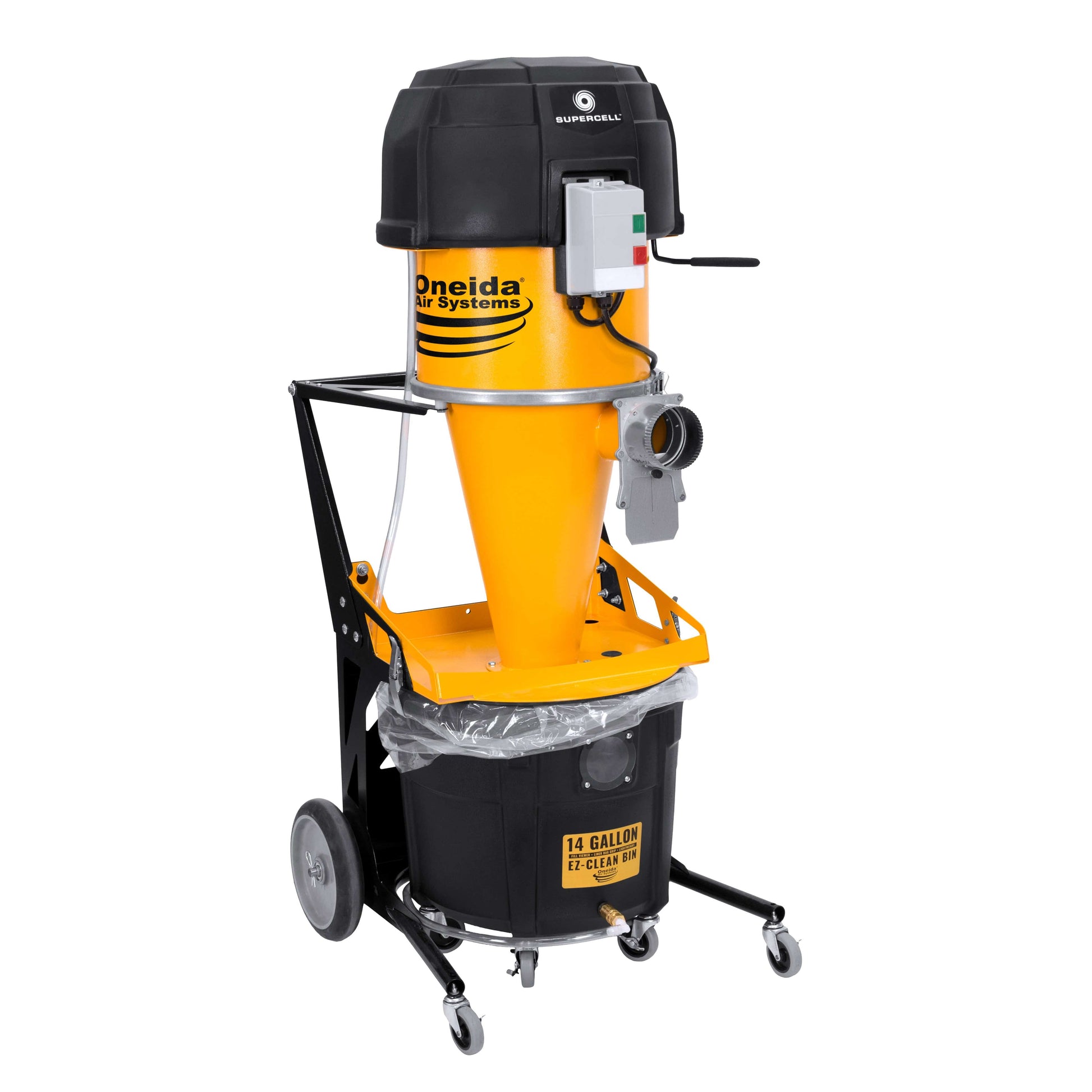

Supercell Mobile High Pressure Dust Collector - 14 Gallon
Item #172604
Model XSK000014-P
Regular price
$3,199.00
Sale price
$3,199.00
Regular price
$3,199.00
Unit price
per
Oneida Air Systems
Supercell Mobile High Pressure Dust Collector - 14 Gallon
Item #172604
Model XSK000014-P
Regular price
$3,199.00
Sale price
$3,199.00
Regular price
$3,199.00
Unit price
per
Use Oneida's Supercell Mobile high pressure dust collector for efficient dust collecting in your workshop. With up to 10x higher suction than standard. . .
View More Details
Extended Warranty
Woodcraft Protection Program
Protect your purchase today through the Woodcraft Protection Program!
Select one or two-years of coverage, and enjoy benefits including:
Manufacturer defects
Normal wear and tear
Power Surge
No lemon
And much more
All plans are free of deductibles! If your product cannot be repaired, it will be replaced.
Click Here To Learn More
Details
Use Oneida's Supercell Mobile high pressure dust collector for efficient dust collecting in your workshop. With up to 10x higher suction than standard collectors, it will effectively capture dust and debris from any 1" to 5" diameter port with up to 100' of 4" hose and ductwork. The HEPA-GFM is equipped with the internal pulse filter cleaner to reduce down time for maintenance. The overall design is compact and mobile with a mobile base and includes a 14 gallon drop-down dust bin with a Dust Sentry level indicator and liner bag holder.
The Supercell is ideal for handheld and portable tools, even small CNC Routers. The compact mobile design can travel virtually anywhere in the shop or work area. The unit accommodates up to three tools with 1" to 2.5" dust ports. Patent Pending
Features
- 10x Higher suction than standard dust collectors
- Works with up to 3 tools with 1" to 2.5" dust ports
- Combined 5HP fan blower motor operates at 230V, magnetic starter and overload protector
- Wireless remote control operates at radio frequency and works well up to 100' away
- Ultra-high efficiency cyclone separator removes 99% of dust from incoming airstream
- HEPA-Grade Filter Media
- Internal pulse filter cleaner removes dust from the filter in seconds
- 14 Gallon lightweight dust bin with liner bag holder and fill level viewing window
- Dust Sentry automatically alerts when the drum is full and needs emptied
- Compact mobile design, non-marking rubber wheels with locking casters
Specifications
- Horsepower: 5 HP
- Motor Type: 3x 1300W Modular Motors
- Motor Speed: 48,800 RPM
- Voltage: 208-230V
- Amp: 17A
- Motors: 1PH 60Hz
- Power Connector: NEMA 6-20
- CFM Rating: 465 CFM
- Noise Level: 80 dB at 10'
- Filter Type: HEPA Grade ePTFE Media
- Maximum Suction Rating: 97.8" WC
- Filtration Efficiency: E12 Minimum Efficiency Rating
- MERV Rating: MERV 16+
- Total Filtration Area: 40 sq. ft.
- Waste Capacity: 14 Gallons
- Listed FLA: 18A
- Static Resistance Rating: Conductive (metal)
- Power Cord Length: 10'
- Recommended Circuit Type: HACR
- Primary Build Materials: Cold rolled steel, SD Polyethylene, seam welded
- On/Off Switch:Magnetic Starter with on/off switch preset for included Remote
- Inlet Size: 4" O.D.
- Discharge Size: 5" O.D.
- Wall Mount
- Width: 28.5"
- Depth: 30"
- Height: 61"
- Weight: 105 lbs.
Includes
- Liner Bags: 5 each
- Vacuum Hose: 4" x 25' Vacuum pressure rated
- Hardware Pack with 2 Turn Key Clamps and assembly nuts and bolts
- Dust Sentry Bin level Indicator
- Remote Control
Use only vacuum pressure rated flex-hose and/or ductwork with Supercell Dust Collectors.
Due to systems high suction, standard hose/pipe may collapse and cause damage to equipment or injury.
Remote Control is packed in the starter box.
Supercell units require a 20 Amp outlet receptacle.
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:
- Your order will ship in 7-10 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
All returns must be pre-approved. Any non-warranty return will incur a restock fee of 25% and return ship charges. If you have a return issue, contact Woodcraft's Customer Service Department at 1-800-535-4482.
Warranty Information
Oneida Air Systems® warrants products it manufactures for a period of 1 or more years depending on the product to the original purchaser from the date of purchase unless otherwise specified. Items not manufactured by OAS are limited to their own manufacturer's warranties. All electrical items such as magnetic starters, remotes, sensors, pumps, bin sensors, bag grippers, etc. and accessories are limited to 90 days. Oneida Air Systems warrants that the product will be free from defects in materials and workmanship. This warranty does not apply to defects due directly or indirectly to misuse, negligence, accidents, abuse, repairs, alterations, improper wiring or lack of maintenance. This is Oneida Air Systems sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. OAS does not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall OAS's liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Oneida Air Systems shall be tried in the State of New York, County of Onondaga.
