Oneida Air Systems

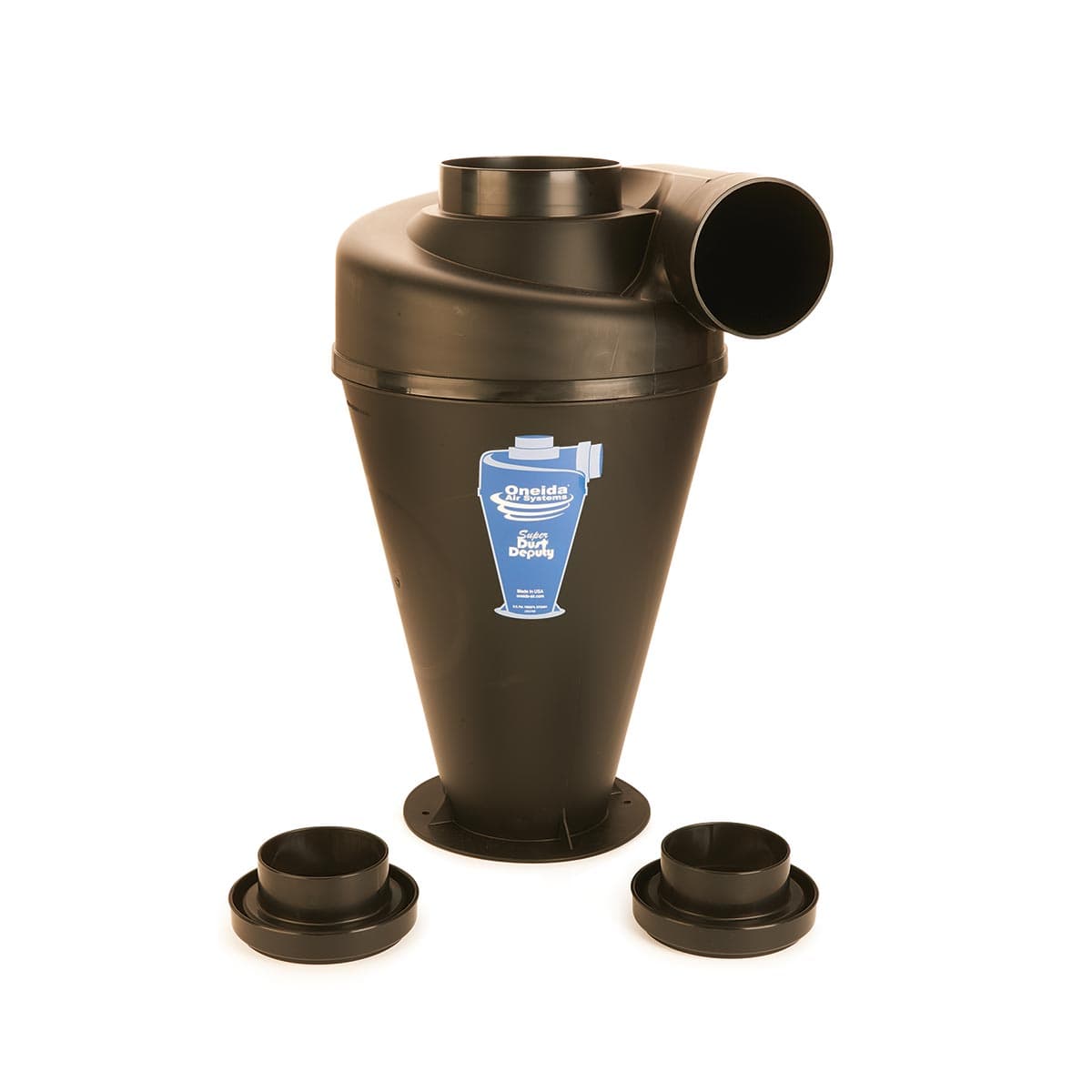

Super Dust Deputy 4/5 Cyclone

Item #184307 Model AXD002045
  • Super Dust Deputy 4/5 Cyclone alt 0
1 1

Oneida Air Systems

Super Dust Deputy 4/5 Cyclone

Item #184307 Model AXD002045
$ 179 99
$ 179 99 Was $179.99
Use your existing blower to turn your inefficient, single-stage bag collector into a high efficiency, two-stage cyclone system that separates 99% of w. . . View More Details
In Stock Online Shipping Info

About This Product

Use your existing blower to turn your inefficient, single-stage bag collector into a high efficiency, two-stage cyclone system that separates 99% of wood waste before it reaches the filter, resulting in virtually no filter clogging or reduction in airflow. Connect this Super Dust Deputy® 4/5 to your dust collector with either a 4"or 6" hose, and to your tools with either a 4" or 5" hose. Other benefits of this lightweight, molded resin Super Dust Deputy Cyclone include reduced maintenance and elimination of dusty bags to empty.

Features:

  • Lightweight and compact design for fast and simple installations

  • Removes over 99% of dust and debris from airstream

  • Prolongs the lifespan of dust collection filters while reducing the need for cleanings

  • 5" nominal inlet port and 6" nominal outlet port

  • Included adapters offer 4" or 5" OD inlet (connects to your tools) and 4" or 6" OD outlet (connects to your collector)

  • Compatible with almost any 1-3 HP dust collector

  • Made in the USA

Specifications:

  • Product Height: 23"

  • Product Width: 14-1/4"

  • Product Depth: 13-1/4"

  • Product Color: Black

  • Nominal Inlet Port Size: 5" OD, 4-3/4 ID

  • Nominal Inlet Port Size with Adapters: 4" OD, 3-3/4" ID

  • Nominal Outlet Port Size: 6" OD, 5-3/4" ID

  • Nominal Outlet Port Size with Adapters: 4" OD, 3-3/4 ID

  • Primary Build Materials: Molded static dissipative polypropylene

  • Compatibility: For use with most 1-3 HP single stage dust collector (minimum 350 CFM)

  • Patents: oneida-air.com/patents

What’s Included:

  • (1) Oneida Air Systems® Static Dissipative Super Dust Deputy® 4/5 Cyclone Separator

  • (1) 5" Nominal x 4" Nominal Inlet Port Adapter

  • (1) 6" Nominal X 4" Nominal Outlet Port Adapter

  • (1) Foam Gasket

  • Mounting Hardware
