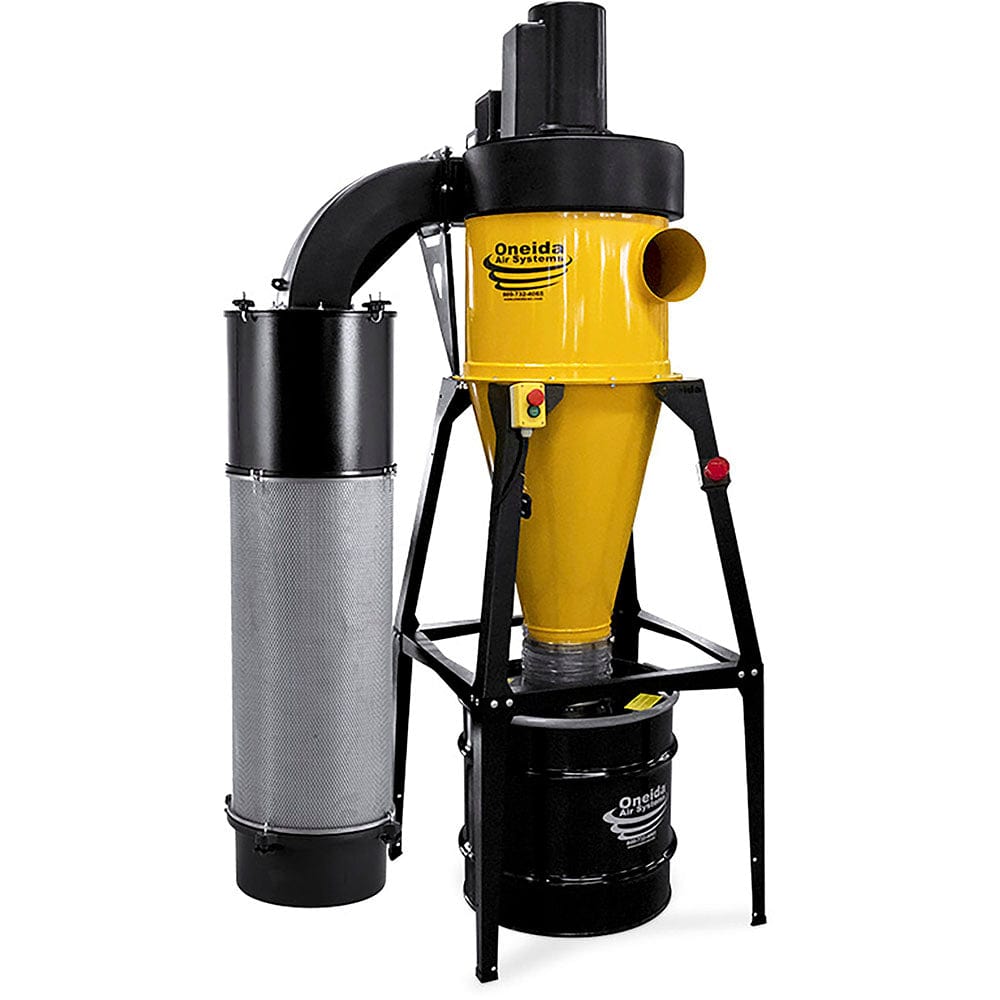

Choosing the best dust collector for your shop can be difficult, especially when you start combining mixed/undersized dust port and long runs of ducting or hoses. Oneida Air Systems' patented SMART Boost® technology offers the only solution that can adapt to nearly any shop layout! Traditional dust collector fan motors operate at a fixed speed (RPM). When long ducting runs, smaller tool ports, and even closed gates limit the volume of air (CFM) the fan can move at its fixed speed, the motor ends up doing less work – and draws fewer amps. Our unique SMART Boost technology ensures the motor is always working at full capacity (with a constant amp draw) by increasing fan speed as needed to deliver maximum CFM and maximum suction at all times – up to double the CFM and suction of traditional, fixed RPM dust collectors. It can even adjust for differences in air density to optimize static pressure and CFM in high-altitude locations. Truly revolutionary! Combining the award-winning features of our Super Dust Gorilla with the rugged construction of our Pro series, this new system will help you maximize your investment and ensure that your shop is running at peak-efficiency for years to come.

• Industrial 5HP U.S. Made Fan Blower Motor
• SMART Boost Variable Speed Airflow Controller
• Wireless Radio Frequency Remote Control Keyfob
• Heavy-Gauge Seam Welded Steel Cyclone Separator
• HEPA-Grade Filter Media
• Stacking Sound Filter & Drop-in Silencer
• Steel Angle Frame Stand

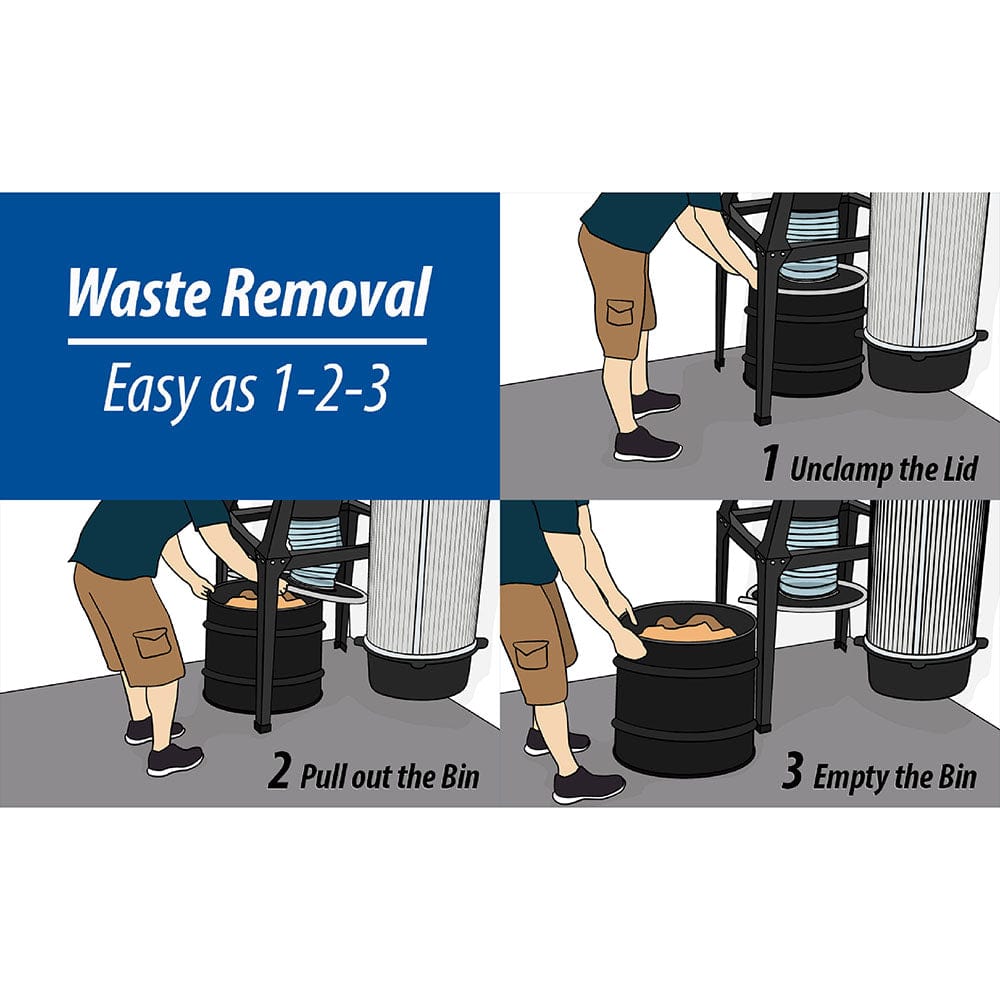

• 35 Gallon Reinforced Steel Dust Bin
• Dust Sentry™ Bin Fill Level Indicator
• 2 Year Limited Warranty
• cETLus Certified and NFPA Compliance Ready

• SKU: XGK050035
• Horsepower: 5 HP
• Motor Type: U.S. Motor
• Motor Service Factor: 1.15
• Voltage: 220-240V
• Recommended Breaker Size: 30A
• Amperage (Typical): 18-23A
• Motor FLA: 19.5
• Phase Option: Single-Phase (Pre-Wired)
• Frequency: 60Hz
• Power Connector Type: 3 Bare Wires, Two Hot & Ground
• Power Cord Length: 7 feet
• Impeller Type: Single-piece, backward inclined, non-sparking/non-ferrous
• Impeller Size: 15" Dia.

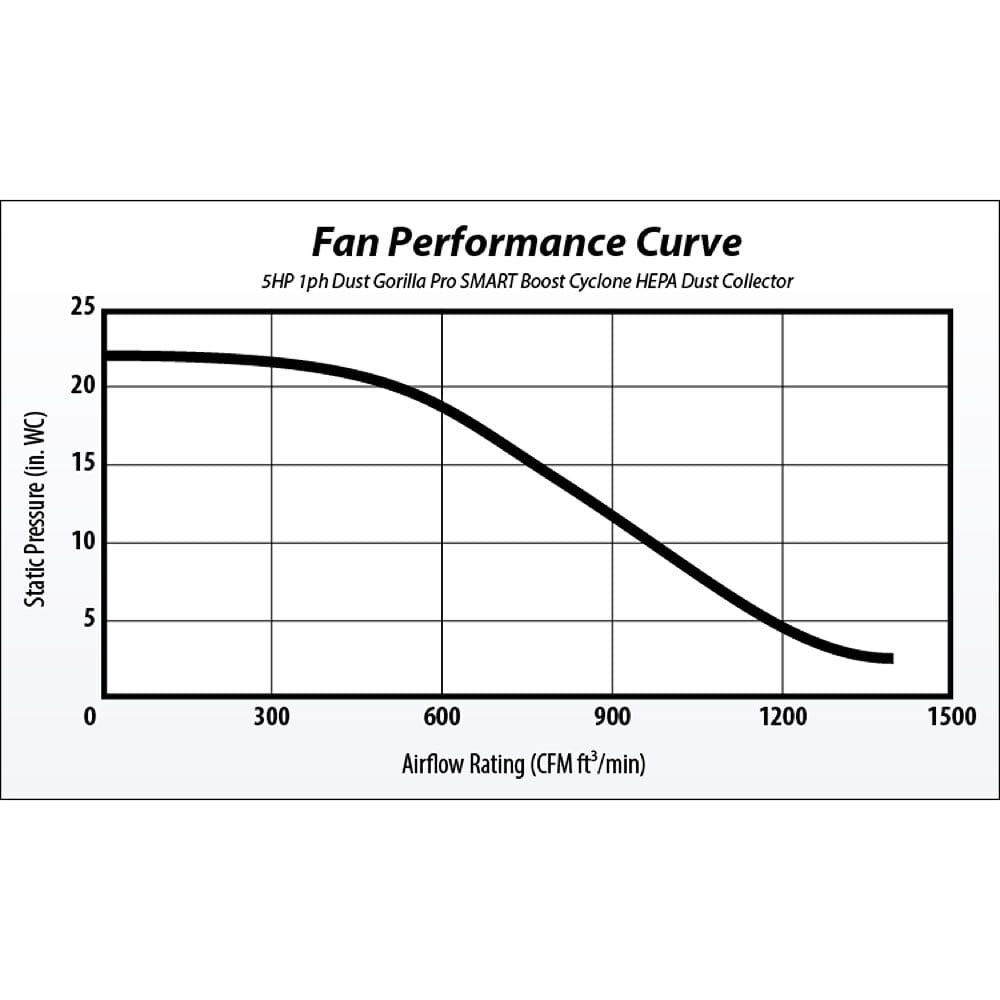

• Real CFM Rating: 1,395 Actual CFM at 1.9" WC
• Free Fan CFM Rating: 3,250 CFM
• Maximum Suction: 23" WC
• Max. Open Blast Gates: 3 Gates
• Noise Level: 75-87 dBA at 10 ft
• Motor Speed Type: Variable
• Cyclonic Separation: Removes over 99% of fine wood dusts
• Filter Type: HEPA Grade ePTFE Media
• Filtration Efficiency: E12 Minimum Efficiency Rating
• Total Filtration Area: 110 sq ft
• Waste Capacity: 35 Gallons
• Remote Control: Included
• Remote Control Part #:#AMR000000 (for additional or replacement keyfobs)
• Primary Build Materials: Cold Rolled Steel
• Welding: Seam Welded
• Static Resistance Rating: Conductive (Metal)
• Color: Yellow
• Inlet Size: 7" Dia.
• Outlet Size: Square ID: 7-3/8"(W) x 6-3/8"(H)
• Discharge Size: 9" Dia.
• Width: 48"
• Depth: 30"

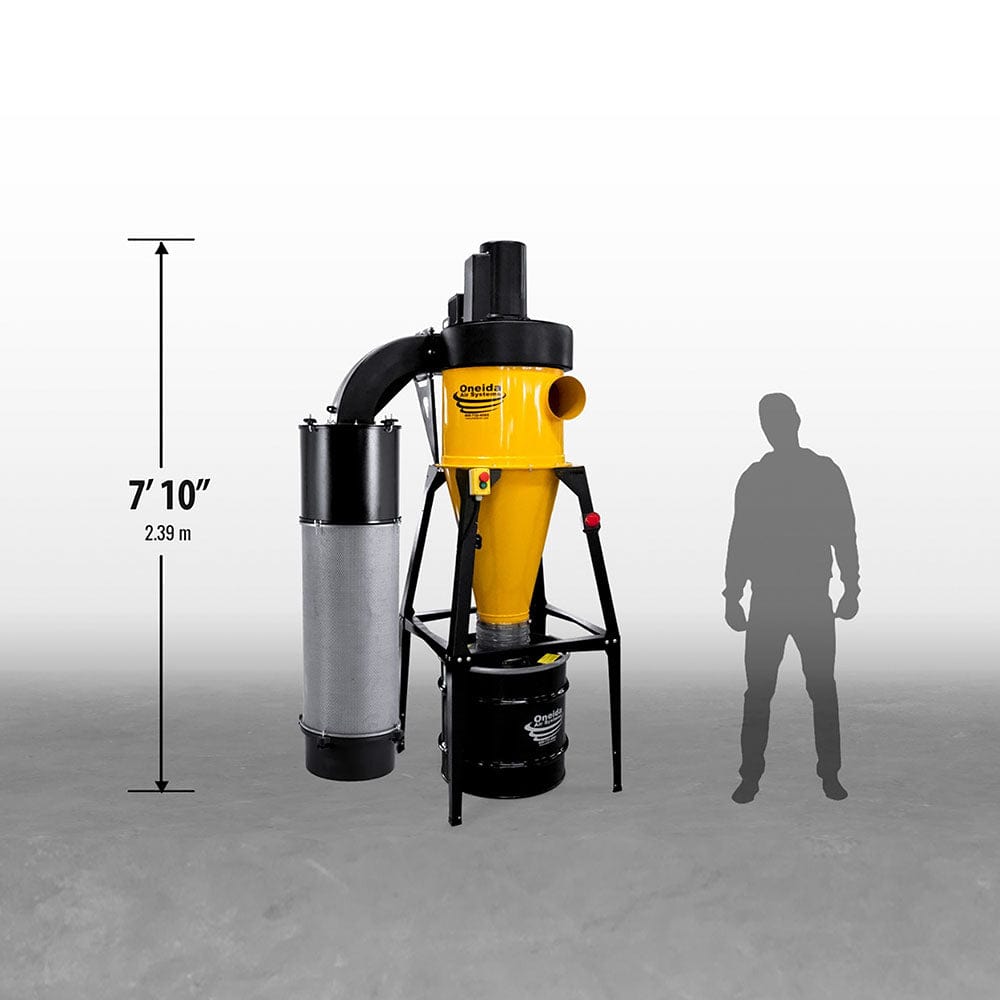

• Height: 94"
• Height to Center of Inlet: 66.5"
• Actual Weight: 390 lbs

• Blower Motor Assembly
• Magnetic Starter
• SMART Boost Controller
• Fan Housing
• Cyclone Separator
• Filter Plenum
• Stacking Sound Filter
• FlameGuard Cartridge Filter
• Steel Angle Frame Stand
• Steel Dust Bin
• Bin Level Indicator
• Remote Control
