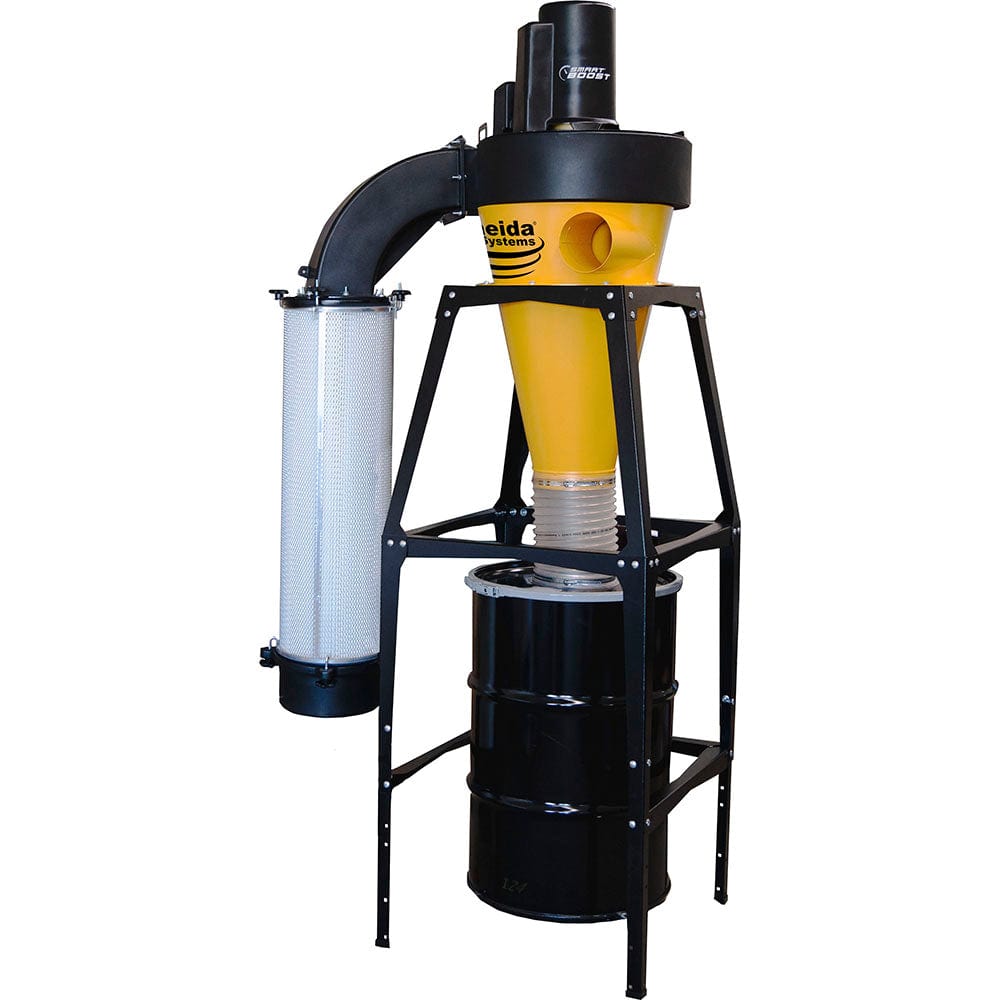

Choosing the best dust collector for your shop can be difficult, especially when you start combining mixed/undersized dust port and long runs of ducting or hoses. Oneida Air Systems' patented SMART Boost® technology offers the only solution that can adapt to nearly any shop layout! Where traditional dust collectors are fixed in speed and performance – unable to adapt to different port sizes, duct runs, and requiring careful blast gate management – our new V-System's SMART Boost variable-speed technology automatically adjusts to deliver up to 2-3 times more airflow to your tools. With its compact shape and sound dampening features, the V-System is perfect for garage and basement shops where size and noise play a significant factor. This new system will help you maximize your investment and ensure that your shop is running at peak-efficiency for years to come.

• Industrial 3HP U.S. Made Fan Blower Motor
• SMART Boost Variable Speed Airflow Controller
• Wireless Radio Frequency Remote Control Keyfob
• High-Efficiency Heavy-Gauge Steel Cyclone Separator
• HEPA-Grade Filter Media
• Internal Filter Silencer
• Steel Angle Frame Stand
• 55 Gallon Reinforced Steel Dust Bin
• Dust Sentry™ Bin Fill Level Indicator
• 2 Year Limited Warranty
• cETLus Certified and NFPA Compliance Ready

• SKU: XXVS300055
• Horsepower: 3 hp
• Motor Type: U.S. Motor
• Motor Service Factor: 1.15
• Voltage: 220-240V
• Recommended Breaker Size: 30A
• Amperage (Typical): 15-17.5A
• Phase Option: Single-Phase (Pre-Wired)
• Frequency: 60Hz
• Power Connector Type: 3 Bare Wires, Two Hot & Ground
• Power Cord Length: 7 feet
• Impeller Type: Single-piece, backward inclined, non-sparking/non-ferrous
• Impeller Size: 15" Dia.

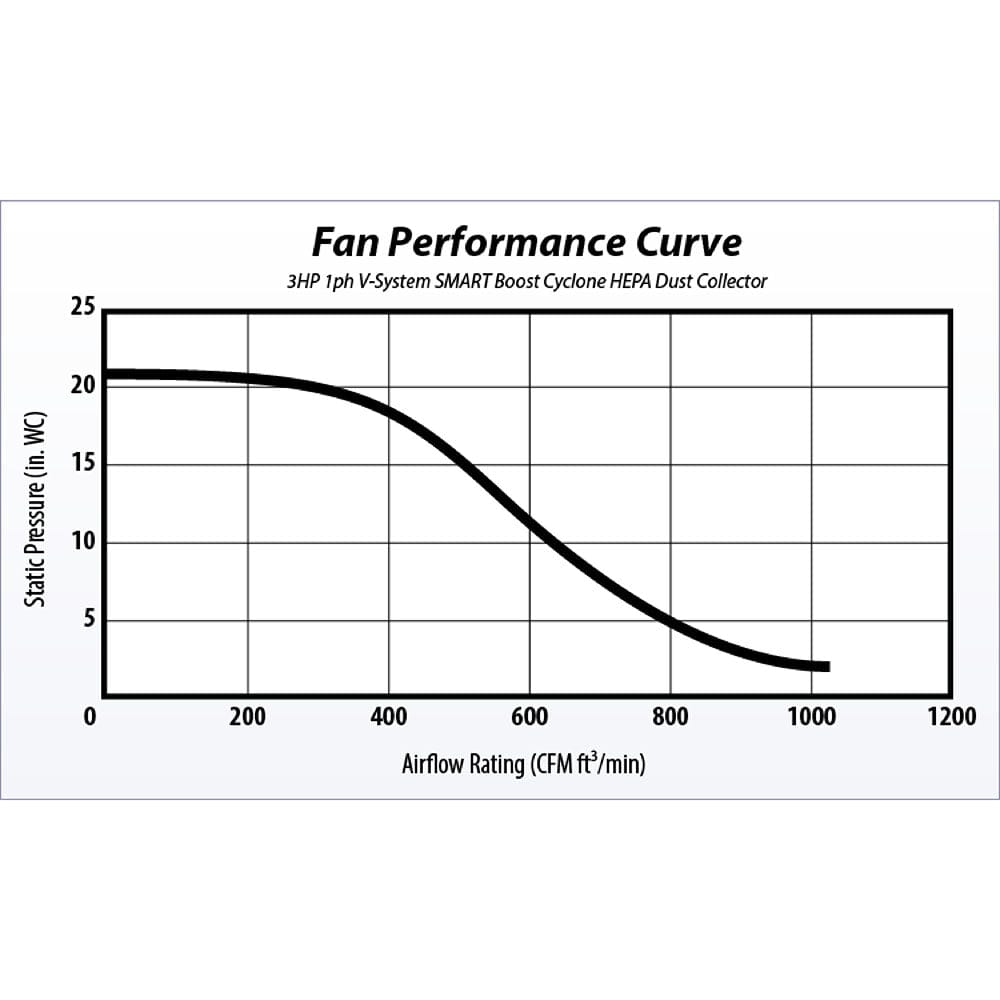

• Real CFM Rating: 1,030 Actual CFM at 2" W.C.
• Maximum Suction: 21" W.C.
• Noise Level: 77 dBA at 10 ft
• Motor Speed Type: Variable
• Separation Efficiency: Removes over 99% of fine wood dusts
• Filter Type: HEPA Grade ePTFE Media
• Filtration Efficiency: E12 Minimum Efficiency Rating
• Total Filtration Area: 95 sq ft
• Waste Capacity: 55 Gallons
• Remote Control: Included
• Primary Build Materials: Cold Rolled Steel
• Welding: Seam Welded
• Static Resistance Rating: Conductive (Metal)
• Color: Yellow
• Inlet Size: 6" Dia.
• Outlet Size: Square ID: 7-3/8"(W) x 6-3/8"(H)
• Discharge Size: 9" Dia.
• Width: 49"
• Depth: 33"
• Height: 96"
• Height to Center of Inlet: 70"
• Actual Weight: 315 lbs

• Blower Motor Assembly
• Magnetic Starter
• SMART Boost Controller
• Fan Housing
• Cyclone Separator
• Filter Plenum

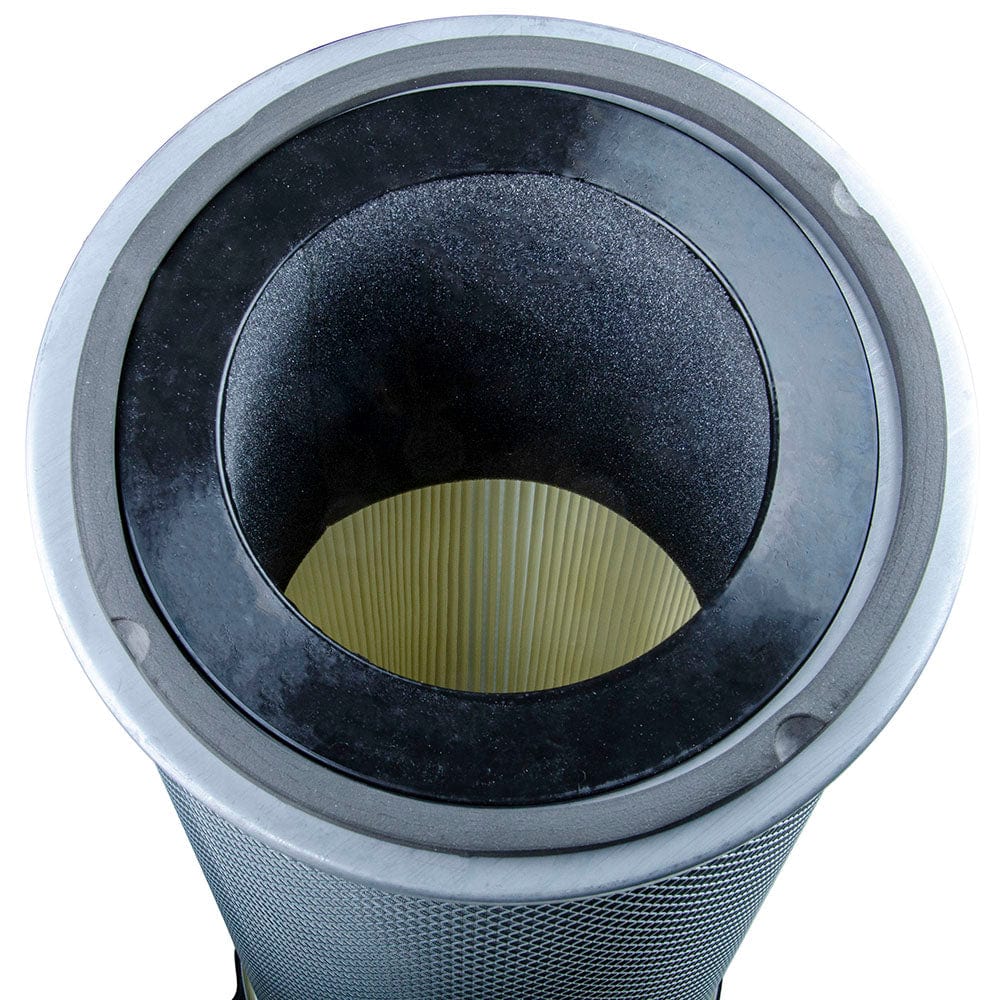

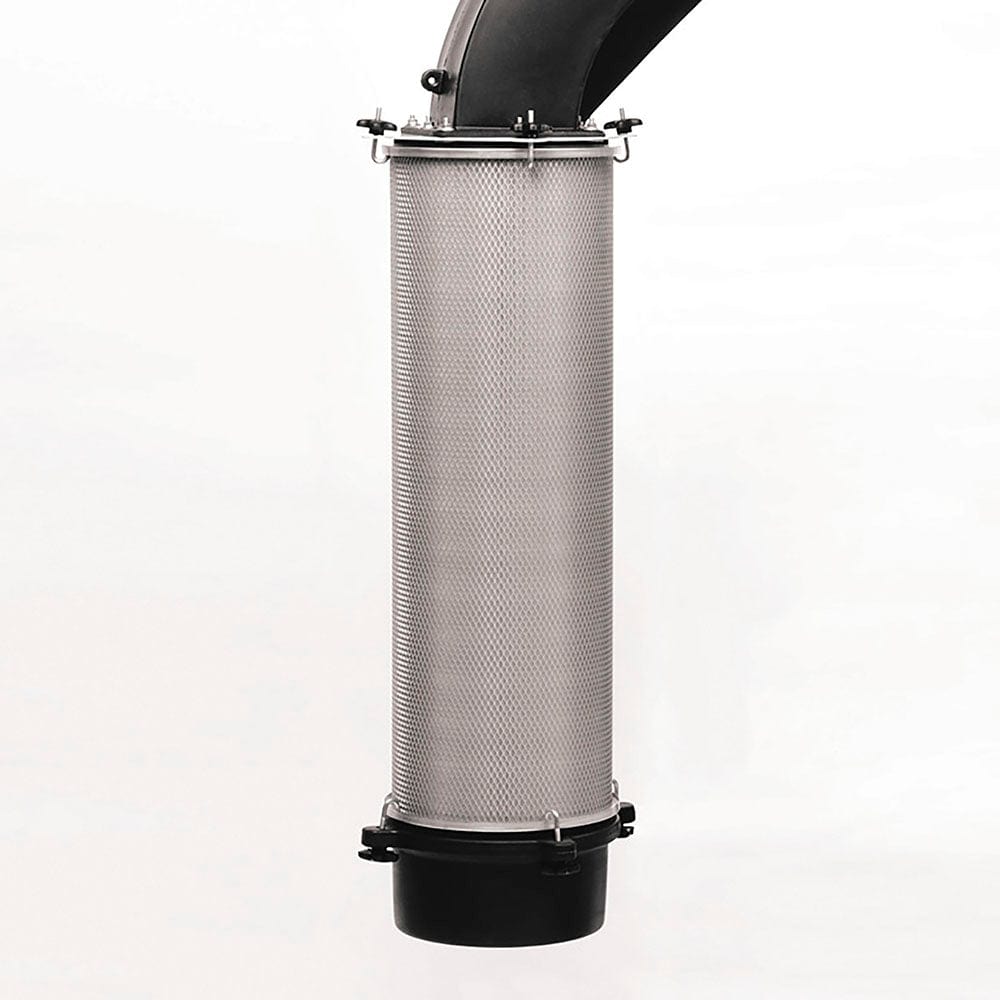

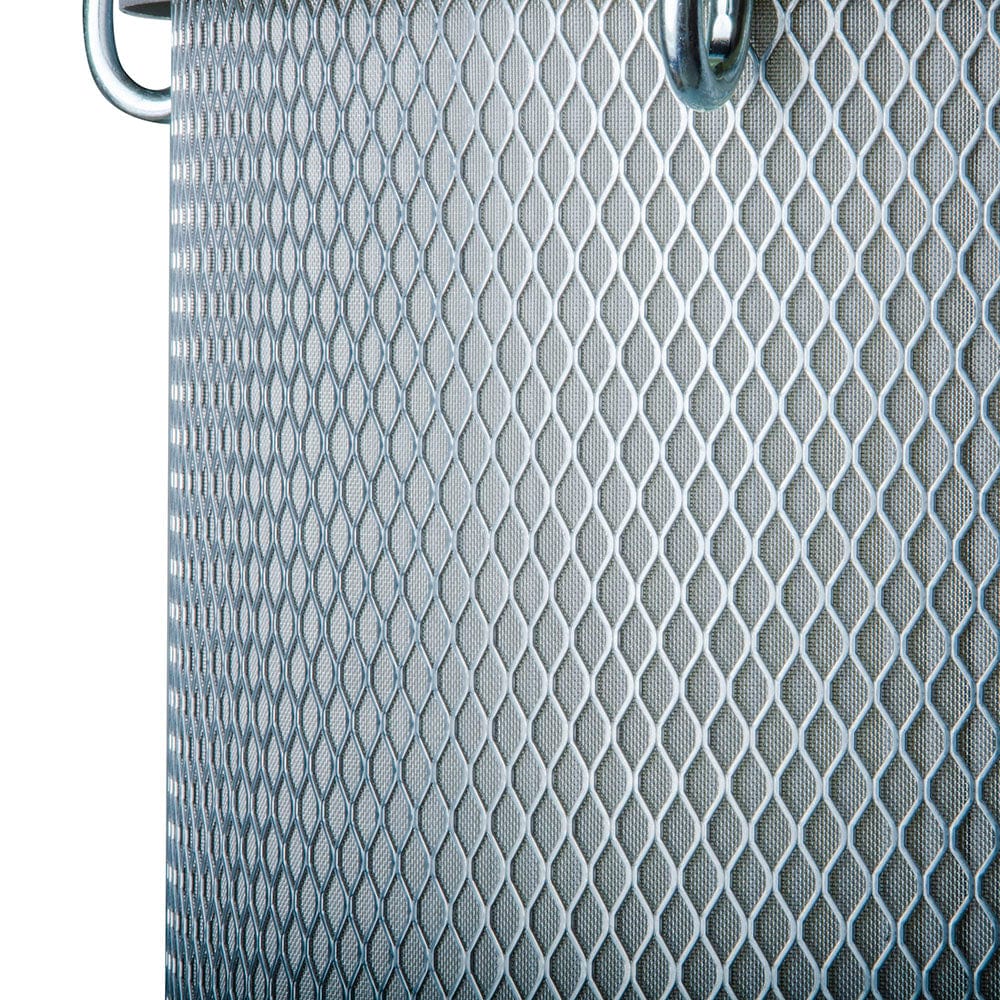

• FlameGuard Cartridge Filter
• Internal Silencer
• Freestanding Leg Kit

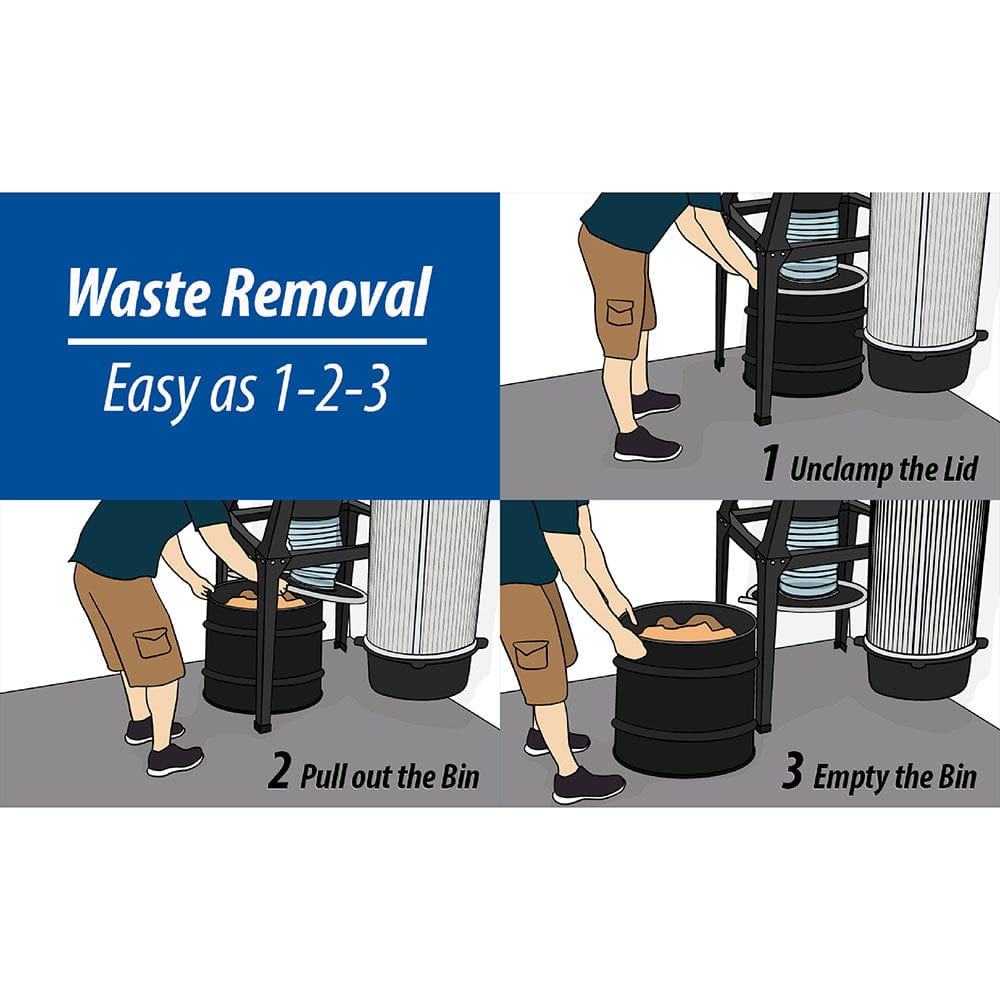

• Steel Dust Bin
• Bin Level Indicator
• Remote Control
