Oneida Air Systems

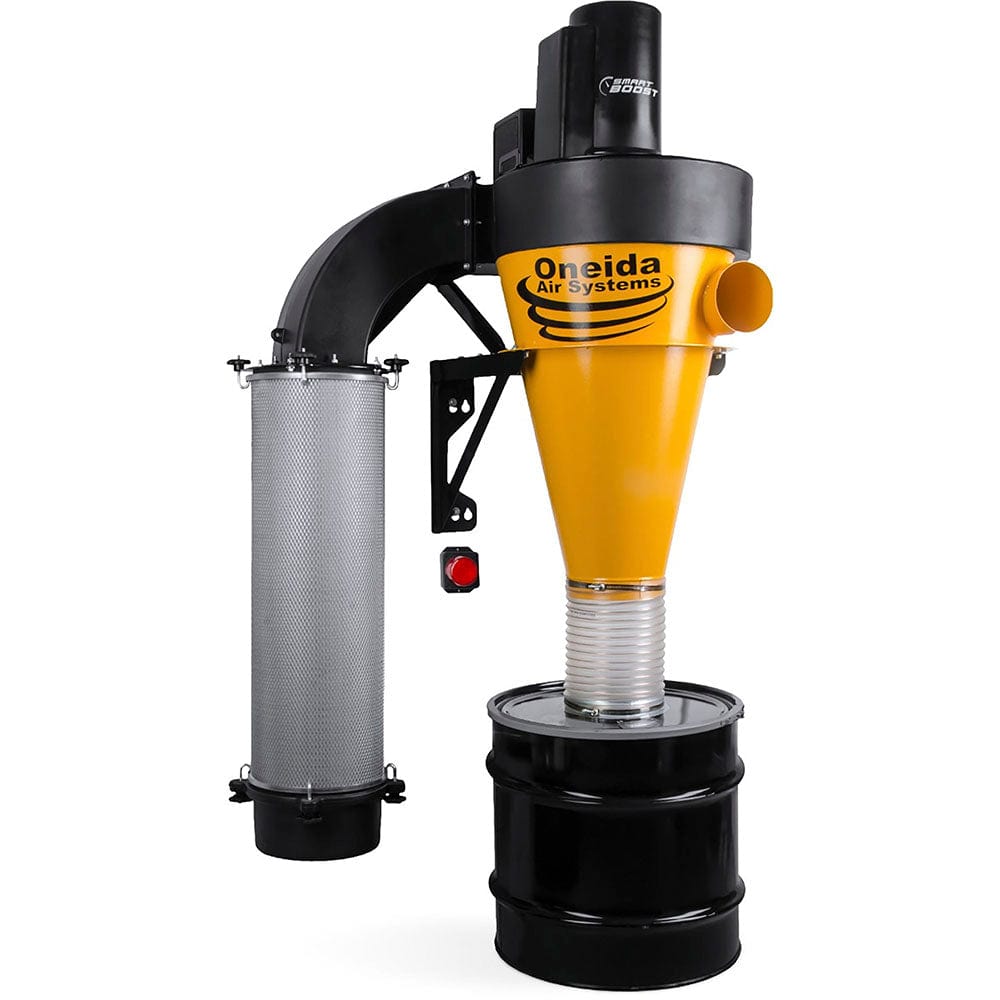

V-System 3000 with Smart Boost 35-Gallon Cyclone Dust Collector with Wall Mount - HEPA GFM - 3 HP 1 Ph 230V

Item #193037 Model XXVS300035W
$3,999.00
$3,999.00 $3,999.00
1 8

Oneida Air Systems

V-System 3000 with Smart Boost 35-Gallon Cyclone Dust Collector with Wall Mount - HEPA GFM - 3 HP 1 Ph 230V

Item #193037 Model XXVS300035W
$3,999.00
$3,999.00 $3,999.00
Choosing the best dust collector for your shop can be difficult, especially when you start combining mixed/undersized dust port and long runs of ducti. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Details

Choosing the best dust collector for your shop can be difficult, especially when you start combining mixed/undersized dust port and long runs of ducting or hoses. Oneida Air Systems' patented SMART Boost® technology offers the only solution that can adapt to nearly any shop layout! Where traditional dust collectors are fixed in speed and performance – unable to adapt to different port sizes, duct runs, and requiring careful blast gate management – our new V-System's SMART Boost variable-speed technology automatically adjusts to deliver up to 2-3 times more airflow to your tools.With its compact shape and sound dampening features, the V-System is perfect for garage and basement shops where size and noise play a significant factor. This new system will help you maximize your investment and ensure that your shop is running at peak-efficiency for years to come.


Features:



  • Industrial 3HP U.S. Made Fan Blower Motor
  • SMART Boost Variable Speed Airflow Controller
  • Wireless Radio Frequency Remote Control Keyfob
  • High-Efficiency Heavy-Gauge Steel Cyclone Separator
  • HEPA-Grade Filter Media
  • Internal Filter Silencer
  • Steel Wall Mounting Bracket
  • 35 Gallon Reinforced Steel Dust Bin
  • Dust Sentry™ Bin Fill Level Indicator
  • 2 Year Limited Warranty
  • cETLus Certified and NFPA Compliance Ready


Specifications:



  • SKU:XXVS300035W
  • Horsepower: 3 hp
  • Motor Type: U.S. Motor
  • Motor Service Factor: 1.15
  • Voltage: 220-240V
  • Recommended Breaker Size:
  • Amperage (Typical): 15-17.5A
  • Phase Option: Single-Phase (Pre-Wired)
  • Frequency: 60Hz
  • Power Connector Type: 3 Bare Wires, Two Hot & Ground
  • Power Cord Length: 7 feet
  • Impeller Type: Single-piece, backward inclined, non-sparking/non-ferrous
  • Impeller Size: 15" Dia.

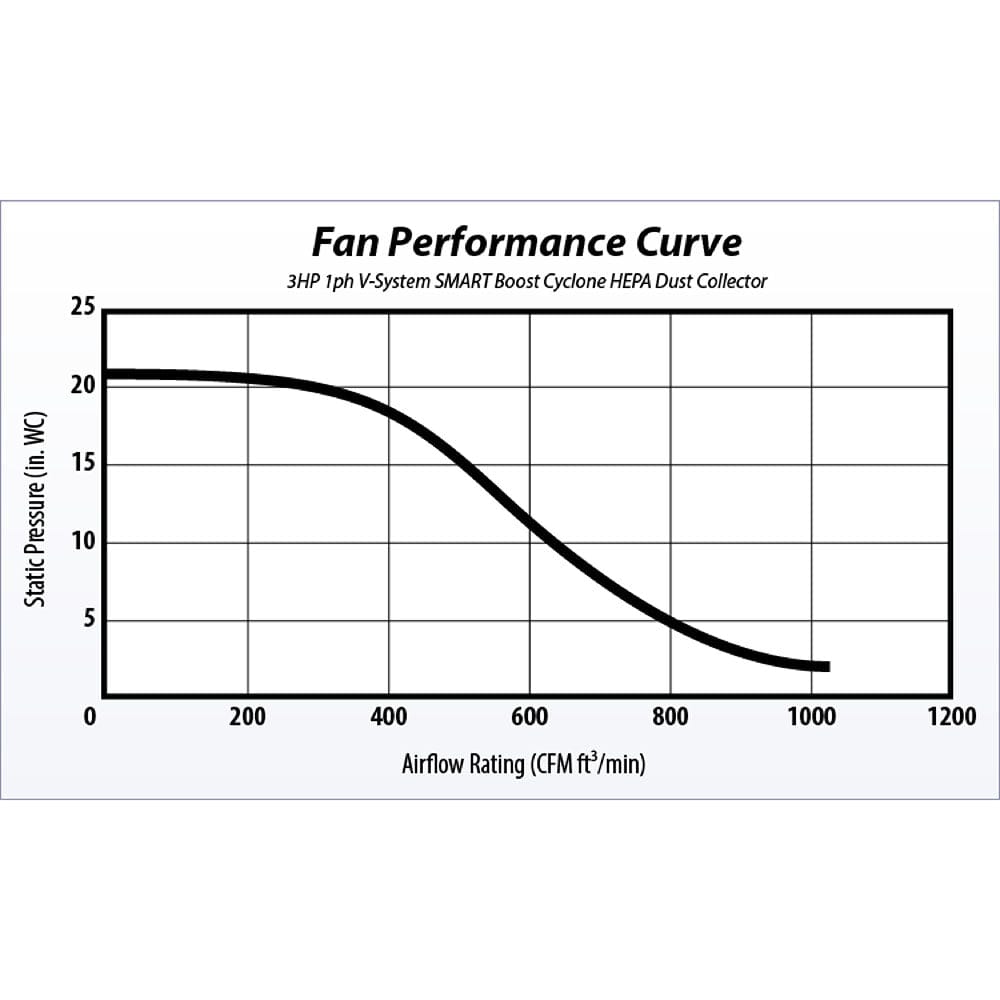

  • Real CFM Rating: 1,030 Actual CFM at 2" W.C.
  • Maximum Suction: 21" W.C.
  • Noise Level: 77 dBA at 10 ft
  • Motor Speed Type: Variable
  • Separation Efficiency: Removes over 99% of fine wood dusts
  • Filter Type: HEPA Grade ePTFE Media
  • Filtration Efficiency: E12 Minimum Efficiency Rating
  • Total Filtration Area: 95 sq ft
  • Waste Capacity: 35 Gallons
  • Remote Control: Included
  • Primary Build Materials: Cold Rolled Steel
  • Welding: Seam Welded
  • Static Resistance Rating: Conductive (Metal)
  • Color: Yellow
  • Inlet Size: 6" Dia.
  • Outlet Size: Square ID: 7-3/8"(W) x 6-3/8"(H)
  • Discharge Size: 9" Dia.
  • Width: 49"
  • Depth: 33"

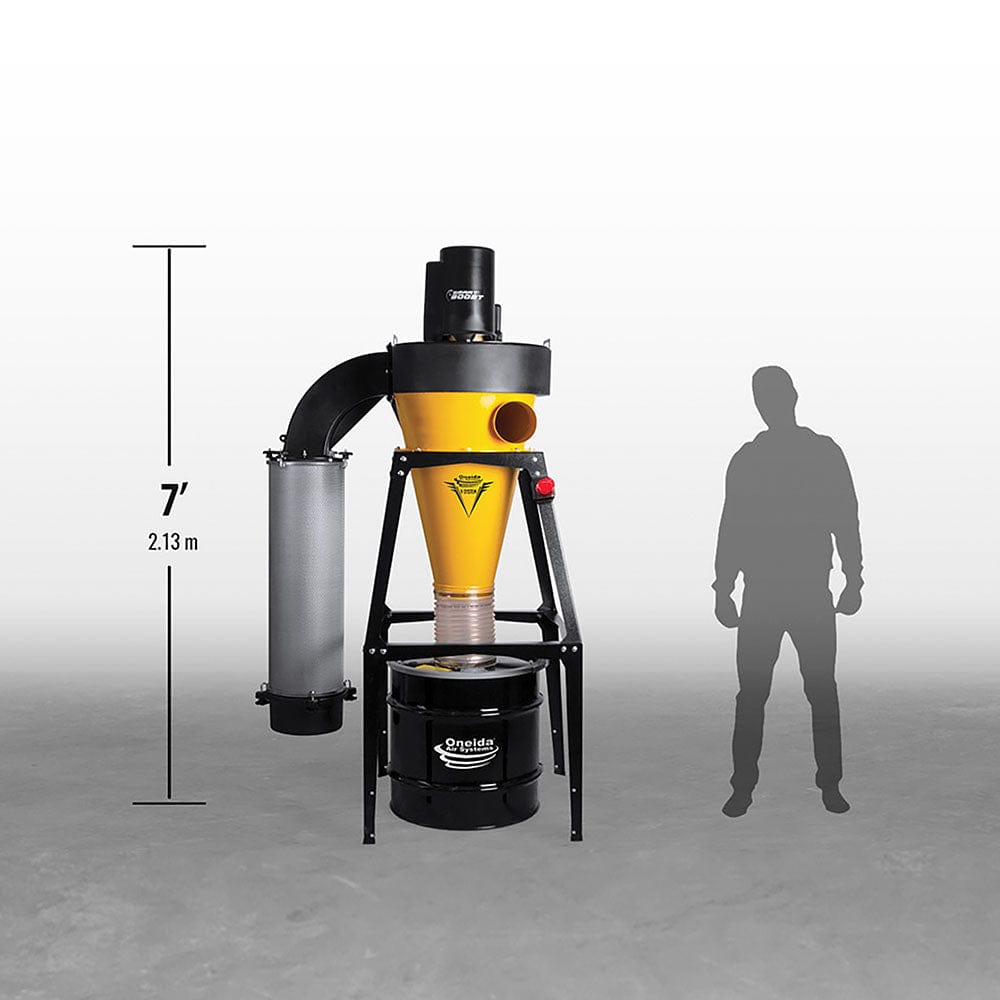

  • Height: 84"
  • Height to Center of Inlet: 58"
  • Actual Weight: 300 lbs


What's Included:



  • Blower Motor Assembly
  • Magnetic Starter
  • SMART Boost Controller
  • Fan Housing
  • Cyclone Separator
  • Filter Plenum

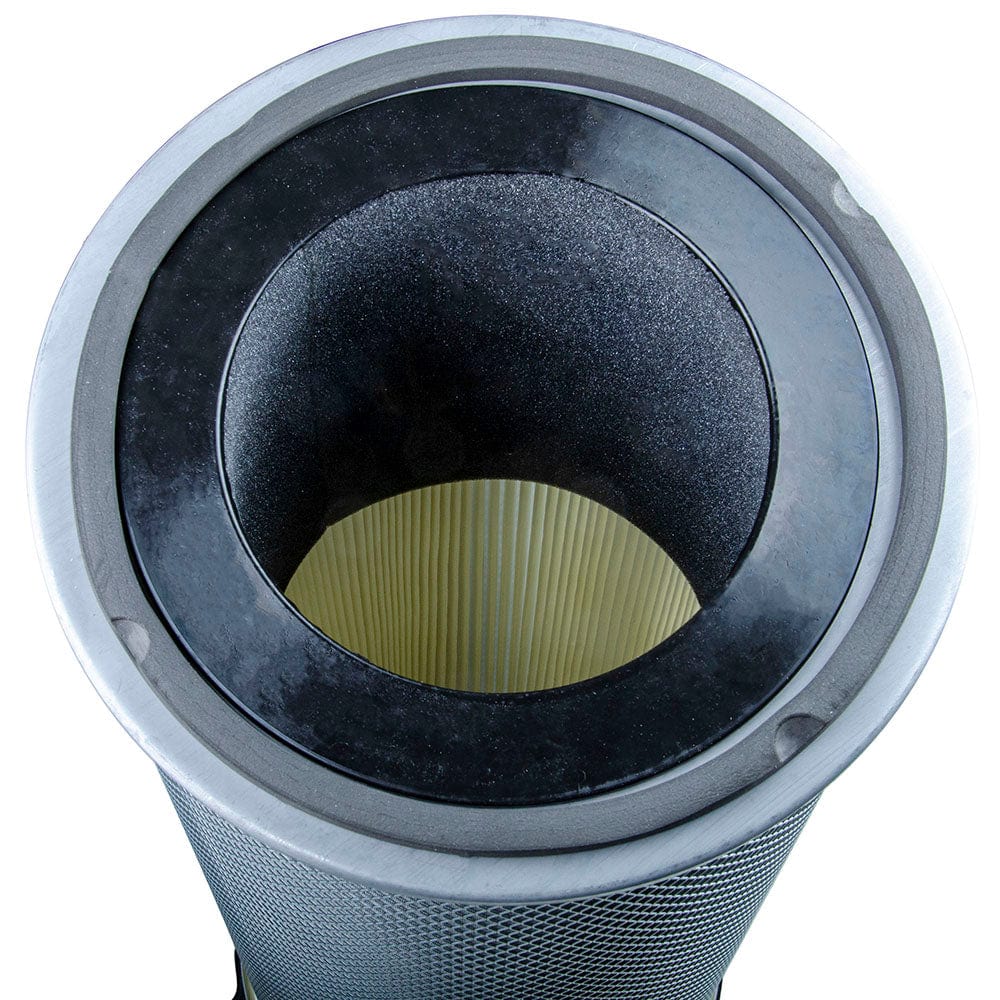

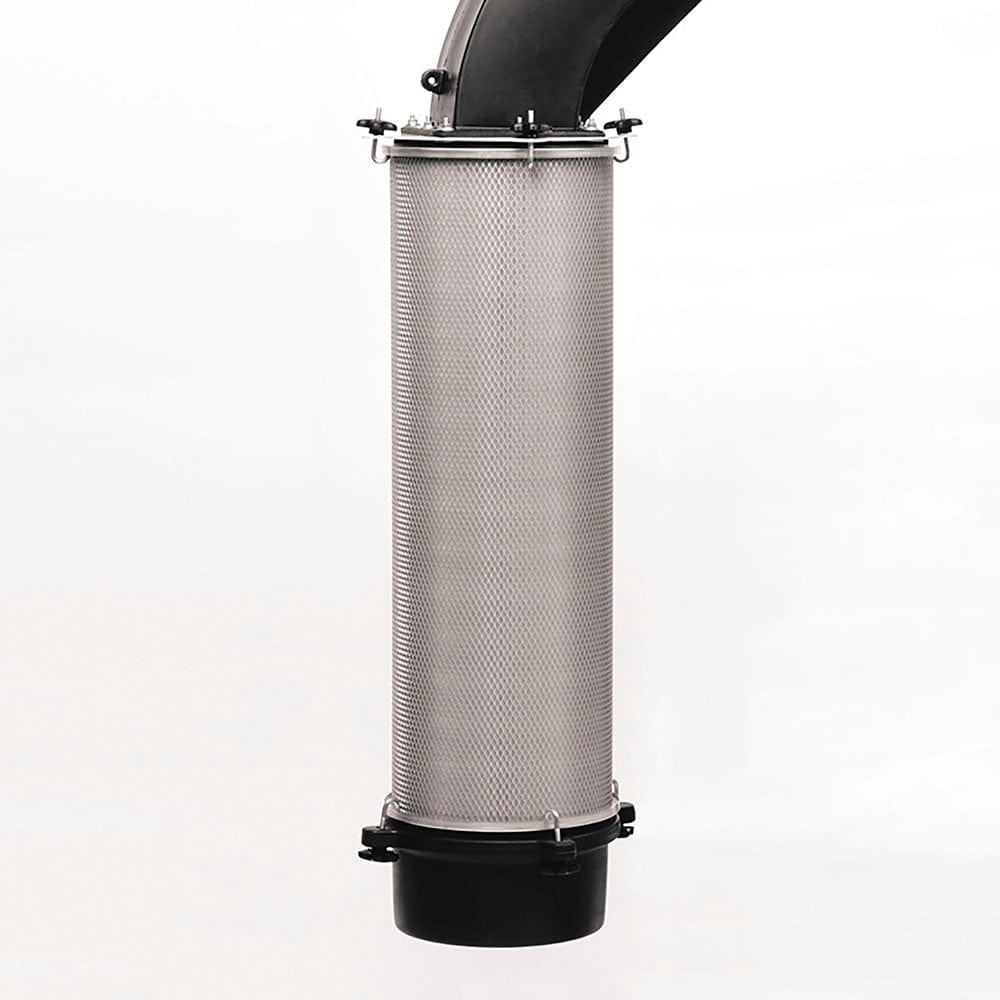

  • FlameGuard Cartridge Filter
  • Internal Silencer
  • Wall-Mount Bracket

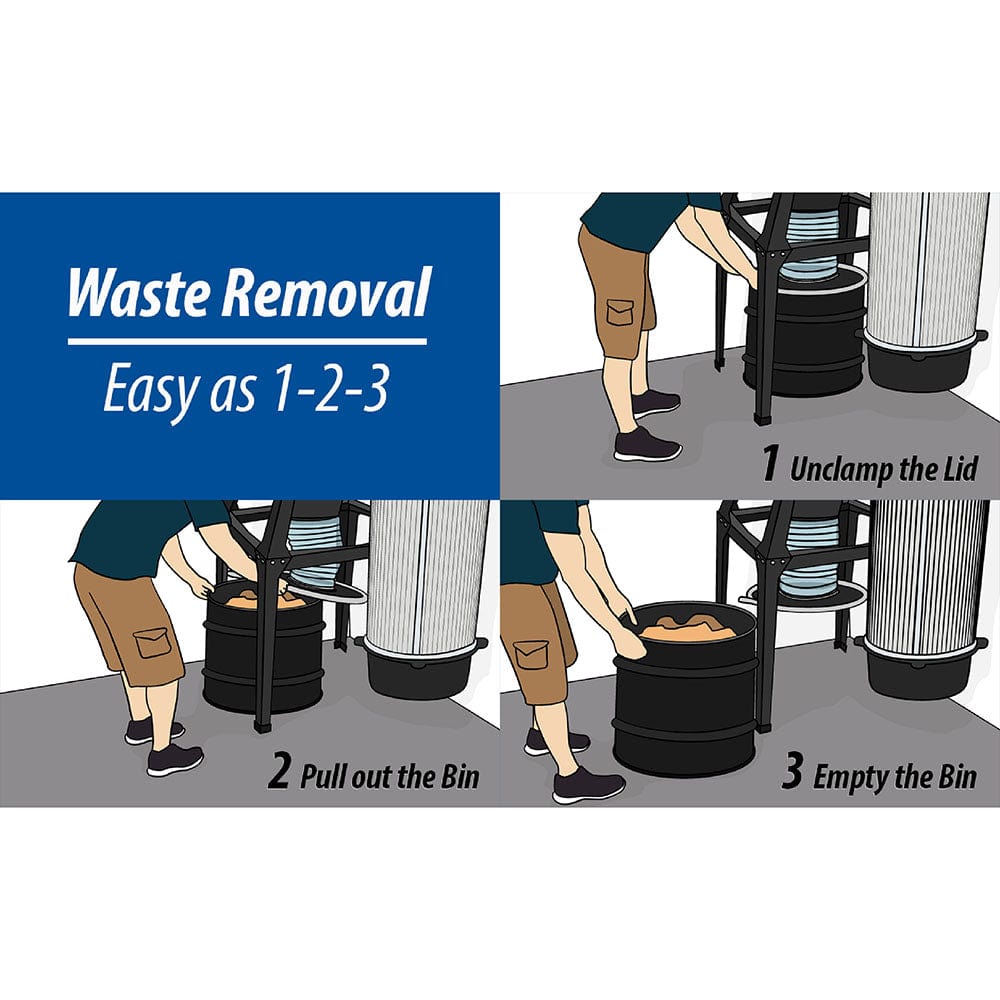

  • Steel Dust Bin
  • Bin Level Indicator
  • Remote Control
