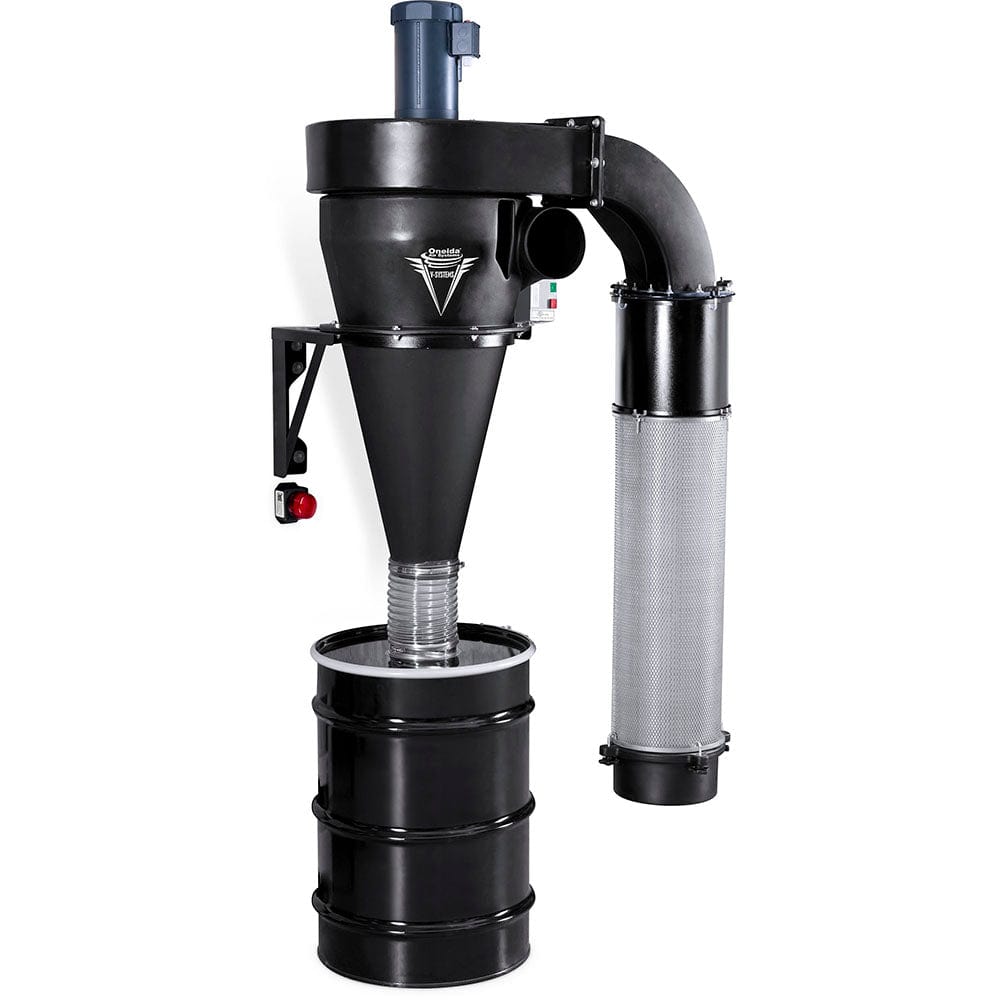

Quiet, Compact, and Powerful - Ideal for Small Personal Workshops! This system is ideal for use in small 1-2 man shops operating tools such as lathes, planers, radial/miter saws, and more! The V-System's molded static dissipative resin construction speeds up and simplifies system assembly, maximizes airflow performance, and significantly reduces noise levels.

• Industrial 230V U.S. made fan motor provides ample CFM for up to 2 tools at once with 4"-6" dust ports. Includes RF remote control starter.
• High efficiency cyclone separator (removes over 99% of fine wood dust) with smooth, compound molded surface.
• Ultra-quiet noise level with included sound filters - only 74 dBA at 10 feet.

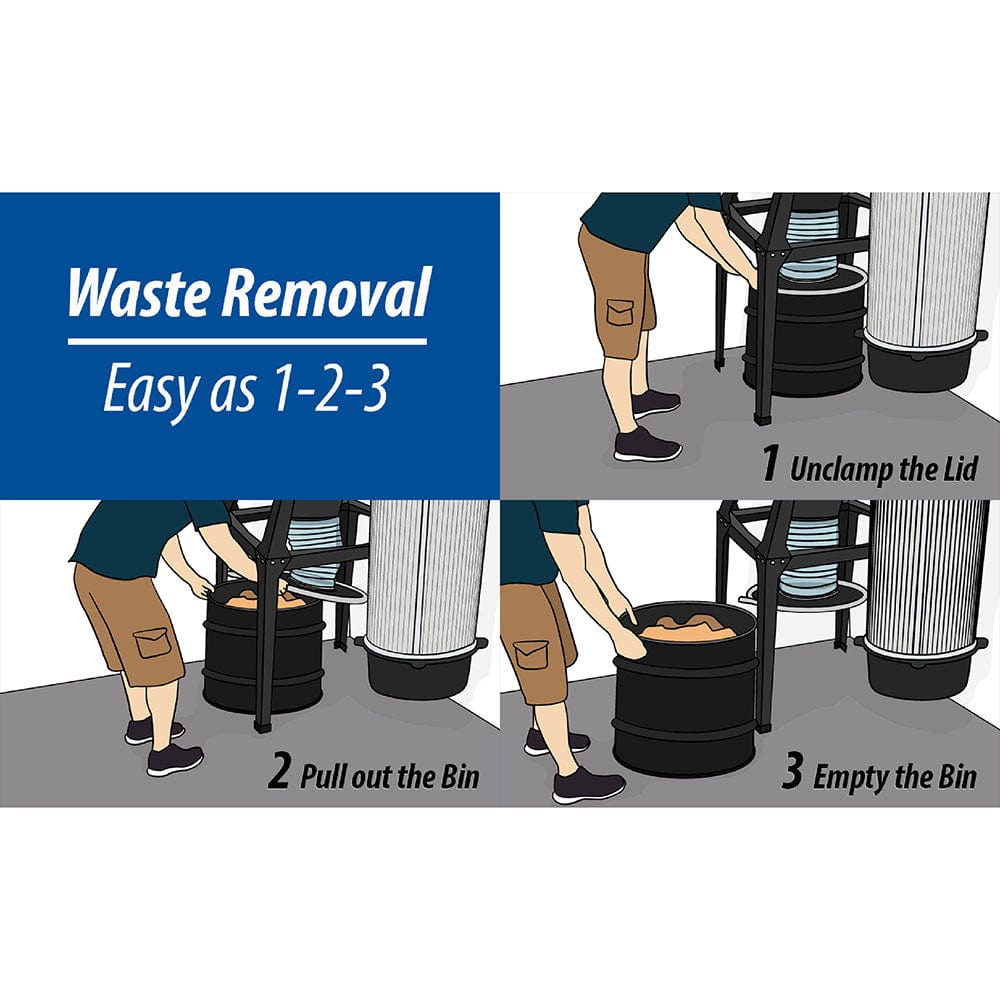

• 55-gallon dust bin with quick-release lid and automatic fill level indicator.

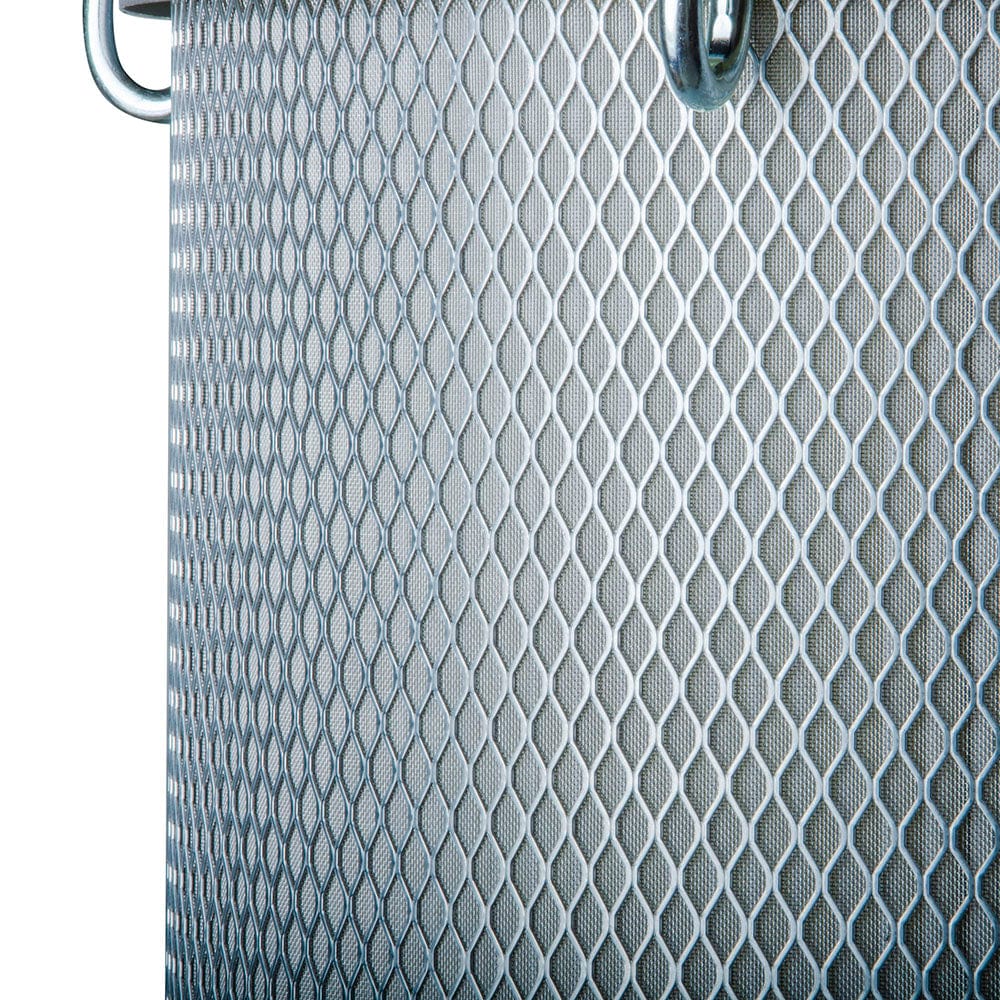

• HEPA-grade media filter with non-stick membrane for easy cleaning.
• Durable, lightweight construction allows for quick and easy installation.
• Magnetic Starter with Overload Protector
• Wireless RF Remote Control Keyfob
• Steel Wall Mounting Bracket
• cETLus Certified and NFPA Compliance Ready

• SKU: XXVM003055W
• Horsepower: 3HP
• Motor Type: U.S. TEFC Motor
• Motor Service Factor: 1.0
• Voltage: 220-240V
• Recommended Breaker Size: 20A
• Amperage (Typical): 13A
• Motor FLA: 13
• Phase Option: Single-Phase (Pre-Wired)
• Frequency: 60Hz
• Power Connector Type: NEMA 6-20, 250V/20A
• Power Cord Length: 10 feet
• Impeller Type: Single-piece, backward inclined, non-sparking/non-ferrous
• Impeller Size: 15" Dia.

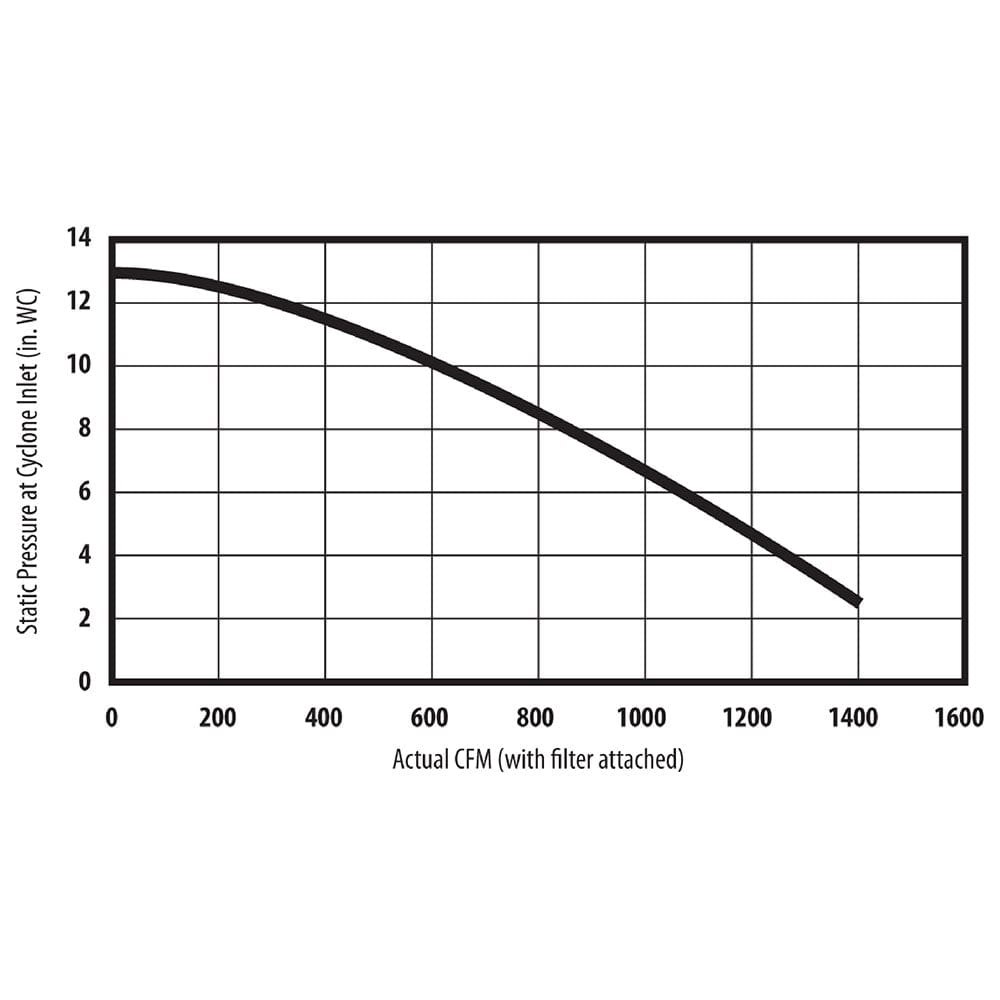

• Real CFM Rating: 1,349 Actual CFM at 2.3" WC
• Free Fan CFM Rating: 2,940 CFM
• Maximum Suction: 13" WC
• Max. Open Blast Gates: 2 Gates
• Noise Level: 74dBA at 10 feet
• Motor Speed Type: Fixed
• Cyclone Separation: Removes over 99% of fine wood dusts
• Filter Type: HEPA Grade ePTFE Media
• Filtration Efficiency: E12 Minimum Efficiency Rating
• Total Filtration Area: 95 sq ft
• Waste Capacity: 55 Gallons
• Primary Build Materials: Static Dissipative Polyethylene
• Static Resistance Rating: Static Dissipative
• Color: Black

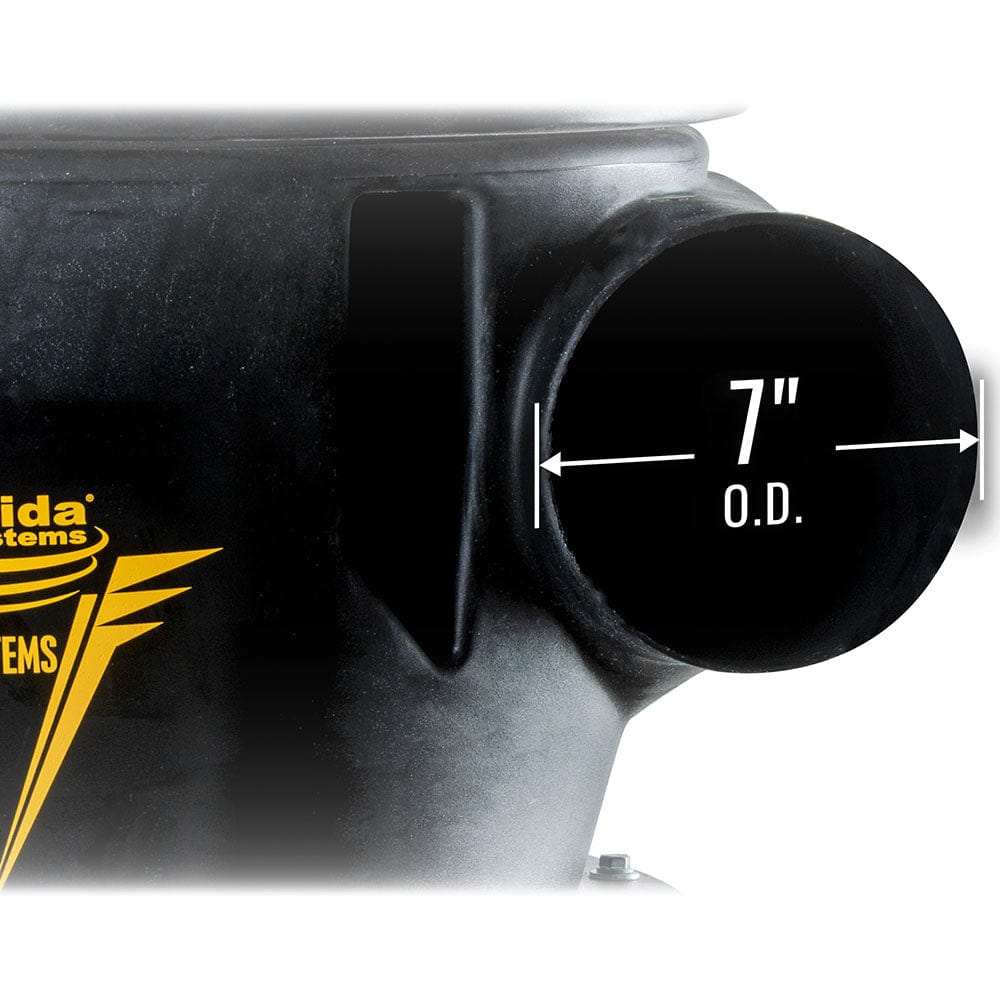

• Inlet Size: 7" OD
• Outlet Size: Square ID: 7-3/8"(W) x 6-3/8"(H)
• Discharge Size: 7" Dia.
• Width: 47"
• Depth: 30"
• Height: 100"
• Height to Center of Inlet: 75"
• Actual Weight: 269 lbs

• Blower Motor Assembly
• Magnetic StarterFan Housing
• Filter Plenum
• Stacking Sound Filter
• Internal Silencer

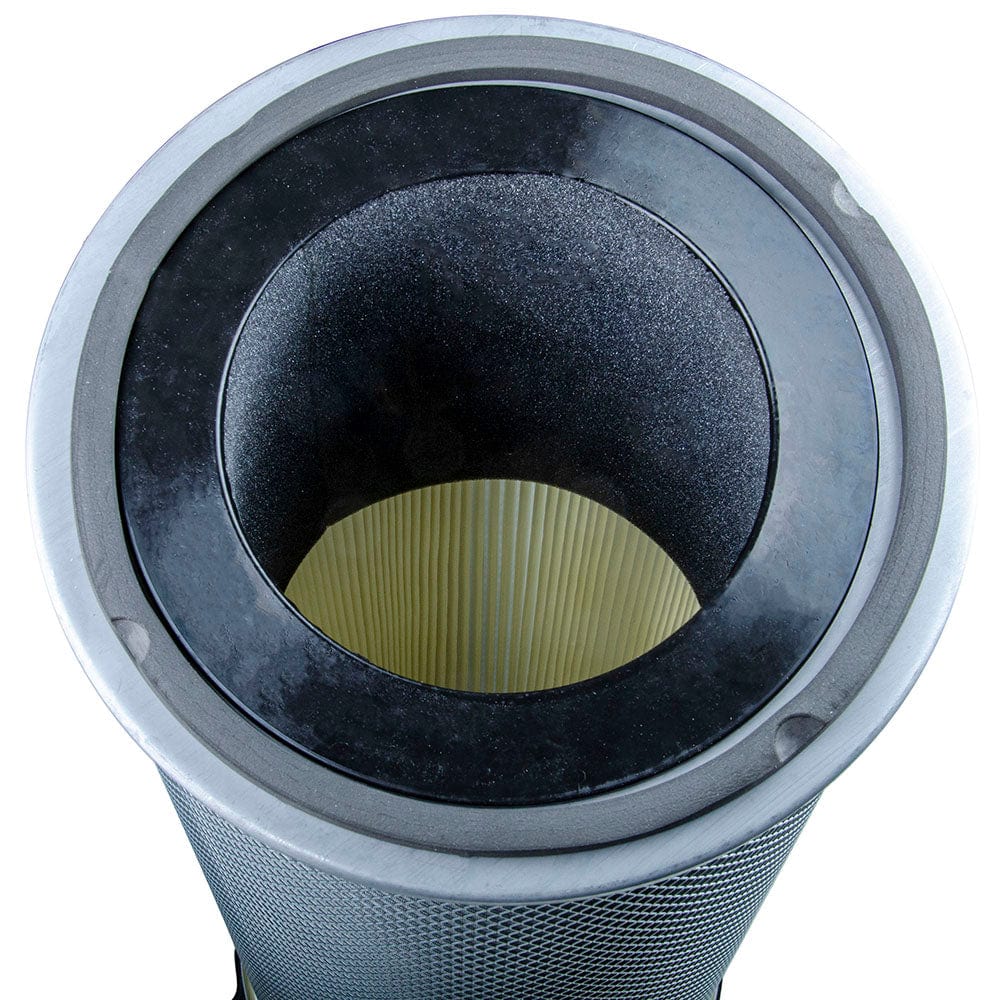

• FlameGuard Cartridge Filter
• Wall Mounting Bracket
• Cyclone Separator
• Steel Dust Bin
• Bin Level Indicator
• Remote Control
