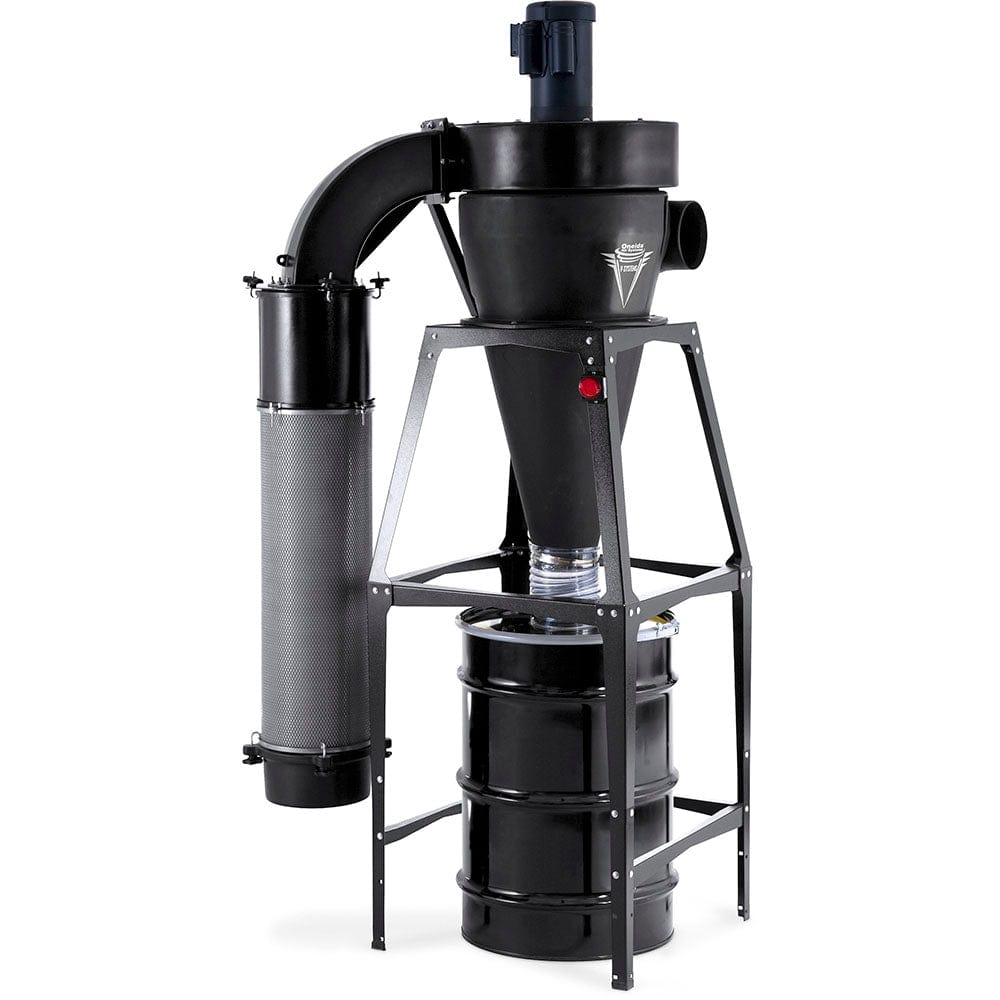

Quiet, Compact, and Powerful - Ideal for Small Personal Workshops! This system is ideal for use in small 1-2 man shops operating tools such as lathes, planers, radial/miter saws, and more! The V-System's molded static dissipative resin construction speeds up and simplifies system assembly, maximizes airflow performance, and significantly reduces noise levels.

• Industrial 3HP 230V U.S. Made Motor
• Magnetic Starter w/ Overload Protector
• Wireless RF Remote Control Keyfob
• High-Efficiency Molded Cyclone Separator
• HEPA-Grade Filter Media
• Stacking Sound Filter & Drop-in Silencer

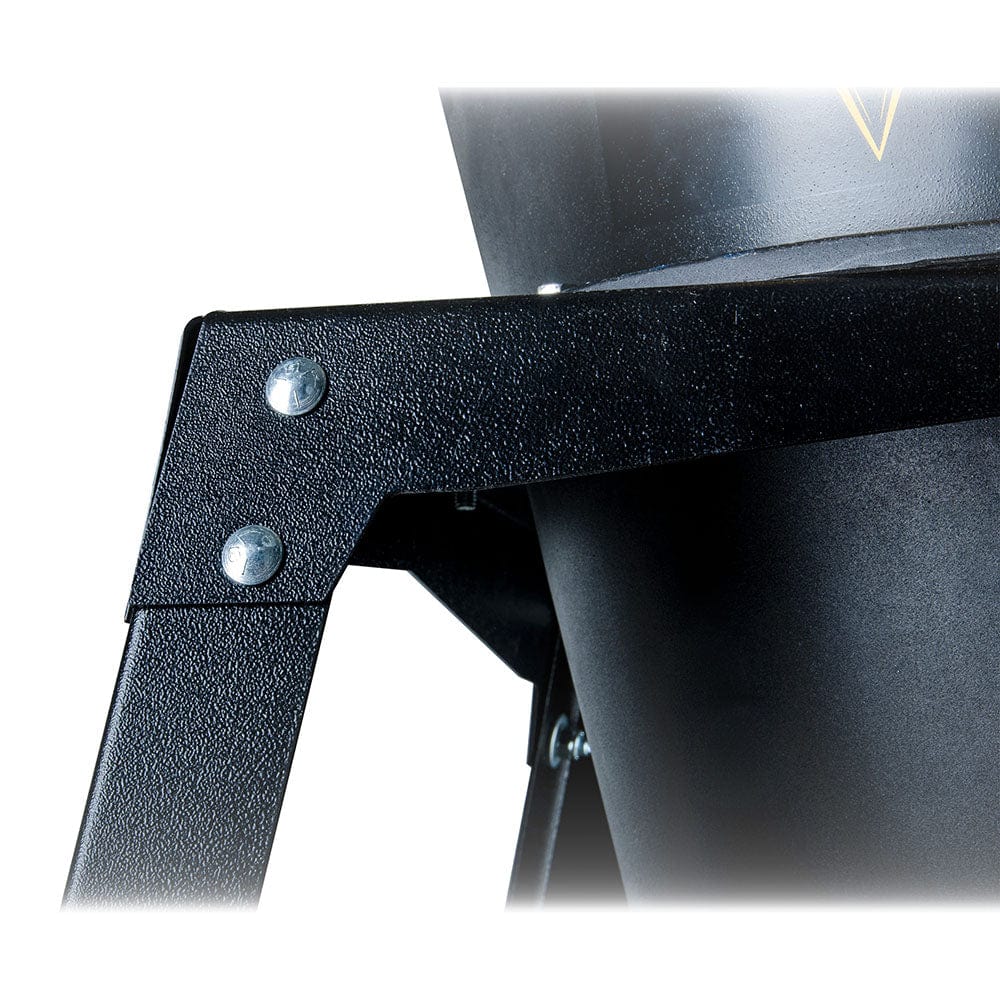

• Compact Steel Angle Frame Stand
• 55 Gallon Reinforced Steel Dust Bin
• Dust Sentry™ Bin Fill Level Indicator
• 1 Year Limited Warranty
• cETLus Certified and NFPA Compliance Ready

• SKU: XXVM003055
• Horsepower: 3 hp
• Motor Type: U.S. TEFC Motor
• Motor Service Factor: 1.0
• Voltage: 220-240V
• Recommended Breaker Size: 20A
• Amperage (Typical): 13A
• Motor FLA: 13
• Phase Option: Single-Phase (Pre-Wired)
• Frequency: 60Hz
• Power Connector Type: NEMA 6-20, 250V/20A
• Power Cord Length: 10 feet
• Impeller Type: Single-piece, backward inclined, non-sparking/non-ferrous
• Impeller Size: 15" Dia.

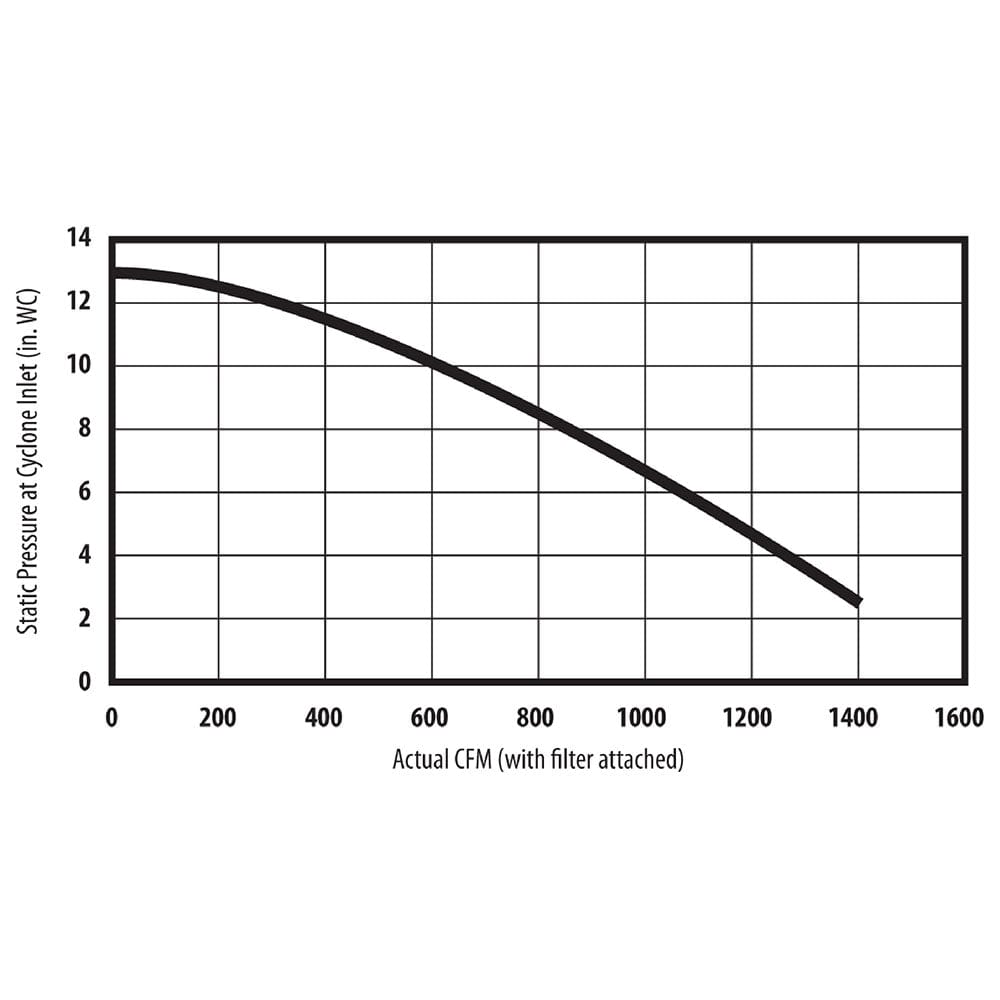

• Real CFM Rating: 1,349 Actual CFM at 2.3" WC
• Free Fan CFM Rating: 2,940 CFM
• Maximum Suction: 13" WC
• Max. Open Blast Gates: 2 Gates
• Noise Level: 74dBA @ 10 ft
• Motor Speed Type: Fixed
• Cyclone Separation: Removes over 99% of fine wood dusts
• Filter Type: HEPA Grade ePTFE Media
• Filtration Efficiency: E12 Minimum Efficiency Rating
• Total Filtration Area: 95 sq ft
• Waste Capacity: 55 Gallons
• Remote Control: Included
• Primary Build Materials: Static Dissipative Polyethylene
• Welding: N/A
• Static Resistance Rating: Static Dissipative
• Color: Black

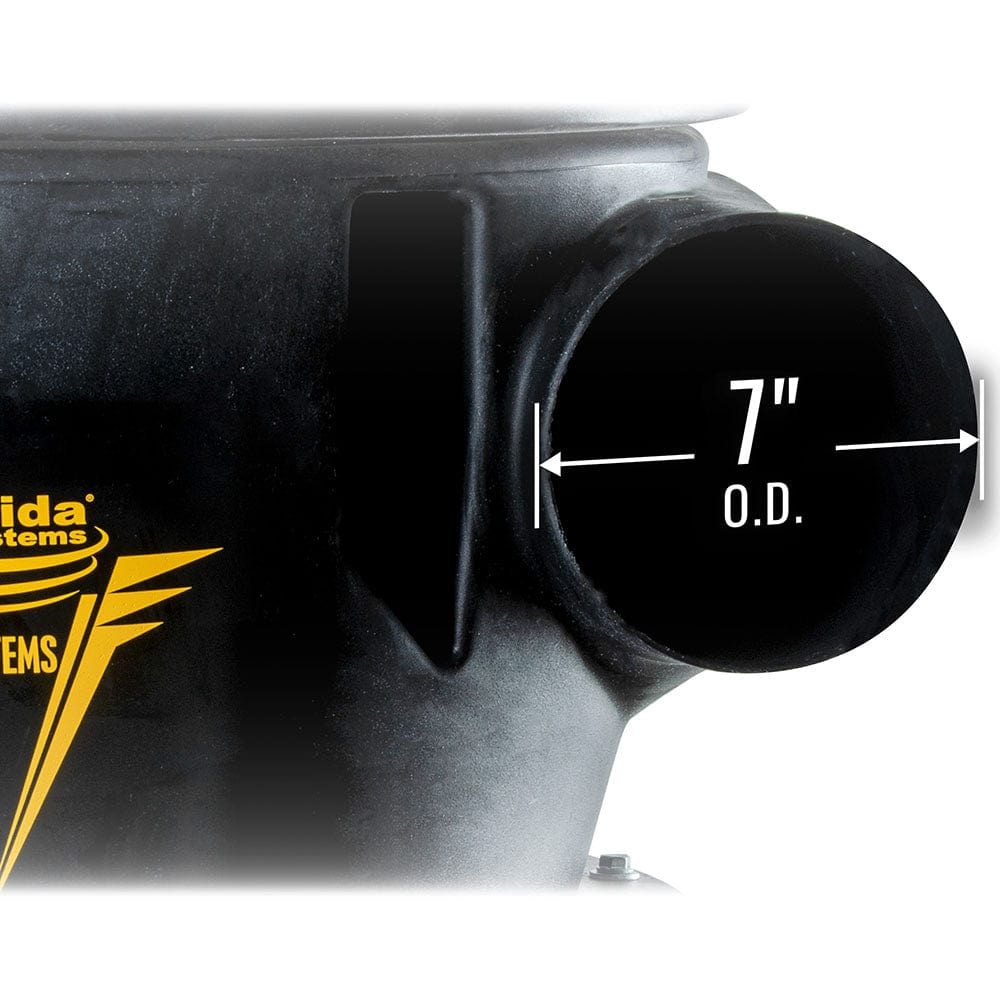

• Inlet Size: 7" OD
• Outlet Size: Square ID: 7-3/8"(W) x 6-3/8"(H)
• Discharge Size: 7" Dia.
• Width: 47"
• Depth: 30"

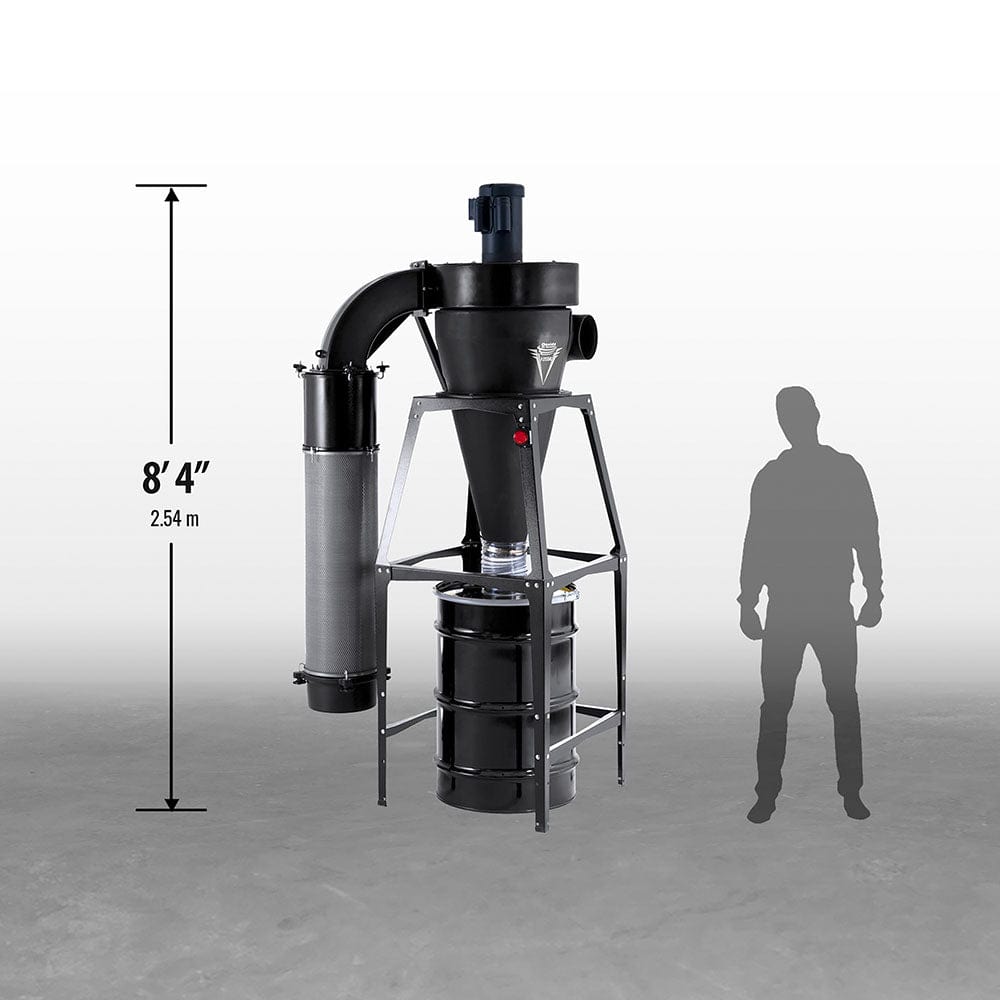

• Height: 100"
• Height to Center of Inlet: 75"
• Actual Weight: 299 lbs

• Blower Motor Assembly
• Magnetic Starter
• Fan Housing
• Filter Plenum
• Stacking Sound Filter
• Internal Silencer

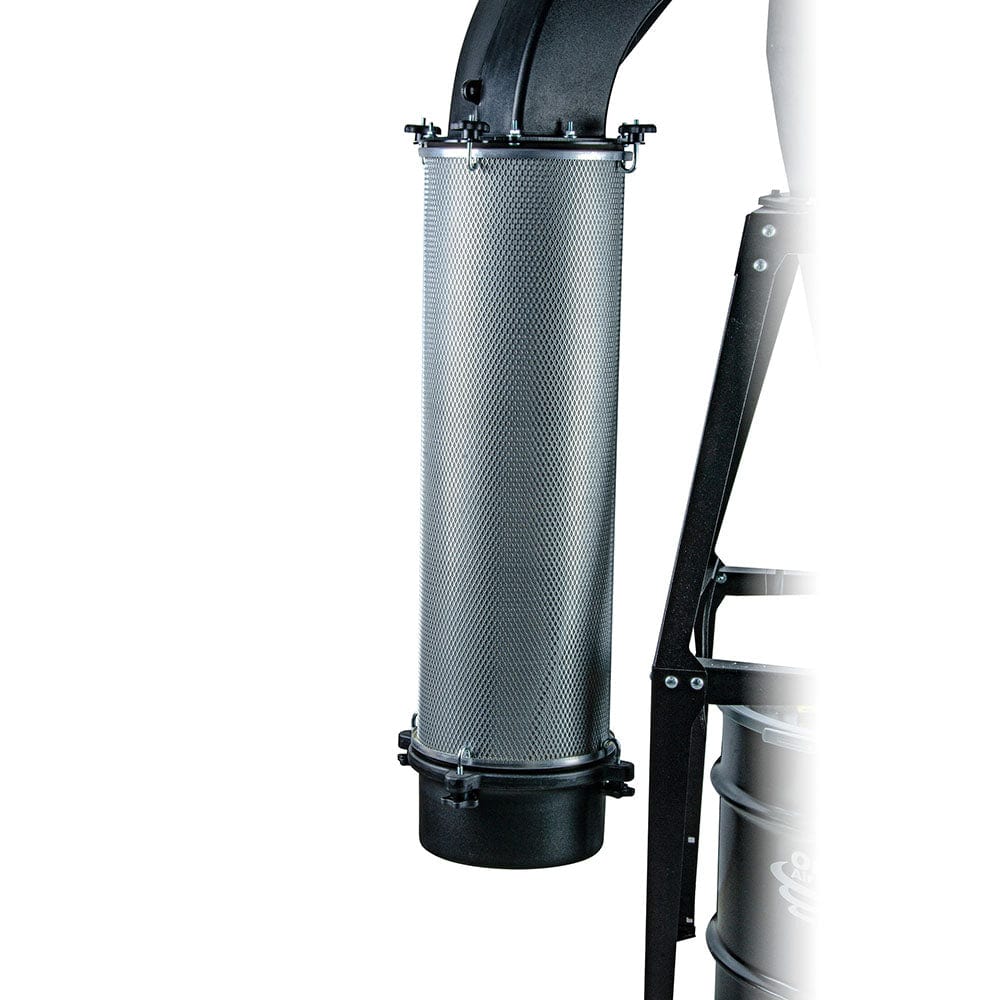

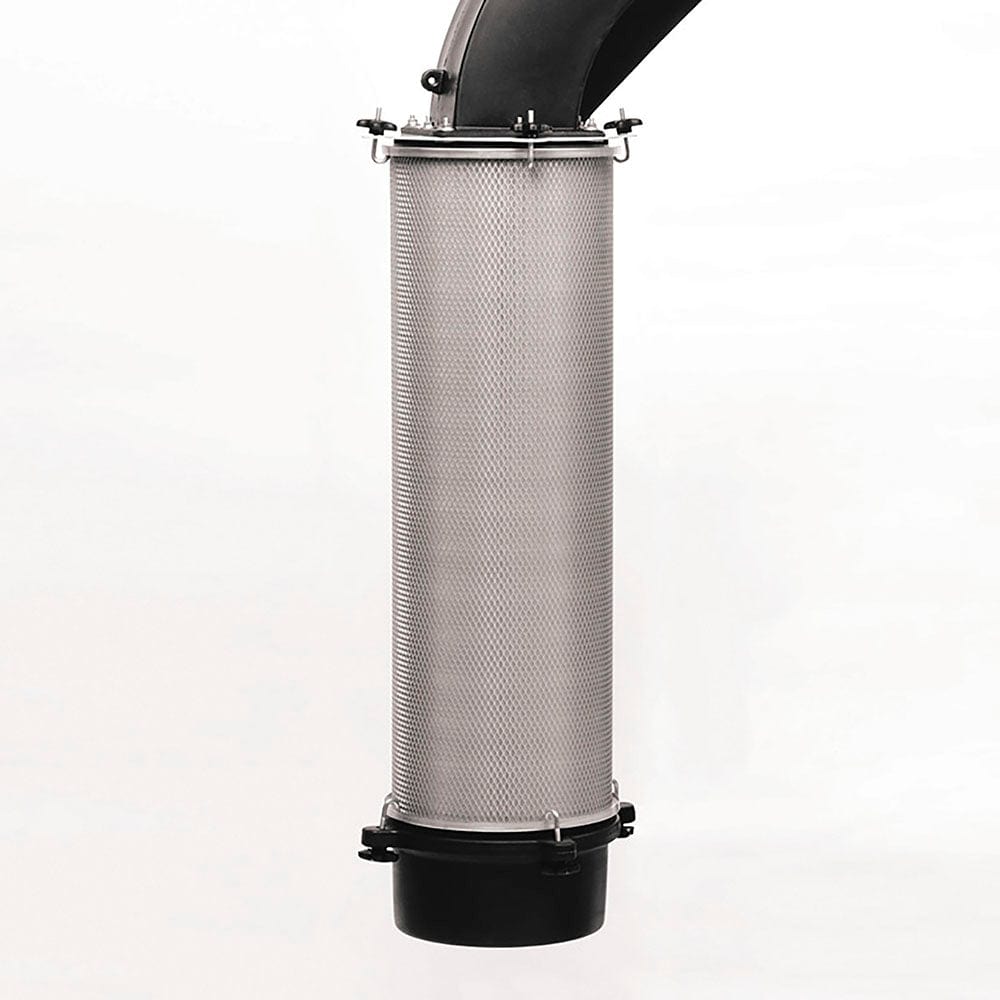

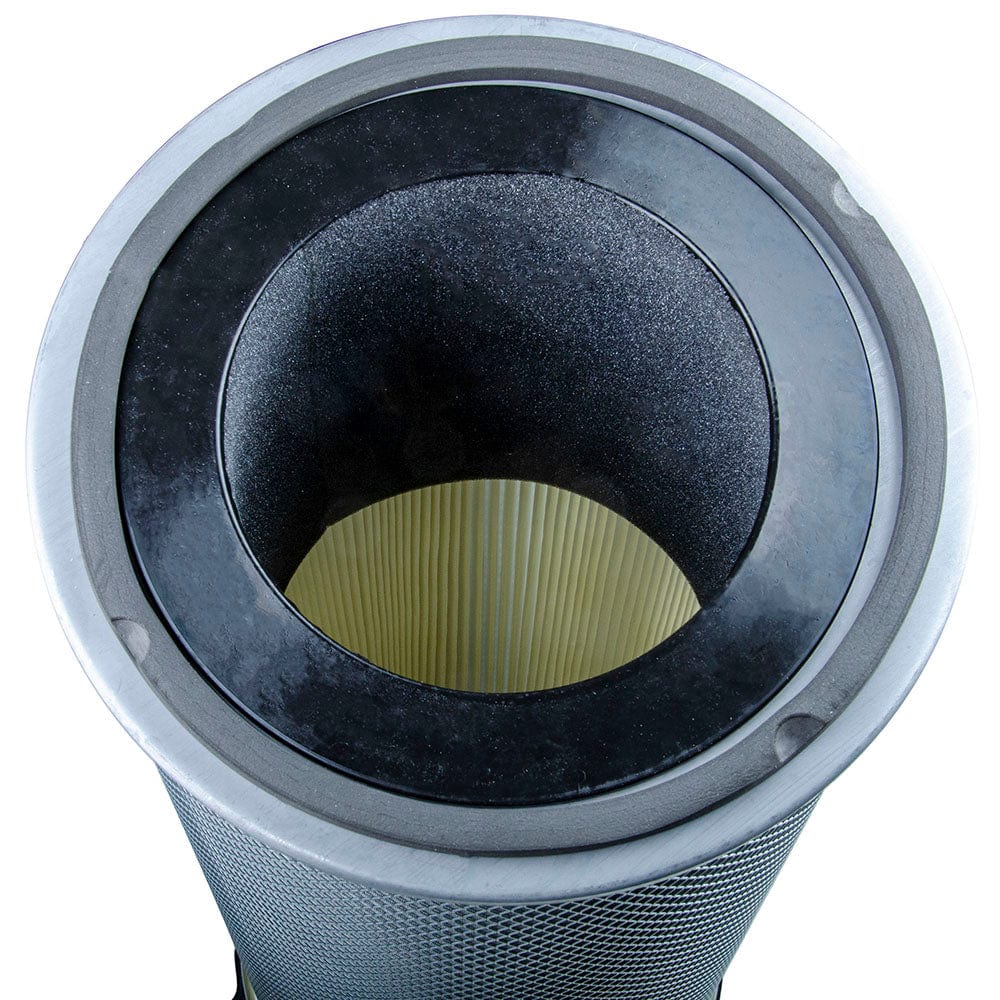

• FlameGuard Cartridge Filter
• Freestanding Leg Kit
• Cyclone Separator

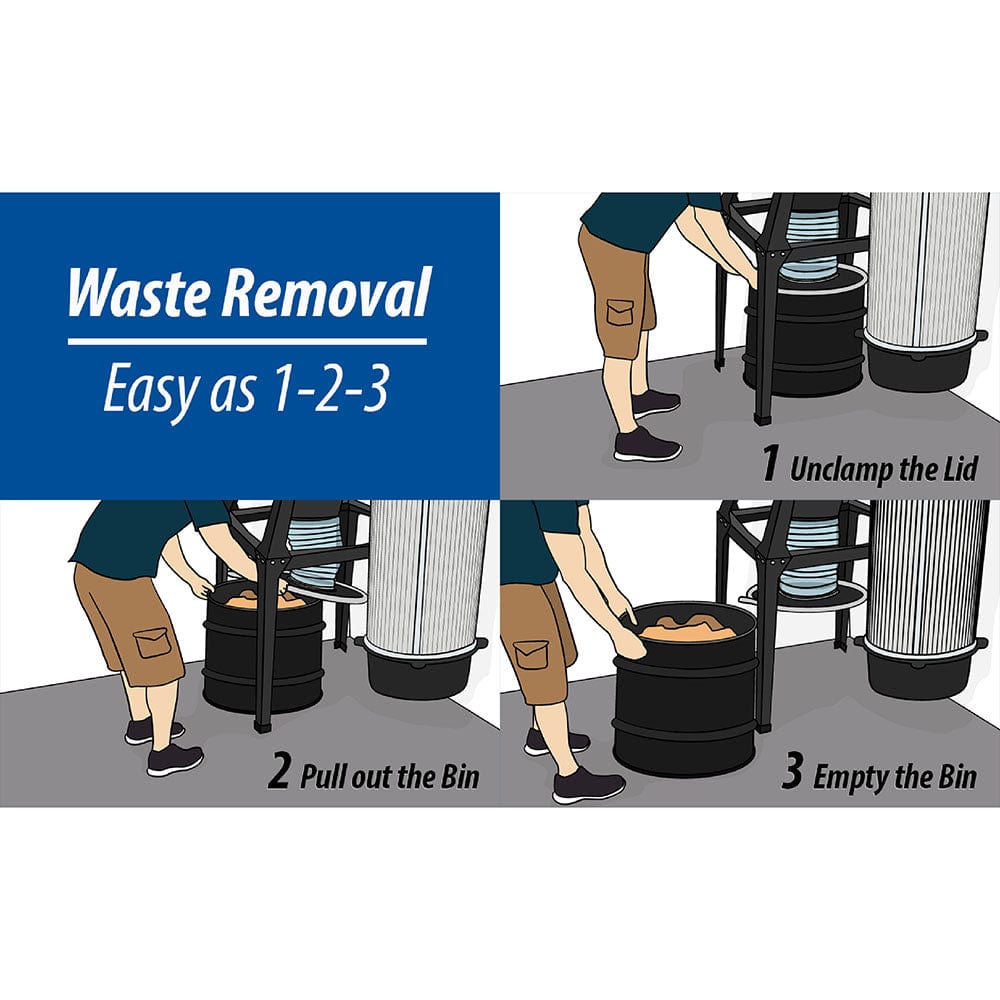

• Steel Dust Bin
• Bin Level Indicator
• Remote Control
