Oneida Air Systems

V-System 3000 35-Gallon Cyclone Dust Collector with Wall Mount - HEPA GFM - 3 HP 1 Ph 230V

Item #180463 Model XXVM003000W
Regular price $3,499.00
Sale price $3,499.00 Regular price $3,499.00
Skip to product information
New
1 of 8

Oneida Air Systems

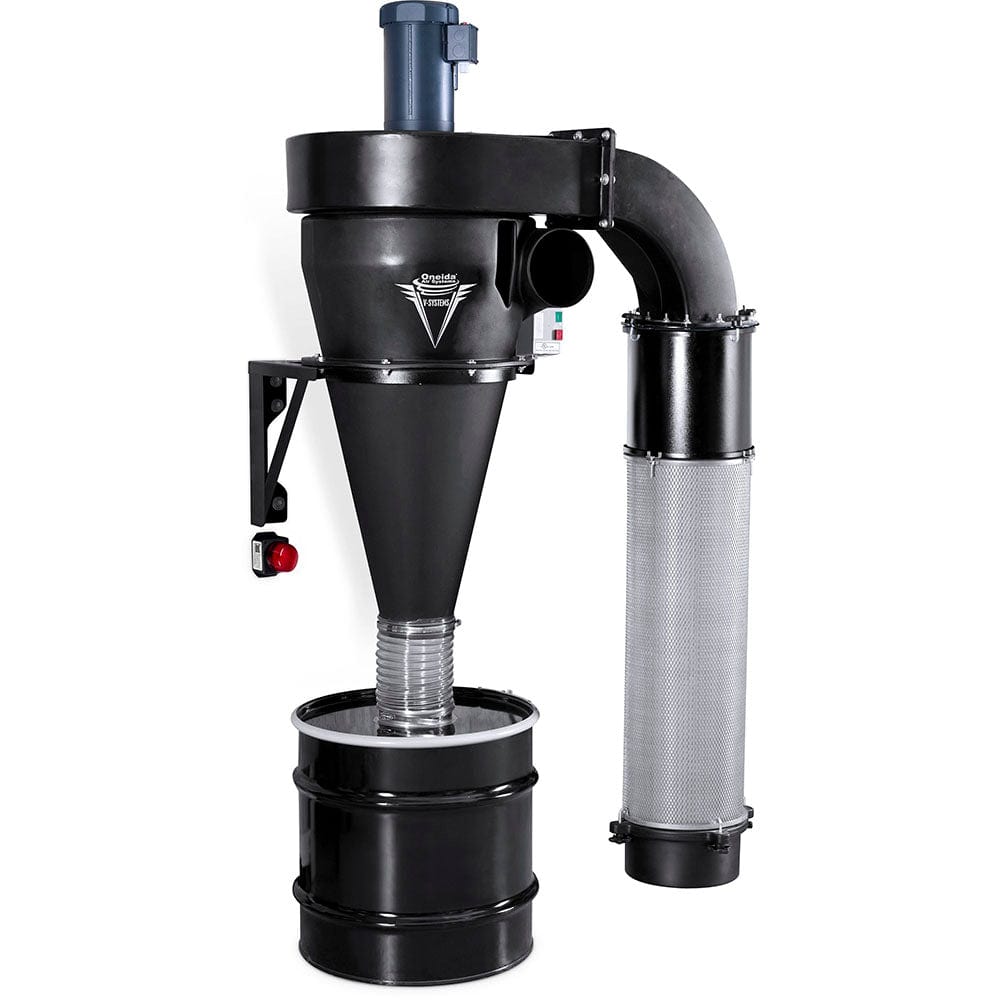

V-System 3000 35-Gallon Cyclone Dust Collector with Wall Mount - HEPA GFM - 3 HP 1 Ph 230V

Item #180463 Model XXVM003000W
Regular price $3,499.00
Sale price $3,499.00 Regular price $3,499.00
This system is ideal for use in small 1-2 man shops operating tools such as lathes, planers, radial/miter saws, and more! The V-System's molded static. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Details

This system is ideal for use in small 1-2 man shops operating tools such as lathes, planers, radial/miter saws, and more! The V-System's molded static dissipative resin construction speeds up and simplifies system assembly, maximizes airflow performance, and significantly reduces noise levels.

Features:
  • Industrial 3HP 230V U.S. Made Motor
  • Magnetic Starter w/ Overload Protector
  • Wireless RF Remote Control Keyfob
  • High-Efficiency Molded Cyclone Separator
  • HEPA-Grade Filter Media
  • Stacking Sound Filter & Drop-in Silencer
  • Steel Wall Mounting Bracket
  • 35 Gallon Reinforced Steel Dust Bin
  • Dust Sentry™ Bin Fill Level Indicator
  • 1 Year Limited Warranty
  • cETLus Certified and NFPA Compliance Ready
Specifications:
  • SKU: XXVM003000W
  • Horsepower: 3HP
  • Motor Type: U.S. TEFC Motor
  • Motor Service Factor: 1.0
  • Voltage: 220-240V
  • Recommended Breaker Size: 20A
  • Amperage (Typical): 13A
  • Motor FLA: 13
  • Phase Option: Single-Phase (Pre-Wired)
  • Frequency: 60Hz
  • Power Connector Type: NEMA 6-20, 250V/20A
  • Power Cord Length: 10 feet
  • Impeller Type: Single-piece, backward inclined, non-sparking/non-ferrous
  • Impeller Size: 15" Dia.

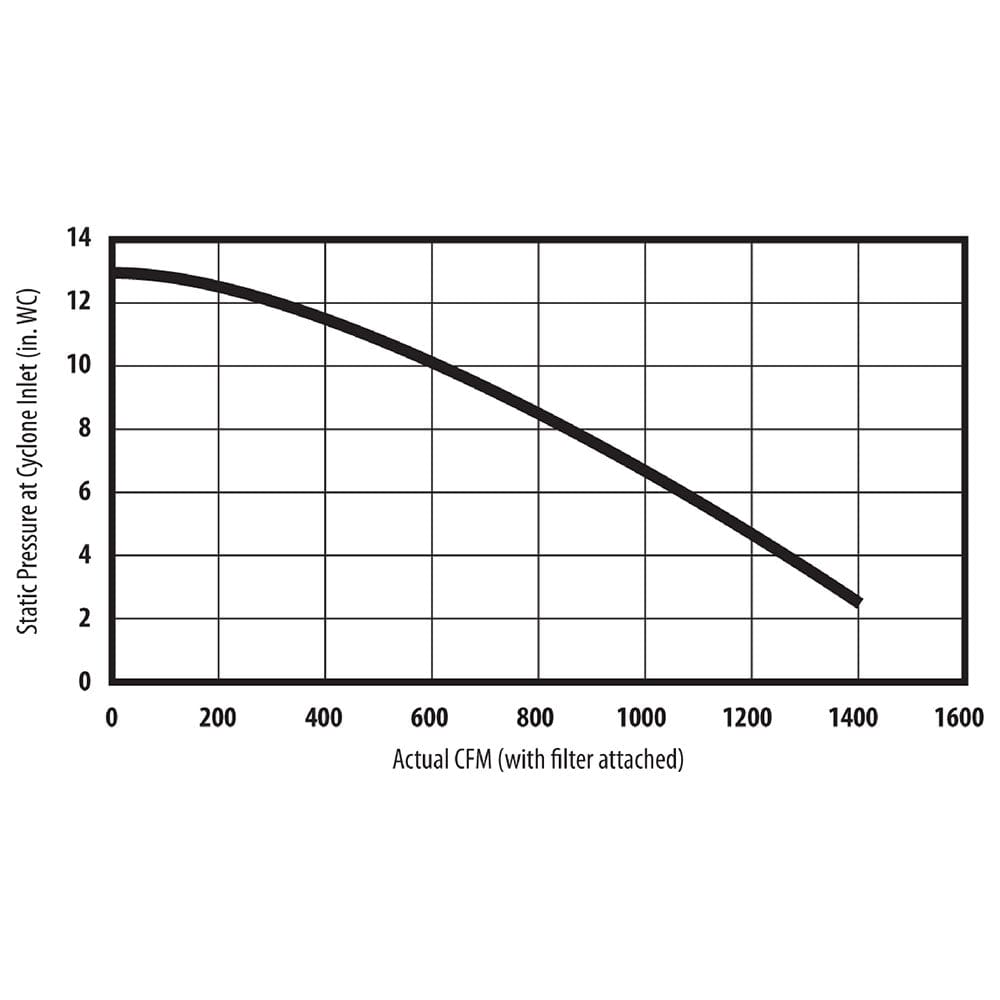

  • Real CFM Rating: 1,349 Actual CFM at 2.3" WC
  • Free Fan CFM Rating: 2,940 CFM
  • Maximum Suction: 13" WC
  • Max. Open Blast Gates: 2 Gates
  • Noise Level: 74dBA @ 10 ft
  • Motor Speed Type: Fixed
  • Cyclone Separation: Removes over 99% of fine wood dusts

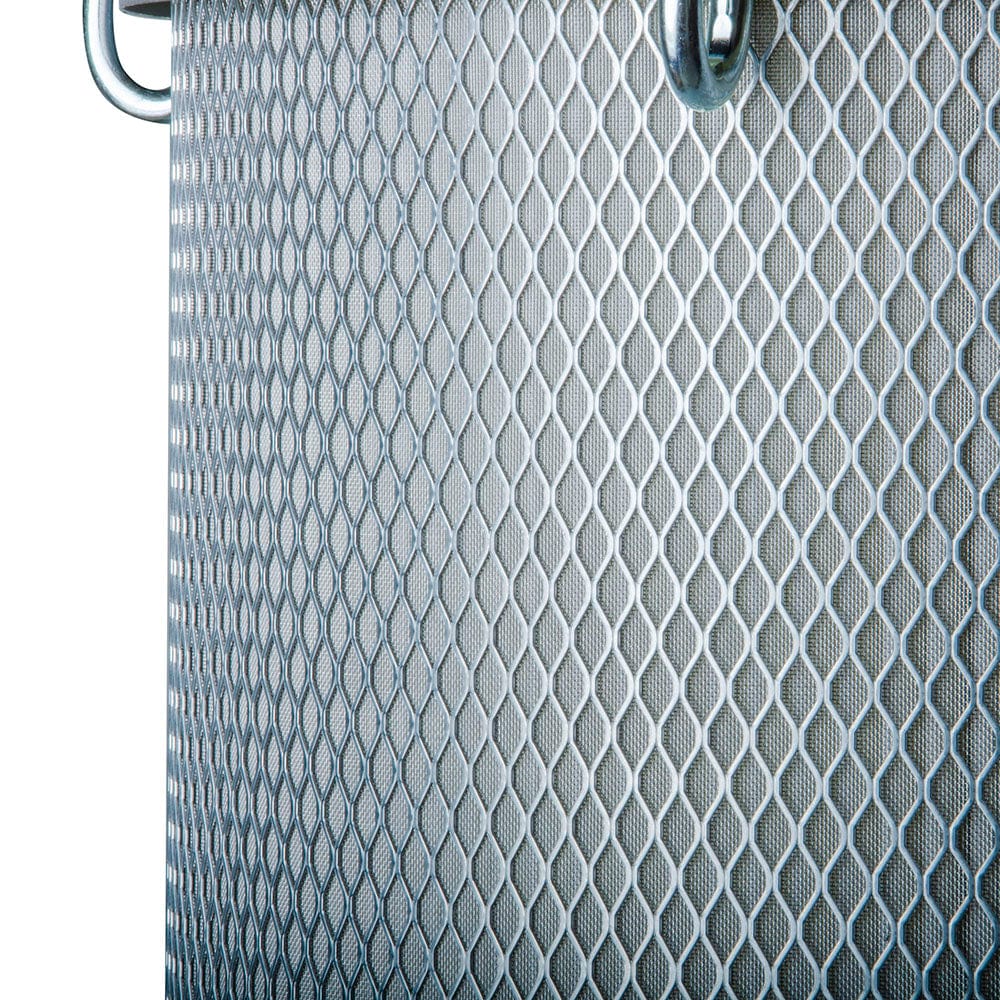

  • Filter Type: HEPA Grade ePTFE Media
  • Filtration Efficiency: E12 Minimum Efficiency Rating
  • Total Filtration Area: 95 sq ft
  • Waste Capacity: 35 Gallons
  • Remote Control: Included
  • Primary Build Materials: Static Dissipative Polyethylene
  • Welding: N/A
  • Static Resistance Rating: Static Dissipative
  • Color: Black

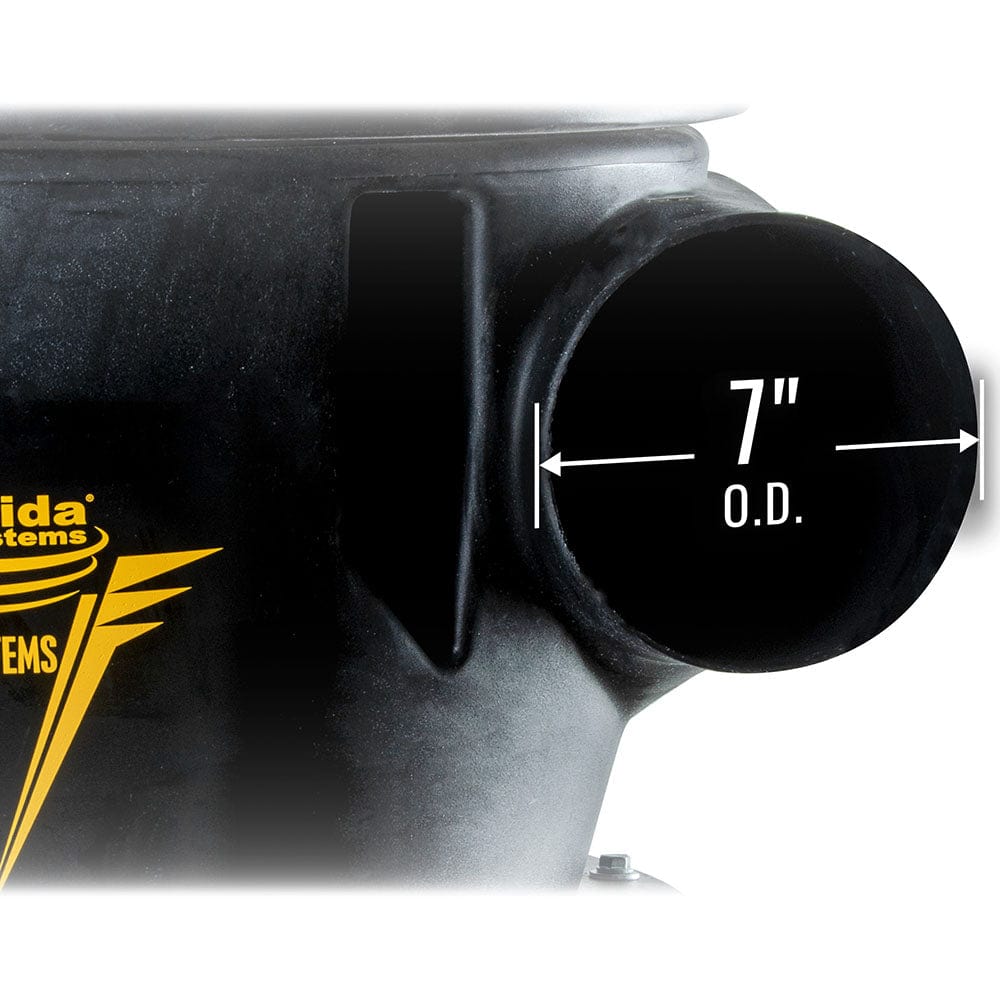

  • Inlet Size: 7" OD
  • Outlet Size: Square ID: 7-3/8"(W) x 6-3/8"(H)
  • Discharge Size: 7" Dia.
  • Width: 47"
  • Depth: 30"
  • Height: 88"
  • Height to Center of Inlet: 63"
  • Actual Weight: 258 lbs
What's Included:
  • Blower Motor Assembly
  • Magnetic Starter
  • Fan Housing
  • Filter Plenum
  • Stacking Sound Filter
  • Internal Silencer

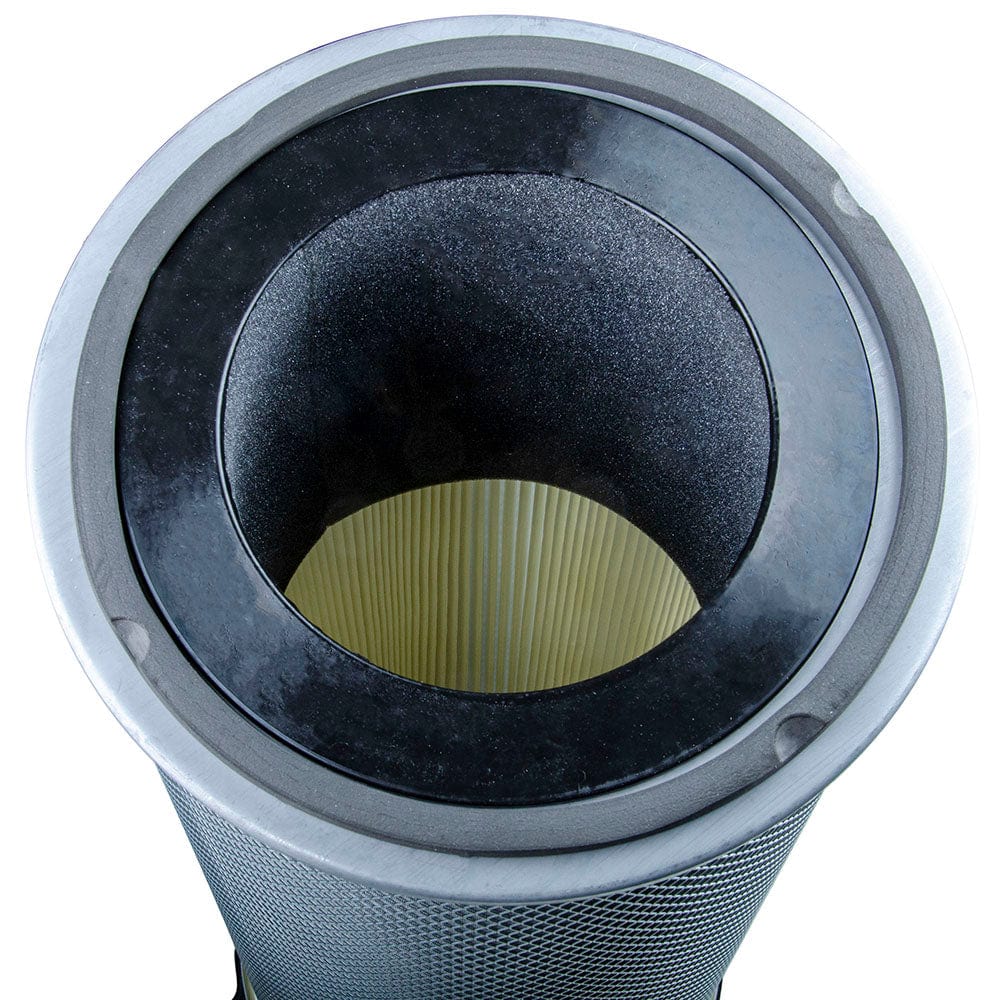

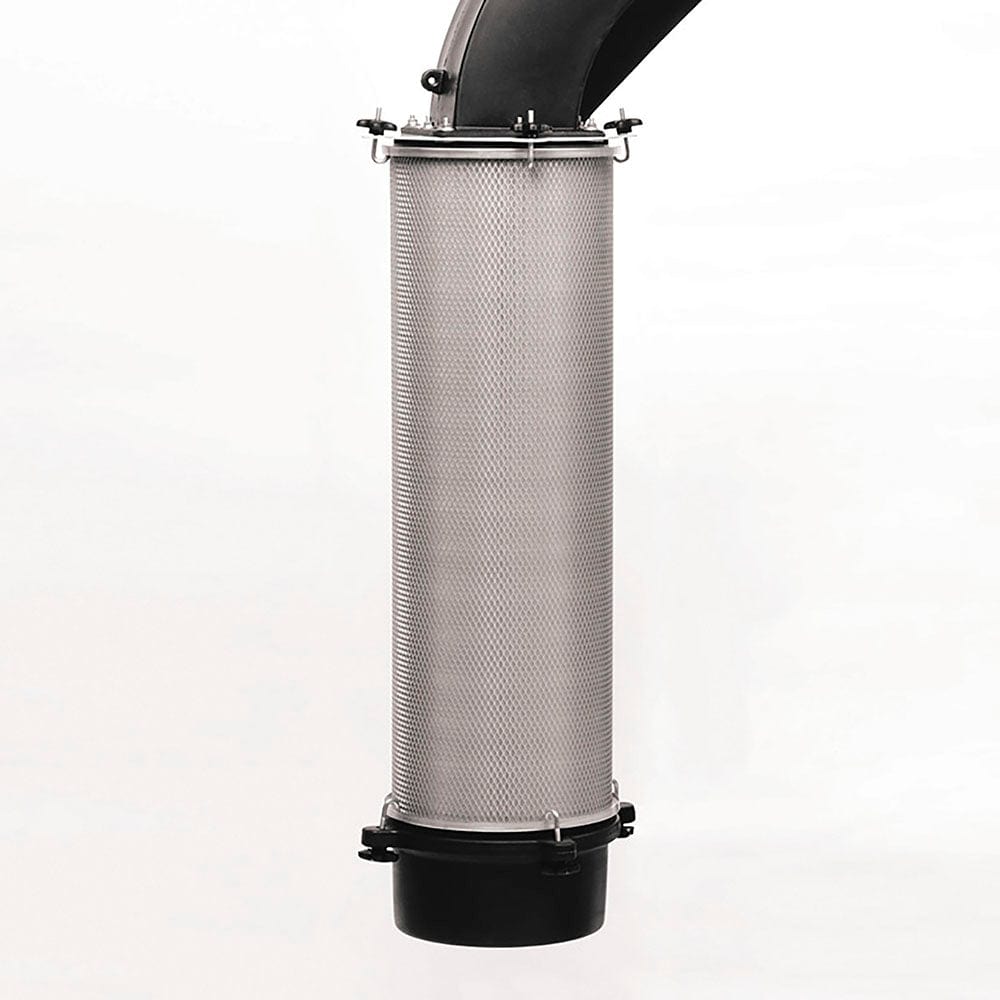

  • FlameGuard Cartridge Filter
  • Wall Mounting Bracket
  • Cyclone Separator
  • Steel Dust Bin
  • Bin Level Indicator
  • Remote Control

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:

  • Your order will ship in 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty return will incur a restock fee of 25% and return ship charges. If you have a return issue, contact Woodcraft's Customer Service Department at 1-800-535-4482.

Warranty Information

Oneida Air Systems® warrants products it manufactures for a period of 1 or more years depending on the product to the original purchaser from the date of purchase unless otherwise specified. Items not manufactured by OAS are limited to their own manufacturer's warranties. All electrical items such as magnetic starters, remotes, sensors, pumps, bin sensors, bag grippers, etc. and accessories are limited to 90 days. Oneida Air Systems warrants that the product will be free from defects in materials and workmanship. This warranty does not apply to defects due directly or indirectly to misuse, negligence, accidents, abuse, repairs, alterations, improper wiring or lack of maintenance. This is Oneida Air Systems sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. OAS does not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall OAS's liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Oneida Air Systems shall be tried in the State of New York, County of Onondaga.
