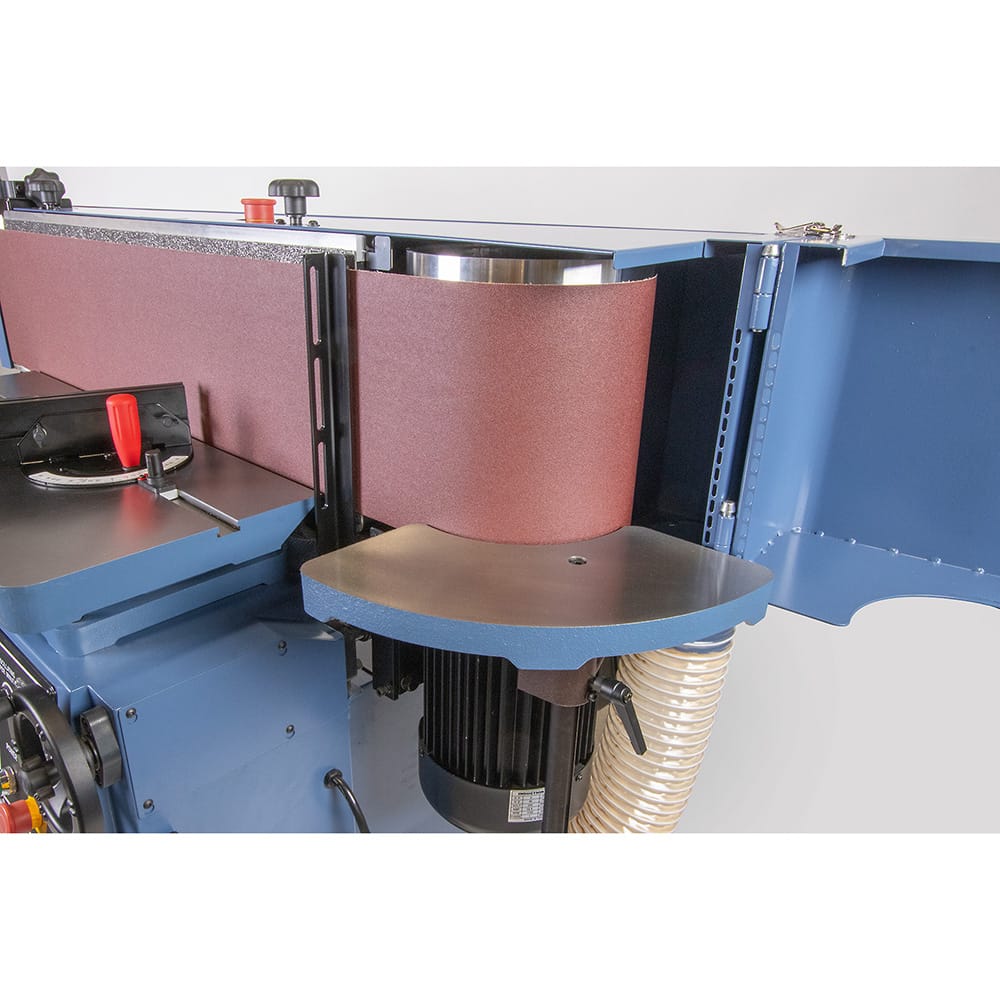

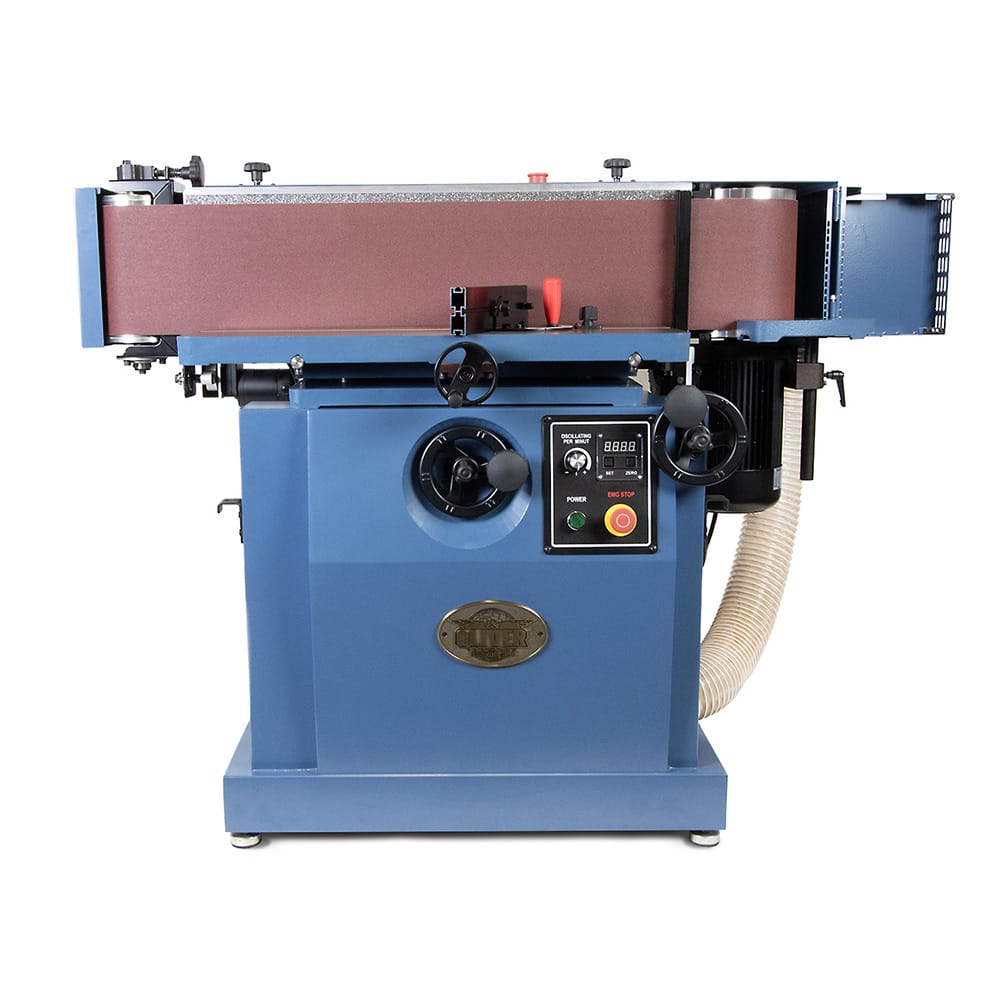

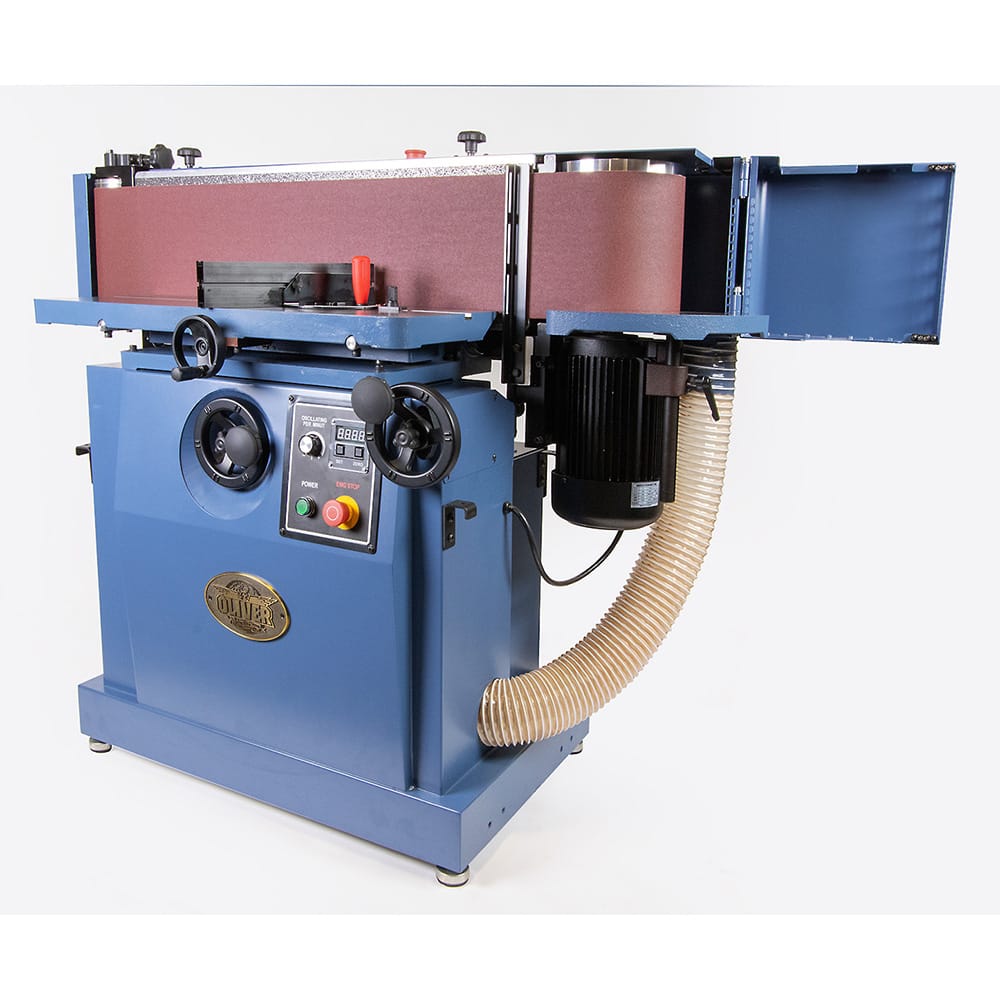

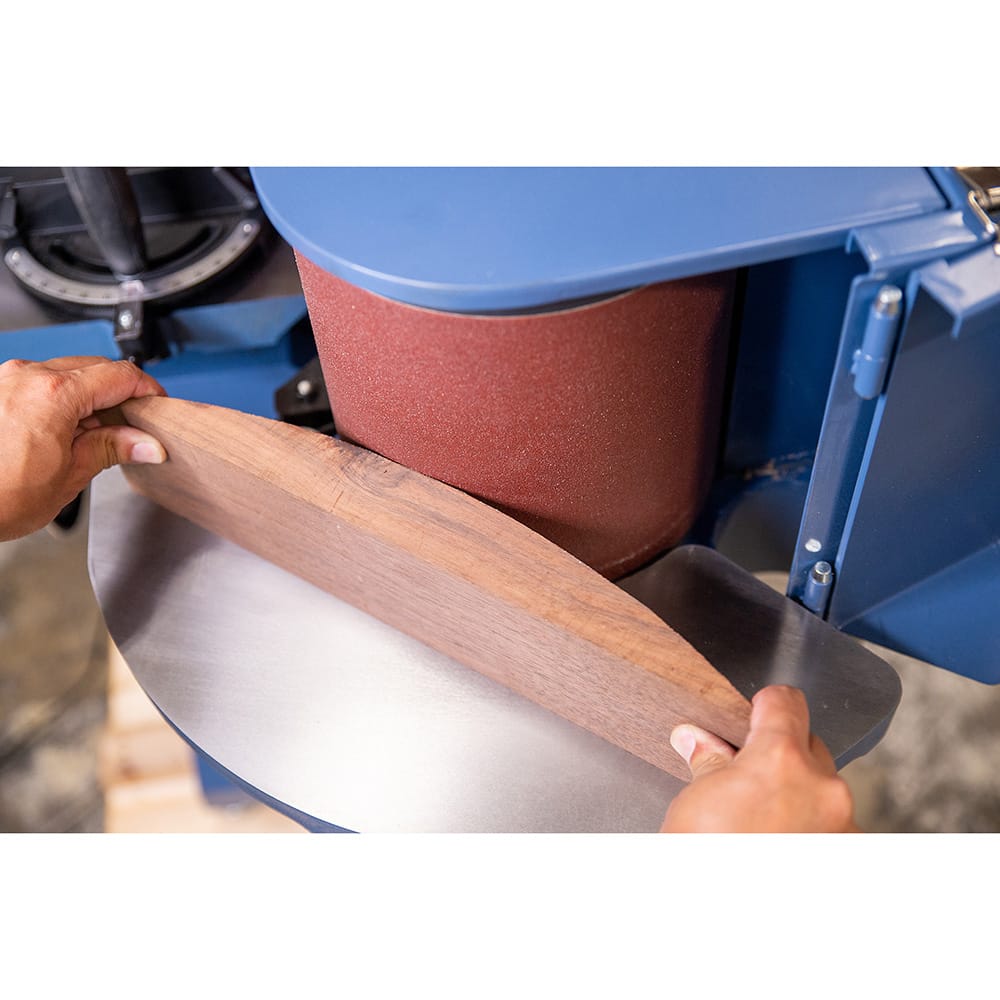

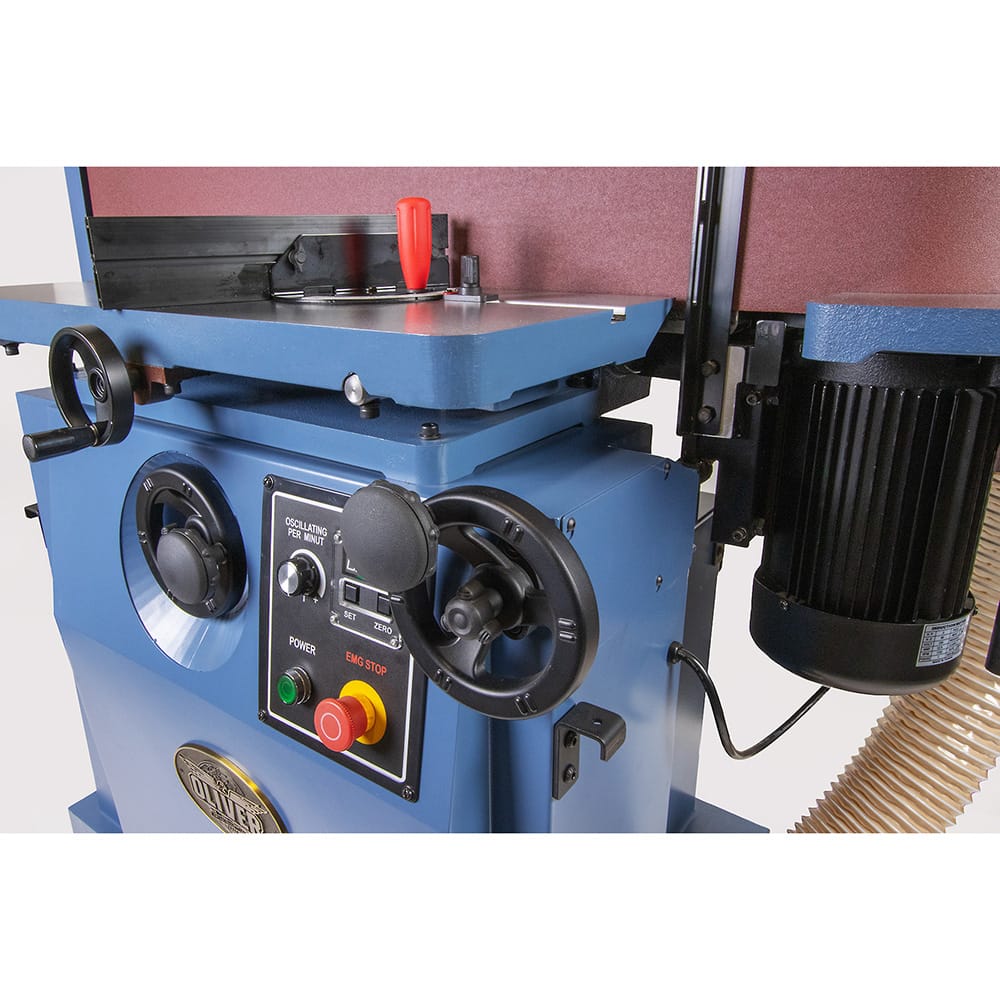

The 9” x 108” Oscillating Edge Sander by Oliver Machinery gives woodworkers the surface control and material removal needed for accurate edge sanding on large parts. With a full 9” x 108” oscillating belt and 3 HP motor, this machine maintains consistent contact across long workpieces while reducing heat buildup that can mark the surface.
The oscillating action paired with a 3800 FPM belt speed keeps abrasive cutting clean and efficient, which helps extend belt life and limits burn marks on hardwoods. A rigid cast iron main table provides a stable reference for squaring edges and maintaining alignment during longer passes. The adjustable working height range and vertical to horizontal belt tilt allow you to position the sanding surface based on the workpiece size and feed direction.
A 4” dust port pulls a steady stream of debris away from the sanding zone when connected to a 650 CFM system, keeping visibility clear and reducing airborne dust. The large platen and customizable table positioning help maintain consistent pressure, which improves accuracy when smoothing edges or flattening faces.
This oscillating edge sander supports workflows that demand repeatable results, making it a strong addition to any shop running high-volume shaping or refinement work.
Features:
- 9” x 108” oscillating sanding belt increases usable abrasive surface
- 0° to 90° belt tilt supports horizontal and vertical sanding positions
- Cast iron main table adds stability during long passes
- 3 HP motor maintains consistent belt speed under load
- Oscillation stroke reduces heat buildup and improves belt wear
- 4” dust port designed for connection to dust collection systems
- Large platen supports uniform sanding pressure
- Adjustable working height improves control and positioning
Specifications:
- Sanding Belt Size: 9” x 108”
- Base Size: 30” x 20”
- Belt Tilt: 0° to 90°
- Dust Port Size: 4” / Minimum 650 CFM
- End Table Size: 12” x 12”
- End Table Tilt: Fixed
- End Table Working Height: 34” to 40”
- Footprint: 33-1/4” (L) x 21-3/4” (W)
- Main Table Material: Cast Iron
- Main Table Size: 12” x 32” x 1.5”
- Main Table Working Height: 34” to 37”

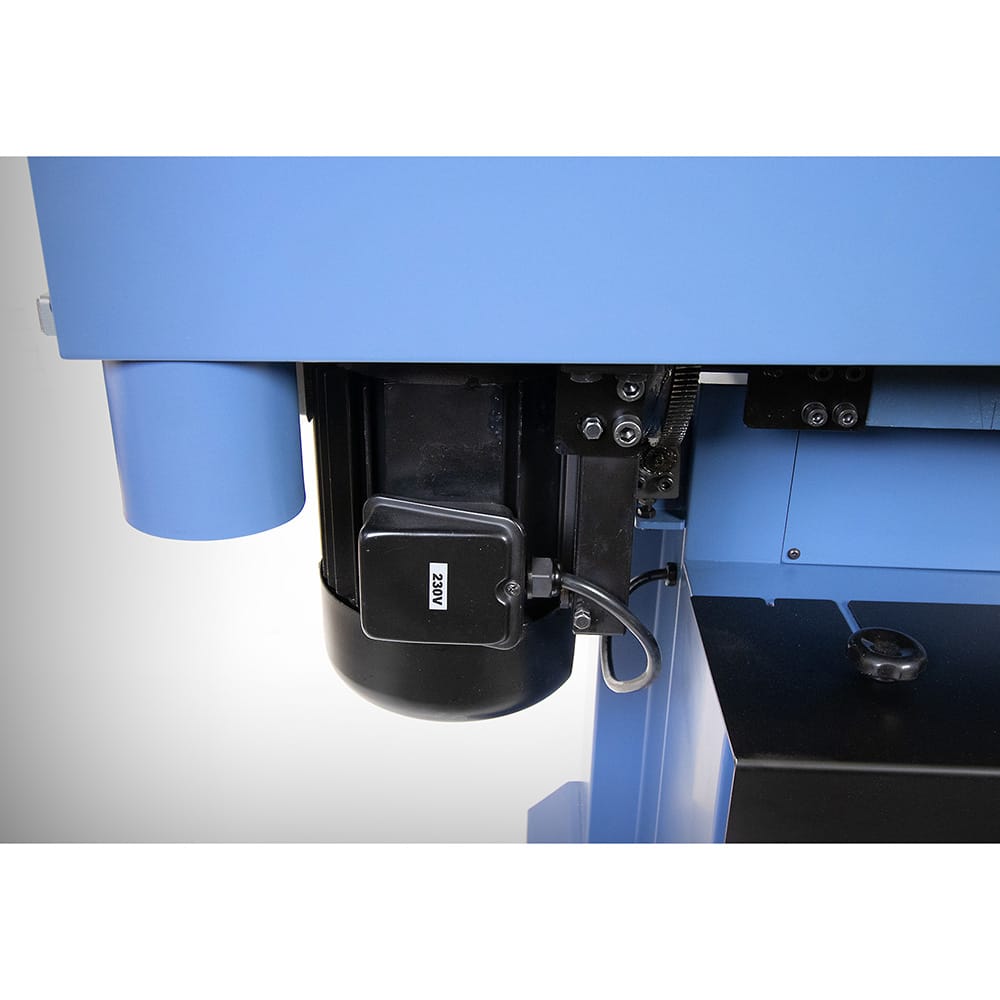

- Motor Type: 3 HP, 1Ph, 230V TEFC
- Platen Size: 32” x 10”
- Power Connection Type: NEMA 6-15 Plug, 6' AWG 14 Cord
- Power Full Load Current: 12.5A
- Minimum Circuit Size: 15A
- Power Requirement: 230V, 1Ph, 60 Hz
- Oscillation Stroke: 5/8”
- Belt Speed: 3800 FPM
- Machine Weight: 397 lb
- Shipping Weight: 533 lb
What's Included:
- (1) 9” x 108” Oscillating Edge Sander
- (1) 9” x 108” 120 Grit Sanding Belt
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days, unless the item is on backorder.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
Returns are accepted by Oliver Machinery within 30 days of receipt. Return Materials Authorization (RMA) required prior to return. A 20% restocking fee will be applied. Customer responsible for return freight. Contact Woodcraft Customer Service for return assistance at 1-800-225-1153.
Warranty Information
Oliver Machinery warrants its products to the original customer as free from defects for a period of two years on parts and 1 year for the electronics and motor.
