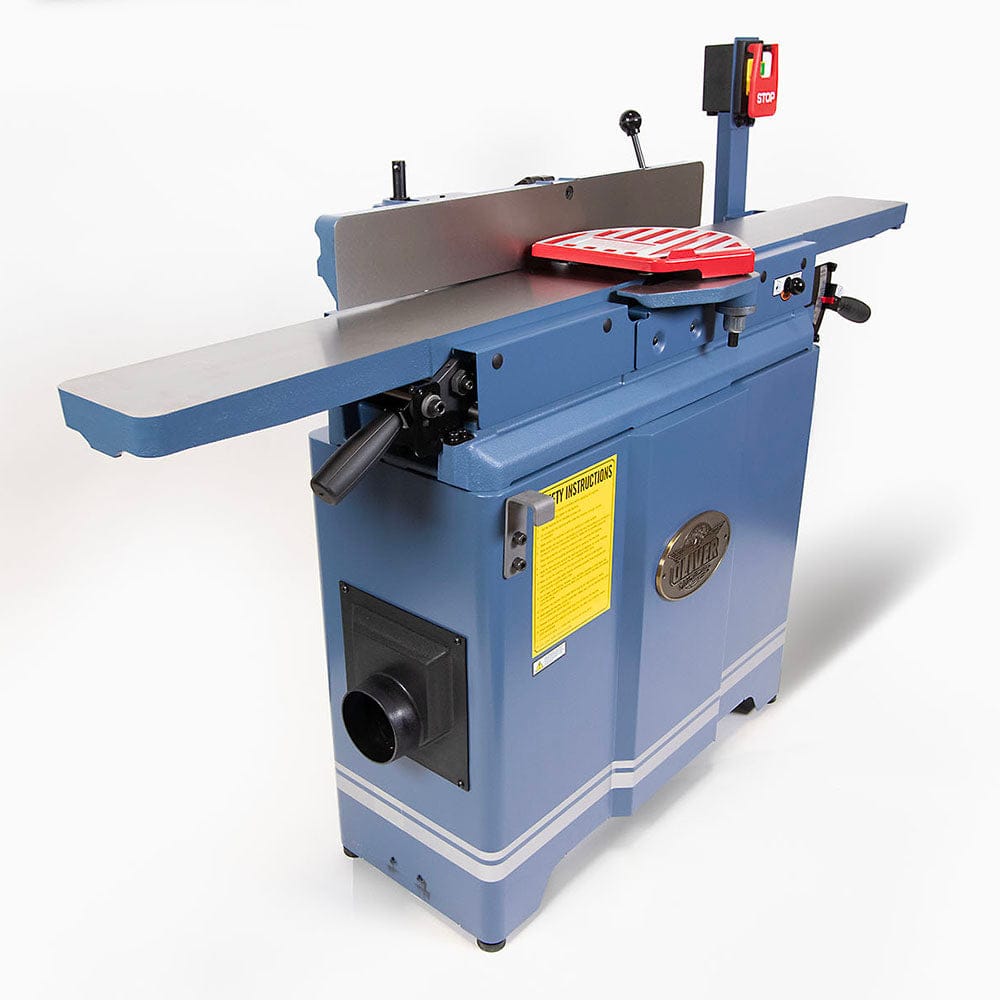

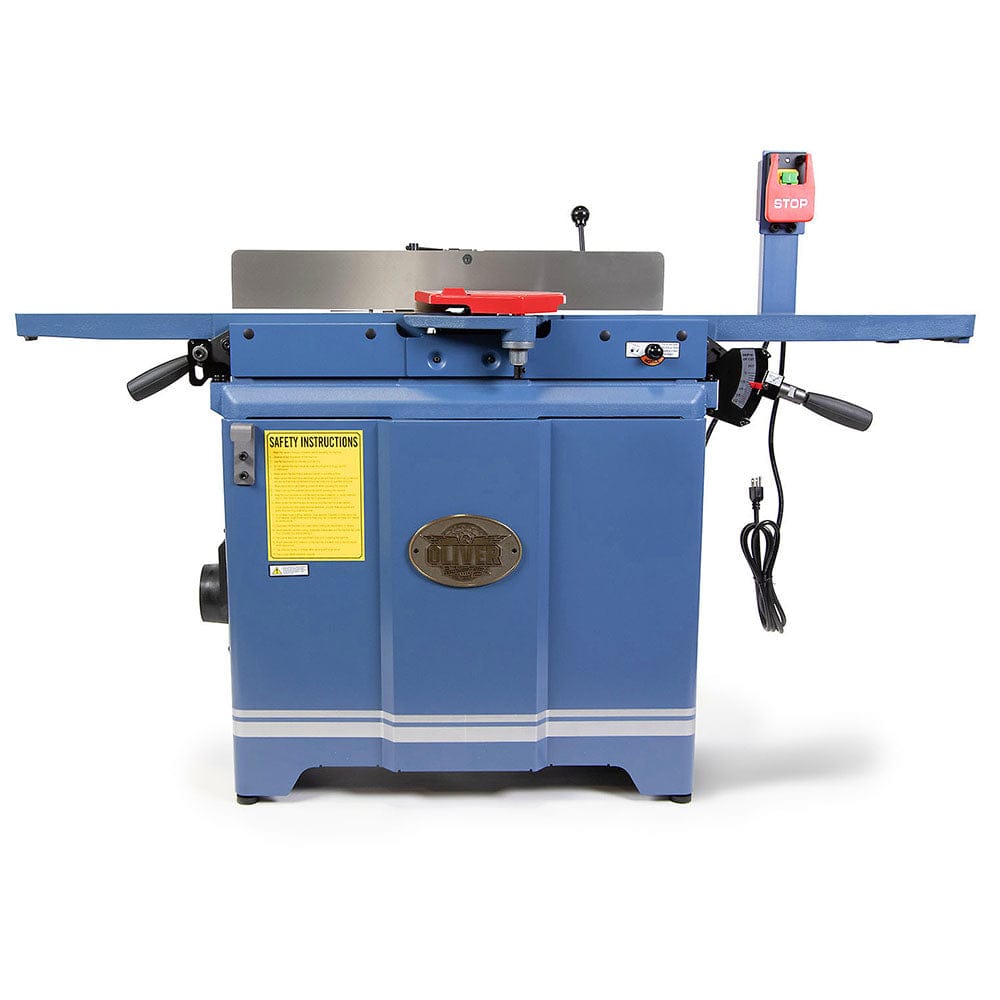

The Oliver 4235.230 8" jointer is an excellent choice for those looking for additional cutting capacity. This refreshed model features an updated design with a conveniently relocated power switch and increased horsepower for enhanced performance. Equipped with Oliver's true HCX Helical Cutterhead (not a linear spiral design) using 4-sided carbide inserts, it provides excellent cut quality and precision. This jointer has plenty of power, Oliver's famous build quality, and is a stand-out in the 8" jointer class.
Features:
- Extra-long precision ground tables provide a stable work surface.
- Parallelogram design provides smooth accurate cuts.
- Cast iron frame offers stable table support.
- Fully enclosed cabinet with 4" port for superior dust management.
- Built-in mobile base with lockable wheels.
- Cabinet includes push pad storage.
- Oliver HCX Helical cutterheads with premium carbide inserts.
- 4-sided cutting inserts are indexed and easy to replace.

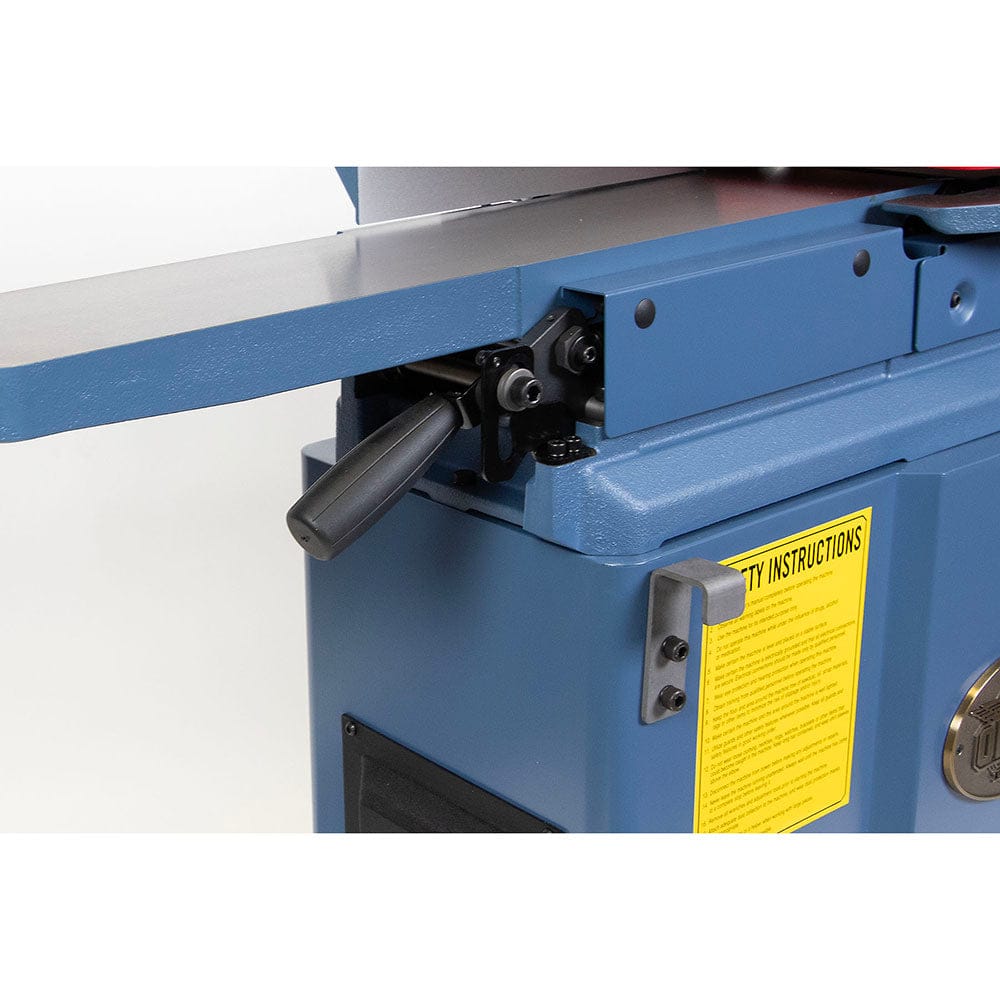

- Lever controlled infeed and outfeed table adjustment allows quick set-up.
- Long precision ground fence tilts up to 135° with positive stops at 45° and 90°.
- Easy to read depth of cut gauge.

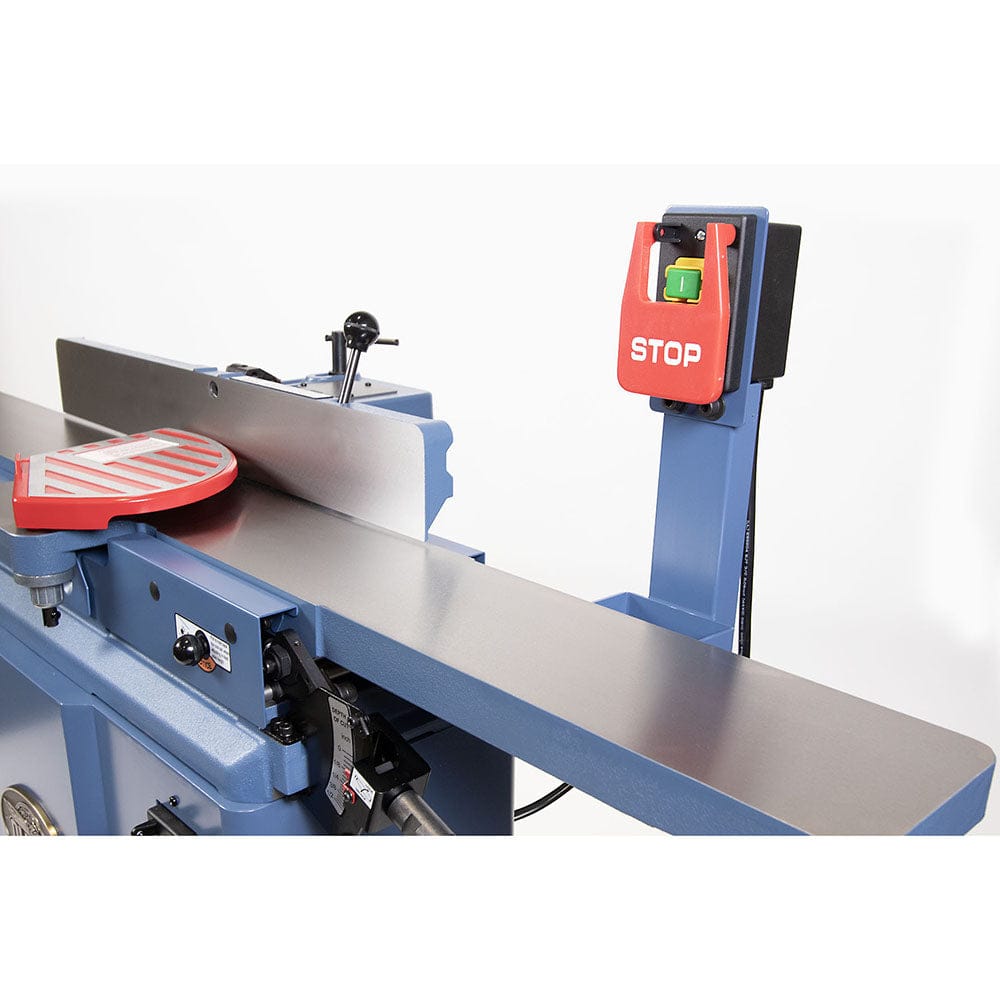

- Large, lockable pedestal mounted paddle on/off switch for added safety.
- Powerful TEFC 3HP single-phase motor.
- Poly V-belt drive efficiently delivers power to the cutter head.
- CSA Listed.
Specifications:
- Model Number: 4235.230
- Stock Number: 4235.230 (3HP.1PH, Helical)
- Infeed Table Travel: 1/2"
- Cutterhead Speed: 5,500 RPM
- Number of Knives (helical): 36 inserts
- Maximum Depth of Cut: 1/8"
- Rabbeting Capacity: 1/2"
- Dust Port Diameter: 4"
- Table Dimensions: 72" L x 8" W
- Table Height: 31-1/2"
- Fence Dimensions: 38" x 5"
- Fence Tilts: 90°, 45°, 135°
- Positive Stops: 90° and 45°
- Motor 1Ph: 3HP - 230V, 1PH, 8A (NEMA 6-15 plug style)
- Net Weight: 352 lbs
- Gross Weight: 490 lbs
What's Included:
- (1) Oliver 4235.230 8" jointer
- (10) Torx screws for inserts
- (1) Box of 5 cutterhead inserts
- (2) Push Blocks
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days, unless the item is on backorder.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
Returns are accepted by Oliver Machinery within 30 days of receipt. Return Materials Authorization (RMA) required prior to return. A 20% restocking fee will be applied. Customer responsible for return freight. Contact Woodcraft Customer Service for return assistance at 1-800-225-1153.
Warranty Information
Oliver Machinery warrants its products to the original customer as free from defects for a period of two years on parts and 1 year for the electronics and motor.
