Oliver Machinery

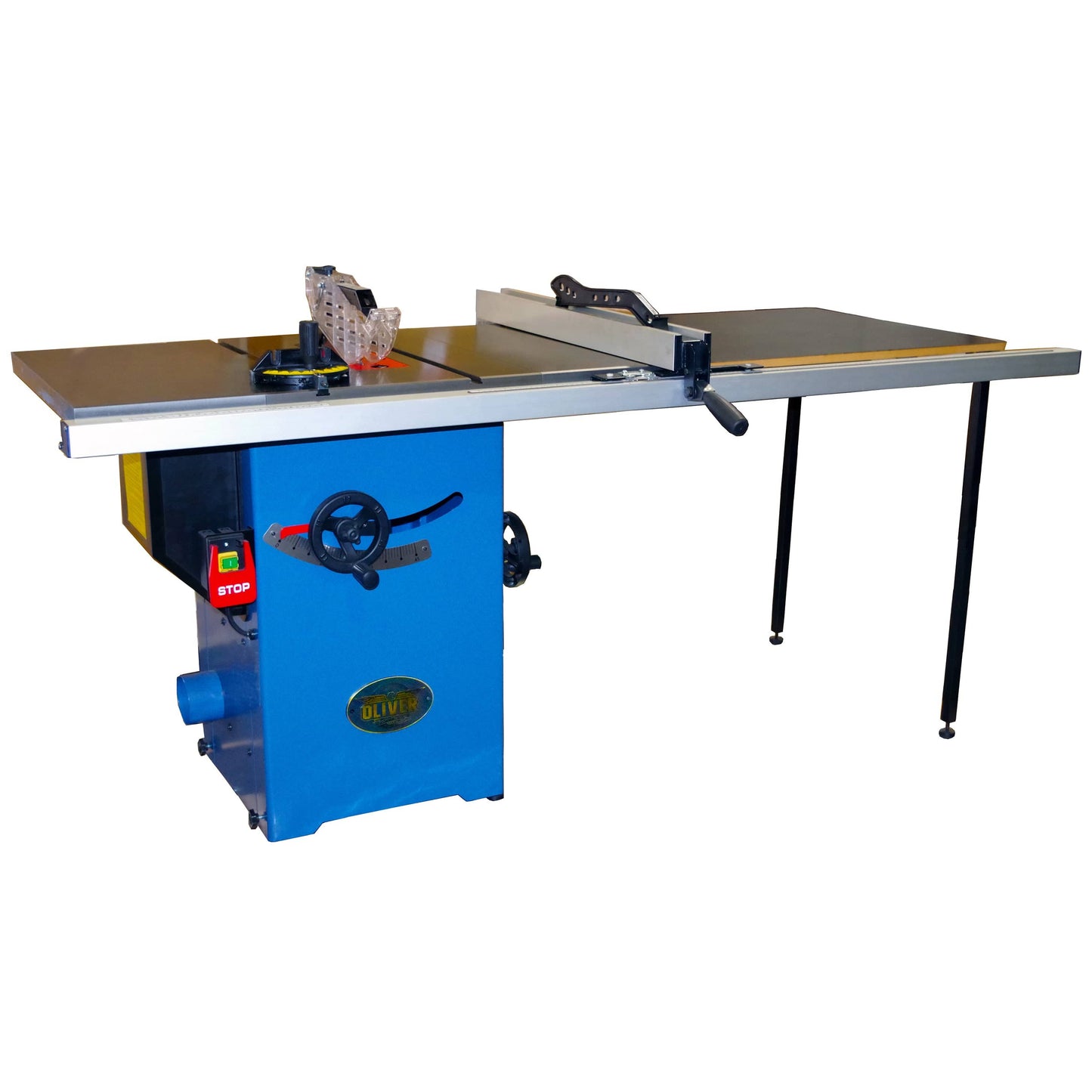

10" Professional Table Saw with 52" Rip Capacity

Item #182350 Model 10040.002
Regular price $1,649.99
Sale price $1,649.99 Regular price $1,649.99
Skip to product information
1 of 1

Oliver Machinery

10" Professional Table Saw with 52" Rip Capacity

Item #182350 Model 10040.002
Regular price $1,649.99
Sale price $1,649.99 Regular price $1,649.99
Oliver Machinery Model 10040. 002 features a precision ground table and extension wings for a solid working surface. The 52" rip capacity includes an extension table for proper. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Align-A-Saw Gauge & Base

    Regular price $89.99
    Sale price $89.99 Regular price $89.99
    Align-A-Saw Gauge & Base
  • Saw Gauge with Dial Indicator

    Regular price $99.99
    Sale price $99.99 Regular price $99.99
    Saw Gauge with Dial Indicator
  • Spline Jig

    Regular price $159.99
    Sale price $159.99 Regular price $159.99
    Spline Jig
  • Align-A-Saw Plate

    Regular price $159.99
    Sale price $159.99 Regular price $159.99
    Align-A-Saw Plate
  • Thin Rip Guide

    Regular price $169.99
    Sale price $169.99 Regular price $169.99
    Thin Rip Guide

Details

Oliver Machinery Model 10040.002 features a precision ground table and extension wings for a solid working surface. The 52" rip capacity includes an extension table for proper support. The quick release blade guard and arbor lock allows easy blade changes and set-up. Cabinet features built-in wheels and locks for movement around your shop and the dust shroud and cabinet outlet will give ultimate dust management. Included miter gauge and T-square style fence will produce precision cuts with the left tilt blade providing plenty of power from the 1.75HP motor..

Features
  • Large precision ground table with cast iron extension wings.
  • Cabinet mounted blade trunnion.
  • Spindle lock for easy blade changes.
  • Built in storage for fence, blade guard, miter gauge, and riving knife.
  • Saw blade included.
  • Poly V-belt for long life and smooth operation.
  • Extension table and legs included
  • Quick mount and release blade guard.
  • Riving knife included.
  • Built in wheels with locks for mobility.
  • Industrial switch with large OFF paddle.
  • Dust shroud and hose for efficient dust management.
  • Motor includes thermo overload reset switch for added protection.
Specifications
  • Model Number: 10040
  • Stock No. (52"): 10040.102
  • Blade Diameter: 10"
  • Arbor Diameter: 5/8"
  • Blade Tilt: Left
  • Arbor Speed: 4,500 RPM
  • Maximum Depth of Cut at 90°: 3-1/8”
  • Maximum Depth of Cut at 45°: 2-1/4”
  • Maximum Width of Dado: 13/16”
  • Maximum Cut to Right of Blade: 52”
  • Maximum Cut to Left of Blade: 12"
  • Dust Port Diameter: 4” Ø
  • Table Dimensions w/o Extensions: 27”D x 20”W
  • Wing Size: 27" x 12"
  • Table Height: 35"
  • Motor: 1.75 HP, 1Ph, 115V/220V Prewired 115V (14.8/7.4 Amp)
  • Overall Dimensions: 36” x 83”
  • Net Weight: 303 lbs.
  • Gross Weight: 351 lbs.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Returns are accepted by Oliver Machinery within 30 days of receipt. Return Materials Authorization (RMA) required prior to return. A 20% restocking fee will be applied. Customer responsible for return freight. Contact Woodcraft Customer Service for return assistance at 1-800-225-1153.

Warranty Information

Oliver Machinery warrants its products to the original customer as free from defects for a period of two years on parts and 1 year for the electronics and motor.
