Milescraft

PocketJig200

Item #175406 Model 1325
Regular price $29.99
Sale price $29.99 Regular price $29.99
Whether you want to build storage projects, cabinets, shelves or bookcases, the Milescraft PocketJig200 does it all. This pocket hole jig allows you to connect your workpieces. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

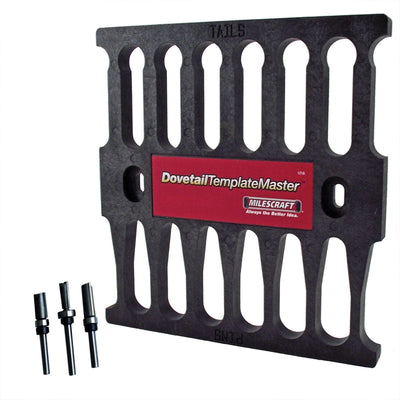

  • DoveTailTemplateMaster

    Regular price $54.99
    Sale price $54.99 Regular price $54.99
    DoveTailTemplateMaster alt 0
  • PocketScrews - Washer Head - T20 Star Drive - Zinc

    Regular price From $17.99
    Sale price From $17.99 Regular price $17.99
    1-1/2" PocketScrews Coarse 500 pc alt 0
  • Face Frame Clamp

    Regular price From $18.99
    Sale price From $18.99 Regular price $18.99
     3" FaceClamp alt 0
  • BenchClamp

    Regular price From $22.99
    Sale price From $22.99 Regular price $22.99
    3" BenchClamp alt 0
  • PocketClamp

    Regular price $26.99
    Sale price $26.99 Regular price $26.99
    PocketClamp alt 0

Details

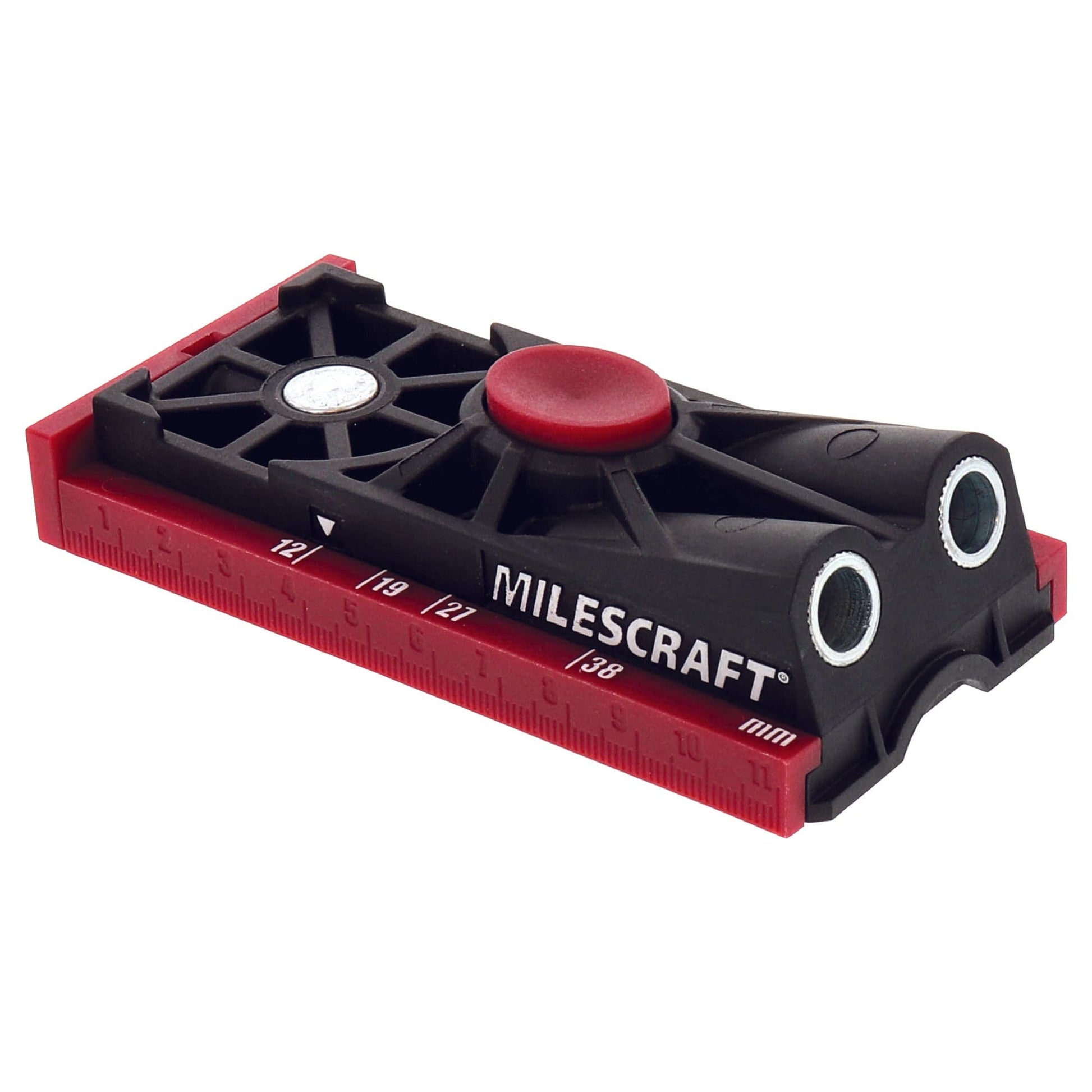

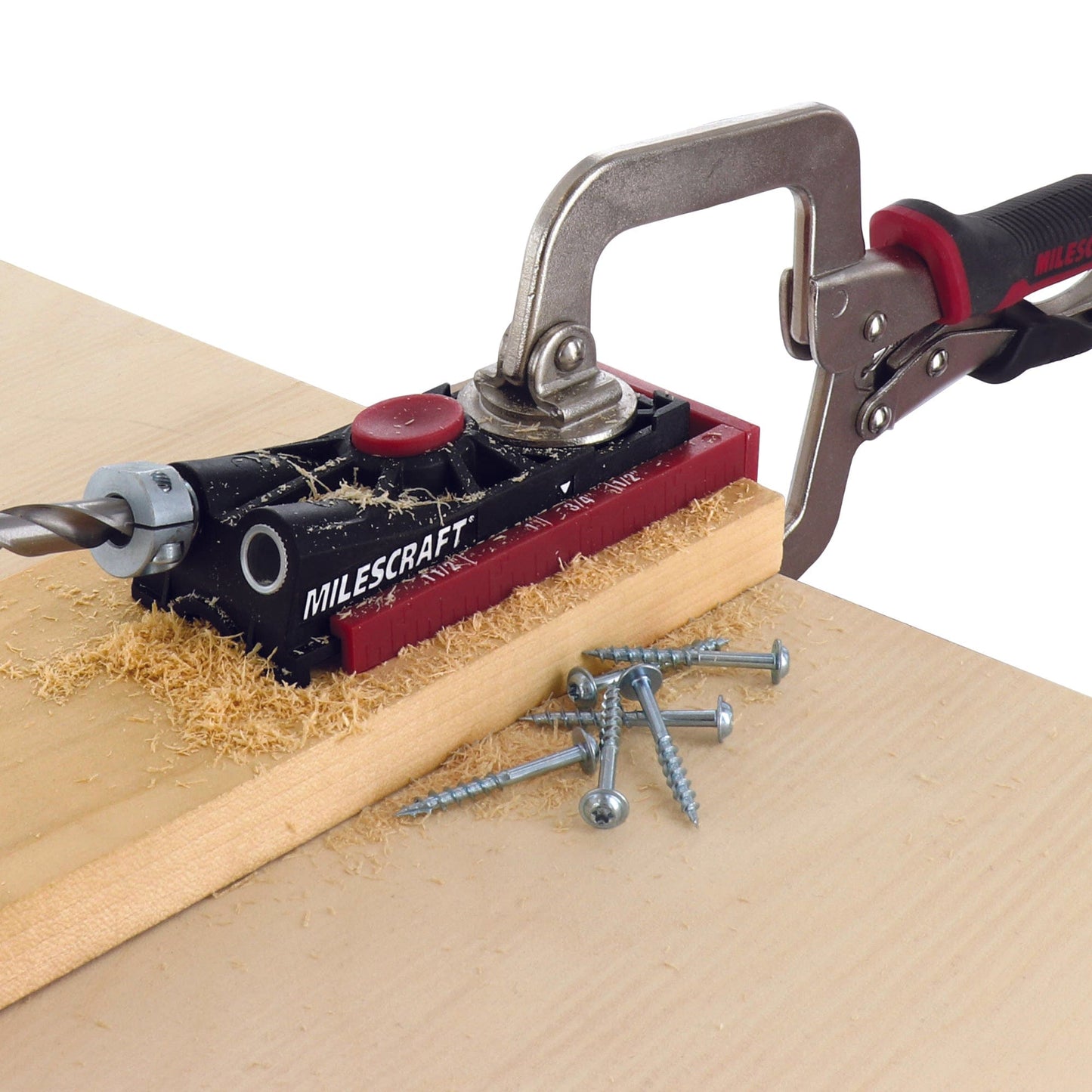

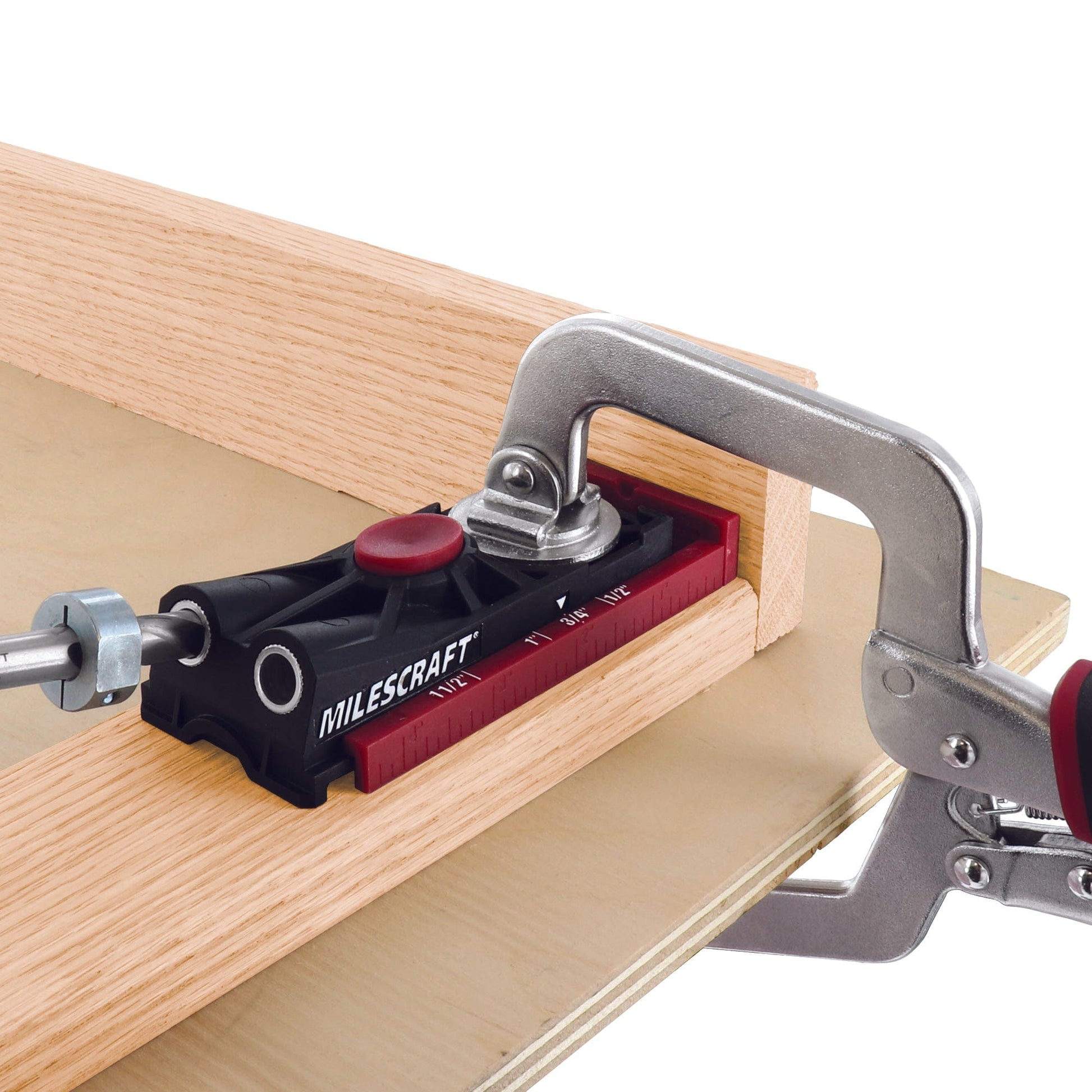

Whether you want to build storage projects, cabinets, shelves or bookcases, the Milescraft PocketJig200 does it all. This pocket hole jig allows you to connect your workpieces in a quick and professional manner. This all-in-one kit allows you to create, join and finish corner joints, t-joints, framing joints, miter joints and do repairs. With built-in settings for board thicknesses, there is no need to manually measure. Just set this pocket jig to your desired setting, set the depth of your bit and start drilling.

Features

  • Spring loaded sled snaps into place to set correct drilling depth for projects using 1/2”, 3/4”, 1” and 1-1/2” boards (12, 19, 27, 38mm)
  • Built in imperial and metric scale on side of jig allows you to measure board thickness to start your project
  • Hardened steel drill bushings guide the included 3/8" high speed steel step bit to create an accurate and clean pocket hole
  • The built-in rare earth magnet holds the jig firmly in place
  • Bottom of the PocketJig200 includes a built-in depth finder to easily set your anti-roll flat sided stop collar to proper drilling depth
  • The Milescraft connecter allows you to quickly change from drilling, to driving with included 3" and 6" magnetic T20 Torx Drivers
  • The rugged molded storage case conveniently holds all components needed to start and finish a project

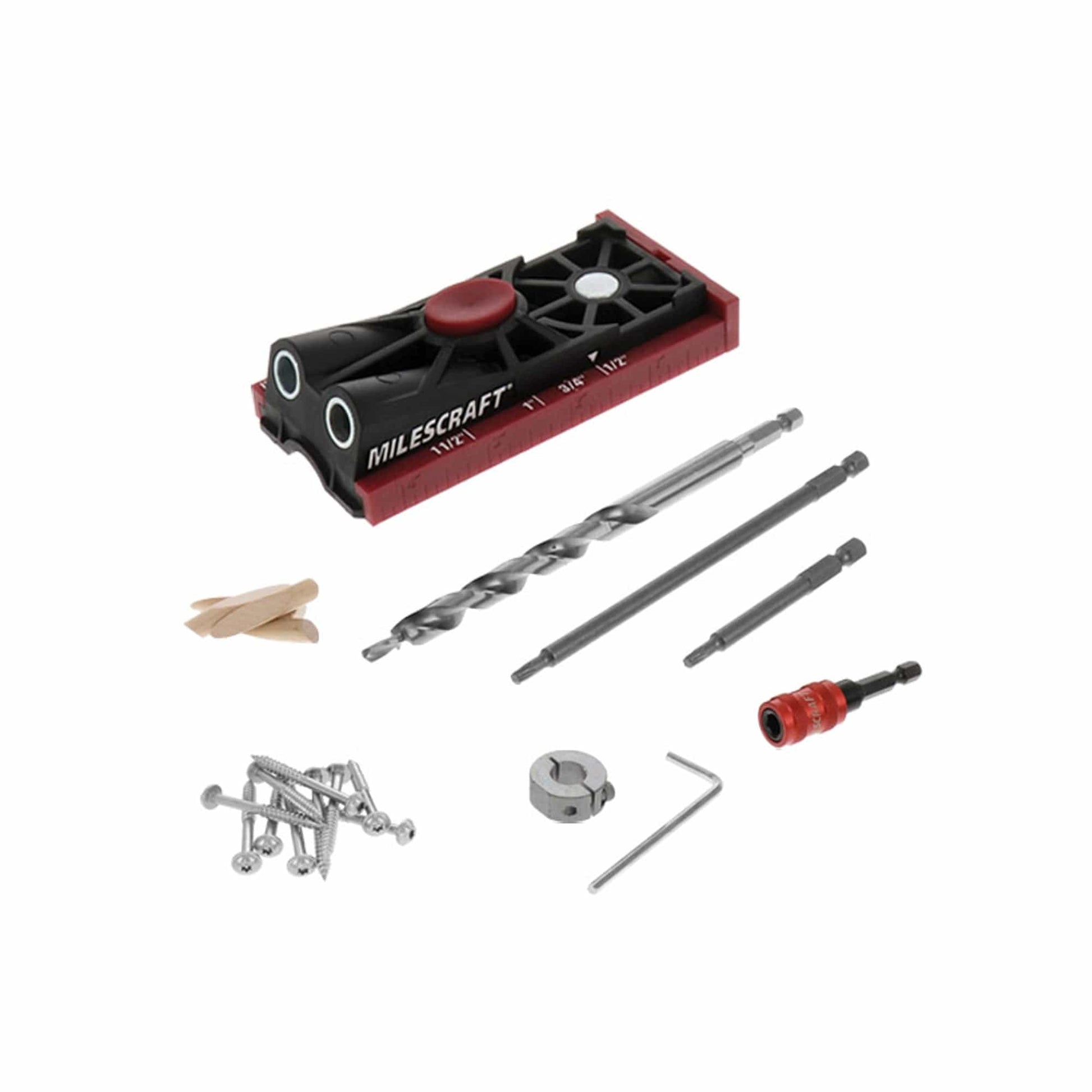

  • Includes PocketJig200, 3/8" HSS step bit, flat sided stop collar with hex key, quick connecter, two magnetic T20 Torx drivers, 60 pocket hole screw assortment, 10 plugs, instruction manual and case
Specifications

  • Drilling angle: 15 degree
  • Maximum material thickness: 1-1/2"
  • Drill bit: 3/8" (9.5mm), 1/4" shank
  • Drill guide bushing spacing: 1"
  • Stop collar: 3/8" split ring
