The Milescraft® EuroHingeJig™ takes the guesswork out of installing European-style concealed hinges. Two edge-alignment knobs position the cup hole from the edge of the door, while the edge pin sets the distance from the top or bottom. Easily set your cup hole depth on the included 35 mm carbide-tipped forstner bit using the built-in depth-setting fixtures. The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole. Guide bushings built into the body of the jig let you predrill pilot holes in four common locations, making sure hinges are straight so the door closes true. A 1/16"-diameter drill bit for pilot holes is included. The hinge-marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge locations onto the cabinet wall or frame. The Milescraft® EuroHingeJig™ is perfect for reliable frame and frameless installation of 35 mm concealed cabinet door hinges.

Features:

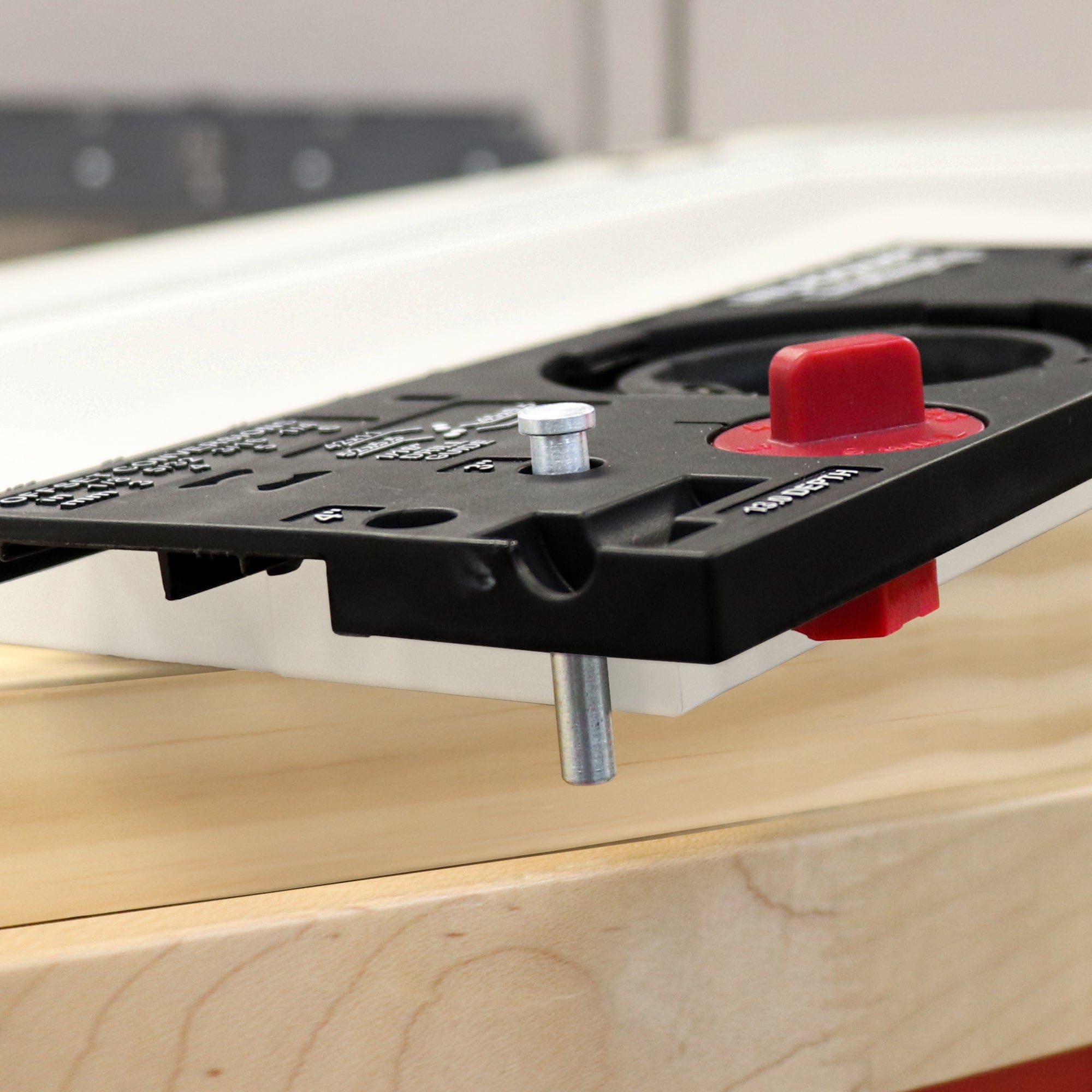

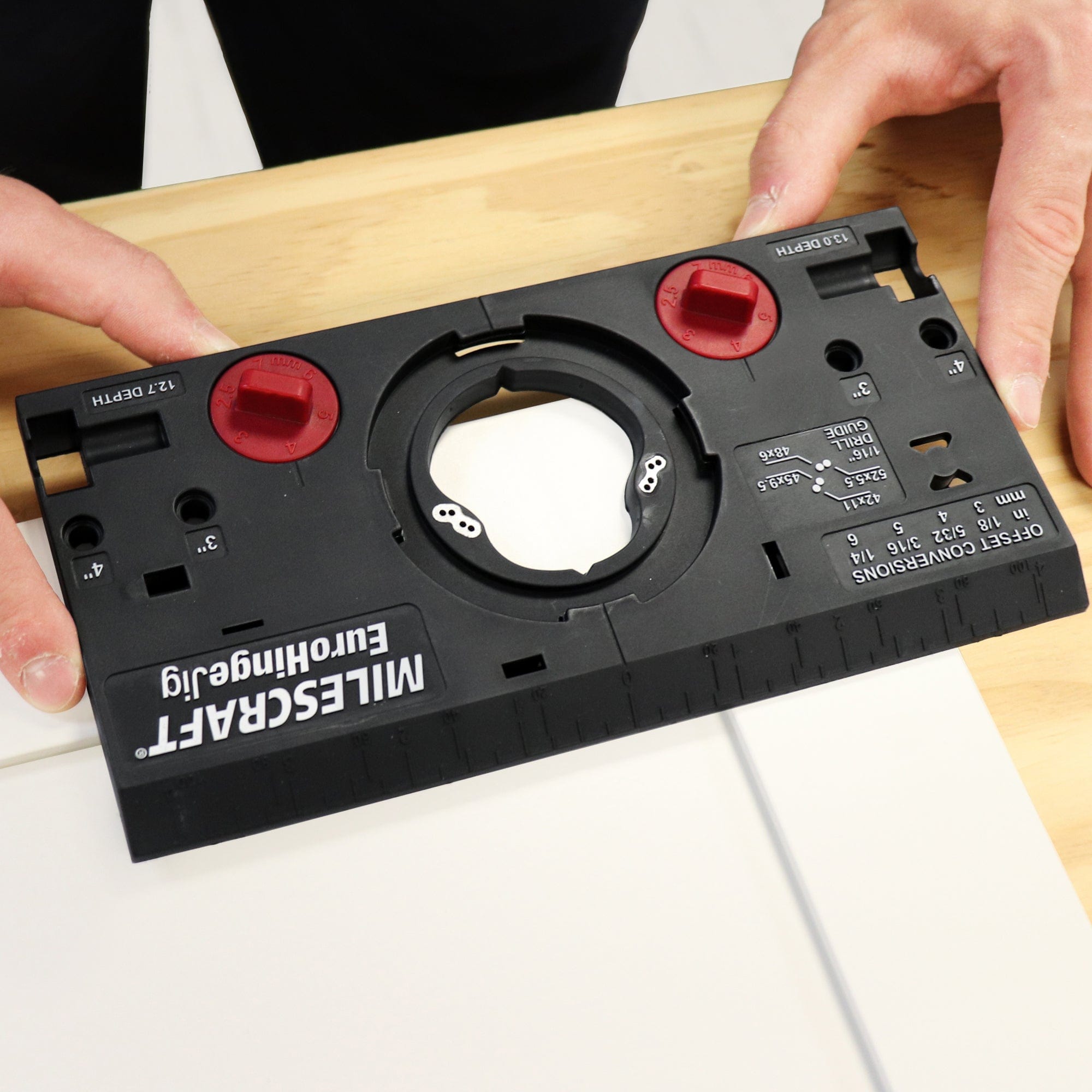

  • Two edge-alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top or bottom

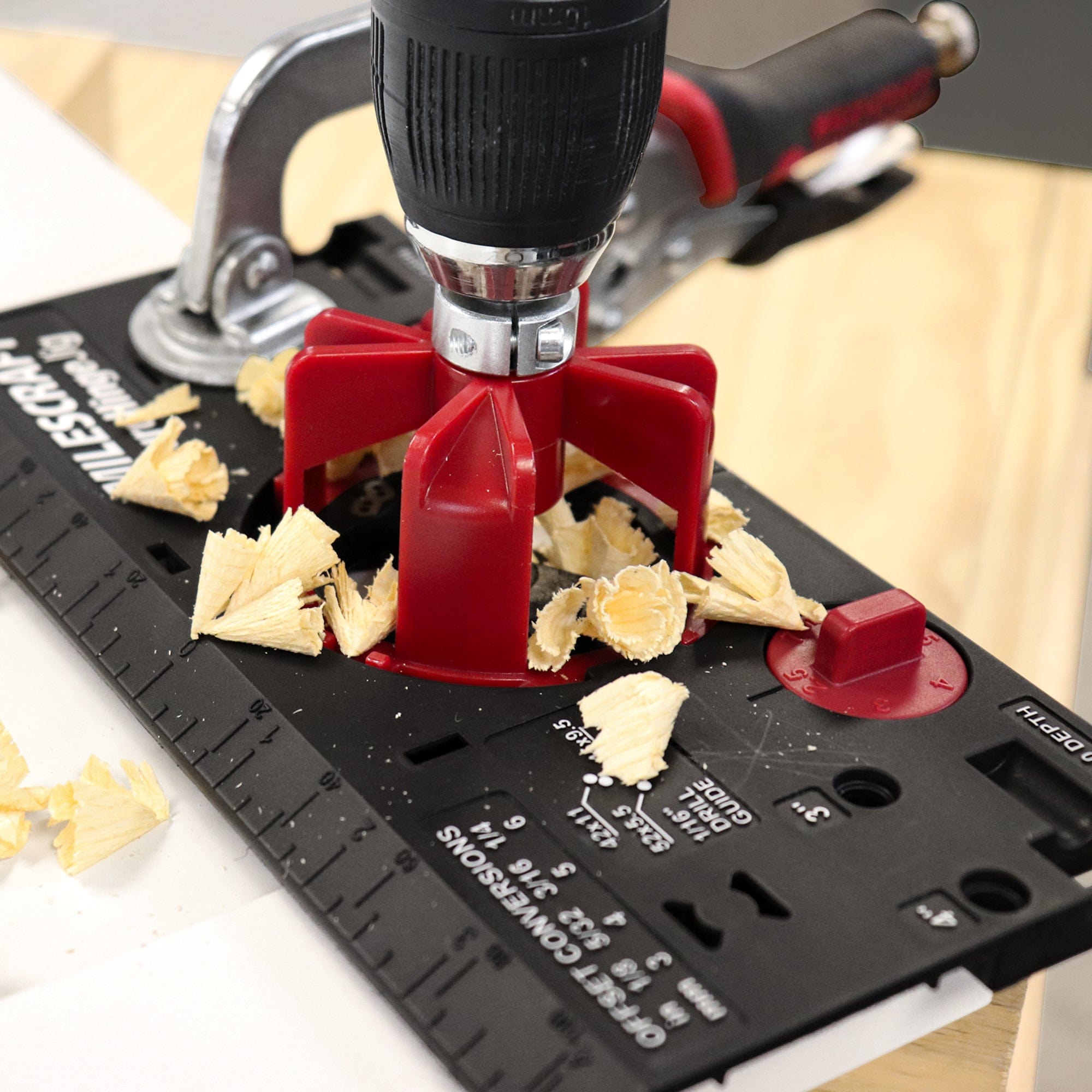

  • The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
  • Built-in depth setting fixtures easily set your cup hole depth on the 35 mm forstner bit
  • Guide bushings built into the body of the jig let you predrill pilot holes in four common locations

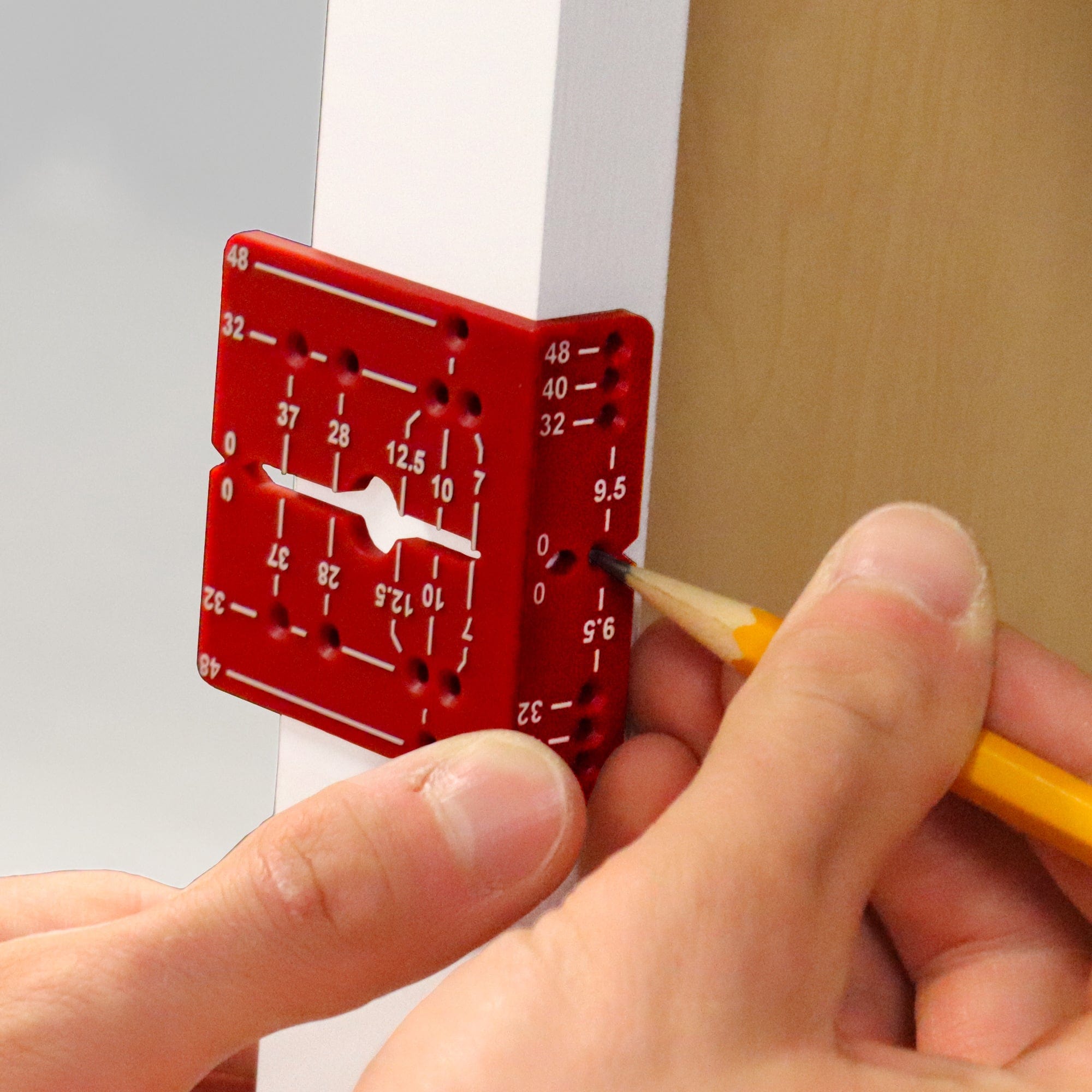

  • The hinge-marking guide allows you to transfer and mark centerlines and hinge locations onto the cabinet wall or frame

Specifications:

  • Edge offsets: 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm
  • Locator pin offsets: 3", 4"
  • Forstner bit: 35 mm - carbide-tipped
  • Forstner bit shank: 3/8"
  • Twist bit – 1/16"
  • Depth stop: 3/8" split
  • Depth settings: 12.7 mm, 13 mm

What’s Included:

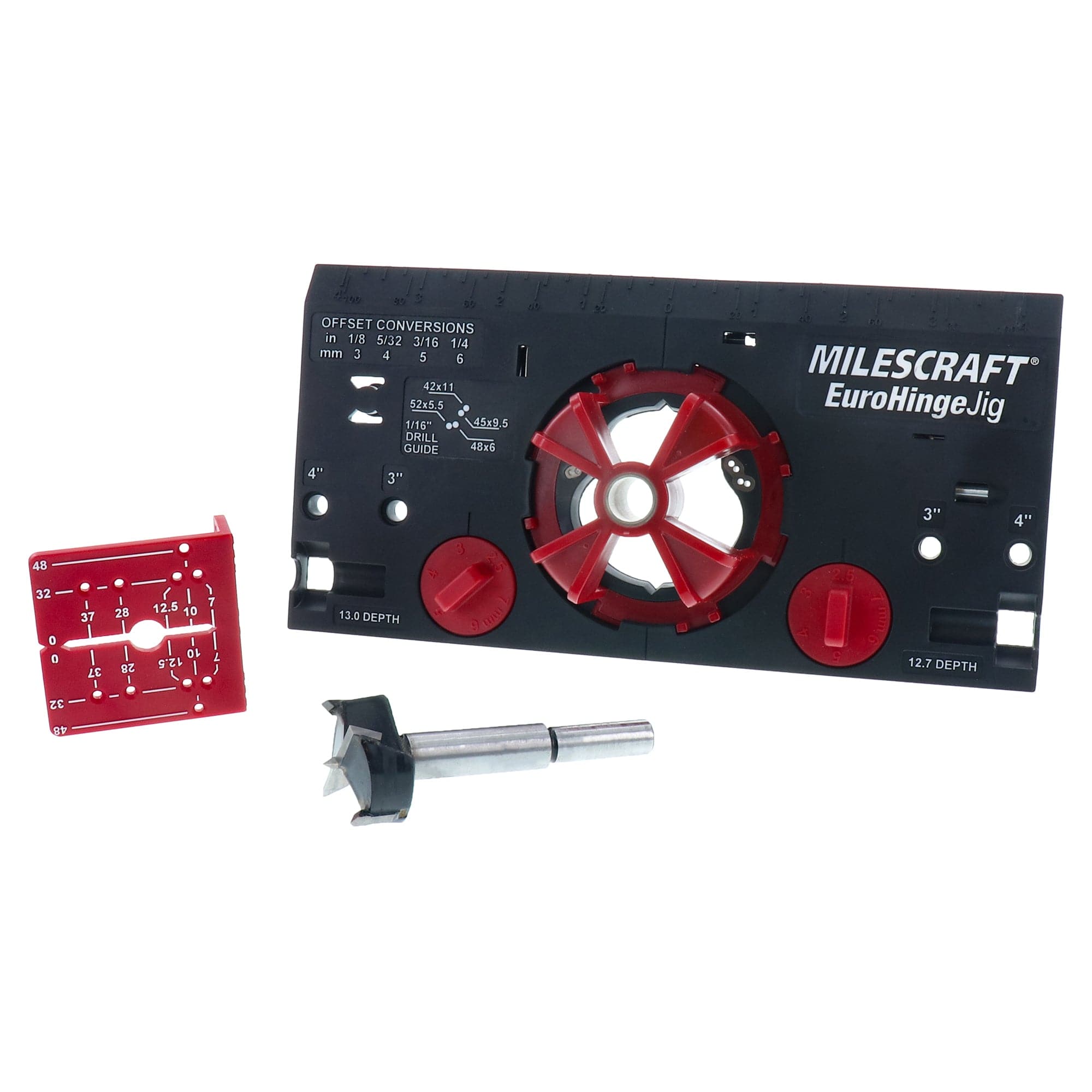

  • (1) Milescraft® EuroHingeJig™
  • (1) 35 mm carbide-tipped forstner bit
  • (1) 3/8" split depth stop
  • (1) Marking guide
  • (1) 1/16" pilot bit
  • (1) Locator pin
  • (1) 3 mm Allen wrench
