Mibro

8" Dado Circular Saw Blade Set

Item #182960 Model 416381
Regular price $96.99
Sale price $96.99 Regular price $96.99
Skip to product information
1 of 2

Mibro

8" Dado Circular Saw Blade Set

Item #182960 Model 416381
Regular price $96.99
Sale price $96.99 Regular price $96.99
The 8" Dado Circular Saw Blade Set cuts clean edges, square shoulders and flat bottoms. Use the dado to cut smooth and precise flat-bottomed grooves,. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Titanium Nitride Coated Drill Bit and Driver Bit Set 115pc

    Regular price $169.99
    Sale price $169.99 Regular price $169.99
    Titanium Nitride Coated Drill Bit and Driver Bit Set 115pc alt 0

Details

The 8" Dado Circular Saw Blade Set cuts clean edges, square shoulders and flat bottoms. Use the dado to cut smooth and precise flat-bottomed grooves, either across or with the grain, in all types of wood, plywood and composite wood materials. It's ideal for the DIY, home, or woodworking enthusiast, as well as the light professional user. Cut grooves ranging in width from 1/4" (6 mm) to 13/16" (21 mm), increasing in 1/16" (2 mm) increments. Can make a variety of different cuts, including dado, groove, rabbet, fillet and mortise and tenon. The two outside cutting blades are 8" (203 mm) with 24 teeth. Both blades have a tooth pattern of five beveled cutting teeth, followed by one straight ranker tooth. The anti-kickback tooth profile prevents the blade from being fed material too quickly. Set includes one-piece 1/16" (2 mm) chipper and four-piece 1/8" (3 mm) chippers. Each chipper blade features two extra-large carbide teeth, which are also electronically welded onto the blade body by fully-automated equipment from Germany. The chipper blades are ground on the same equipment, at the same time, as the outside blades. This ensures that all of the blades together will cut a flat-bottomed groove. Use the seven included metal shims for fine adjustments to the overall width of the dado setup. Shim widths range from 0.004" (0.10 mm) to 0.096" (2.43 mm). All of the shims have a 3-3/16" (80 mm) diameter and 5/8" (16 mm) arbor hole.

Specifications
  • Use on all types of wood, plywood and composite wood materials
  • Carbide tooth blades and chippers feature negative hook angles, to make flat-bottom grooves that are smooth and virtually splinter-free
  • Material: Carbide
  • Diameter: 8" (203 mm)
  • Cut Width: 1/4 in to 13/16" (6.35 mm to 20.6 mm)

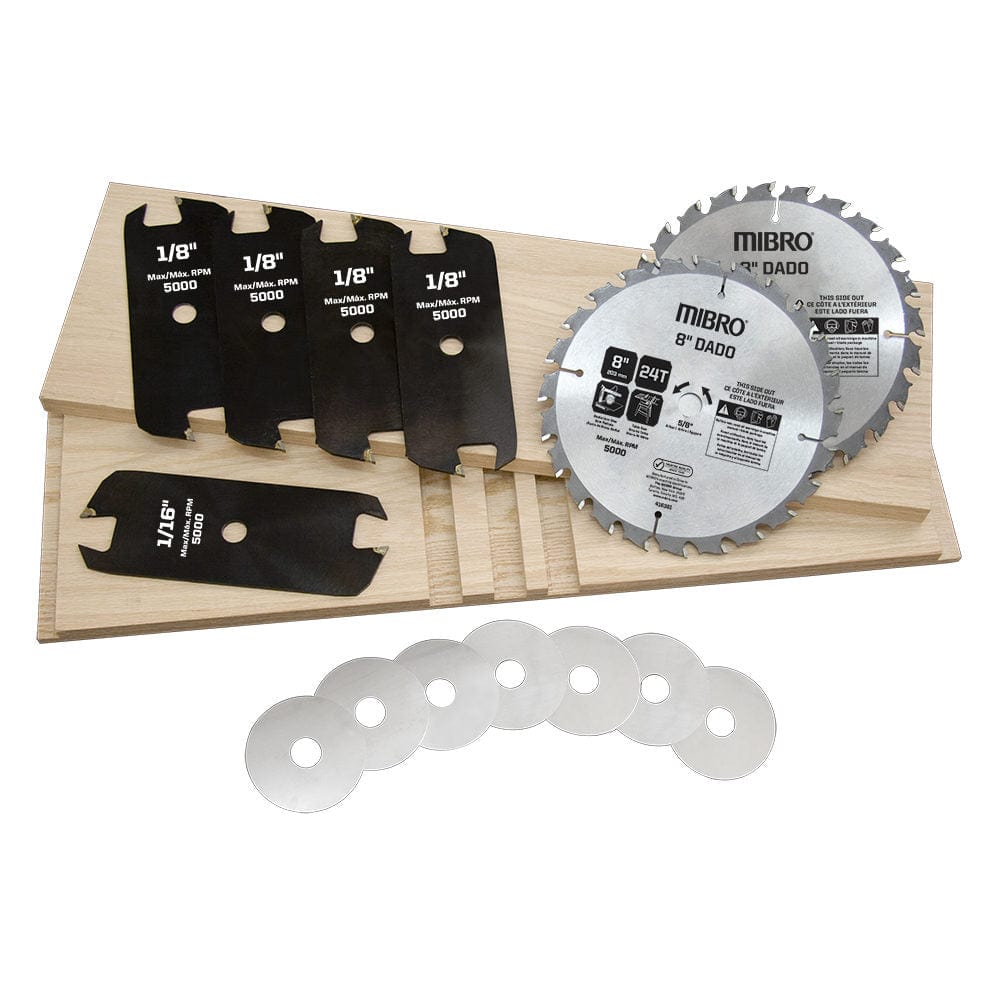

  • Included: Left blade (x1), Right blade (x1), Chippers (x4), Chipper (x1), Shims (x7)
  • Pack of 14
