Sliding Panel Saw Titanimun- 1 Ph - 5 HP - 220V

Item #197296 Model BMT.3200.IR
$ 10,499 00
$ 10,499 00 Was $10,499.00
New
1 10

Maksiwa

Sliding Panel Saw Titanimun- 1 Ph - 5 HP - 220V

Item #197296 Model BMT.3200.IR
$ 10,499 00
$ 10,499 00 Was $10,499.00
The Maksiwa BMT. 3200. IR Sliding Panel Saw is a powerhouse of precision, durability, and performance, engineered for professionals who demand the best. . . . View More Details
Ships from Manufacturer Shipping Info
Items you may need

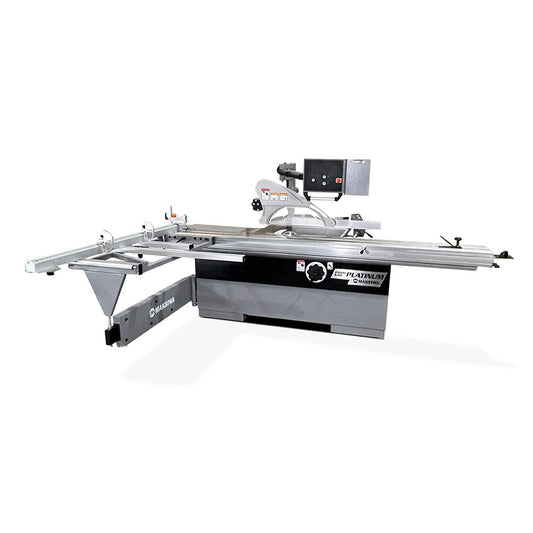

  • Sliding Panel Saw Platinum - 3 Ph - 7.5 HP - 220V

    $ 11,549 00
    $ 11,549 00 Was $11,549.00
    Sliding Panel Saw Platinum - 3 Ph - 7.5 HP - 220V

Details

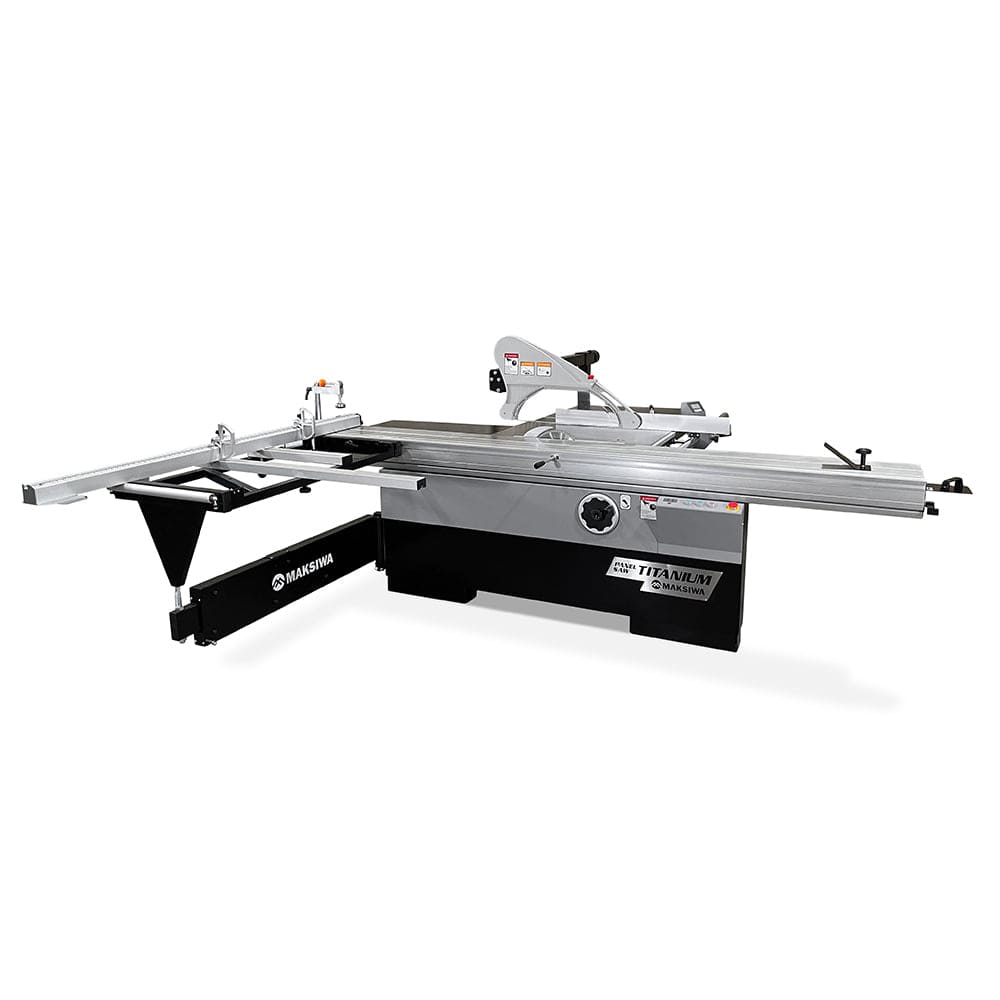

The Maksiwa BMT.3200.IR Sliding Panel Saw is a powerhouse of precision, durability, and performance, engineered for professionals who demand the best. From concept to completion, our team focused on using premium components and high-quality materials to deliver a machine that operates with unmatched smoothness—even under heavy loads, the advanced table system glides effortlessly for precise, clean cuts. Featuring a dual overhead saw guard with a 4” dust port, it offers maximum safety and flexibility when handling large workpieces. With its sleek, modern design, exceptional performance, and superior operator comfort, the BMT.3200.IR stands as the top-tier choice in its category, redefining what a panel saw can do for your workflow and craftsmanship.

Features:
  • Engineered for Excellence- Designed for professionals who demand top-tier performance and reliability.
  • Premium Build Quality- Crafted with high-quality materials and components for long-lasting durability.

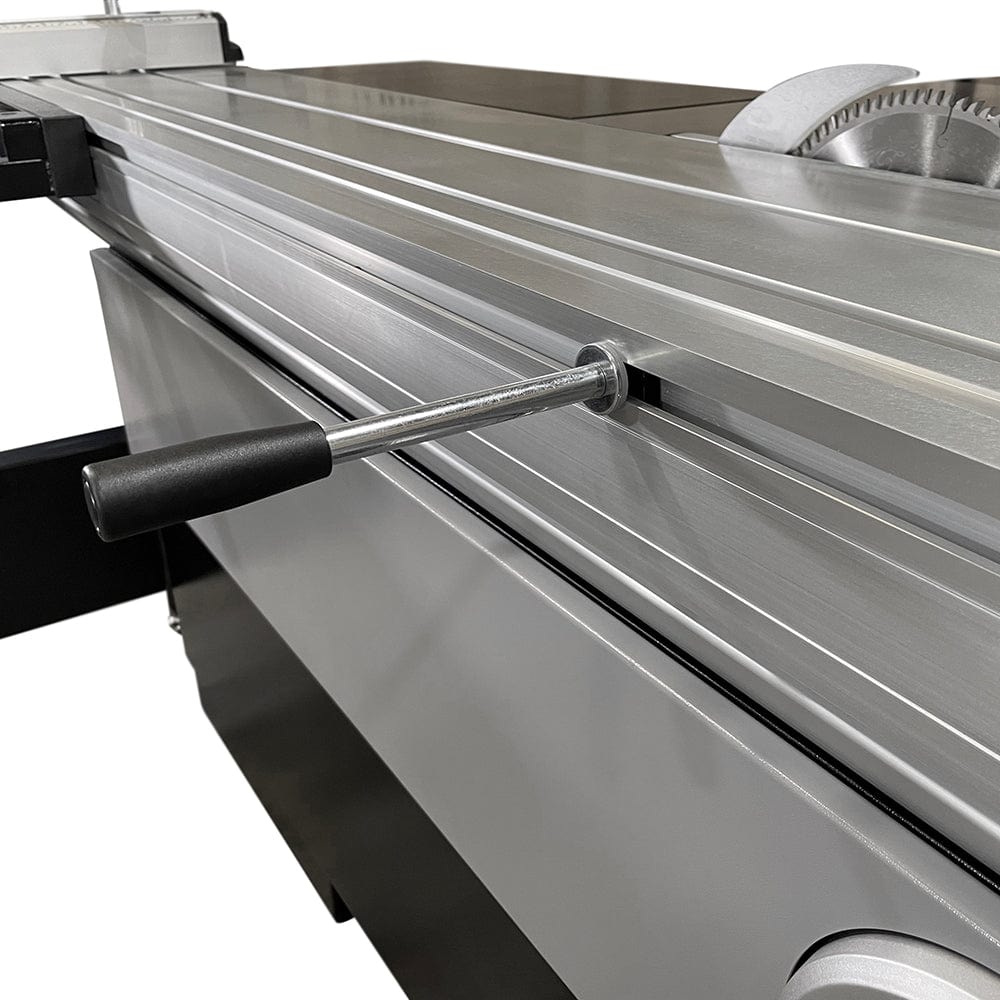

  • Effortless Precision- Advanced table system delivers ultra-smooth movement—even under heavy loads—for clean, accurate cuts.

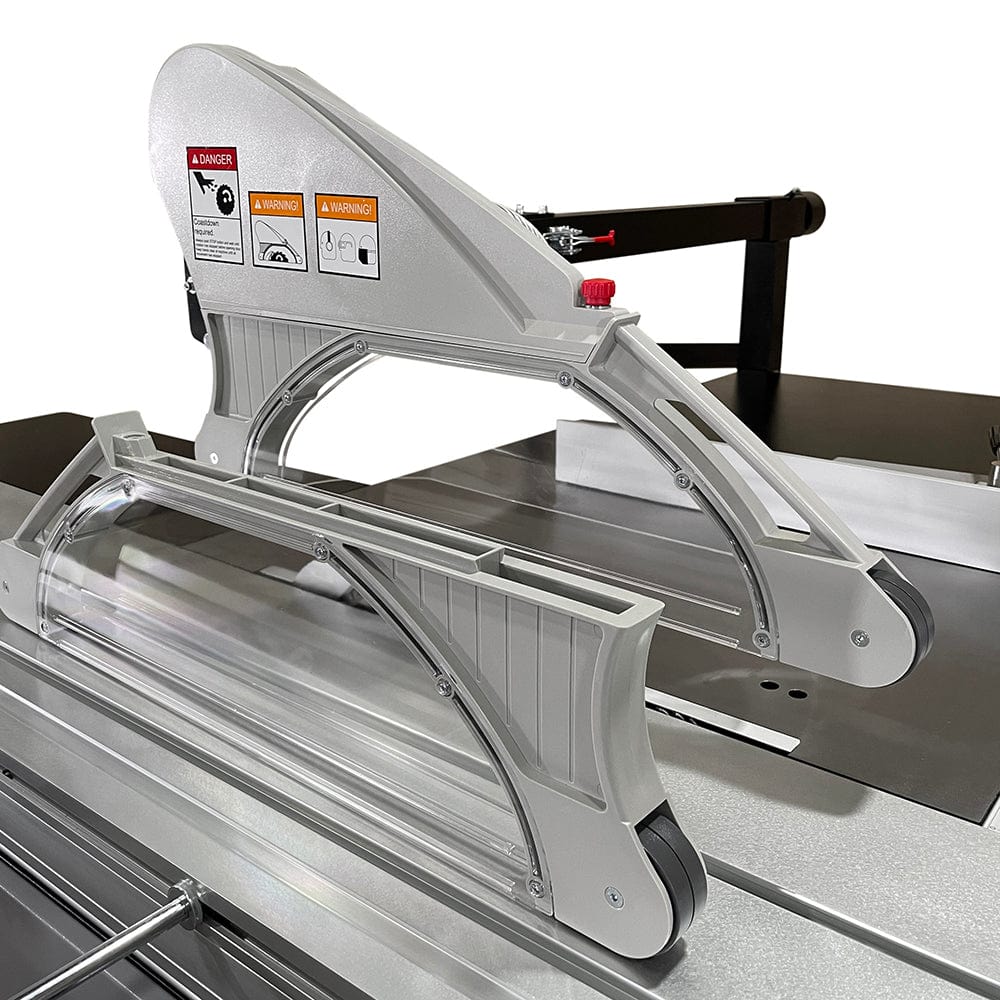

  • Maximum Safety & Flexibility- Dual overhead saw guard with a 4” dust port ensures safe operation and adaptability for large workpieces.
  • Modern Design Meets Comfort- Sleek aesthetics combined with superior operator comfort for an elevated user experience.
Specifications:
  • Sliding Table Dimension: 132”x 14 1/8”
  • Sliding Table Max Travel Length: 286”
  • Main Table with Supporting Table Width: 59”
  • Crosscut Fence Stoppers: 2

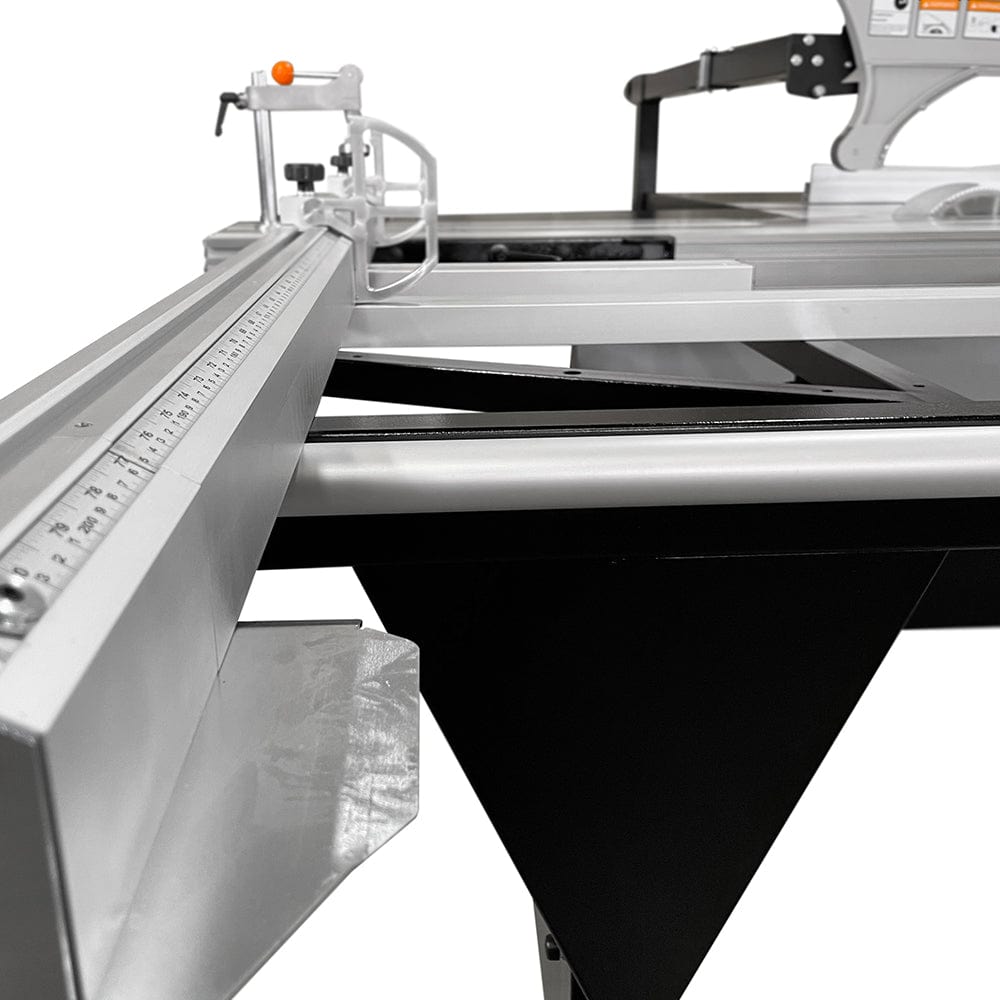

  • Crosscut Fence: Tape
  • Crosscut Fence Max. Collapsed: 78"
  • Crosscut Fence Max. Extended: 140"
  • Rip Fence bar: Solid Steel Micro Polished: 2"
  • 2 Blade Covers 90° & 45°
  • Lockable Main Power Switch

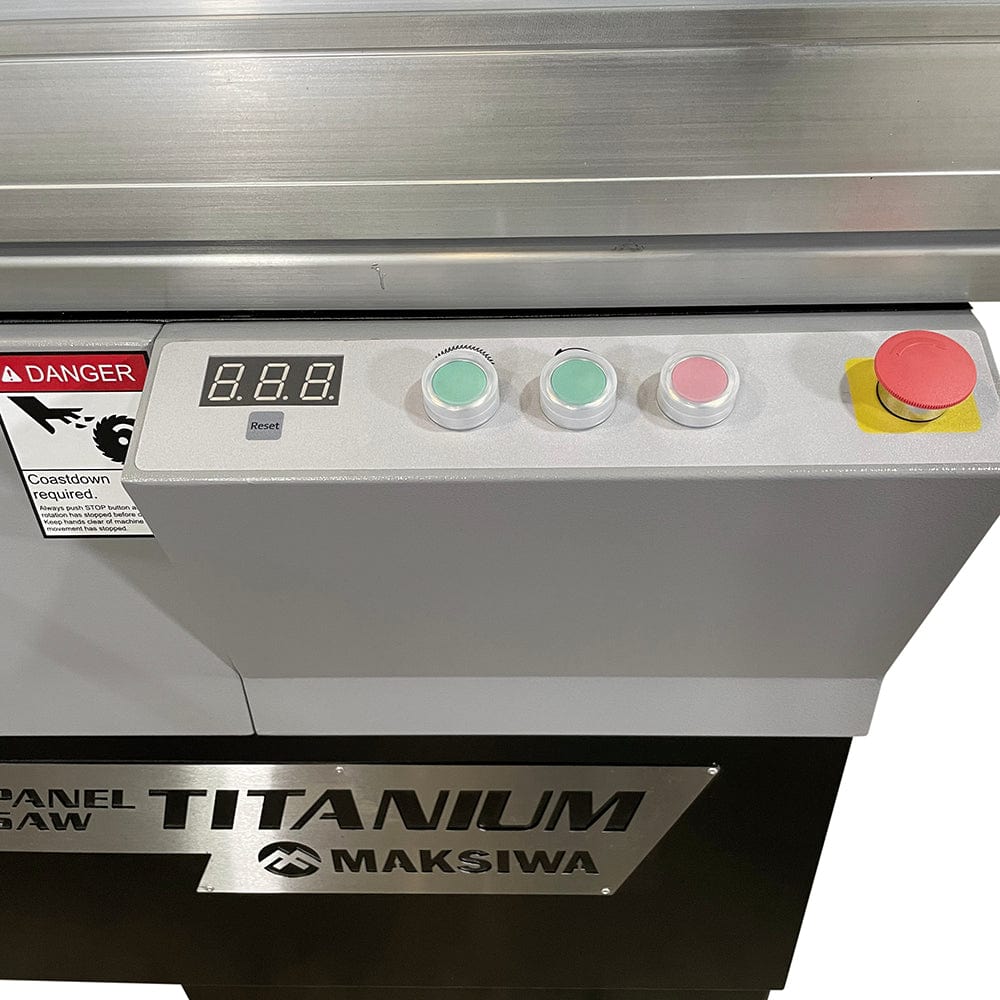

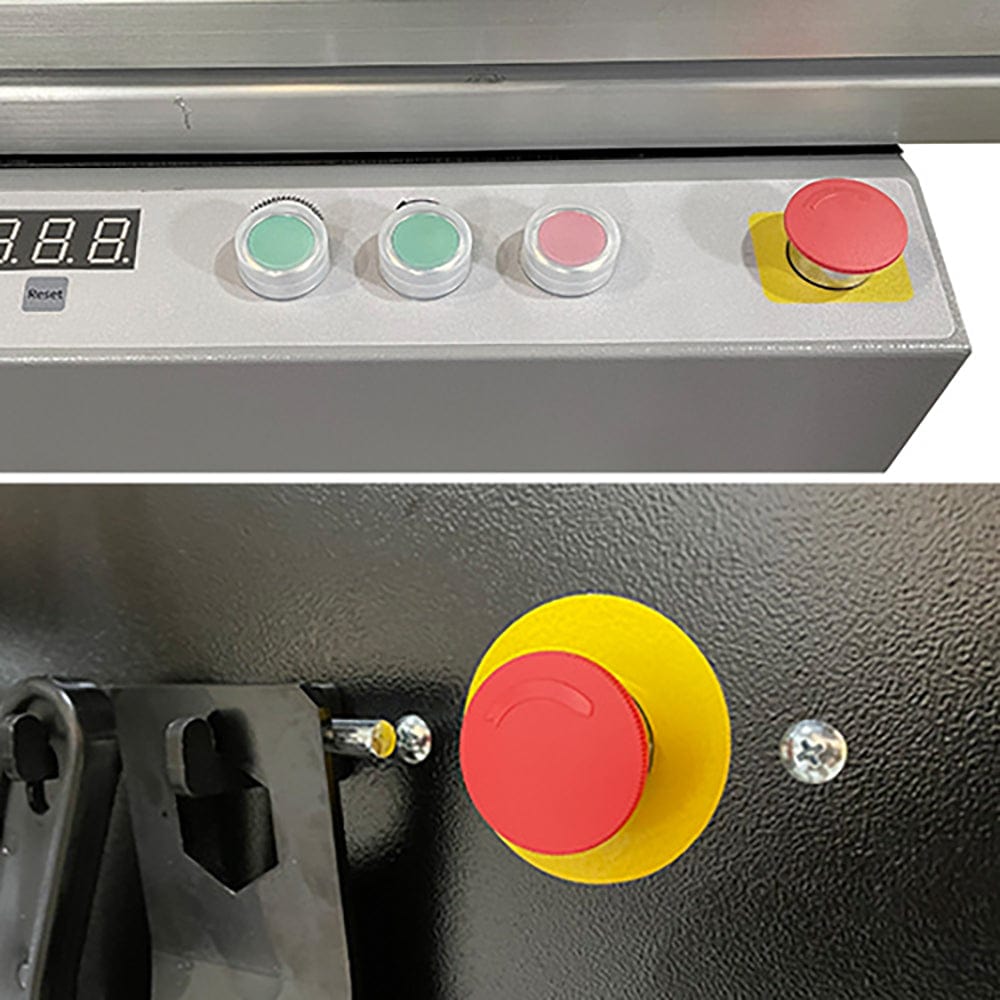

  • 2 Emergency Buttons
  • Hold Down Clamp: Included
  • Max Tilt: 45°
  • Max Depth Cut: 3"
  • Max Cutting Length: 120”
  • Max Cutting Height with Blade at 90°: 3 1/2" / 90mm
  • Max Cutting Height with Blade at 45°: 2 3/8" / 62mm
  • Digital Tilt Display
  • Weight N/G: 1519 LBS / 1752 LBS
  • Machine Dimensions (collapsed): L 132” X W 135” X H 65’’
  • Machine Dimensions (extended): L 192” X W 280” X H 65’’
  • Main Blade Diameter: 12” / 305mm
  • Main Blade Arbor Size: 1” 3/16" / 30mm
  • Scoring Blade Diameter: 4 ¾’’ / 120mm
  • Scoring Blade Arbor Size: 3/4” / 20mm
  • Scoring Blade Adjustment: T-Handle through cast top
  • Main Blade Diameter: 12” / 305mm
  • Main Blade Arbor Size: 1” 3/16" / 30mm
  • Scoring Blade Diameter: 4 ¾’’ / 120mm
  • Scoring Blade Arbor Size: 3/4” / 20mm
  • Scoring Blade Adjustment: T-Handle through cast top

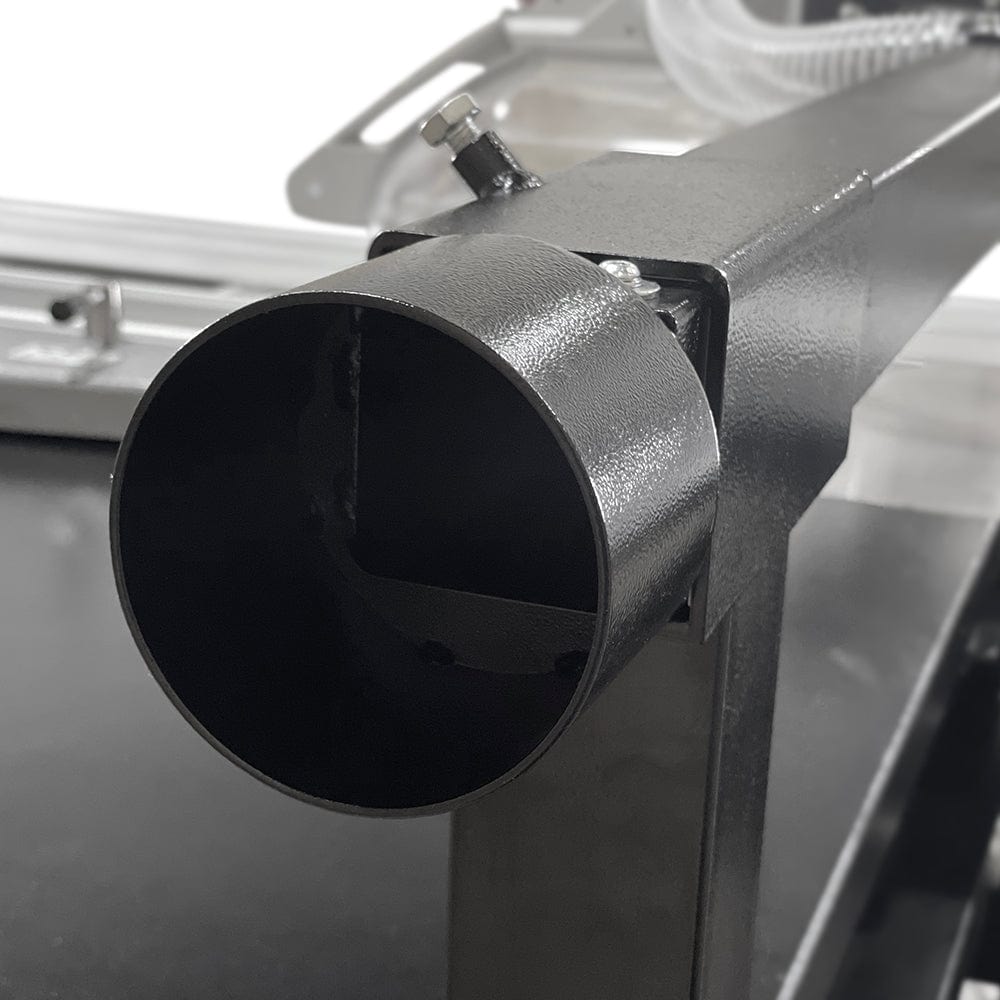

  • Port 1 Diameter: 4"
  • Port 2 Diameter: 4"
  • Minimum CFM needed: 1000 CFM
  • 1 Phase Model - 220V
  • 5 HP - 24 Amps 60 HZ 3.7 KW
  • Blade Speed 4000 RPM
  • Scoring motor:
  • 3/4 HP - 6 Amps 0.55 KW
  • Blade Speed: 8000 RPM

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5-7 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Any suspected damage must be reported on bill of lading for all freight items

Return Information

If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. All Returns must have a RGA or will be refused. Customer is responsible for all return freight.

Warranty Information

Maksiwa warranty's Power Tools for 2 years. If you have a warranty question, please contact Maksiwa Customer Service at 754/2276096
