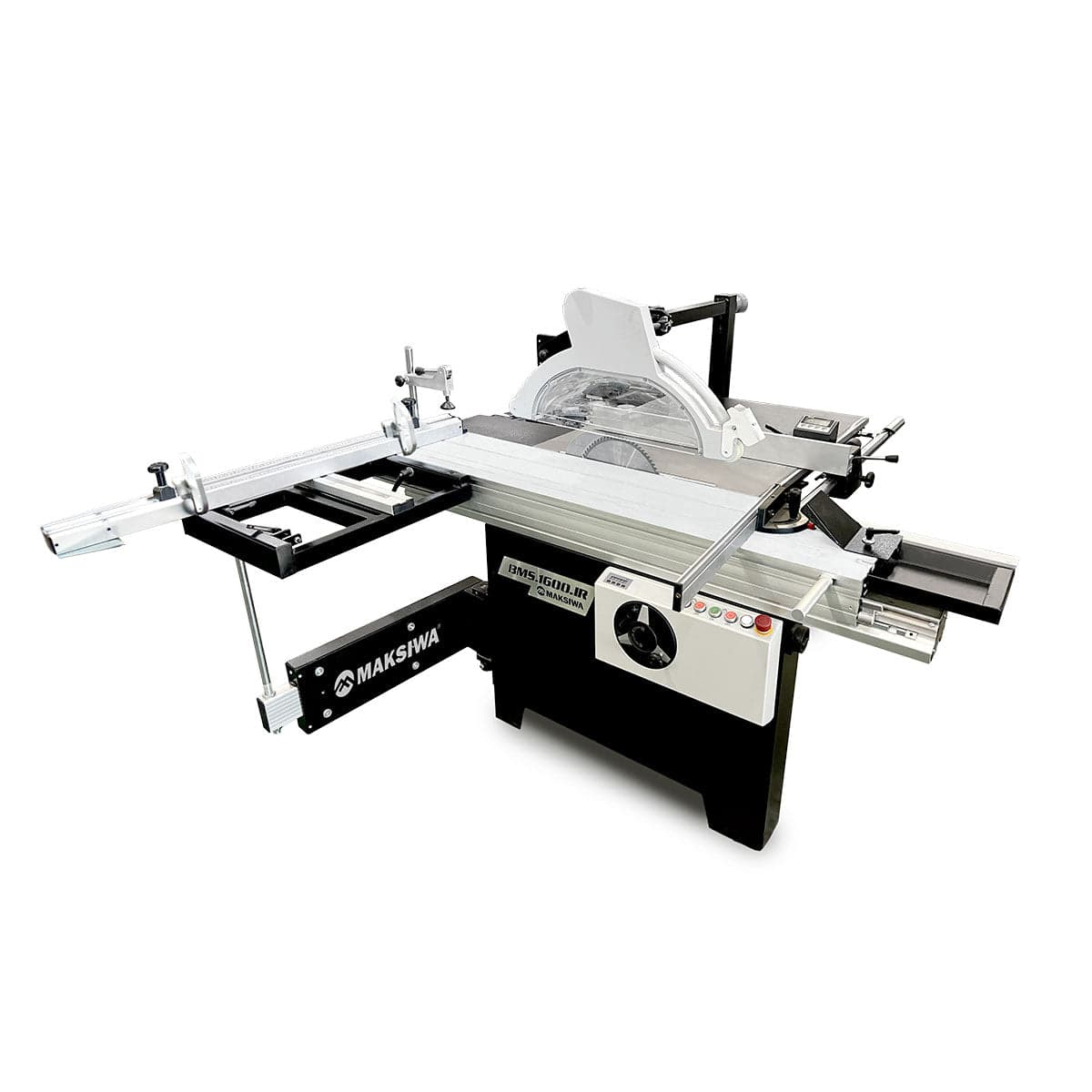

When you just can’t fit a full 10’ slider in your shop turn to Maksiwa, they are always listening to woodworkers, which is why they are introducing their smallest sliding panel saw to you. The new BMS.1600.IR is almost half of the size with the same 5 HP and blade capacity as the bigger BMS.3200.IR!
Specifications
- Sliding Table Dimensions: 63" x 14"
- Main Table with Supporting Table: 31.5" x 40"
- Crosscut Fence Collapsed: 50"
- Crosscut Fence Max Extended: 85"
- Rip Fence Bar Solid Steel Micro Polished: 1"

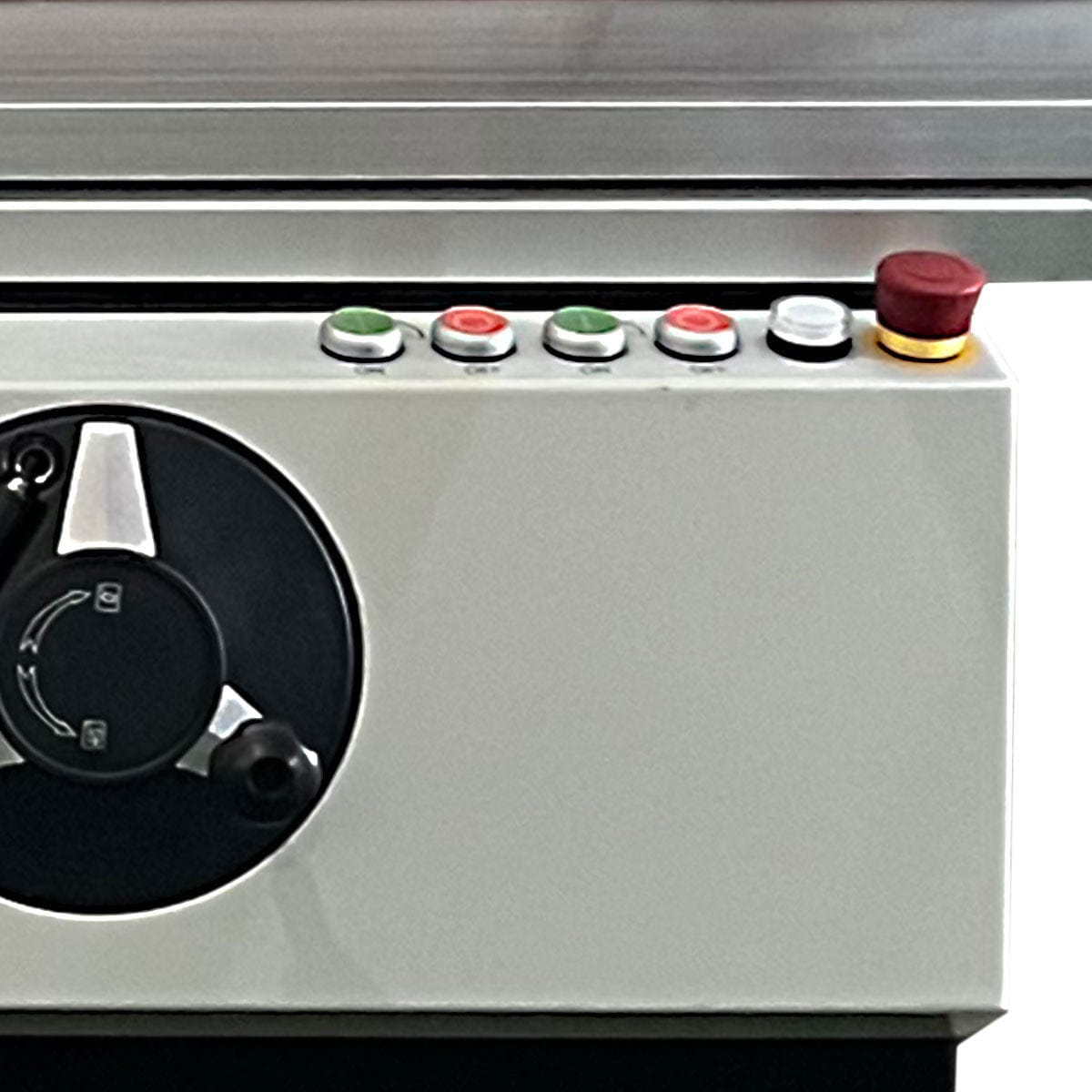

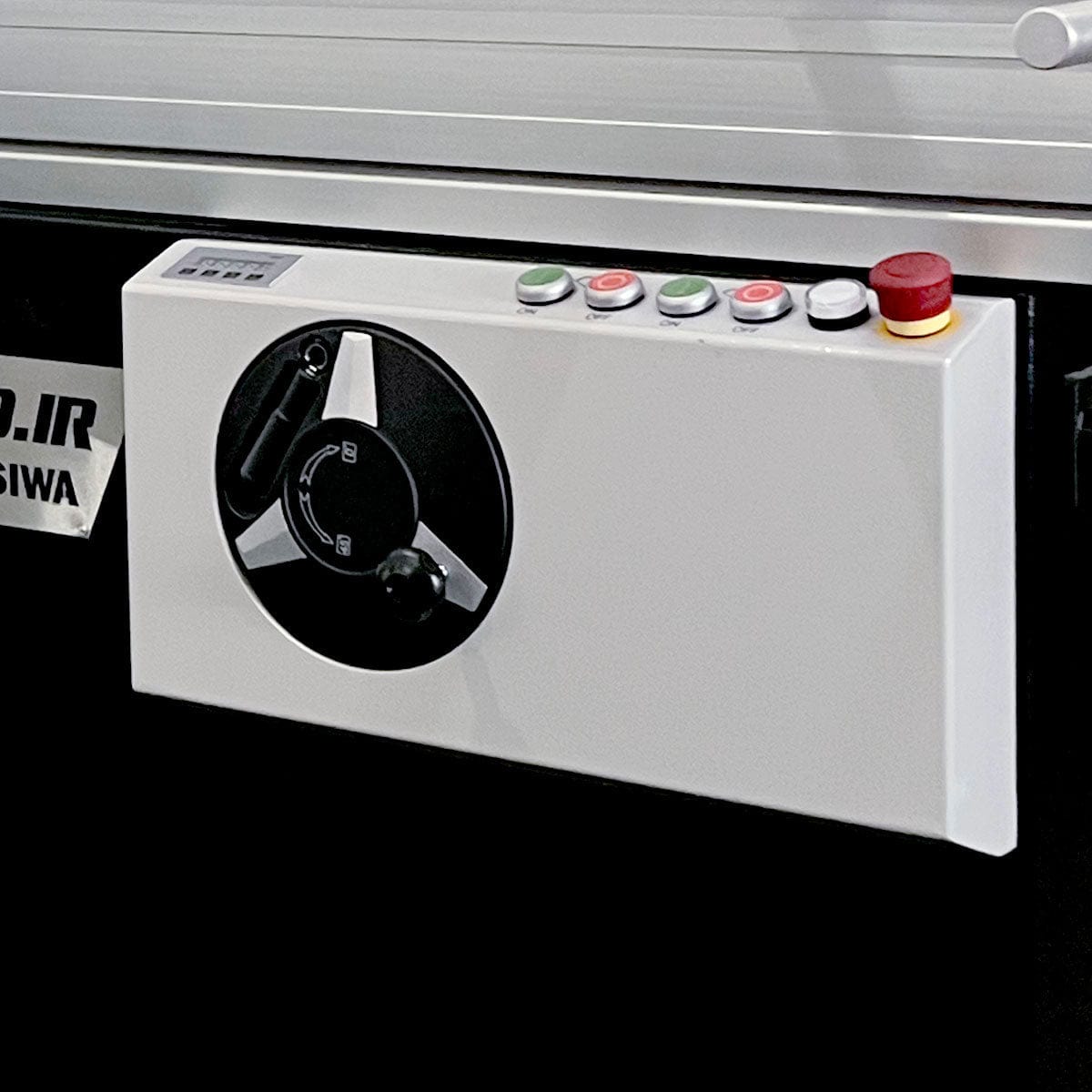

- Emergency Button
- Crosscut Fence Flip Stopper
- Max Tilt: 45 Degrees
- Max Depth Cut: 3"
- Max Cutting Length: 62"
- Max Cutting Height with Blade at 90 Degrees: 3.5"/90mm
- Max Cutting with Blade at 45 Degrees: 2.4"/62mm

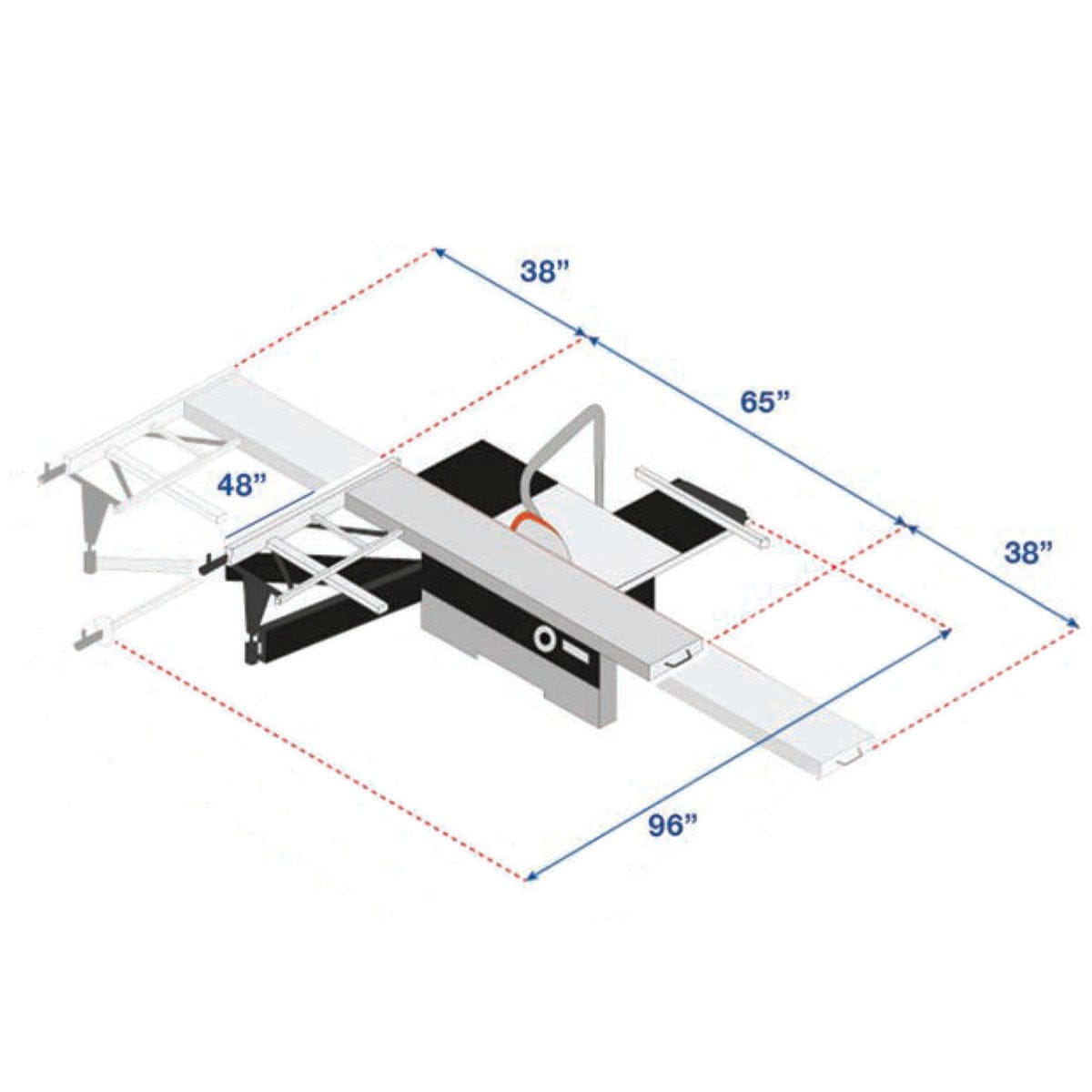

- Machine Dimension (collapsed): 66"L x 98"W x 42"H

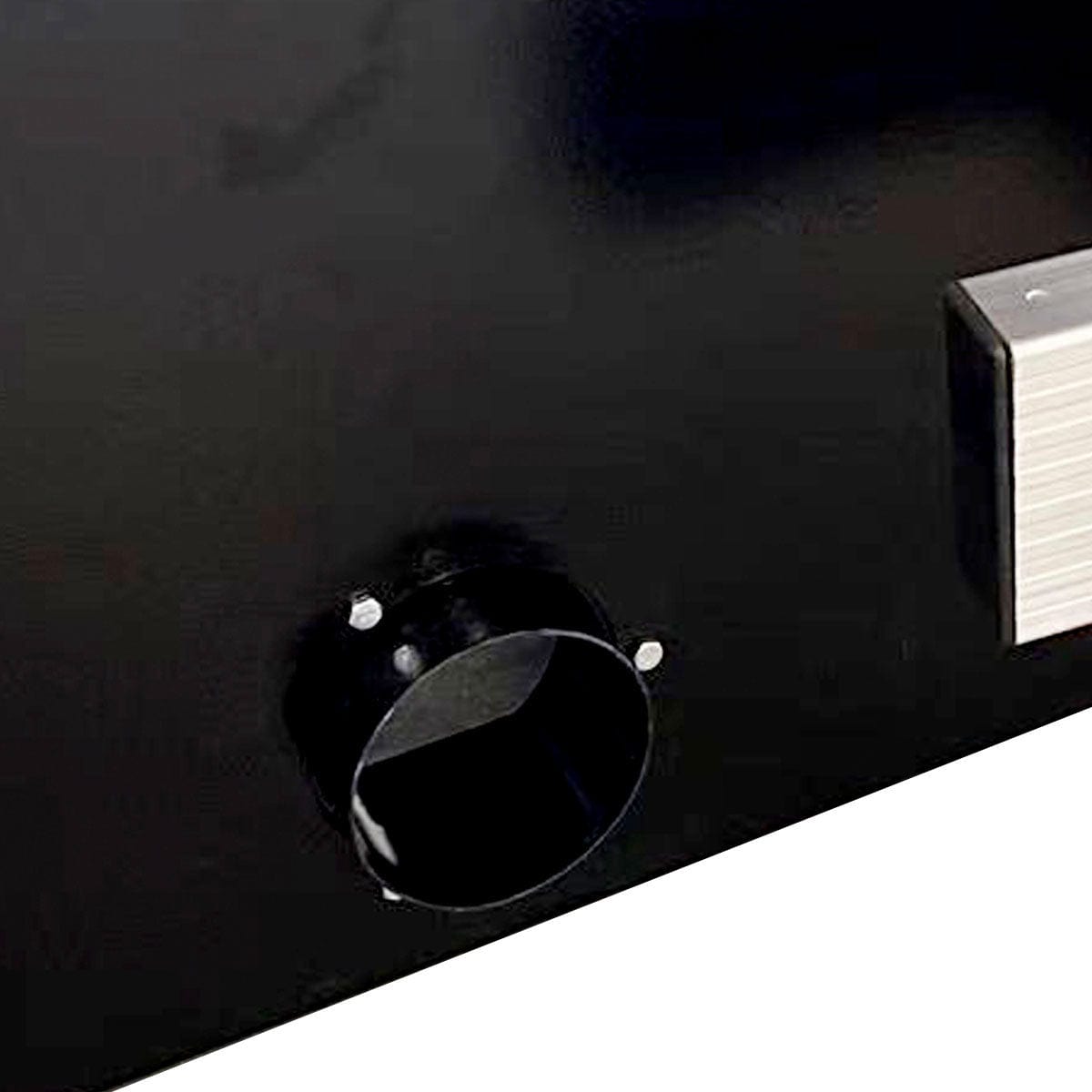

- Main Side Dust Port: 4"
- Motor: 5HP Motor, 1PH 220V
- Main Motor Blade Speed: 4000 RPM
- Scoring Motor: 1HP, 6 Amp, 0.55KW
- Scoring Motor Blade Speed: 8000RPM
- Main Blade Diameter:305mm
- Main Blade Arbor Size: 30mm
- Scoring Blade Arbor Size: 20mm
- New Design, more Ergonomic, Improved Construction and Materials

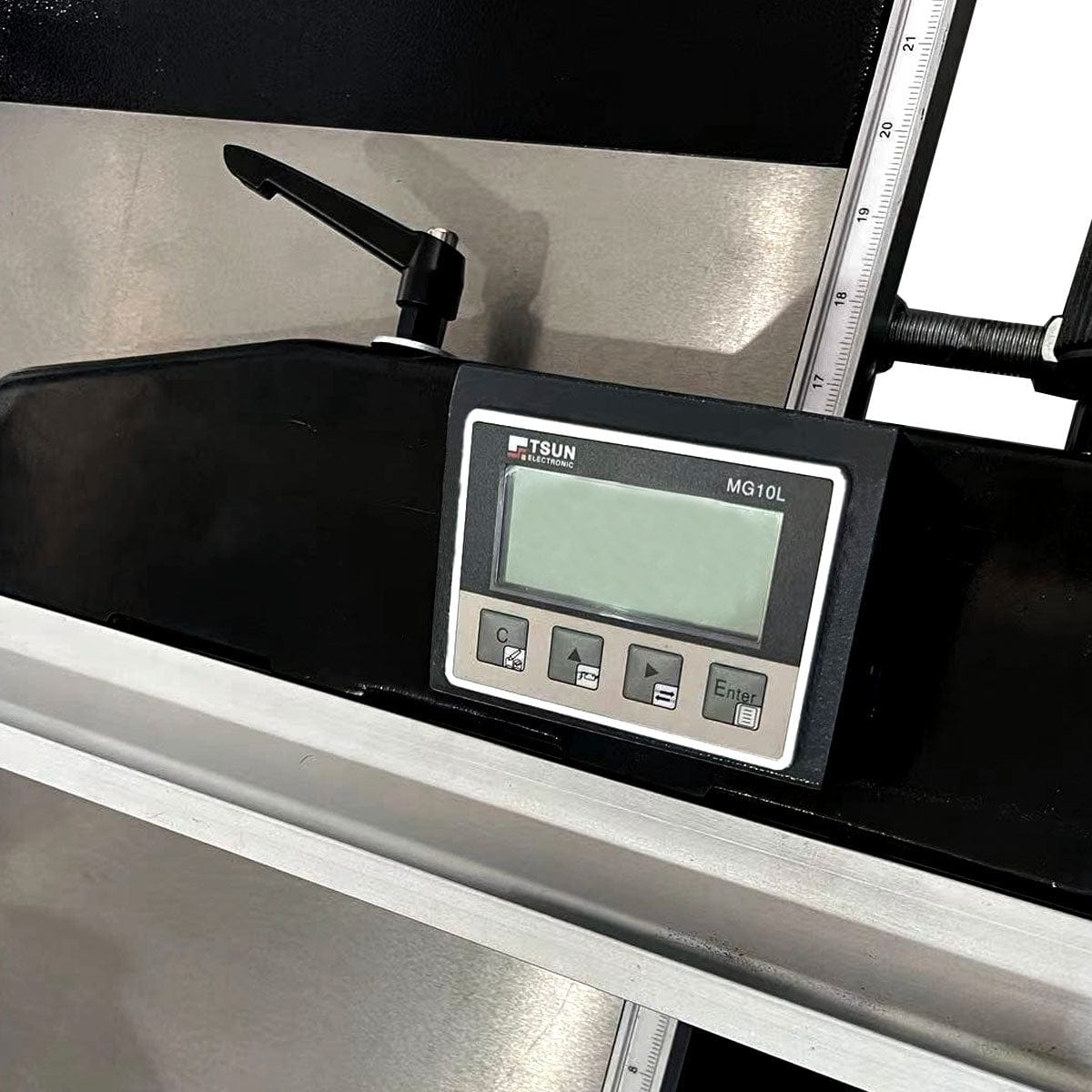

- Digital Rip Fence Read Out
- Dual Blade Covers (straight and bevel cuts
- New Sheet Clamps, Wood Stopper and Slider Handle
- Integrated Dust Collection Exhaust on Swing Away Arm
- 2 Flip Stops
- Adjustable Leveling Feet
- Digital Angle Display 90 degrees to 45 degrees
- Rip Fence with Micro Adjustment
- Set of Blades included (Main 12" & 4-3/4" Scoring

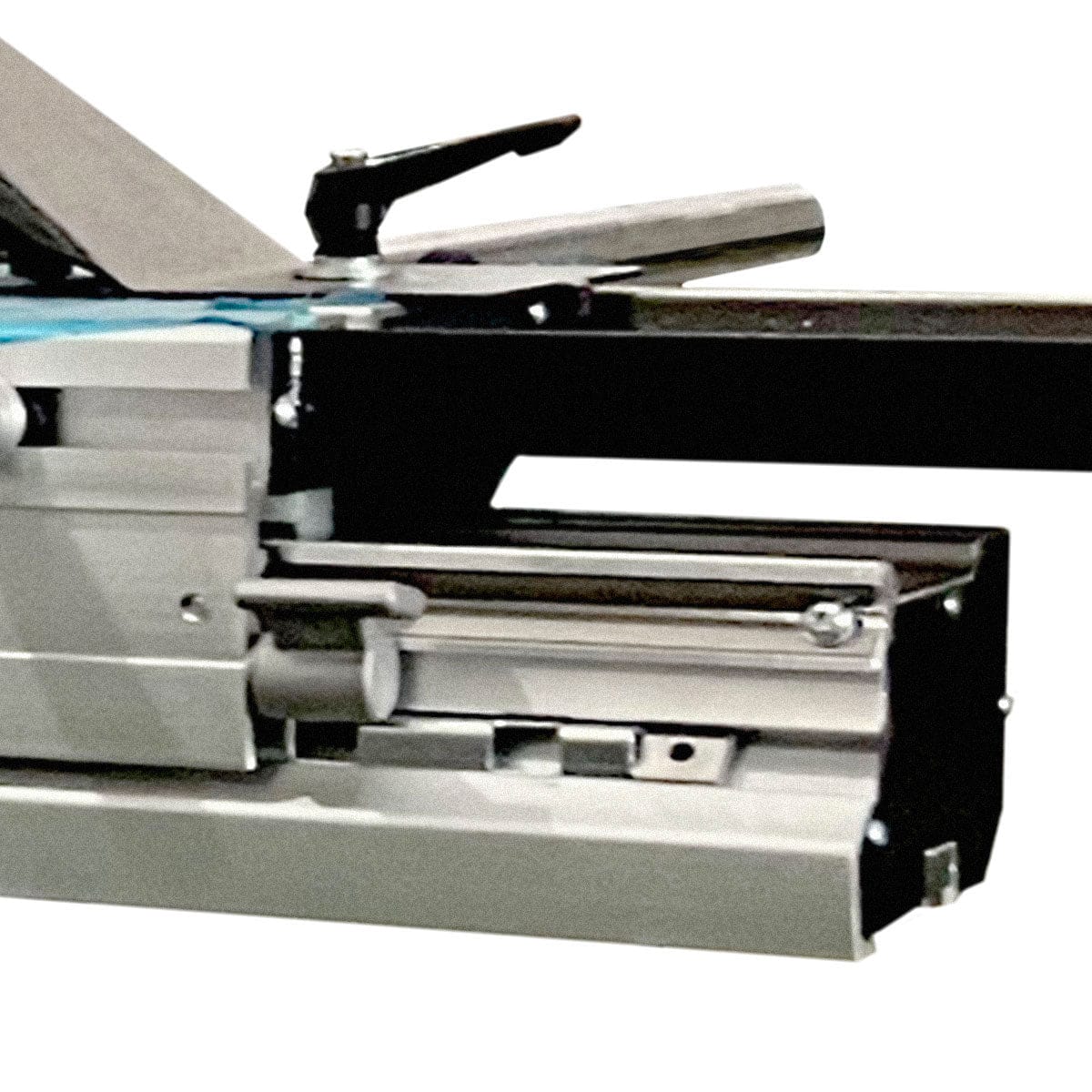

- Sliding Table Mechanism:
- Accepts a Dado Blade
FAQs
What is the maximum sheet capacity and sliding table length?
Sheet capacity and sliding table length vary by configuration, but this saw is designed to handle full-size panels with a long, stable sliding table. It’s built for accurate breakdown of large sheet goods.
What accessories, fences, scoring units or drives are included?
The saw typically includes a sliding table, rip fence, crosscut fence, and basic hold-downs, with some models offering a scoring unit. Always check the specific package details to confirm included components.
