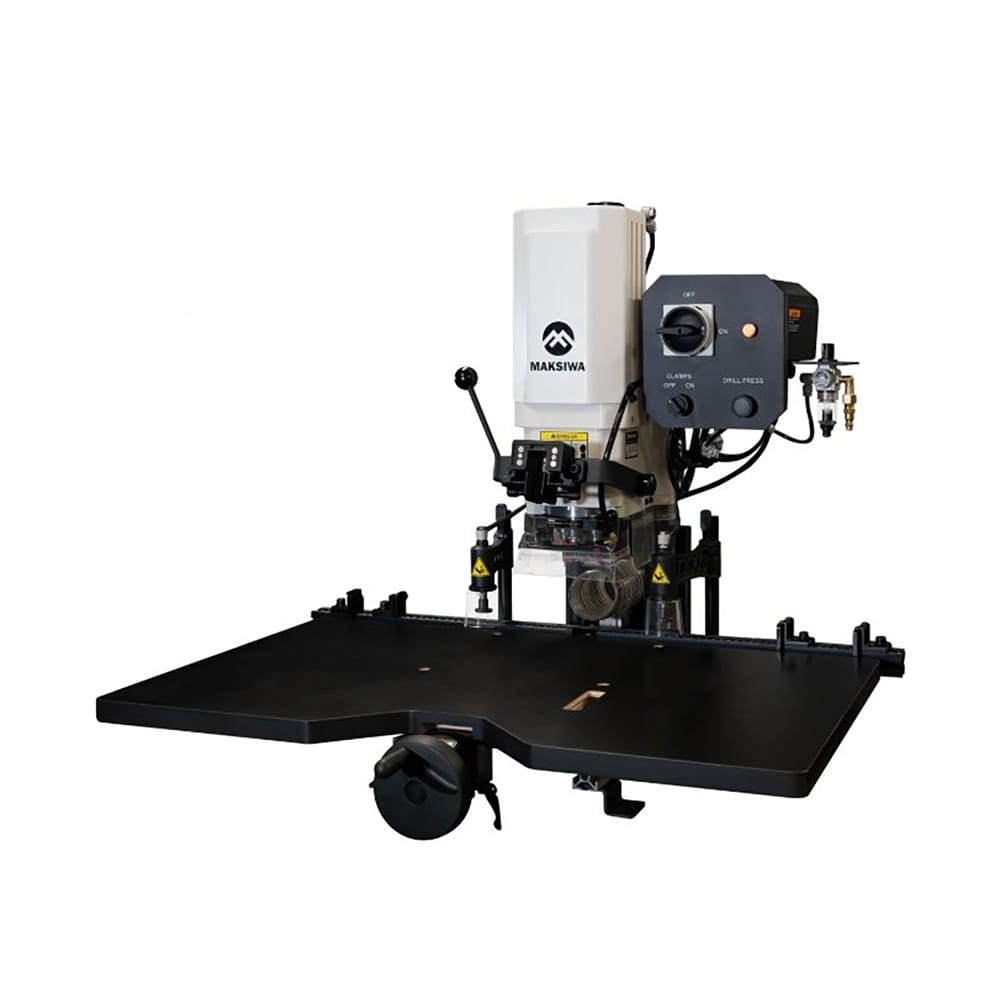

The Maksiwa HBM.1000 Hinge Boring Machine delivers fast, repeatable hinge installation in a compact footprint. Designed for cabinet and furniture production, this machine bores accurate 35 mm hinge cups and supporting hardware holes in a single setup, helping reduce layout time while maintaining consistent results for concealed hinges.
A 1.5 HP motor drives carbide-tipped boring bits for clean, reliable hole quality. Multiple drilling patterns and a quick-set boring distance make it easy to adapt to different hardware requirements without slowing production. Integrated dust collection helps maintain a cleaner work area and improves visibility during repetitive operations.
The HBM.1000 combines boring and insertion functions in one machine, streamlining workflows that traditionally require multiple steps. Adjustable stops support repeatable positioning while the compact design conserves valuable floor space in production environments. For shops adding efficiency to cabinet assembly, hinge preparation and hardware installation, this machine delivers dependable performance and consistent accuracy.
Features:
- All-in-one boring and insertion capability
- 1.5 HP motor
- 35 mm hinge cup boring
- Carbide-tipped boring bits
- Multiple drilling patterns
- Quick-set boring distance adjustment
- Integrated dust collection
- Compact footprint for production areas
- Two left and two right positioning stops
- Suitable for cabinetry and furniture manufacturing
Specifications:
- Voltage: 110V/220V, Single Phase
- Current Draw: 13.6A (110V) / 6.8A (220V)
- Motor Power: 1.5 HP / 1.1 kW
- Motor Speed: 3400 RPM
- Table Size: 18" x 31-1/2"
- Table Height: 5-3/8"
- Table Depth: 2-3/4"
- Hinge Cup Bit Diameter: 35 mm
- Hinge Cup Bit Type: Carbide-Tipped
- Hinge Cup Bit Rotation: Right
- Hinge Cup Bit Shank: 10 mm
- Hinge Cup Bit Length: 57 mm
- Drill Bit Diameter: 8 mm
- Drill Bit Type: Carbide-Tipped
- Drill Bit Rotation: Left
- Drill Bit Shank: 10 mm
- Positioning Stops: 2 Left / 2 Right
- Maximum Stroke Depth: 4-5/16"
- Boring Distance Center Spindle: 0-2-3/4" / 0-70 mm
- Air Pressure Requirement: 90 PSI
- Machine Dimensions: 33-7/16" x 28-3/8" x 31-1/2"
- Sound Rating: 78 dB
- Weight: 110 lb
- Warranty: 2 Years
