Leigh

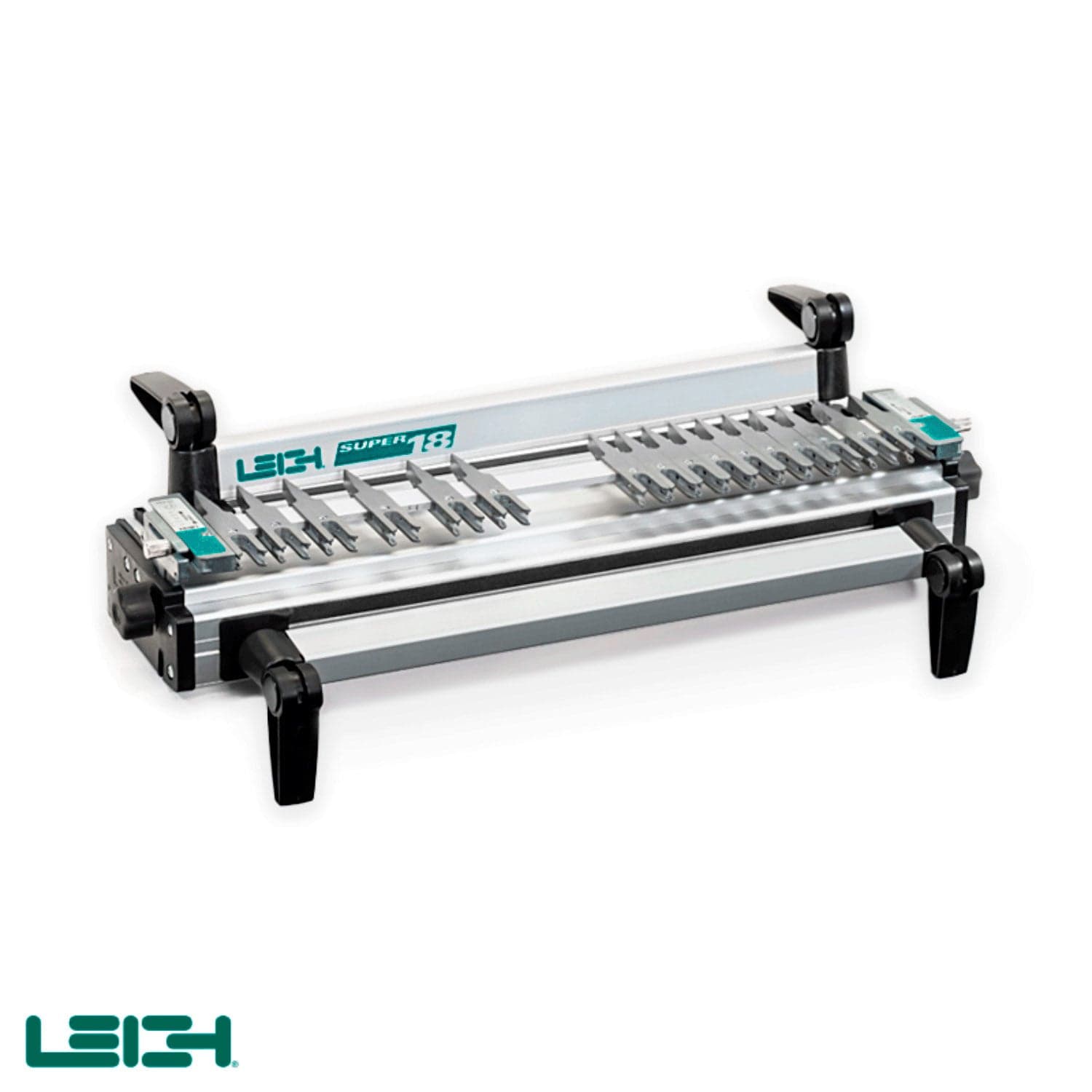

Super 18" Dovetail Jig

Item #148135 Model SUPER18
Regular price $499.00
Sale price $499.00 Regular price $499.00
Skip to product information
1 of 3

Leigh

Super 18" Dovetail Jig

Item #148135 Model SUPER18
Regular price $499.00
Sale price $499.00 Regular price $499.00
Super jigs offer extraordinary joint making capability at exceptional price points. No other jigs equal the versatility and precision of Leigh® s. . . View More Details

In Stock

Shipping Info

Items you may need

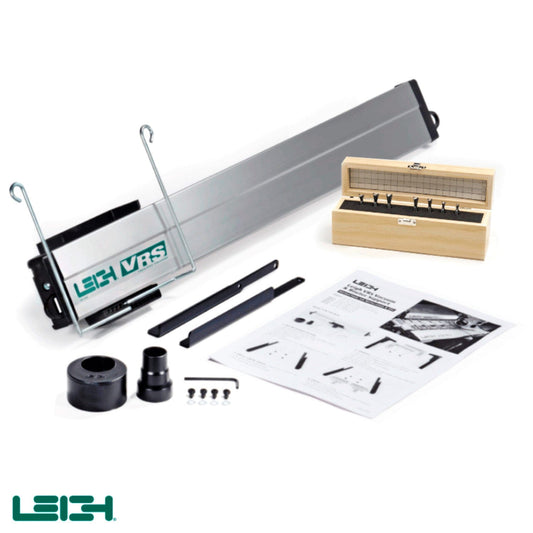

  • Accessory Kit for Super 18" Dovetail Jig - Router Bits and VRS

    Regular price $259.00
    Sale price $259.00 Regular price $259.00
    Accessory Kit for Super 18" Dovetail Jig - Router Bits and VRS alt 0
  • Super 18" Dovetail Jig With Accessory Kit

    Regular price $689.00
    Sale price $689.00 Regular price $689.00
    Super 18" Dovetail Jig With Accessory Kit alt 0

Details

Best Value





Super jigs offer extraordinary joint making capability at exceptional price points. No other jigs equal the versatility and precision of Leigh® super jigs. Variably spaced through and half-blind dovetails are standard on all super jigs. Infinitely adjustable one-piece fingers are easily positioned for any joint pattern, guaranteeing a half pin at each edge of the joint, regardless of board width. The cross-cut fence fits on the dovetail finger assembly to become a sliding dovetail template. Rout half-blind pin boards and tail boards at the same time using the included two-function spacer to offset the tail board and rout complete joints in one pass with the super jigs, you're not limited to one bit and one depth of cut.

Just select any of the five half-blind bits available and rout half-blind joints in the depth that best suits your project. The finger assembly can also produce two sizes of box joints, 5/16" and 5/8". The amazing joint making capability of super jigs is due in part to the revolutionary new Leigh E-bush. Very precise adjustments for fit are made easily with the E-bush. Settings are changed using the included pin wrench and the uniquely shaped locking nut makes tightening the E-bush a snap. Markings clearly indicate the adjustment direction necessary for the desired change. A simple twist of the E-bush changes its active diameter which in turn changes the fit of finger joints and half-blind dovetails. Easy to use cam action clamps and aluminum clamp bars hold the work piece securely against non-slip material applied to each clamping surface.

Features:


  • Super 18" dovetail jig
  • Infinitely adjustable one-piece fingers are easily positioned for any joint pattern
  • Fine-tune the fit of the fingers with Leigh's E-Bush template guide that adjusts in increments of .002"
  • Cross-cut fence fits on the dovetail finger assembly to become a sliding dovetail template
  • Rout half-blind pin boards and tail boards at the same time
  • Finger assembly can produce two sizes of box joints, 5/16" and 5/8"
  • Easy to use cam action clamps and aluminum clamp bars hold the work piece securely
  • Non-slip material on every clamping surface
  • Includes 3 router bits
  • Made in Canada

Specifications:

  • Jig Size/Capacity: Accepts boards up to 18"
  • Maximum Board Thickness - Half-Blind Dovetails: 1″
  • Maximum Board Thickness - Through Dovetails: 13/16"
  • Router Bit Shank Size: 8 mm

What's Included:

  • (1) Jig main body
  • (1) 1/2" 8° dovetail bit
  • (1) 1/2" 14° dovetail bit
  • (1) 5/16" straight bit
  • (1) 1/2" to 8mm collet reducer
  • (1) Leigh E Bush, Nut and Pin Wrench
  • (1) Sliding dovetail fence
  • (1) Half-blind bridge piece material
  • (1) Square drive screwdriver (finger adjustment)
  • (4) Cam action speed clamps
  • (1) Spacer
  • (1) Fully illustrated user guide
