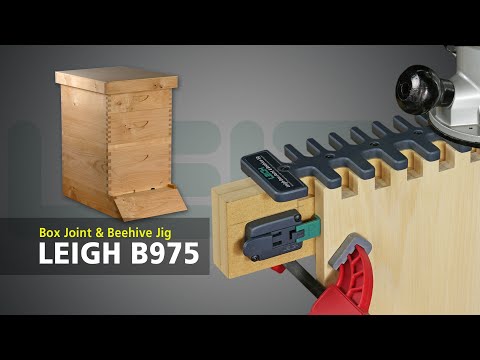

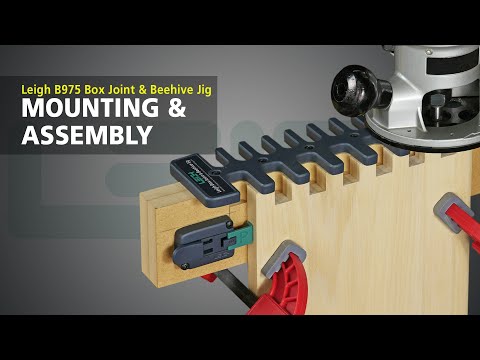

Leigh® Model B975 is a multipurpose box joint jig. It is a simple, easy-to-use tool for making 1/2" and 3/4" box joints on boards up to 13/16" thick, and from 2" to 17-13/16" wide. Simply guide your router around the 1/2" or 3/4" comb of the template. Based on numerous requests from beekeepers, the B975 was designed to make several sizes of beehive supers using 1/2" and 3/4" joints.

Features:

• Easy to use jig for storage boxes, drawers and beehive supers
• 1/2" and 3/4" box joints on board thickness 1/8" to 13/16"

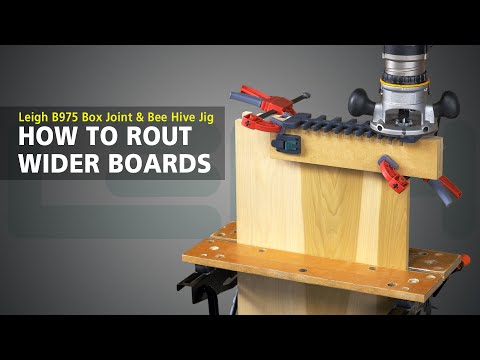

• Maximum 9-3/4" board width using full jig width, 17-13/16" using step-over procedure

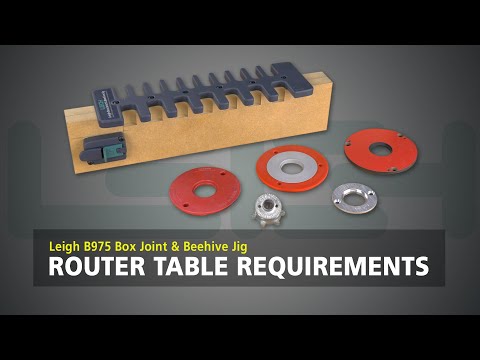

• Works on a router table for boards up to 9-3/4" wide
• Elliptical e10 guide bushing lets you adjust the fit by as little as 1/1000''

Specifications:

• Stock Width Range: 2'' to 17-13/16'' wide (in the bench mode)
• Maximum Stock Thickness: 13/16''
• Jig Width: 9-11/16" (246 mm)
• Model Number: Leigh B975

What's Included:
The Leigh Box Joint and Beehive Router Jig includes:

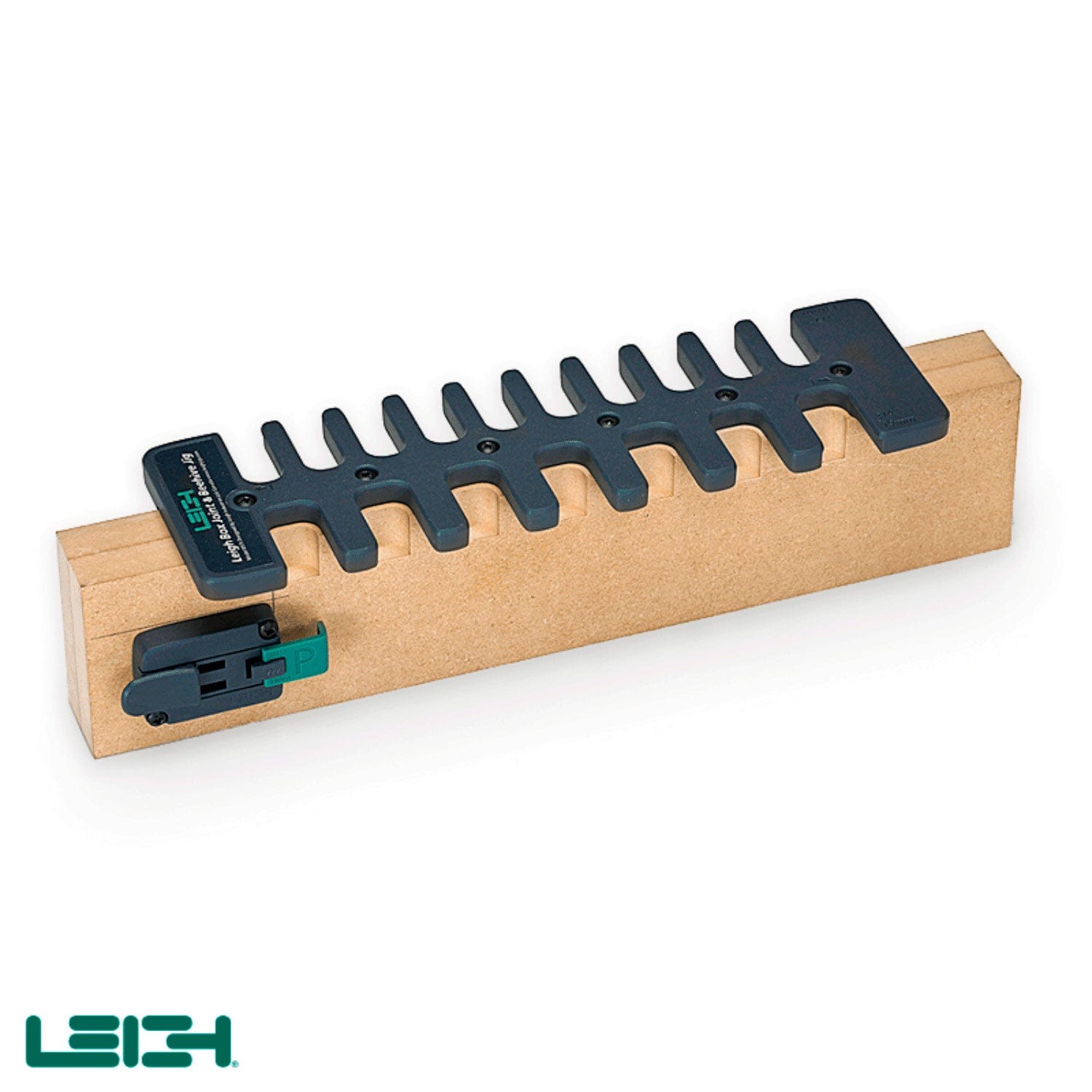

• (1) Glass-reinforced nylon template
• (1) e10 elliptical guide bushing
• (1) Pin wrench for e10 adjustment
• (1) 1/2'' straight router bit 160
• (1) 3/4'' Adjustable side stop
• (1) 1/2'' Adjustable side stop
• (1) 3/4'' Step-over cam (for routing wide boards)
• (1) 1/2'' Step-over cam (for routing wide boards)
• (10) 1'' Phillips head screws for mounting
• (1) User guide
